DIGITUS

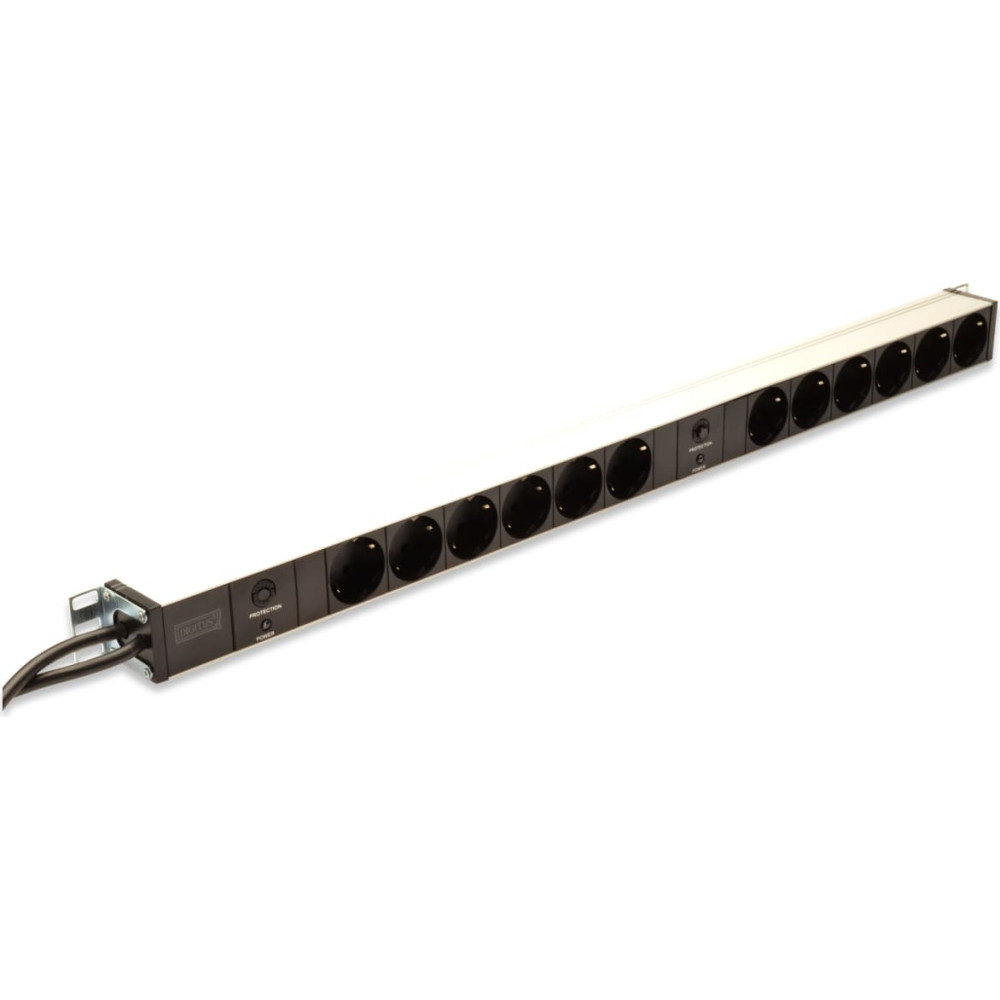

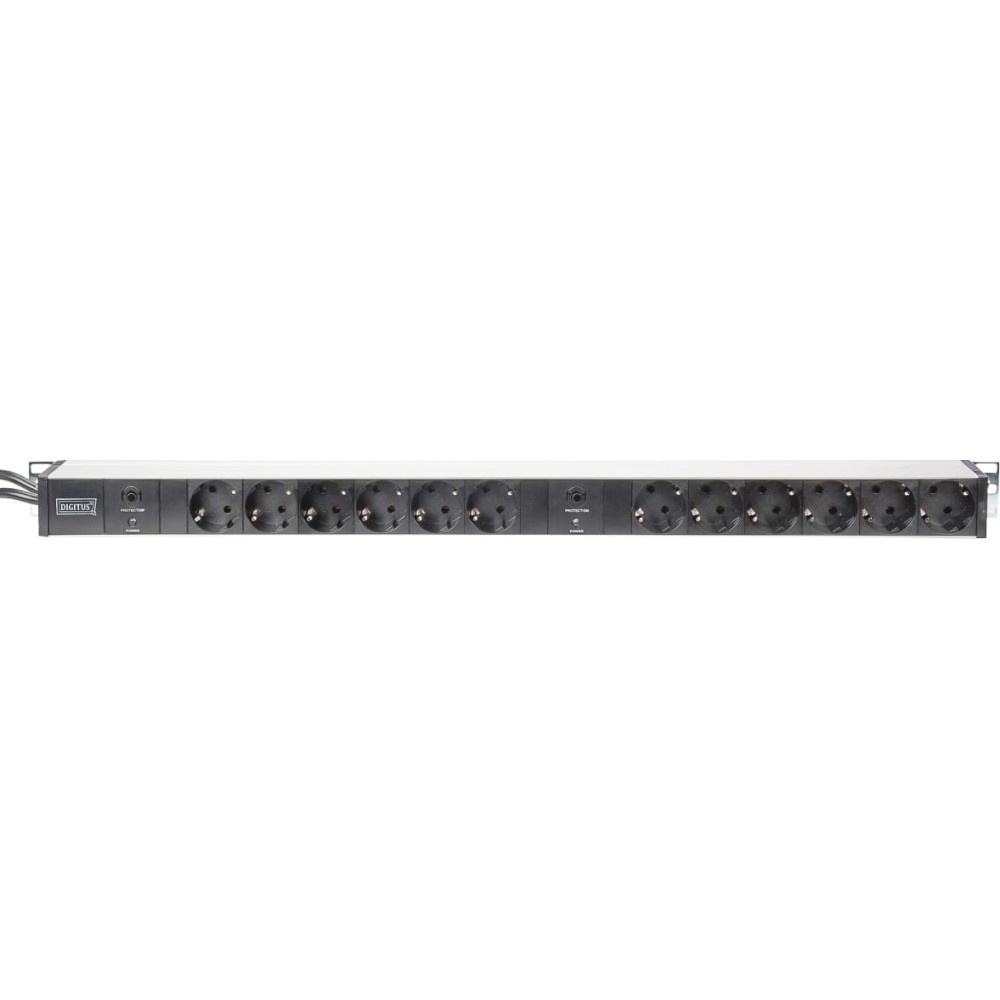

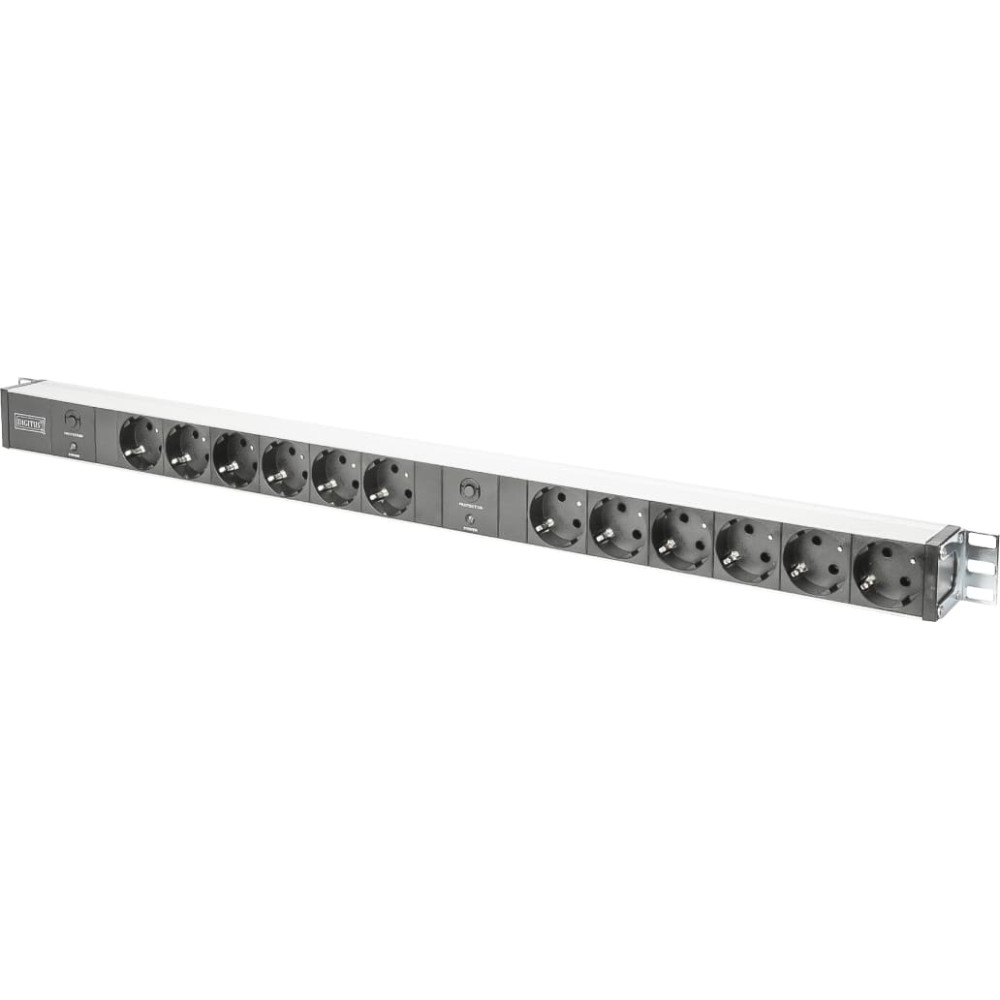

Digitus aluminum outlet strip with overload protection, 12 safety outlets, 2 x 2 m supply safety plug

Product Code: DN-95405
Barcode 4016032266433

To purchase this product you must be registered in our system.



Specification
country of origin: CN
depth: 0.085
height: 0.110
height(cm): 7
length(cm): 9.3
volume(cm3): 5208
weight(kg): 2.315
width: 0.930
width(cm): 80

Description
Aluminum PDU, rackmountable, 12x safety outlet 2x 16A, 250VAC 50/60Hz, overload protection

Safe and professional power supply with overload protection and 2 feeds

Perfect power distribution for your network and IT rack
2 independent feeds in a compact housing for more space in the rack
Outlets are turned by 45° which ensures space management and easy access
An integrated overload protection per feeder protects connected loads from overloads

The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets requirements of many applications in IT, network technology, laboratories as well as the home. The power strip can be mounted vertically in the rack. The PDU has 2 separate supply lines. An integrated overload protection per feed protects the connected loads from overload. Depending on the rack type, it is possible to mount the PDU with the taps facing right or left.

Current: 16 A
Input Plug: CEE7/7
Installation: Rack 0U
Outlets: CEE 7/3
Phase: 1ph
Power: 7,3 kVA
Volts: 230 V
2 independent feeds
Overload protection per infeed, interruption capacity: 1000 A

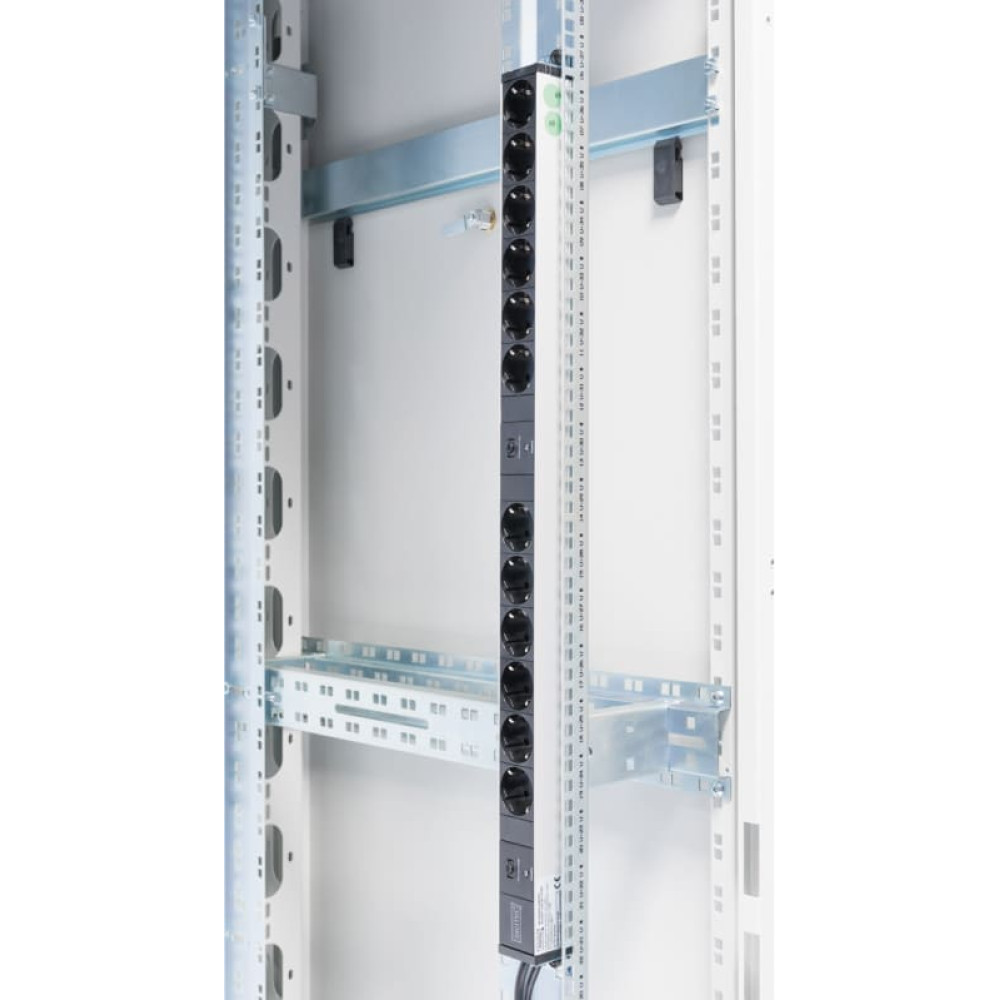

Vertical installation
Rotation of the cans: 35°
Housing: Aluminum
Plastic components made of ABS UL-94V-0
Input: 2 x safety plug CEE 7/7, 230 Vac / 16 A
Output: 2 independent groups, each with 6 x DIN 49440 socket outlet with earthing contact, max. 16 A per output
Supply line: 2 feeds, 2 x cable cross-section: 1.5 mm² , length: 2 m
Dimensions: 767.6 x 45 x 45 mm (HxWxD)

Package content:
Scope of delivery: 1 socket strip, 2 mounting brackets; 1 safety instructions
