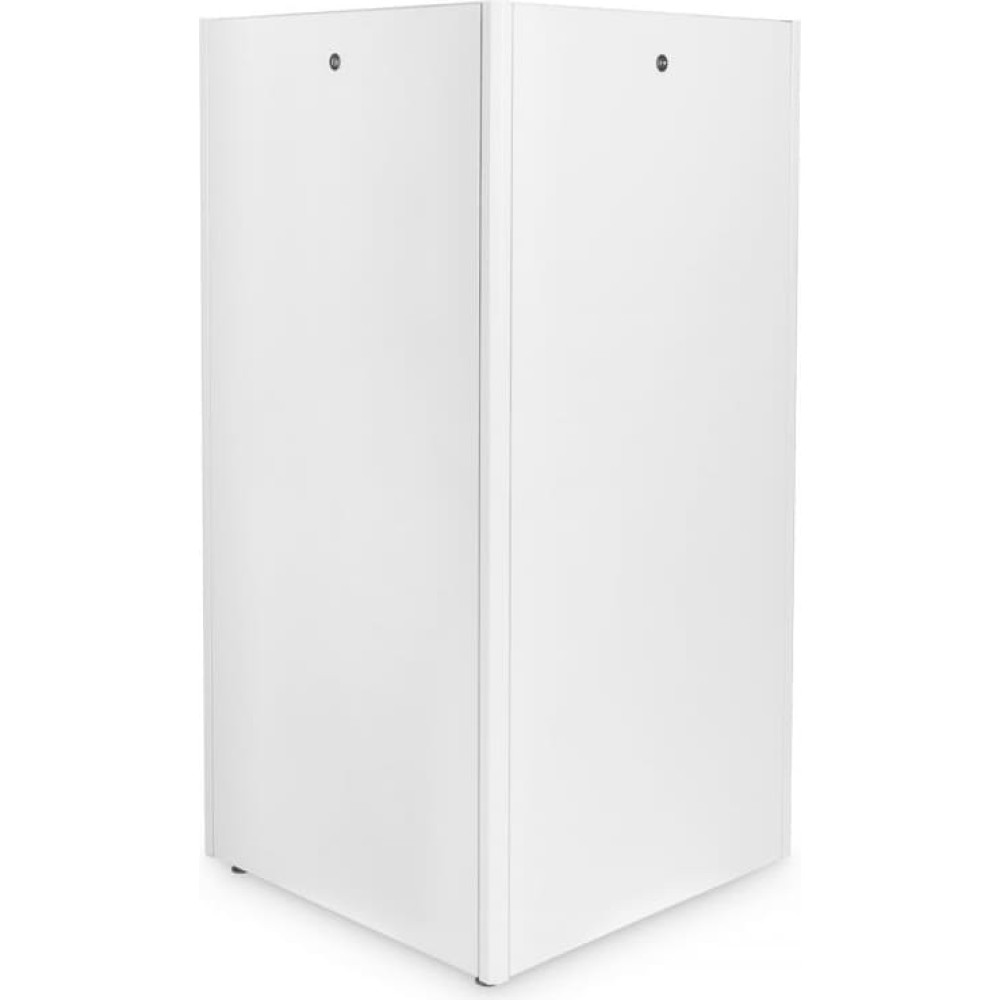

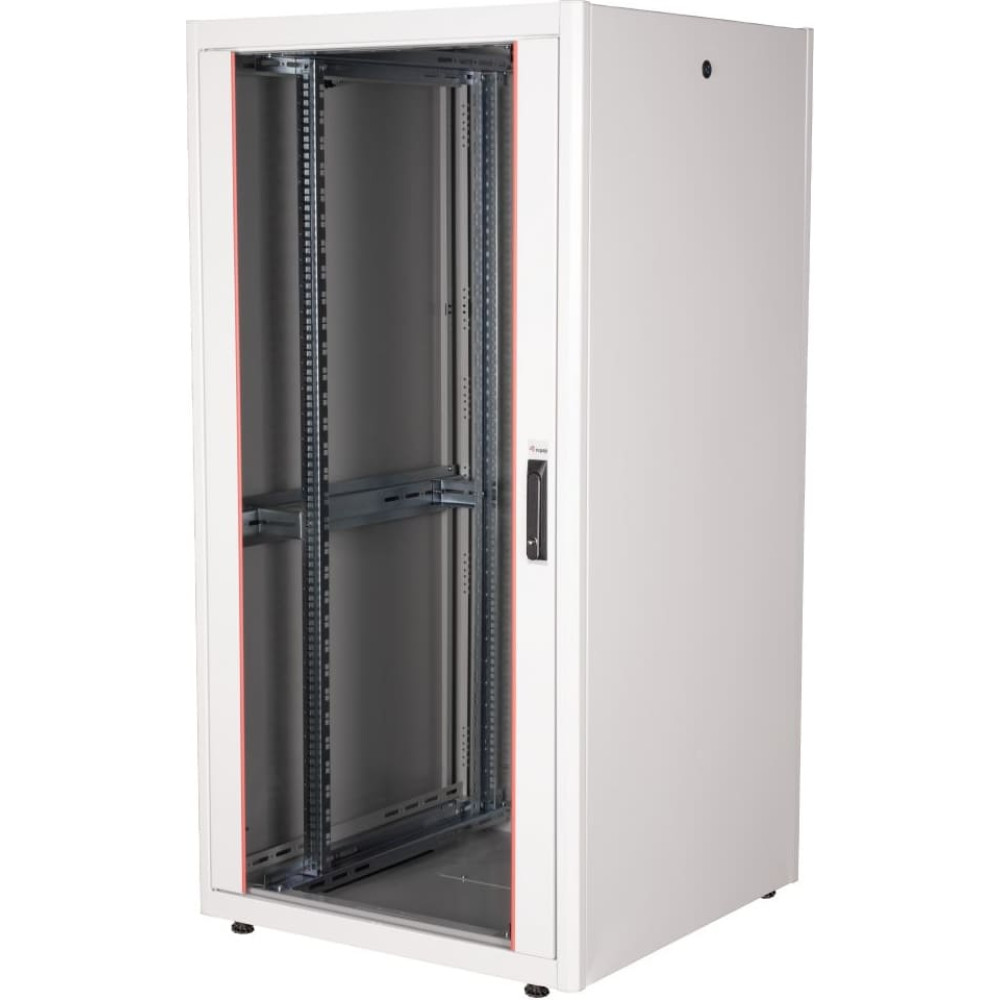

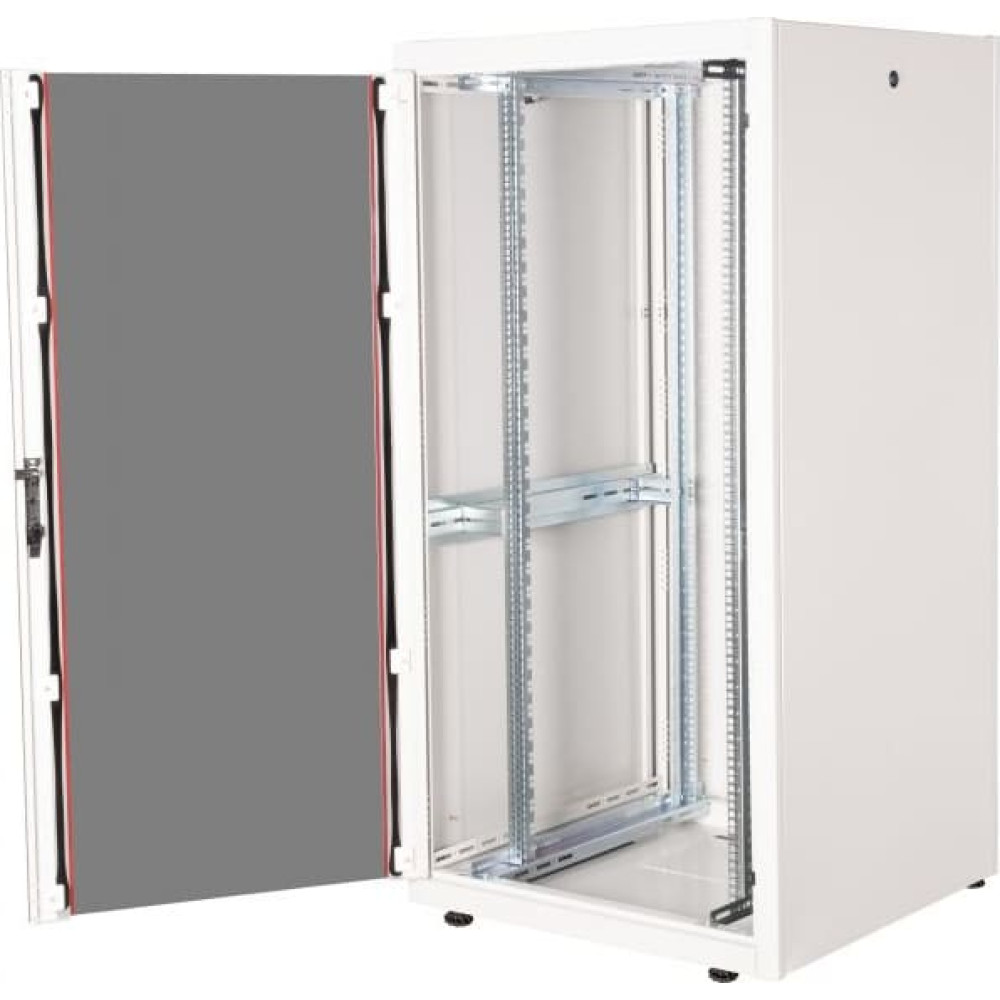

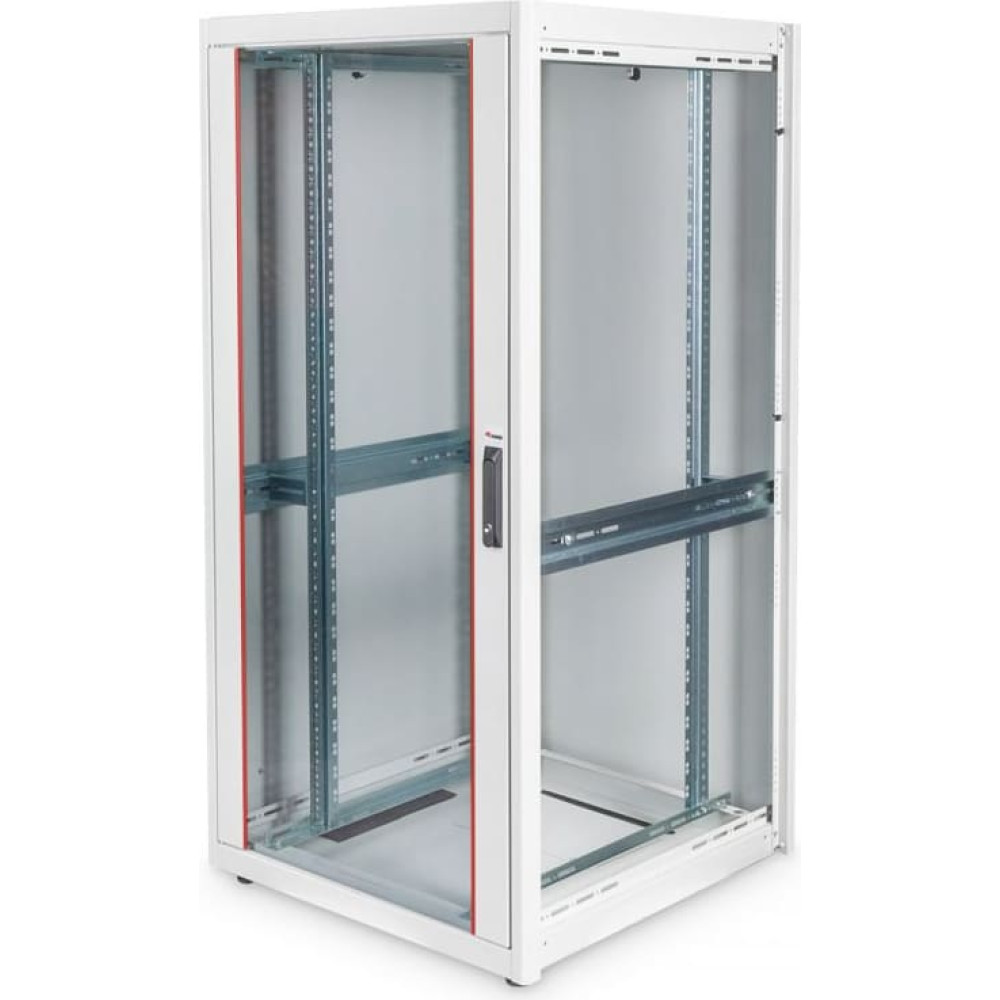

Equip EBF-32-8080-G-BAAA statnis 32U Brīvi stāvošs plaukts Gaiši Pelēks
To purchase this product you must be registered in our system.
Specification
adjustable depth: No
adjustable feet: Yes
adjustable stand: No
assembly required: No
back door construction: Steel
back door key lock: Yes
built-in ups: No
cable management: No
castor wheels: No
cooling type: Passive
country of origin: Turkey
depth: 800 mm
door opening angle: 120°
feet adjustment: 3 cm
frame type: Closed
front door construction: Tempered glass
front door key lock: Yes
grounding kit: Yes
harmonized system (hs) code: 853710980019
height: 1560 mm
inner depth: 79.5 cm
inner height: 142.2 cm
inner width: 79.5 cm
key lock: Yes
main pdu: No
manual: Yes
material: Steel
maximum weight capacity: 600 kg
maximum weight capacity (rolling): 600 kg
monitoring: No
mounting depth (max): 55 cm
mounting depth (min): 29 cm
mounting kit: No
number of stabilising foot screws: 4 pc(s)
nuts included: No
package depth: 880 mm
package height: 1700 mm
package width: 880 mm
pallet net height: 15 cm
pallet net length: 88 cm
pallet net weight: 13.5 kg
pallet net width: 88 cm
plinth panel: No
preassembled: Yes
product colour: Light grey
product design: 4-post
products per master (outer) case: 1 pc(s)
quick installation guide: No
rack capacity: 32U
rack rail thickness: 1.5 mm
rack rails: Yes
removable back door: Yes
removable front door: Yes
removable side panels: Yes
screws included: No
side panel construction: Steel
side panel key lock: Yes
side panels included: Yes
size (imperial): 56.9 cm (22.4")
soundproof: No
stabilising foot screw: Yes
temperature sensor: No
total carbon footprint (kg of co2e): 13.167
type: Freestanding rack
wall mounting kit: No
weight: 77 kg
width: 800 mm
Description
| These cabinets, of the Basic Flex Line, are engineered for the efficient and user-friendly installation of both active and passive network components, prioritizing streamlined cable management. Crafted from steel sheets up to 1.5 mm thick, every cabinet guarantees excellent stability, attributed to a unique plate curving technique, forming a sturdy steel framework. They are finished with a powder coating in shades of grey (RAL 7035) and black (RAL 9005). For challenging set-up locations that are less accessible, the cabinet is designed to be disassembled. The doors are easily detachable, and their stops can be switched between right and left orientations. Additionally, the roof is prepped for the integration of an air ventilation unit. Inside, each cabinet houses two sets (4 pieces) of 483 mm (19”) profile rails. These rails, galvanized and marked with height units readable from both directions, are adjustable in depth. To facilitate extensive equipment installations, they're paired with supplementary depth support bars. Cable management is central to the design. The cabinet base features a punched-out cable entry shielded with a metal plate. For the broader 800 mm width cabinets, there are added punched-out cable entries covered with plastic on both sides. These entries are replicated on the roof, with a single one for 600 mm width cabinets and three for the 800 mm width ones. To cater to diverse operational needs, a wide assortment of accessories, including cable management tools and shelves, is readily available. |
