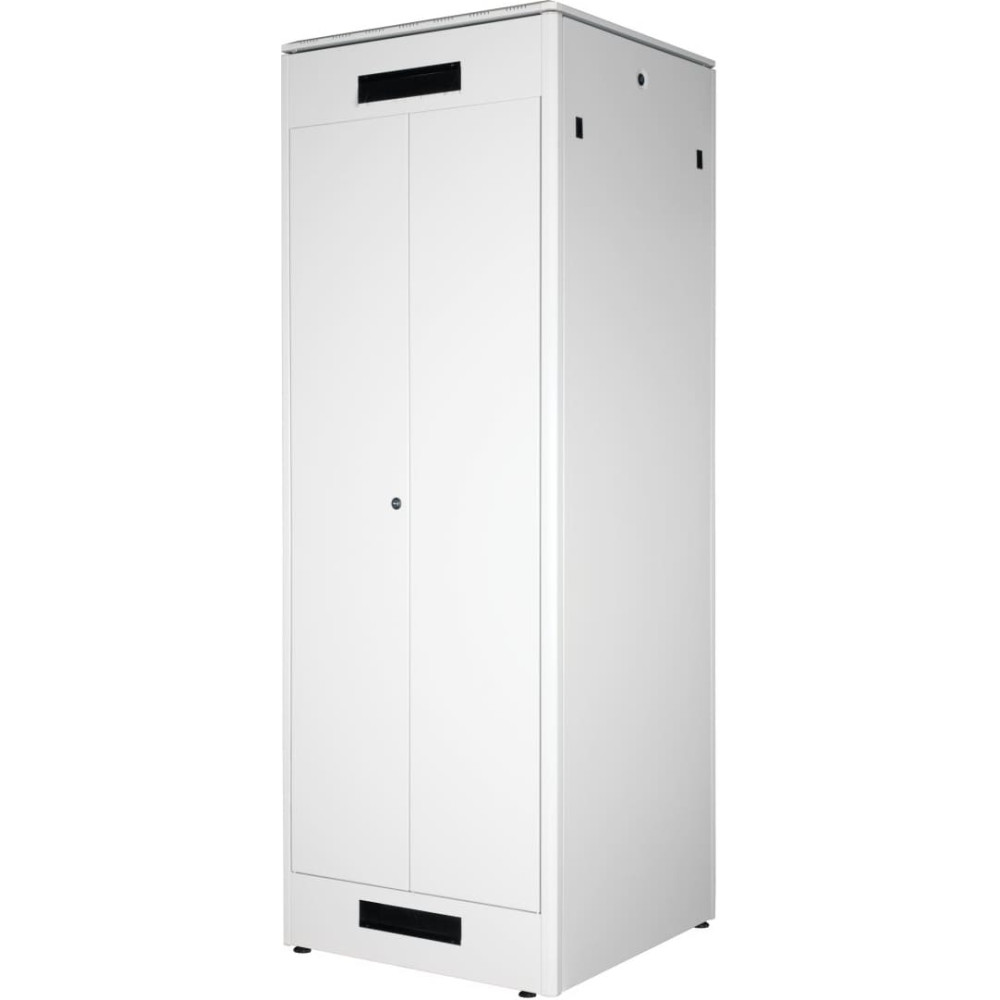

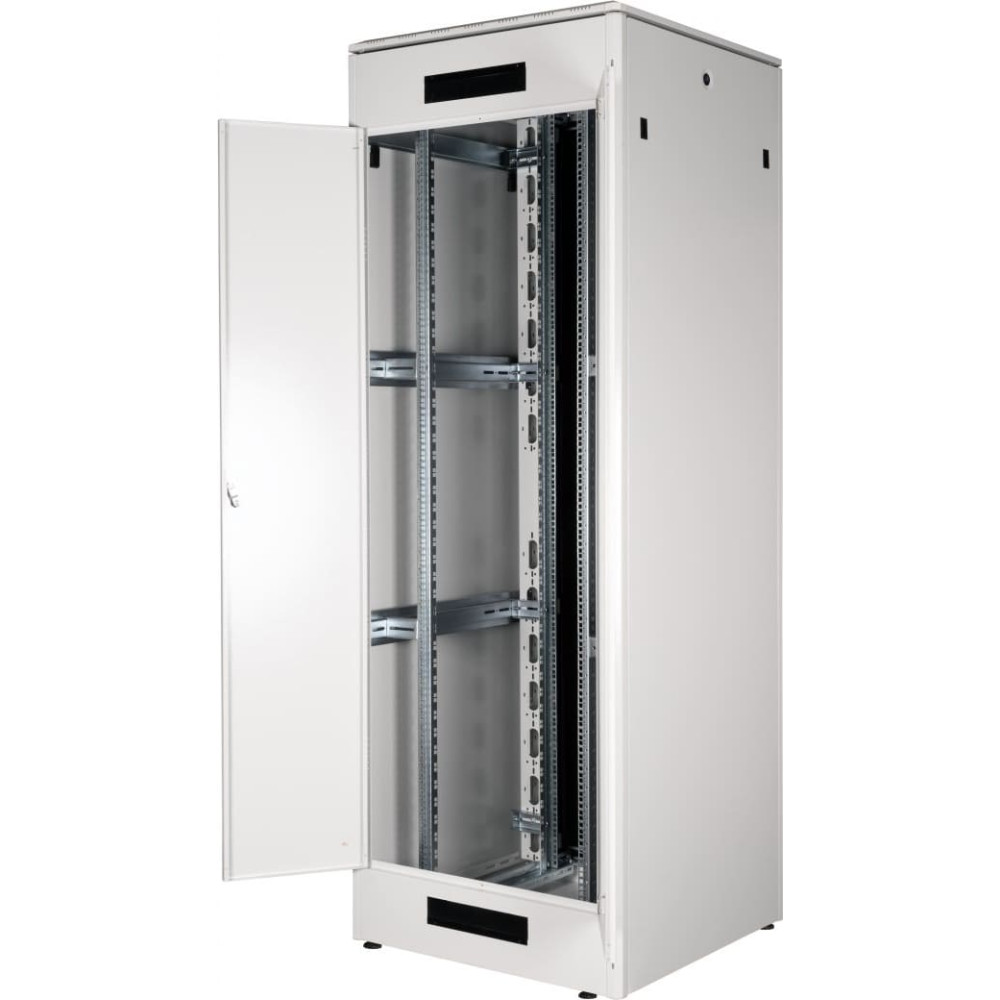

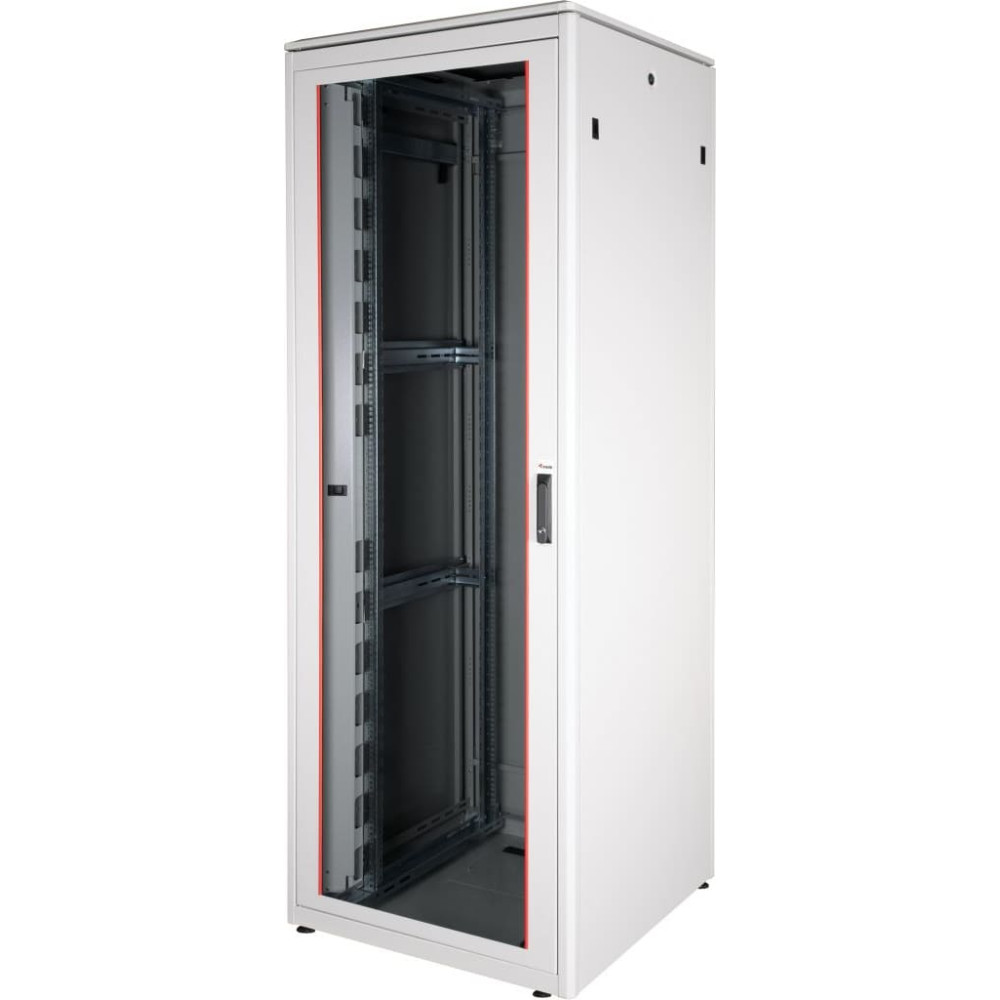

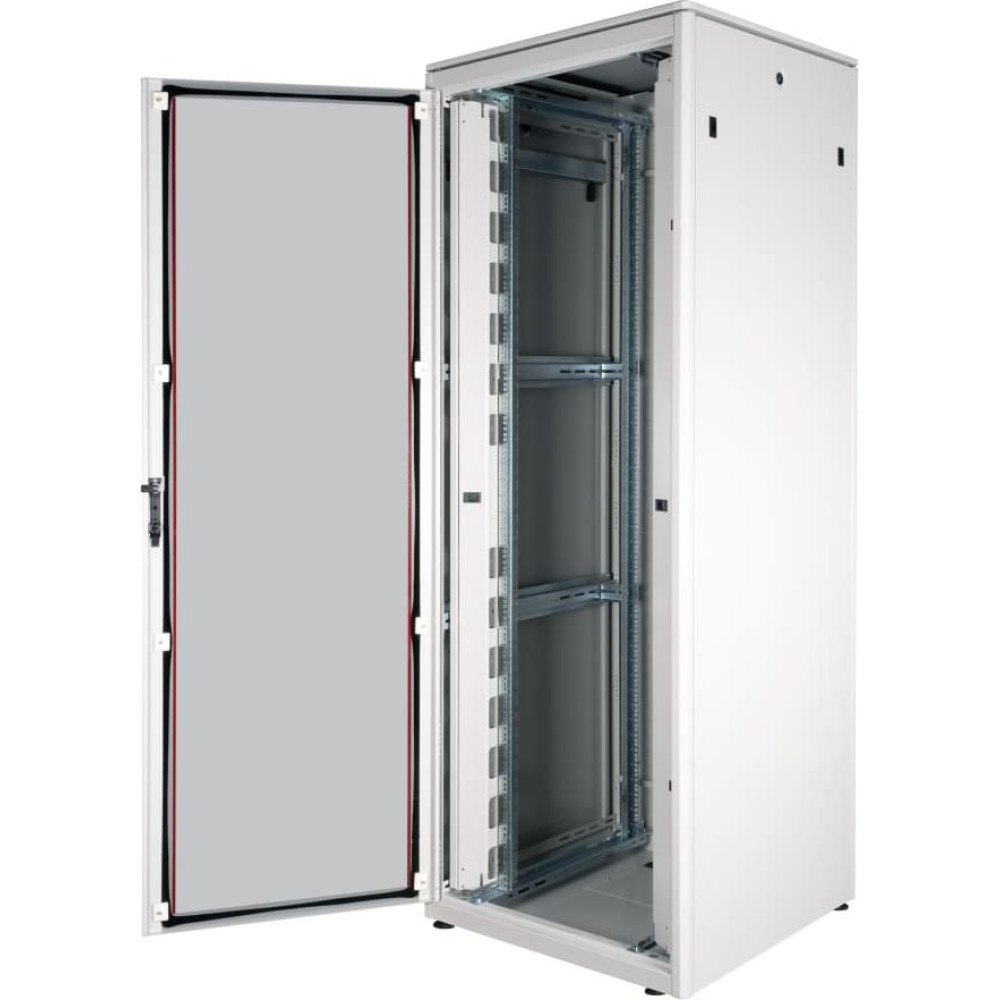

Equip EDF-47-8080-G-HJAA statnis 47U Brīvi stāvošs plaukts Gaiši Pelēks
To purchase this product you must be registered in our system.
Specification
adjustable depth: No
adjustable feet: Yes
adjustable stand: No
assembly required: No
back door construction: Steel
back door key lock: No
built-in ups: No
cable management: No
castor wheels: No
cooling type: Passive
country of origin: Turkey
depth: 800 mm
door opening angle: 120°
feet adjustment: 3 cm
frame type: Closed
front door construction: Tempered glass
front door key lock: Yes
grounding kit: Yes
harmonized system (hs) code: 853710980019
height: 2276 mm
inner depth: 79 cm
inner height: 2.09 m
inner width: 79 cm
key lock: Yes
main pdu: No
manual: Yes
material: Steel
maximum weight capacity: 600 kg
maximum weight capacity (rolling): 600 kg
monitoring: No
mounting depth (max): 74 cm
mounting depth (min): 56 cm
mounting kit: No
number of nuts: 28
number of screws: 28
number of stabilising foot screws: 4 pc(s)
nuts included: Yes
package depth: 880 mm
package height: 2416 mm
package width: 880 mm
pallet gross weight: 138.8 kg
pallet net height: 15 cm
pallet net length: 88 cm
pallet net weight: 13.5 kg
pallet net width: 88 cm
plinth panel: No
preassembled: Yes
product colour: Light grey
product design: 4-post
products per master (outer) case: 1 pc(s)
quick installation guide: No
rack capacity: 47U
rack rail thickness: 1.5 mm
rack rails: Yes
removable back door: Yes
removable front door: Yes
removable side panels: Yes
screws included: Yes
side panel construction: Steel
side panel key lock: Yes
side panels included: Yes
size (imperial): 56.9 cm (22.4")
soundproof: No
stabilising foot screw: Yes
temperature sensor: No
total carbon footprint (kg of co2e): 20.5884
type: Freestanding rack
wall mounting kit: No
weight: 120.4 kg
width: 800 mm
Description
| Introducing the "Dynamic Flex Line" Cabinets: Designed for user-friendly installation of active and passive network components, these cabinets prioritize efficient cable management. Constructed from steel sheets up to 1.5 mm thick, each cabinet ensures exceptional stability, thanks to a unique plate curving technique. They are elegantly finished with a powder coating in shades of grey (RAL 7035) and black (RAL 9005). In scenarios where the installation location is hard to access, the cabinet can be effortlessly disassembled. Its doors are designed for easy removal, with the flexibility to switch the door stop's orientation from right to left. The cabinet's roof features an additional lid, equipped with air ventilation slots to promote better airflow. It's also prepped for the addition of an air ventilation unit. Internally, each cabinet boasts two sets (4 pieces) of 483 mm (19”) profile rails, which are galvanized and feature height unit markings readable from both directions. These rails are adjustable in depth and come with extra depth support bars, ensuring comprehensive 483 mm (19”) equipment installations. A highlight of the design is the emphasis on cable management. The cabinet base incorporates a sliding cable entry panel sealed with rubber. Cabinets of 26U and above are outfitted with two cable entries featuring brush strips at the rear, both above and below the door. The 800 mm width cabinets offer advanced cable management options, including additional cable entries with brushes on the top and base. Additionally, these wider cabinets include vertical cable ducts with shutters on both sides, adjacent to the 483 mm (19”) profile rails in the front. To address diverse operational needs, a comprehensive range of accessories, including cable management tools and shelves, is available, ensuring adaptability in everyday use. |
