Aten KL1108VN 48cm LCD IP-KVM 8-Port, DE-Layout

Product Code: KL1108VN D
Barcode 4710469344244

To purchase this product you must be registered in our system.



Specification
19" shelves required for mounting: 2
colour: black
current catalog edition: 24.1
depth: 70.12 cm
depth of packaging (single piece): 840 mm
footprint (wxd): 712 x 480 mm
gross weight: 19.2
height: 4.4 cm
height of packaging (single piece): 140 mm
keyboard layout: DE
mains connection: Cold appliance connection
manufacturer: ATEN
monitor size of integrated console: 19" (48 cm)
package weight (single piece): 19.2 kg
product group: 19"-/10"-Equipment rack
product type: KVM-Switch, VGA
required mounting height: 1 U
scope of delivery: 1x KL1108VN Cat 5 Dual Rail LCD KVM over IP Switch with a...
weight: 15.22 kg
width: 48 cm
width of packaging (single piece): 680 mm

Description

The KL1108VN switches allows local console and remote over IP access for operators to monitor and manage their entire data center locally at the switch, and over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

  • Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

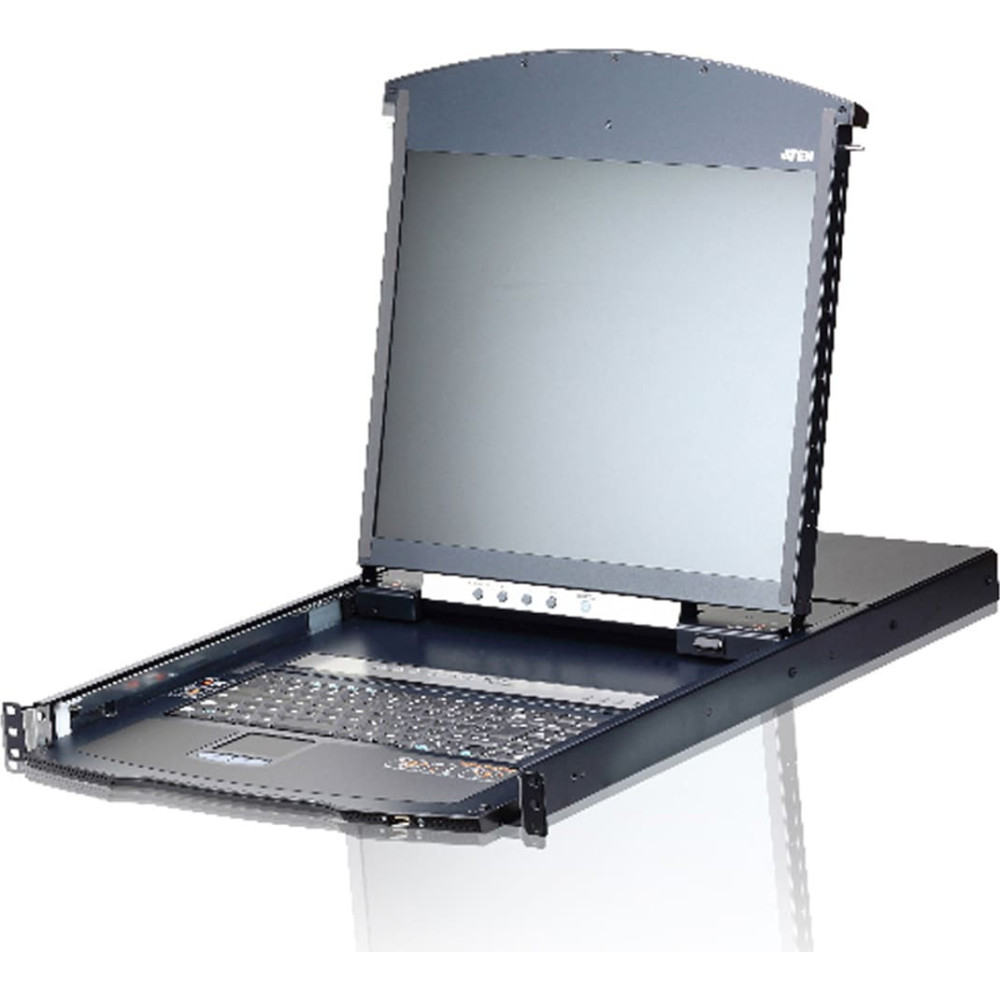

  • Integrated KVM console with 19” LED-backlit LCD monitor in a dual rail housing
  • One bus for local and one bus for remote KVM over IP access

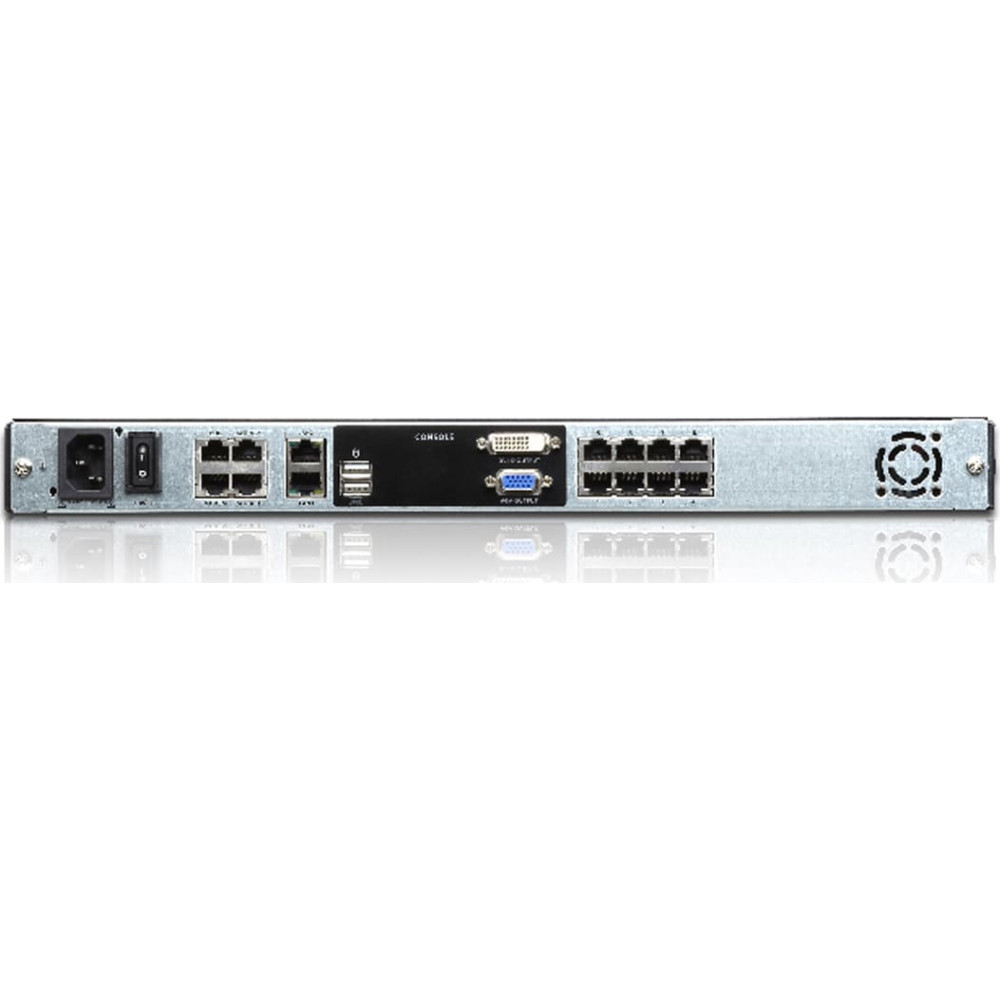

  • Space-saving RJ-45 ports for Cat 5e/6 cable connections
  • KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • Extra Console Ports – manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Supports external USB mouse
  • Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual Rail Housing – allows the LCD monitor to slide independently of the keyboard and touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
