Level One LevelOne Konverter FVT-1106 10/100TX>100FX 120km
To purchase this product you must be registered in our system.
Specification
ac adapter included: Yes
auto mdi/mdi-x: Yes
auto-negotiation: Yes
certification: CE
compliance certificates: RoHS
connectivity technology: Wired
converter input interface: 10Base-T, 100Base-TX
converter output interface: 100Base-FX
copper ethernet cabling technology: 10BASE-T, 100BASE-TX
country of origin: China
dc-in jack: Yes
depth: 71 mm
duplex system: Full
ethernet interface type: Fast Ethernet
ethernet lan (rj-45) ports: 1
ethernet lan data rates: 10,100 Mbit/s
fiber ethernet cabling technology: 100BASE-FX
fiber mode structure: Single-mode
fiber optic connector: SC
fiber ports quantity: 1
flow control support: Yes
harmonized system (hs) code: 85176990
height: 26 mm
input current: 1 A
input voltage: 5 V
internal: No
led indicators: Yes
master (outer) case gross weight: 32 kg
master (outer) case height: 305 mm
master (outer) case length: 420 mm
master (outer) case width: 440 mm
maximum data transfer rate: 100 Mbit/s
maximum transfer distance: 120000 m
mean time between failures (mtbf): 100000 h
networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
operating relative humidity (h-h): 5 - 90%
operating temperature (t-t): 0 - 50 °C
package depth: 150 mm
package height: 58 mm
package type: Box
package weight: 300 g
package width: 230 mm
product colour: Black
products per master (outer) case: 40 pc(s)
quick installation guide: Yes
safety: CE
storage temperature (t-t): -20 - 70 °C
store-and-forward: Yes
wavelength: 1550 nm
weight: 200 g
width: 94 mm
Description

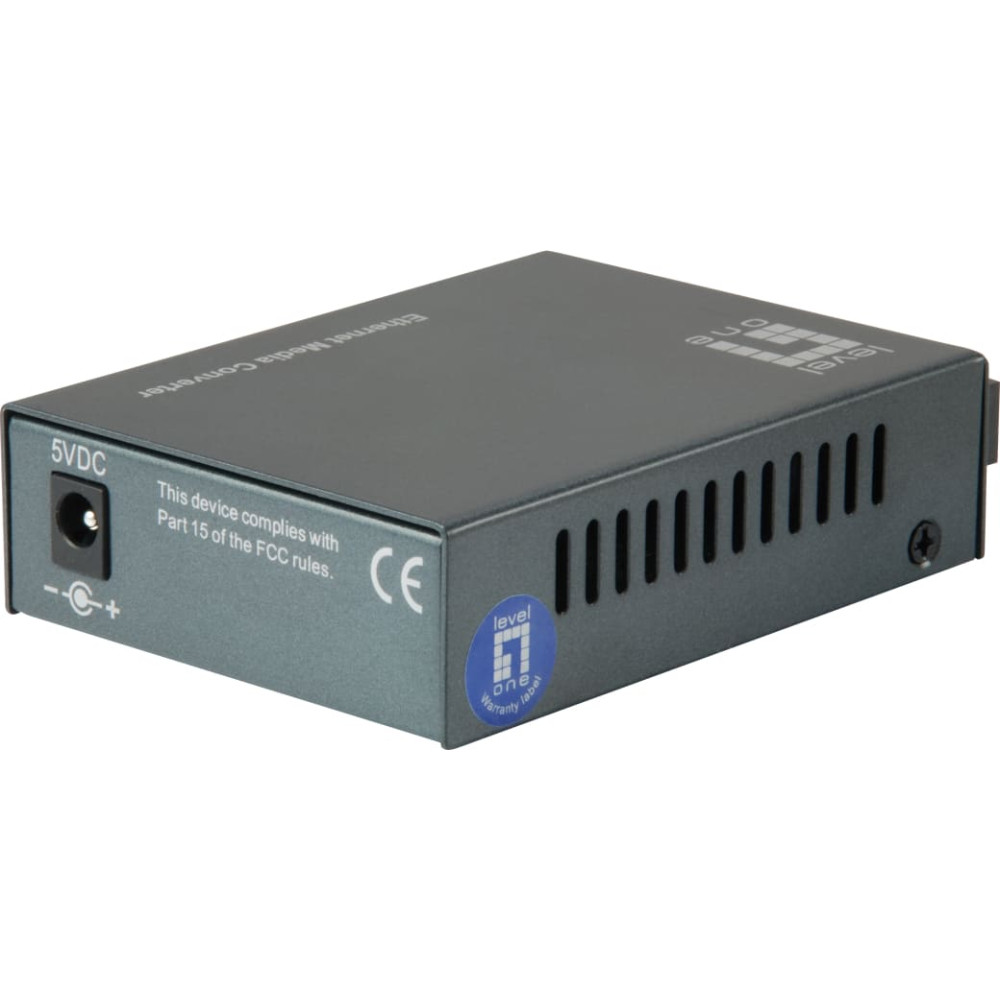

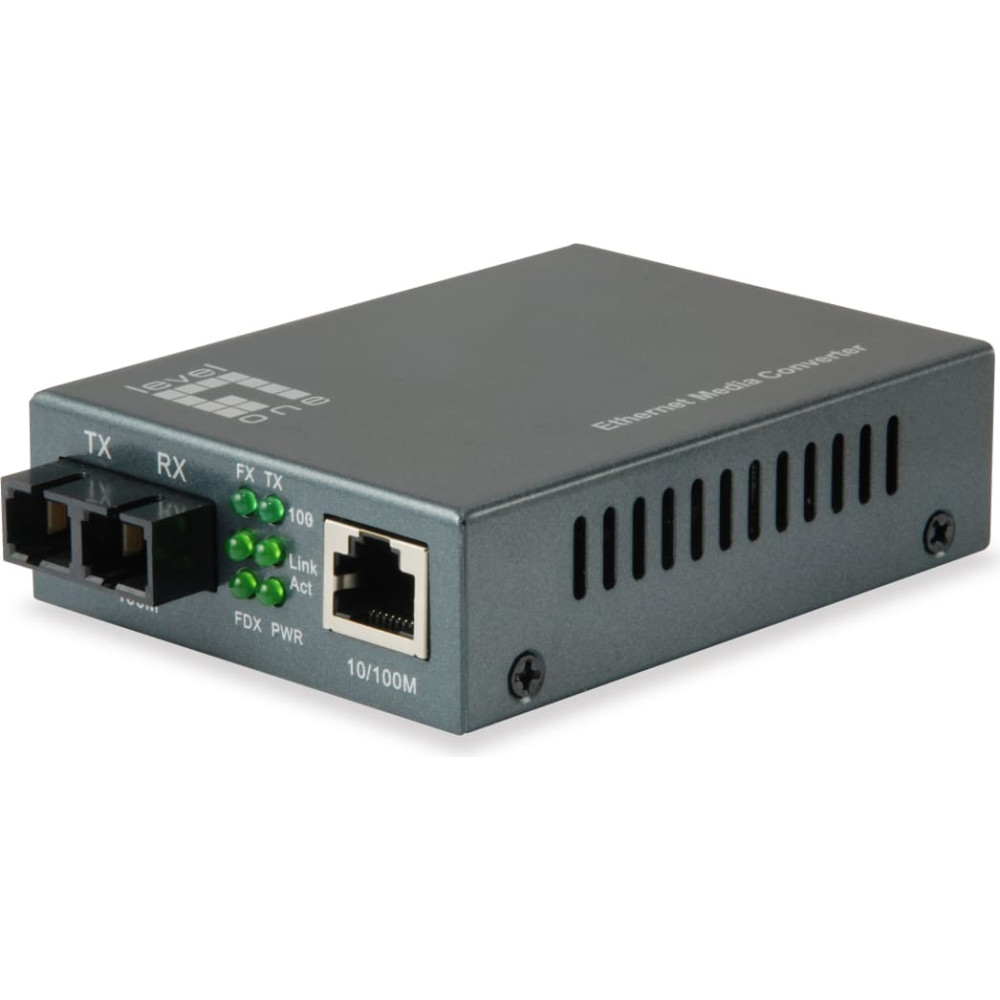

| The LevelOne FVT-1106 SMF SC media converter can convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fiber-optic cabling, this can extend a network range up to 120km. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet. |
