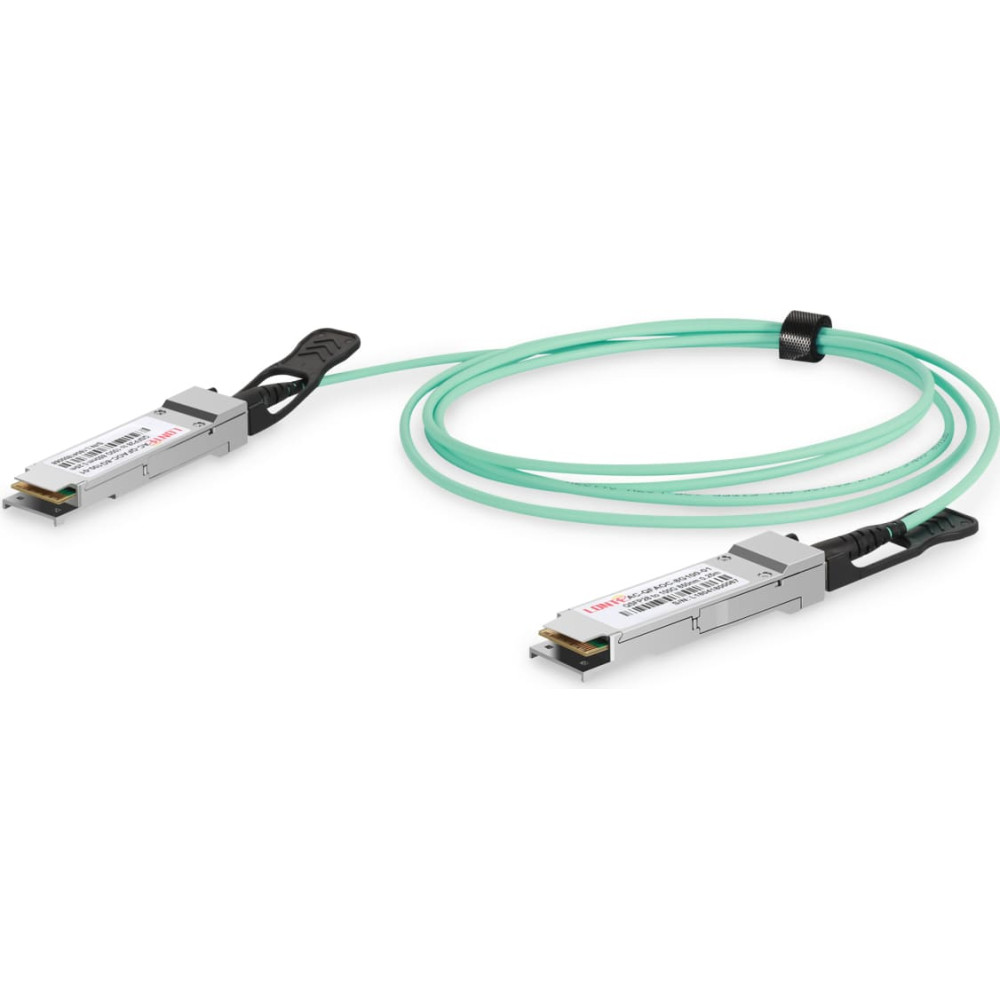

Digitus 100Gbps QSFP28 Active Optical Cable 10 m
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.250
height: 0.001
height(cm): 3
length(cm): 26
volume(cm3): 2028
weight(kg): 0.2
width: 0.250
width(cm): 26
Description
| 100G QSFP28to QSFP28 Active Optical Cable MMF 850nm 10m 100 Gigabit Ethernet links, Infiniband interconnect, Data center cabling infrastructure. Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL 4 channels full-duplex transceiver modules 4 channels 850nm VCSEL array, 4 channels PIN photo detector array Transmission data rate up to 28.05Gbps per channel, 100Gbps total Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF Hot Pluggable QSFP form factor, Single MPO connector receptacle Built-in digital diagnostic functions 3.3V power supply voltage; Low power consumption <3.5W Operating case temperature 0°C to +70°C Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL DIGITUS® 100G QSFP28 AOC active cables are a high-performance, low-power short-range interconnect solution. They are compliant with the SFF-8431 SFP+ Electrical MSA, SFF-8432 SFP+ Mechanical MSA and QSFP28 MSA compliant. 4 full-duplex channels are used, with each channel capable of transferring data at speeds up to 25Gb/s, resulting in an aggregate rate of up to 103.1Gb/s. DIGITUS® 100G QSFP+ AOC active cables offer increased port density and cost savings in the overall system. The specific programming of each QSFP28 cable can safely ensure adaptation to the needs of any IT environment. " DDM Support: false 10 m maximum distance 4 channels full-duplex transceiver modules 4 channels 850nm VCSEL array, 4 channels PIN photodetector array Transmission data rate up to 28.05 Gbps per channel, 100 Gbps in total Maximum connection length of 70 m for OM3 MMF and 100 m for OM4 MMF Hot pluggable QSFP form factor, single MPO connector socket Built-in digital diagnostic functions 3.3 V supply voltage; low power consumption <3.5 W Operating temperature of the housing 0°C to +70°C RoHS 6-compliant (lead-free) SFF-8431 SFP+ Electrical MSA SFF-8432 SFP+ Mechanical MSA Storage temperature: -40 to 85 °C Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL |
