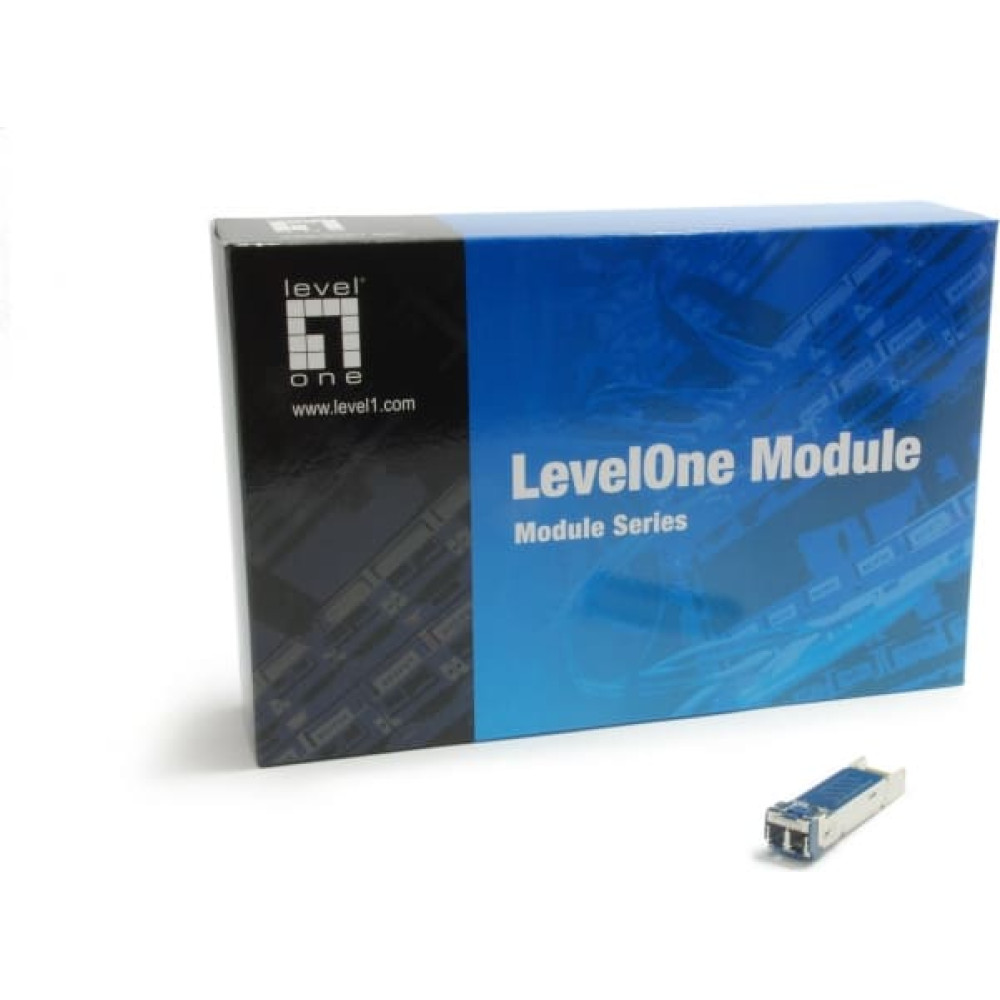

Level One LevelOne MiniGBIC GVT-0301 SFP LX/LC Fiber SM 10km

Product Code: GVT-0301

Barcode 4015867224397

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

certification: Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11

compatible products: GSW-2453 GVT-4000

country of origin: Taiwan

depth: 55.5 mm

fiber cable diameters supported (core/cladding): 9/125 µm

fiber optic connector: LC

harmonized system (hs) code: 85369010

height: 8.5 mm

hot-plug support: Yes

input voltage: 3.5 V

interface type: SFP

link budget: 10.5 dB

maximum current: 0.3 A

maximum data transfer rate: 1250 Mbit/s

maximum transfer distance: 10000 m

maximum voltage: 6 V

networking standards: IEEE 802.3z

operating relative humidity (h-h): 5 - 90%

operating temperature (t-t): 0 - 70 °C

package depth: 50 mm

package height: 130 mm

package weight: 70 g

package width: 70 mm

quantity per pack: 1 pc(s)

sfp transceiver standard: LX

sfp transceiver type: Fiber optic

single-mode fiber (smf) supported: Yes

tx power (max): -3 dBmW

tx power (min): -9.5 dBmW

wavelength: 1310 nm

width: 13.5 mm

Description

Product Overview
The LevelOne GVT-0301 SFP (Small form-factor pluggable) Transceiver provide flexibility for utilizing fiber Gigabit network connections in both data and telecommunication applications.

Support for Mini GBIC Connectivity
GVT-0301 SFP Transceiver Series transceivers support LX standard optic with single-mode mini GBIC connectors. They provide signal amplification to transfer and receive data between two ends of mini GBIC ports.

Multi-Purpose Usage
GVT-0301 SFP transceivers can be used for distributed multi-processing, switch-to-switch interfaces, high-speed I/O file transfer, bus extension applications, and for a channel extender or data storage applications.
The LevelOne GVT-0301 can be used in any LevelOne switch or modules that support SFP modules.

- Add a 1000Base-LX connection to LevelOne switchs with mini GBIC/SFP ports
- Connect switches up to 10km away with each other
- TTL signal detect indicator
- Compliant with IEEE802.3z Gigabit Ethernet
- Easy to install and hot-swappable
- Differential LVPECL input and output
- Single 3.3V power supply
- Duplex LC connector
