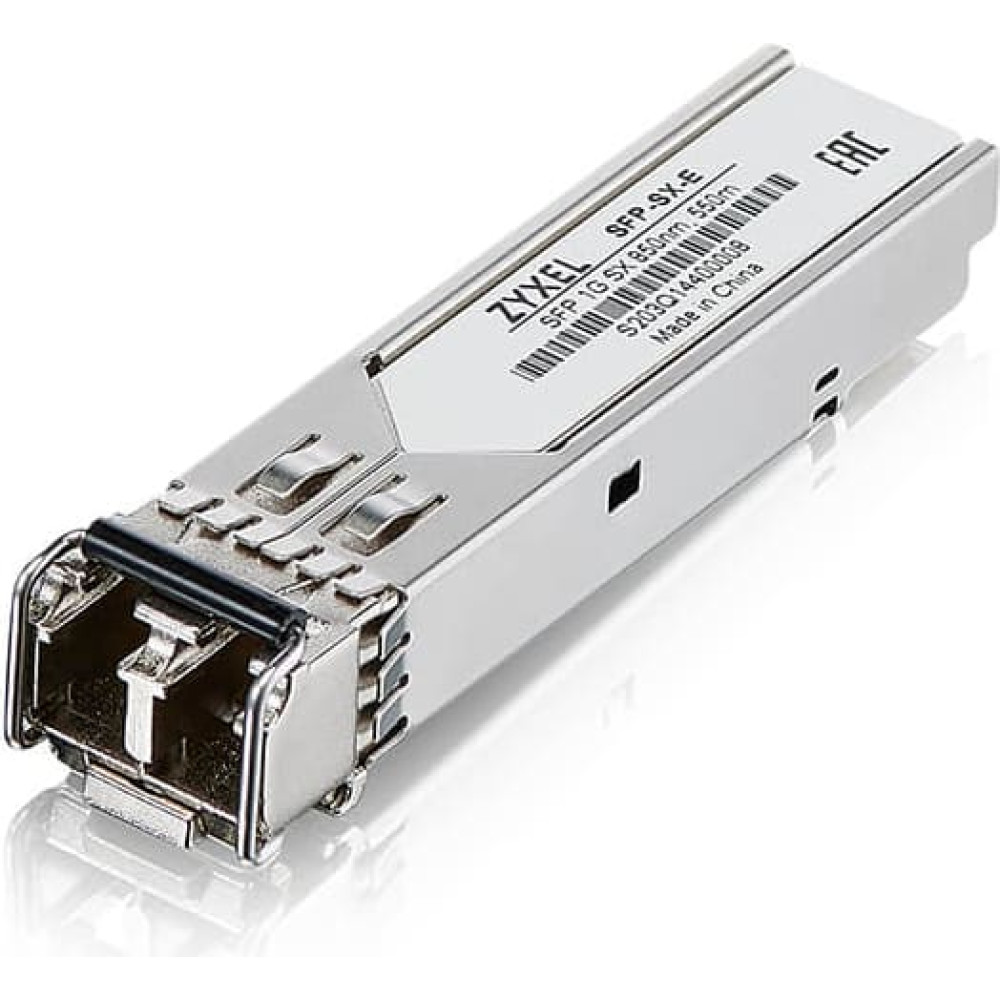

Zyxel Transceiver 10 SFP-SX-E Short Range 550m
To purchase this product you must be registered in our system.
Specification
brand compatibility: Zyxel
country of origin: China
depth: 56 mm
fiber optic connector: LC
harmonized system (hs) code: 85369010
height: 12.4 mm
input voltage: 3.1-3.5 V
interface type: SFP
maximum current: 0.3 A
maximum data transfer rate: 1000 Mbit/s
maximum transfer distance: 550 m
multi-mode fiber (mmf) supported: Yes
product colour: Steel
rx power (max): -17 dBmW
rx power (min): -3 dBmW
sfp transceiver type: Fiber optic
tx power (max): -9.5 dBmW
tx power (min): -3 dBmW
wavelength: 850 nm
weight: 20 g
width: 13.4 mm
Description
| Hot-pluggable with maximum flexibility Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device. No extra cabling cost to upgrade the fiber plant Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications. The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber. Supports digital diagnostics monitoring interface (DDMI) DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings. Complete fiber accessory portfolio We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements. |
