Specifications

• Input Voltage: 110-240V
• Switched Power (per port): max. 2400W (240V 10A)
• Switched Power (total): max. 3120W (240V 13A or 240V 16A using optional "Commando" to IEC C19 Power Cable)
• Nominal Input Frequency: 47-63 Hz Full Range
• Current Range: 0A~20A (True RMS)
• Current Amperage: 0A~20A: +/- 2% (+/- 0.1A)
• Current Meters: 3 digits
• LED Indicators: 1x yellow LED, 1x red LED

Connectors

• Input: IEC C20
• Output: 14x IEC C13, 2x IEC C19
• Network Connection : RJ45 10Mbps Ethernet Port

Physical Properties

• Dimensions (approx.) WxDxH: 1255x55x45mm (49.412x2.17x1.77in)
• Housing Material: Metal
• Net Weight: 3kg (6.61lb)
• Operating Temperature: -5–45°C (23°F–113°F)
• Storage Temperature: -25–65°C (-13°F–149°F)
• Humidity: 0-95% (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Carton
• Packaging Dimensions: 1355x210x106mm (53.35x8.27x4.17in)
• Gross Weight: 4.2kg (9.26lb)
• Warranty (Years): 2
• Certification: CE, UKCA, FCC, RoHS, REACH, EMC, LVD

Package contents

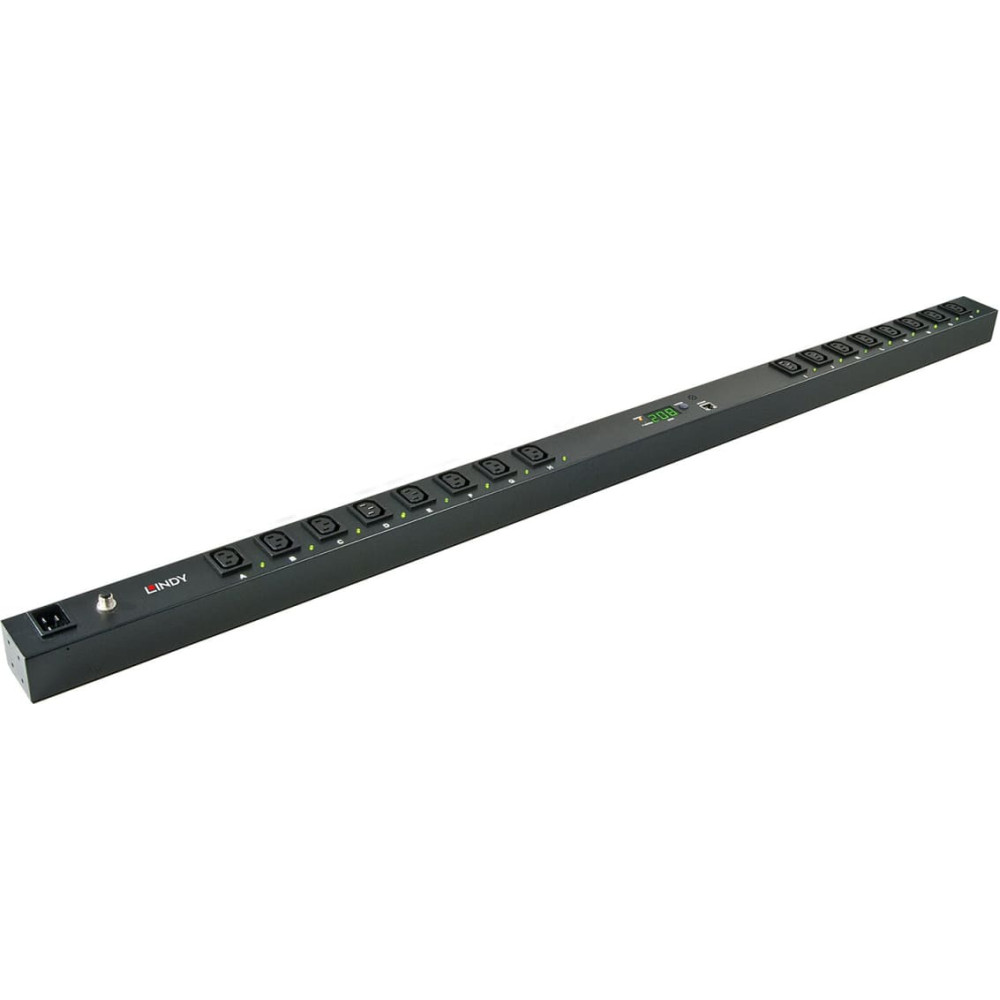

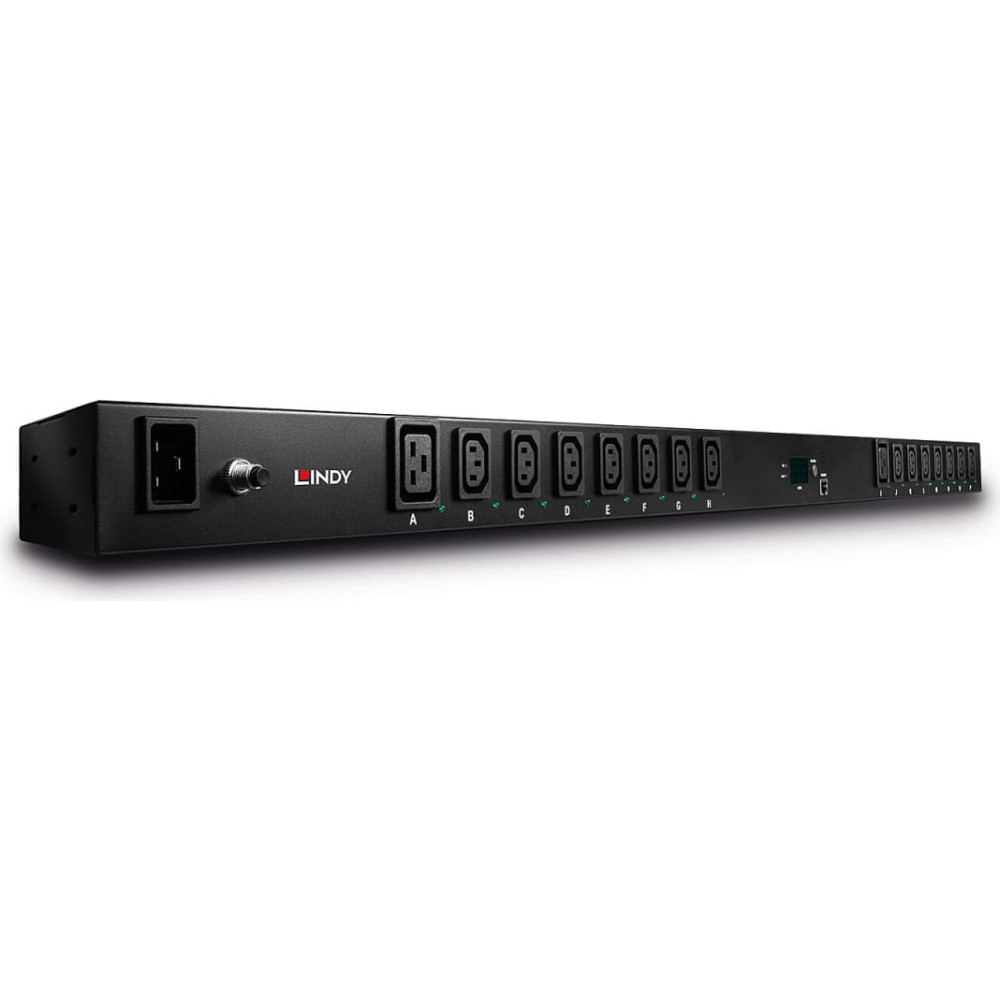

• IPower Switch Classic 16
• Rack mount brackets and screws
• Lindy Quick Installation Guide

Purchasing information

• No.: 32658
• EAN: 4002888326582
