ACT CAT6A RJ45 SHIELDED FIELD PLUG

ACT

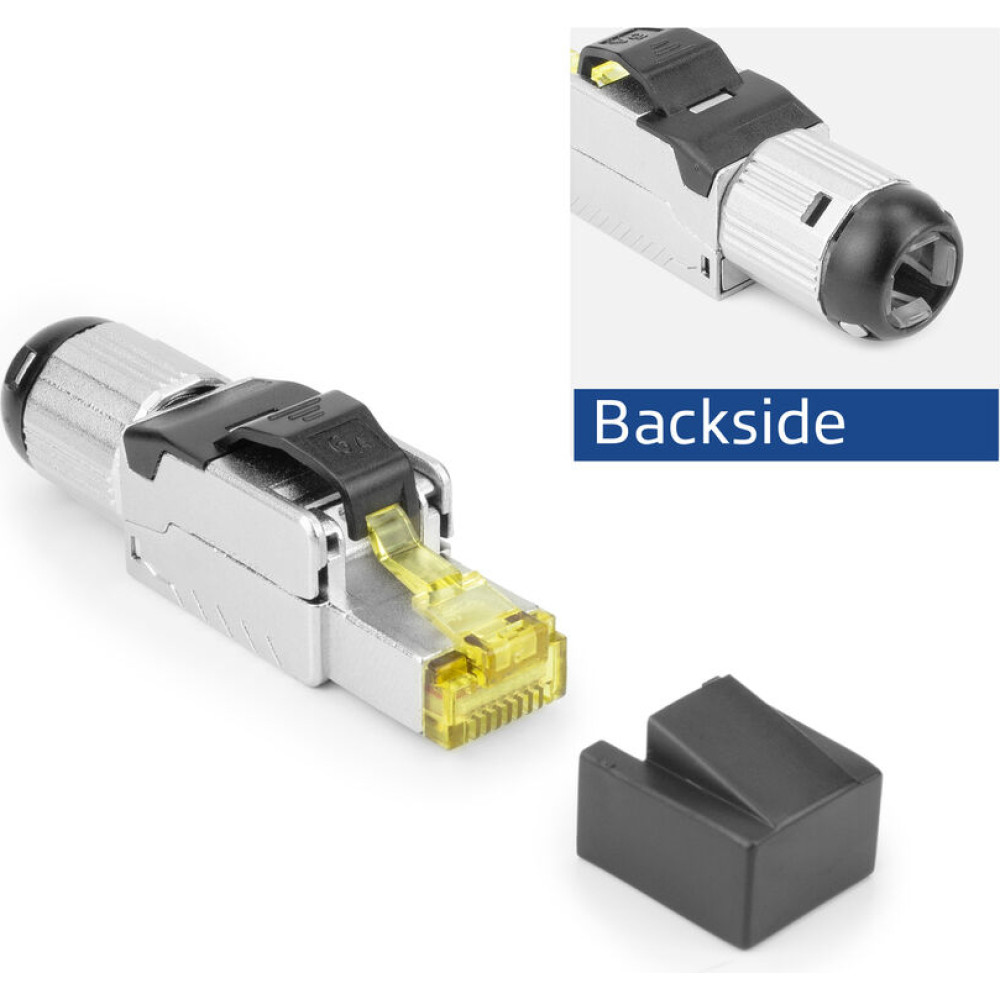

ACT CAT6A RJ45 SHIELDED FIELD PLUG

Product Code: TD168F
Barcode 8716065534900

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
cable mounting: Straight
category: CAT6A
compatible wire type: Solid, Stranded (litze)
connector type: RJ45
contact plating: Gold plated
country of origin: CN
housing material: Zinc die cast
max. wire gauge: 23 AWG
min. wire gauge: 26 AWG
shielded: Yes
termination type: Toolless
Description
Use the ACT CAT6A RJ45 Field Termination Plug for a quick and easy installation of a RJ45 connector on a solid or stranded cable with AWG 23-26 wires and an outer jacket diameter of 6-7.5mm. This toolless LSA assembly plug is suited for 10Gbps ethernet applications and provides an optimal connection for 4PPoE 100W.

Field termination plug for toolless installation
The ACT TD168F is suited for toolless LSA installation via its Insulation Displacement Contacts (IDC). These connectors ensure toolless easy installation just by pressing/closing the LSA clamp. The plug is suited for 4PPoE 100W (type 4) applications.

Screwable strain relief
The field termination plug comes with a screwable strain relief to protect the wires from tension and stress. The field installation plug is suited for solid or stranded cables with AWG 23-26 wires and an outer jacket diameter of 6-7.5mm.

Additional features
The plug has 50µ gold-plated contacts and comes with an adhesive copper foil tape for better shielding. Additionally, a dust cover is enclosed to protect the plug. The colour-coded T568A and T568B wiring schemes ensure easy assembly.

RJ45 field assembly plug shielded CAT6A for toolless installation suited for 10Gbps ethernet applications
IDC connector: optimal connection for 4PPoE 100W (type 4)
Screwable strain relief; for solid and stranded wires with AWG 23-26 and an outer jacket diameter of 6-7.5mm
Installation without tools (LSA)
Colour-coded for T568A and T568B wiring schemes
