Home Network products Network connectors Digitus Modular plug for round cable, unshielded, 100 pcs.
Digitus Modular plug for round cable, unshielded, 100 pcs.

DIGITUS

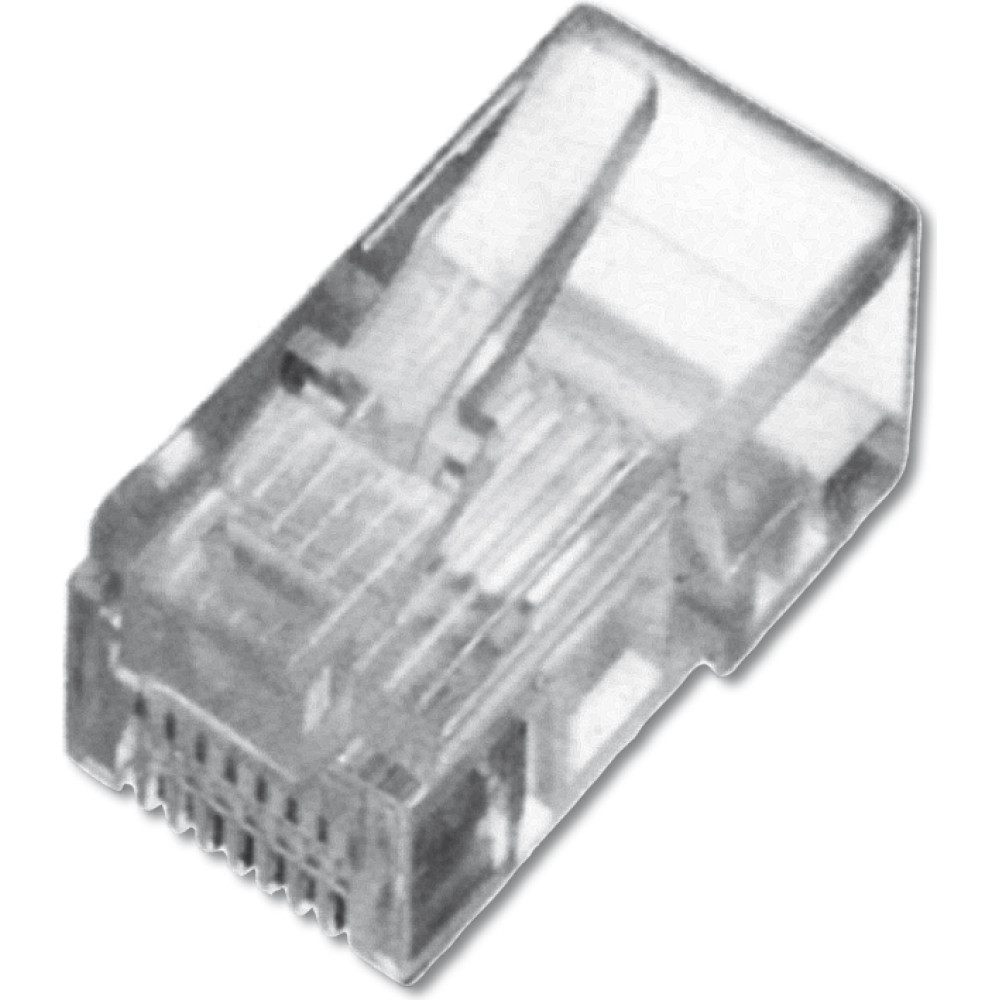

Digitus Modular plug for round cable, unshielded, 100 pcs.

Product Code: DN-MO-8-8-SR
Barcode 4016032499374

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
country of origin: CN
depth: 0.000
height: 0.000
weight(kg): 0.169
width: 0.000
Description
Modular Plug, for stranded Round Cable, 8P8C unshielded, 100 pcs. packr

Modular plug, 8P8C, unshielded for solid conductor round cable two-piece plug



Category: CAT 5e
Performance characteristics: CAT 5e, 10/100Base-T, 1GBase-T
Areas of application: Patch cable assembly
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
UL-certified
Technical features:
Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Material plug housing: polycarbonate, natural
Plug contact: Phosphor bronze, nickel 0.6 u gold-plated
Flammability: UL 94V-2
Physical properties:
Insertion force: <= 30 N
Diameter copper conductor: AWG (27/7 ... 24/7)
Operating temperature: -40 °C to +80 °C
Current carrying capacity: 1A -1.5A at 50 °C
