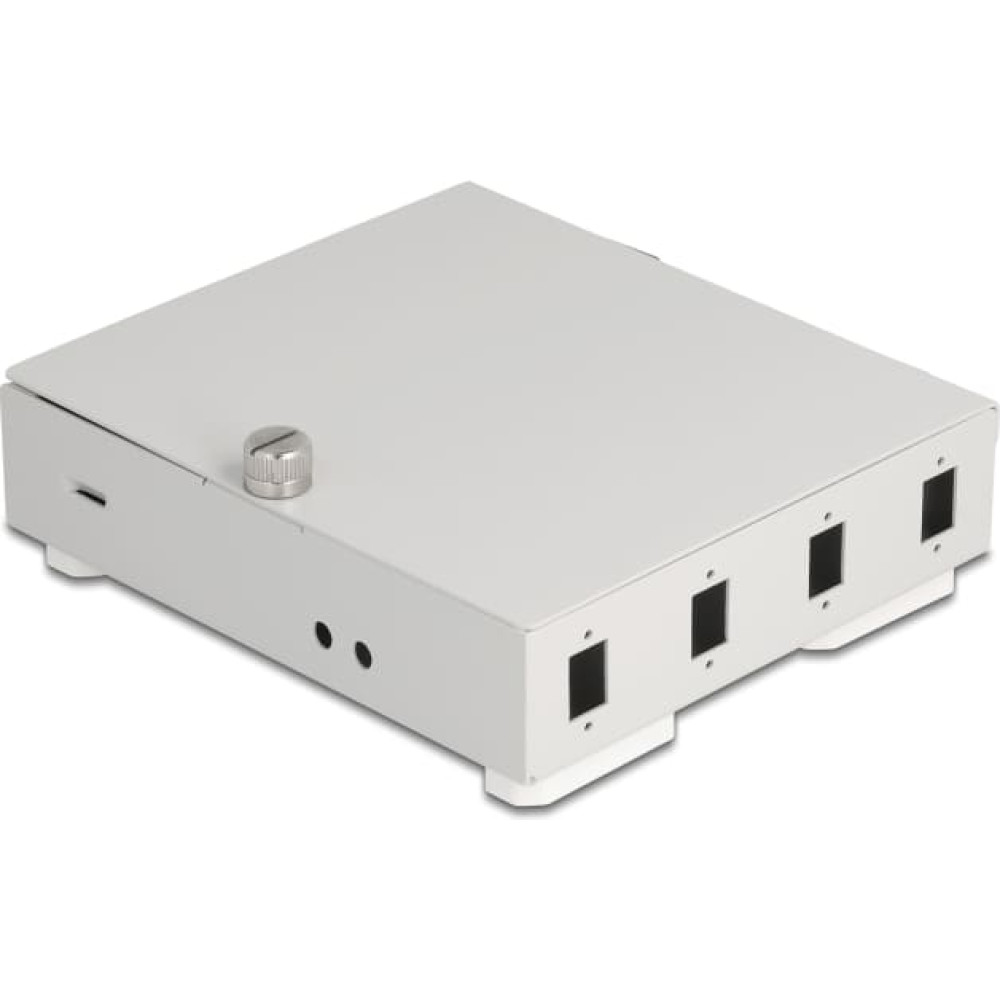

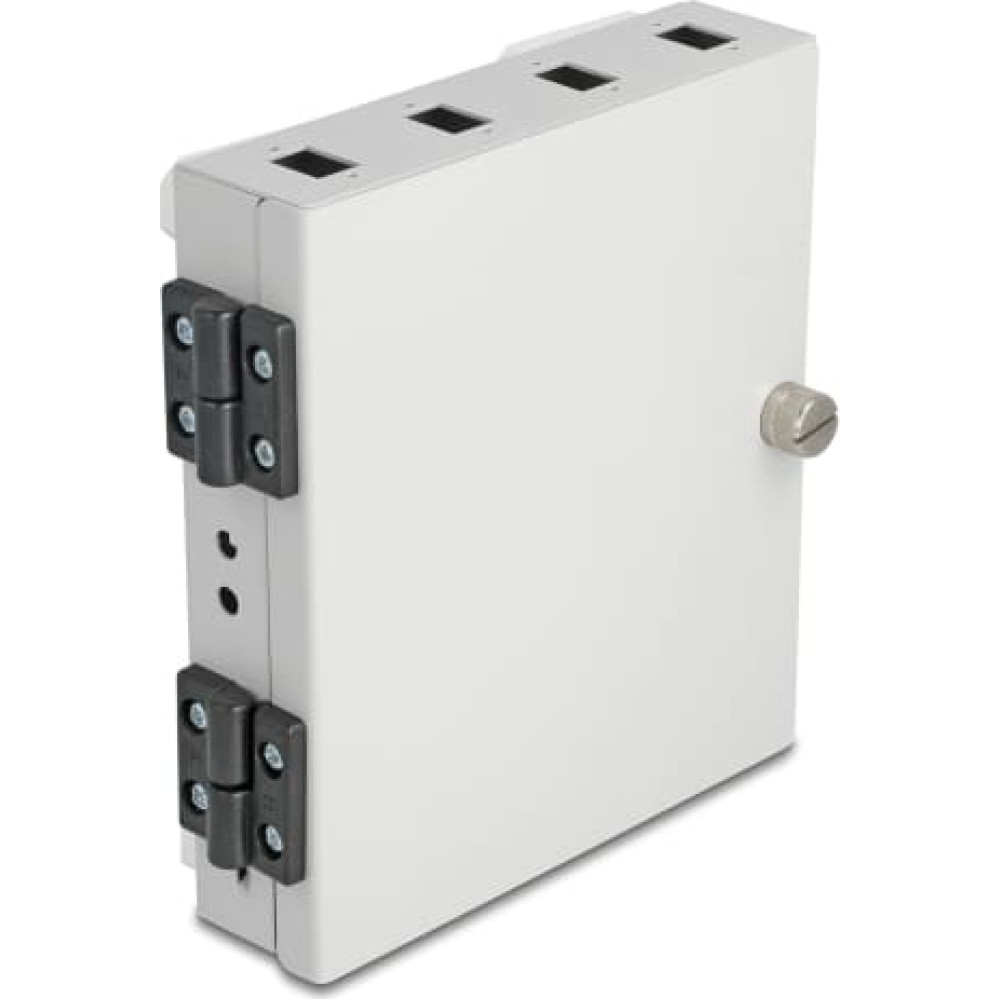

Delock Fiber Optic Wall Box for 4 x SC Simplex or LC Duplex adapters metal housing
To purchase this product you must be registered in our system.
Specification
depth: 0.000
height: 0.000
width: 0.000
Description
| This compact fiber optic wall box by Delock can be used for small to medium-sized indoor FTTH fiber optic installations. It offers space for up to 4 SC Simplex or 4 LC Duplex adapters and is therefore a flexible solution for various applications in network infrastructures. For wall mounting Due to the wall mounting option, the box can be installed in a space-saving and secure manner - ideal for technical rooms, corridors or distribution points. With splice holder The integrated splice holder enables clean routing of the individual fibers for optimal transmission of lightwave signals. In addition, the holder is perfect for mechanical splicing and fusion splicing. Metal housing The robust metal housing ensures reliable mechanical stability and protects the sensitive fiber optic connections from external influences. Specification: • 4 slots for SC Simplex or LC Duplex couplings • Rectangular cut-out: 13.0 x 9.5 mm • Mounting hole diameter: ca. 1.9 mm • Pitch of screw hole: ca. 17.6 mm • 4 flexible brackets for wall mounting, mounting hole diameter: ca. 4.0 mm • With splice holder • With two round cable bushings Ø 21 mm • Temperature range: -10 °C ~ 80 °C • Housing colour: grey • Housing material: metal • Dimensions (LxWxH): ca. 135 x 125 x 31 mm Package content: • 1 x fiber optic wall box • 1 x heat shrink splice protection • 1 x hose clamp • 4 x cable tie • 4 x cable holder • 4 x screw M4 x 16 mm • 8 x screw M2 x 2 mm Data sheet: https://www.delock.de/produkt/90716/pdf.html?sprache=en |
