Digitus FTTX enclosure, empty for 4 x SC SX, LC DX couplers
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.110
height: 0.035
height(cm): 3
length(cm): 11.2
volume(cm3): 376.32
weight(kg): 0.0916667
width: 0.095
width(cm): 11.2
Description

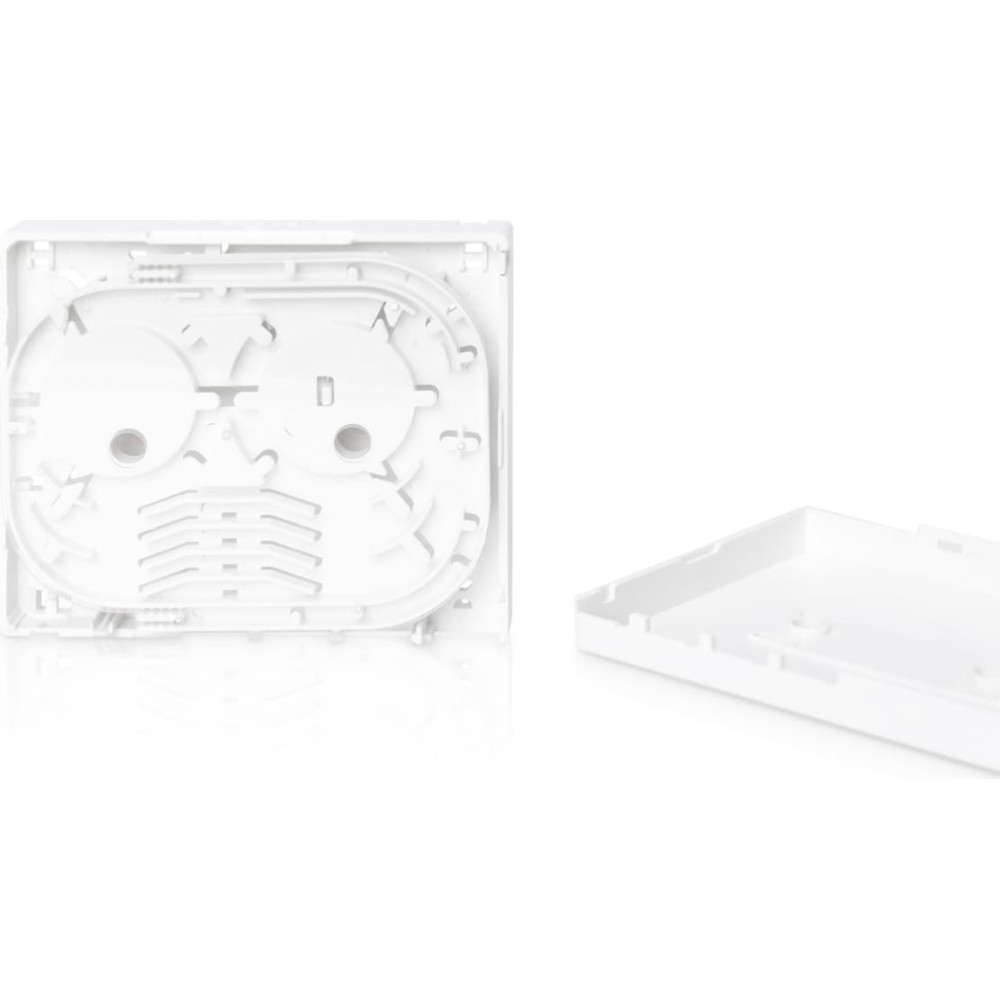

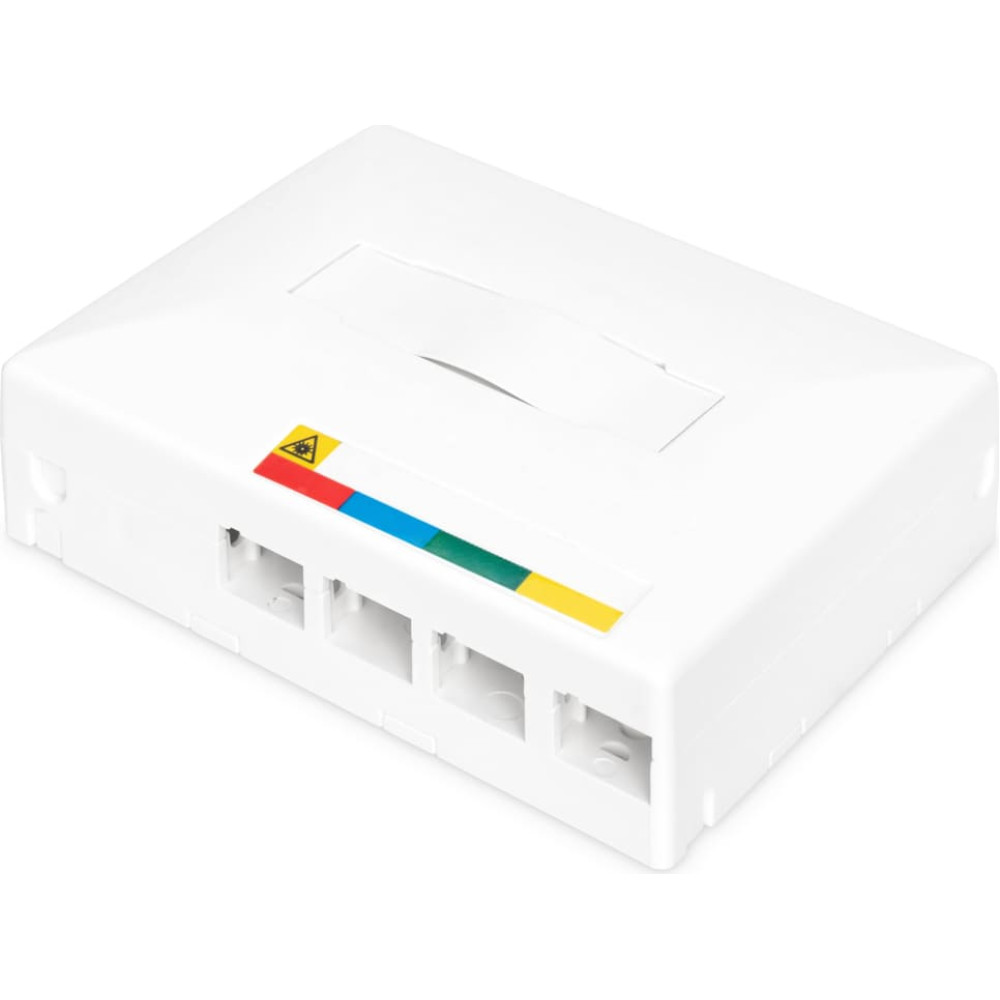

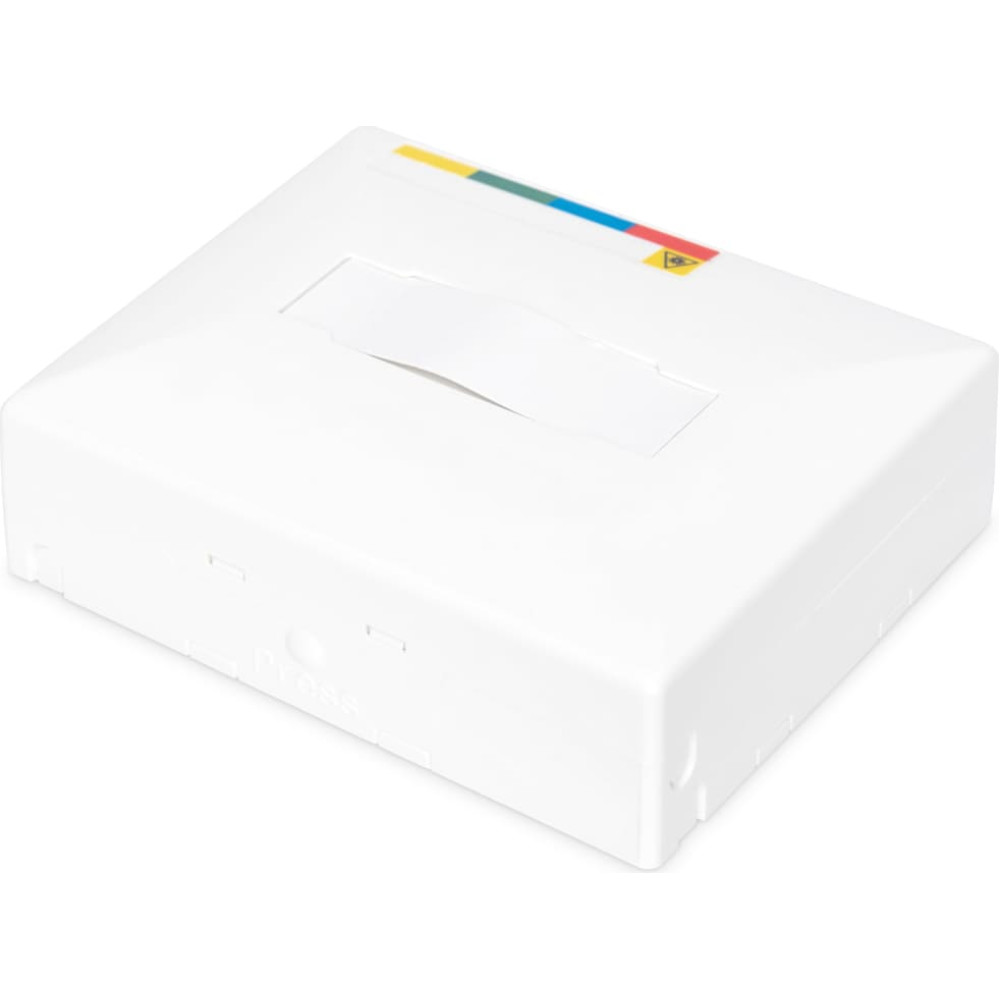

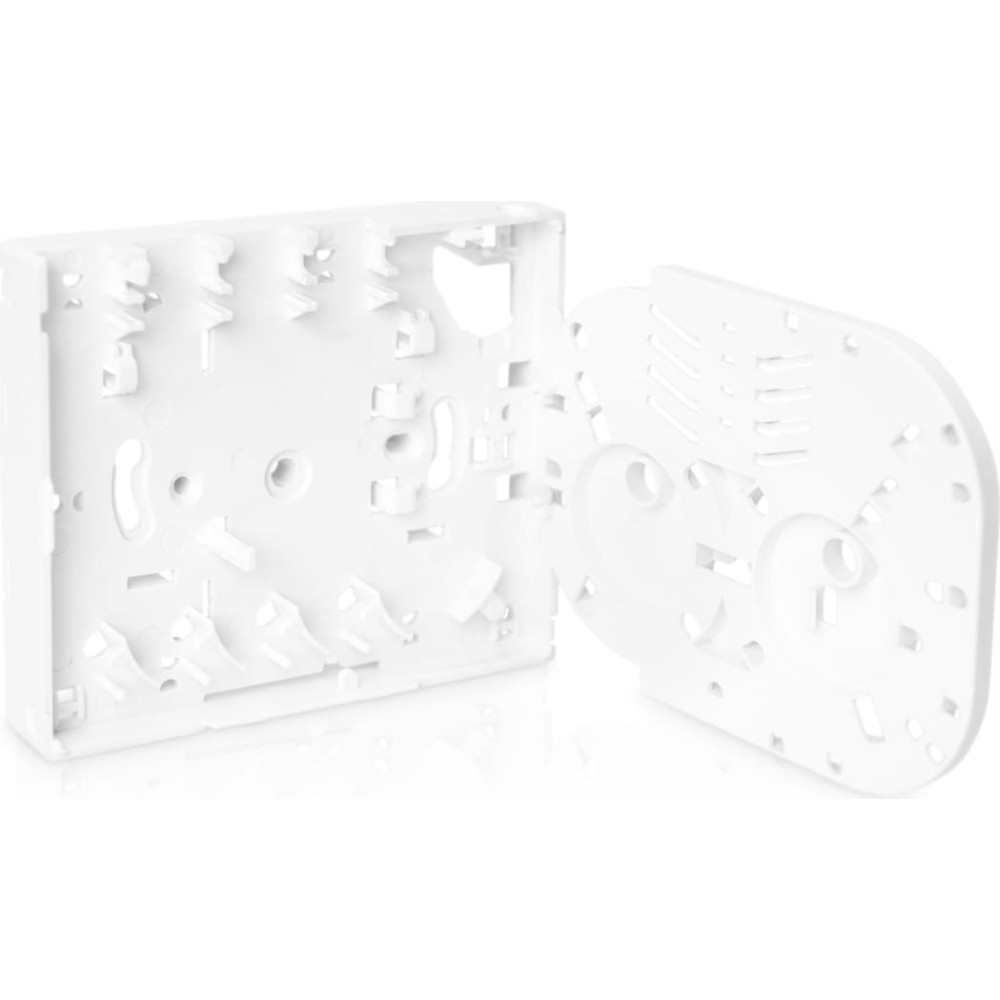

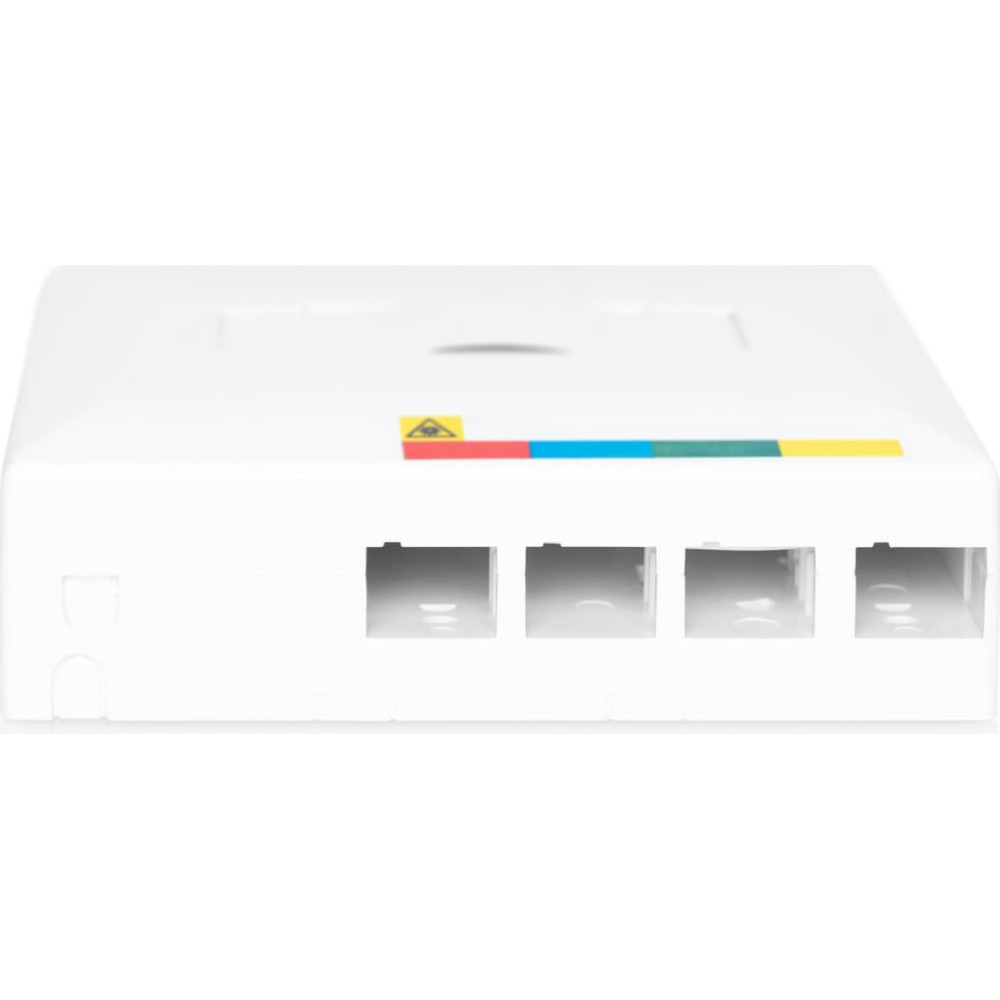

| FTTX enclosure, empty for 4x SC SX,LC DX surface and DIN-rail mount FTTX housing for fiber splices, terminations, storage and connections in a compact protective housing Ideal connection box for fiber optic cables in the area of FTTX / FTTH Suitable for 4 x SC SX or 4 x LC DX couplings (without flange) Suitable for wall installation and profile rail installation (DIN rail) Integrated splice cassette, hinged with cable routing Dust protection design with protection type IP45 Integrated labeling field on the housing cover Suitable for fusion splicers or mechanical splicers Easy maintenance and expansion The FTTX housing can hold up to 4 fiber optic cables and distribute them to 4 end devices with the matching couplings. Holds 4 x SC Simplex or 4 x LC Duplex couplings (without flange). The housing consists of a front panel, the housing with expandable splice cassette and a transparent plastic cover for additional protection of the spliced fiber optic cable. The box can be mounted on the wall or snapped onto a profile rail (DIN rail). Bring together fiber splices, terminations, storage and connections in a minimal space with the ultra-compact DIGITUS® FTTX. Suitable for 4 ports: 4 x SC SX / 4 x LC DX (without flange) Integrated splice cassette Protection type: IP45 Installation: Wall or profile rail (DIN rail) Suitable for single-mode and multi-mode fiber optic cables Operating temperature: -40°C ~ +85°C Housing material: PC + ABS Dimensions: 100 x 80 x 30 mm (LxWxH) Weight: 0.4 kg Color: Gray Package content: FTTX Housing for 4 x SC SX / LC DX Couplings |
