Digitus Hirose Modular Plug, CAT 6 TM 21

DIGITUS

Digitus Hirose Modular Plug, CAT 6 TM 21

Product Code: A-MO6 8/8 HRS
Barcode 4016032132943

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
country of origin: DE
depth: 0.115
height: 0.010
height(cm): 11
length(cm): 3
volume(cm3): 49.5
weight(kg): 0.005
width: 0.070
width(cm): 1.5
Description

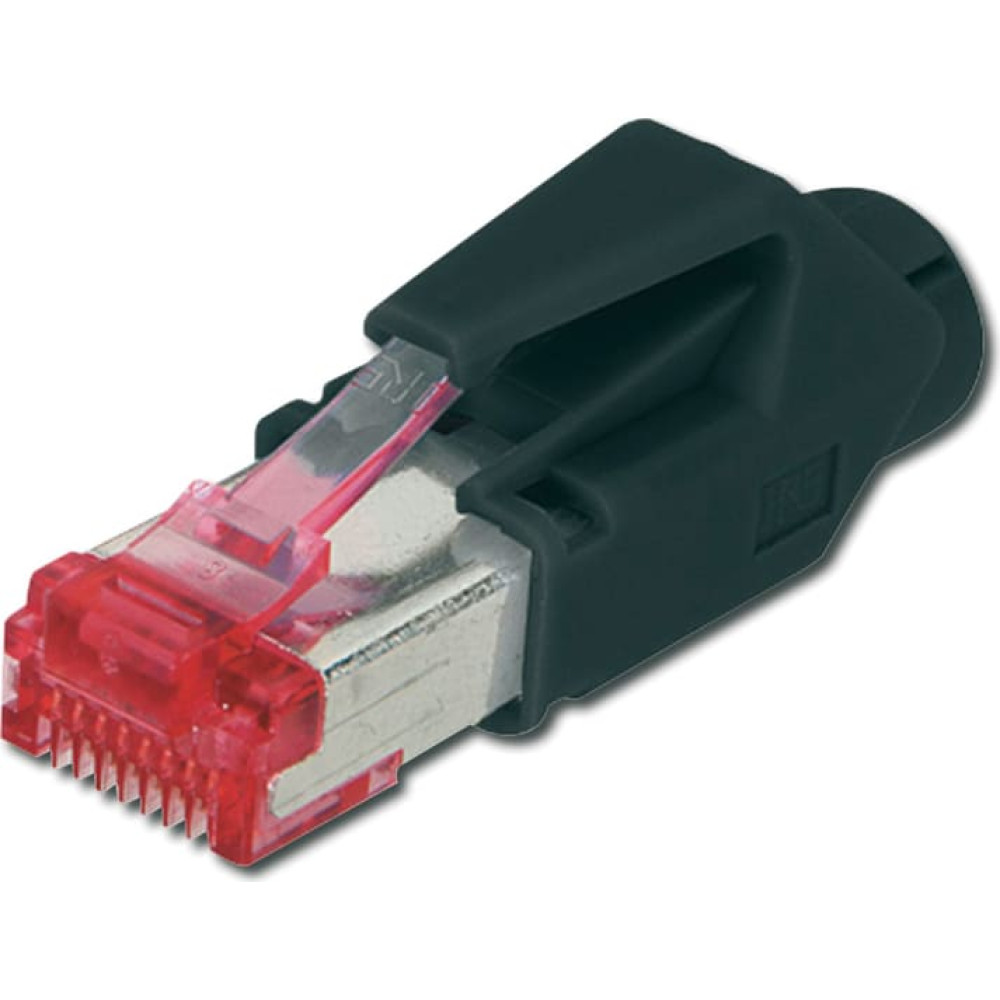

CAT 6 modular RJ45 plug, Hirose TM21 8P8C, shielded, for round cable, incl. hood



These modular plugs can be used to establish quick and simple connections.

Easy assembly by modular crimping tool DN-94008
Layout performance: CAT 6, 1GBase-T
Area of application: Patch cable assembly
General properties:
Fully shielded with strain relief for installation cables
Incl. comb
Technical properties:
Mating cycles: >= 750 (ISO/IEC 11801, IEC 60603-7-5)
Material connector body: Polycarbonat, clear
Connector contact: Phosphor bronze, brass 0.8 u gold-plated
Material shielding housing: Brass 0.5 mm, 2 u nickel-plated
Flammability: UL 94V-2
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Diameter Cu-Conductor: AWG (27/7 ... 24/7)
Operating temperature: -20 °C to +60 °C
Current carrying capacity: 1A at 50 °C
Diameter outer jacket: 5,5 ... 6,2mm
