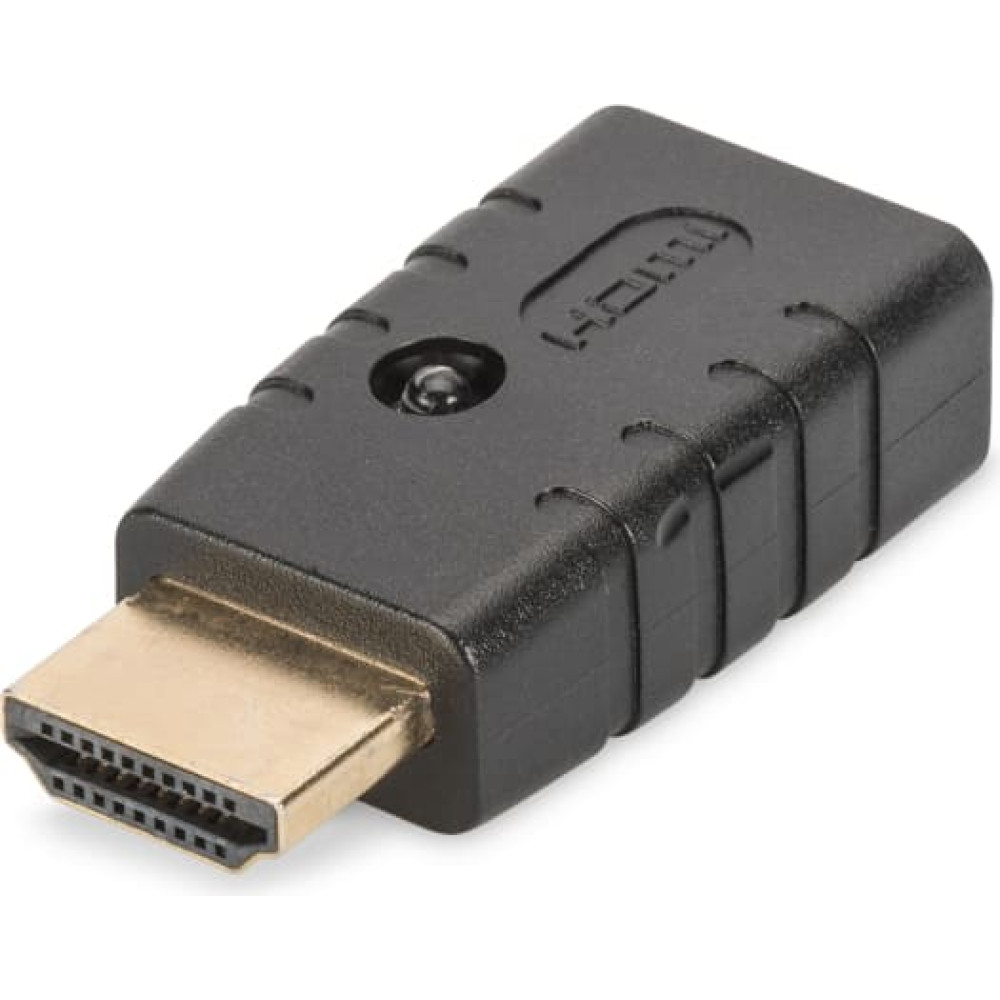

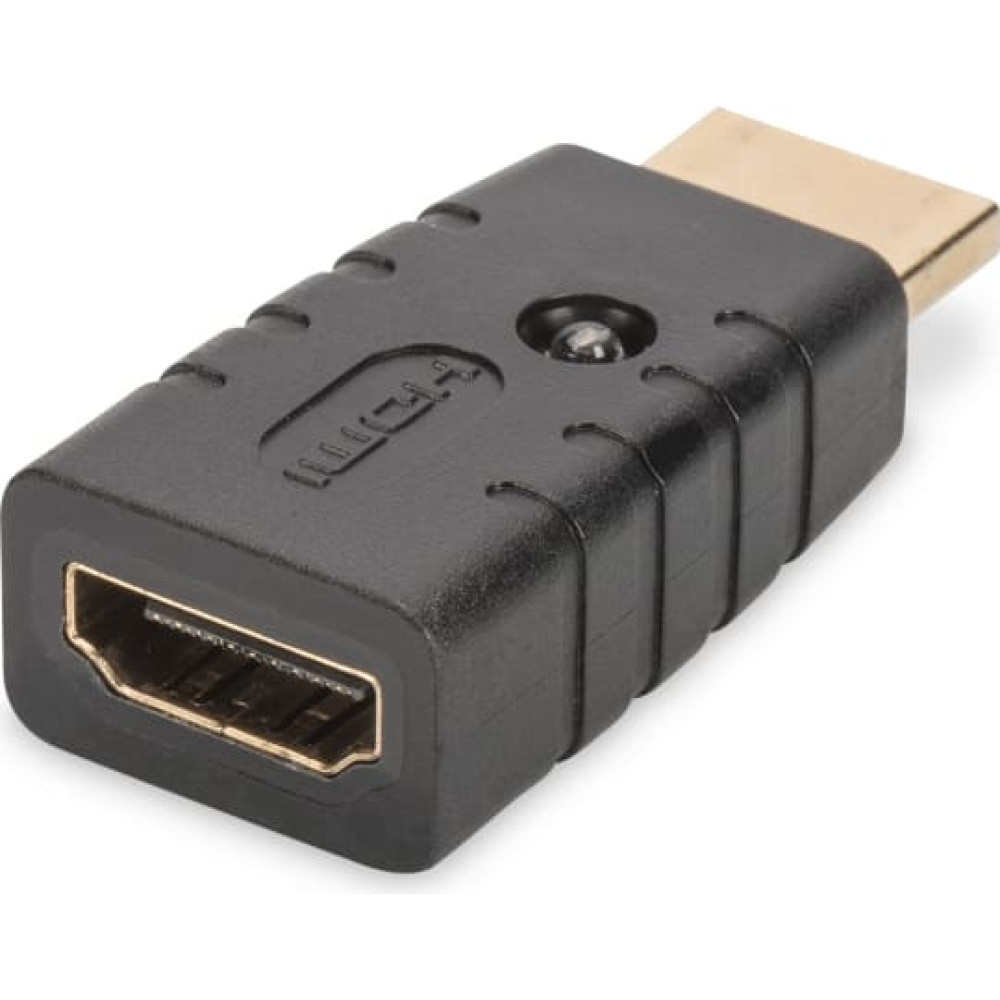

Digitus 4K HDMI EDID Emulator

Product Code: DA-70466

Barcode 4016032442554

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

depth: 0.135

height: 0.025

height(cm): 2.3

length(cm): 13

volume(cm3): 224.25

weight(kg): 0.167

width: 0.075

width(cm): 7.5

Description

HDMI EDID Emulator for extender, switches, splitter, matrix switcher

Emulates the EDID data for connected HDMI screens/monitors/TVs and solves possible transmission problems with the communicating devices (monitor, signal source)

Emulates HDMI EDID (Extended Display Identification Data) information
Solves possible transmission problems with the communicating devices (monitor, signal source), for example, at different resolutions, formats, etc.
Has preset EDID data (resolutions/timings)
Clone function - allows you to read and clone the EDID data of a connected TV/monitor/screen
Supports resolutions up to UHD 4K2K / 60Hz
HDCP pass-through
Supports HDR for UHD and FHD resolution
4K/60Hz HDR 8-bit YCbCr 4:4:4;
4K/30Hz HDR 12-bit YCbCr 4:4:4

The Digitus 4K HDMI EDID Emulator continuously emulates a connected HDMI monitor so that the signal source does not change or disconnect your signal even when the connection is interrupted. It has preset EDID data (resolutions/timings), which can be found in the user manual. If EDID data of an individual monitor/display are missing, they can be read and cloned quickly and easily by means of the practical clone function. The emulator supports resolutions up to UHD 4K2K/60 Hz. The emulator offers the ideal solution for applications with HDMI extenders, splitters, switches or converters.

HDTV Standard: Ultra HD 4K
Audio: false
Emulates HDMI EDID (Extended Display Identification Data) information
Solves possible transmission problems with the communicating devices (monitor, signal source), for example, at different resolutions, formats, etc.
Has preset EDID data (resolutions/timings)
Clone function - allows you to read and clone the EDID data of a connected TV/monitor/screen
Supports resolutions up to UHD 4K2K / 60Hz
HDCP pass-through

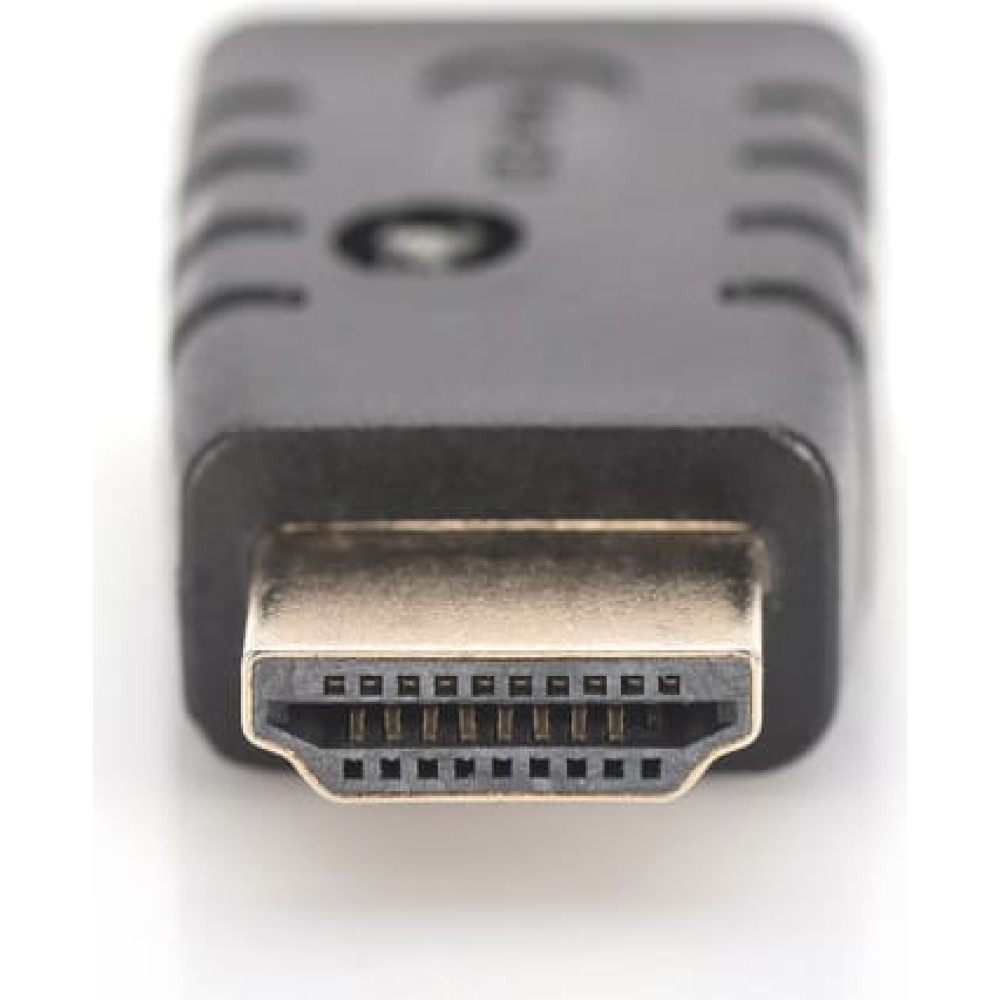

1x HDMI input: HDMI connector for connection to the signal source

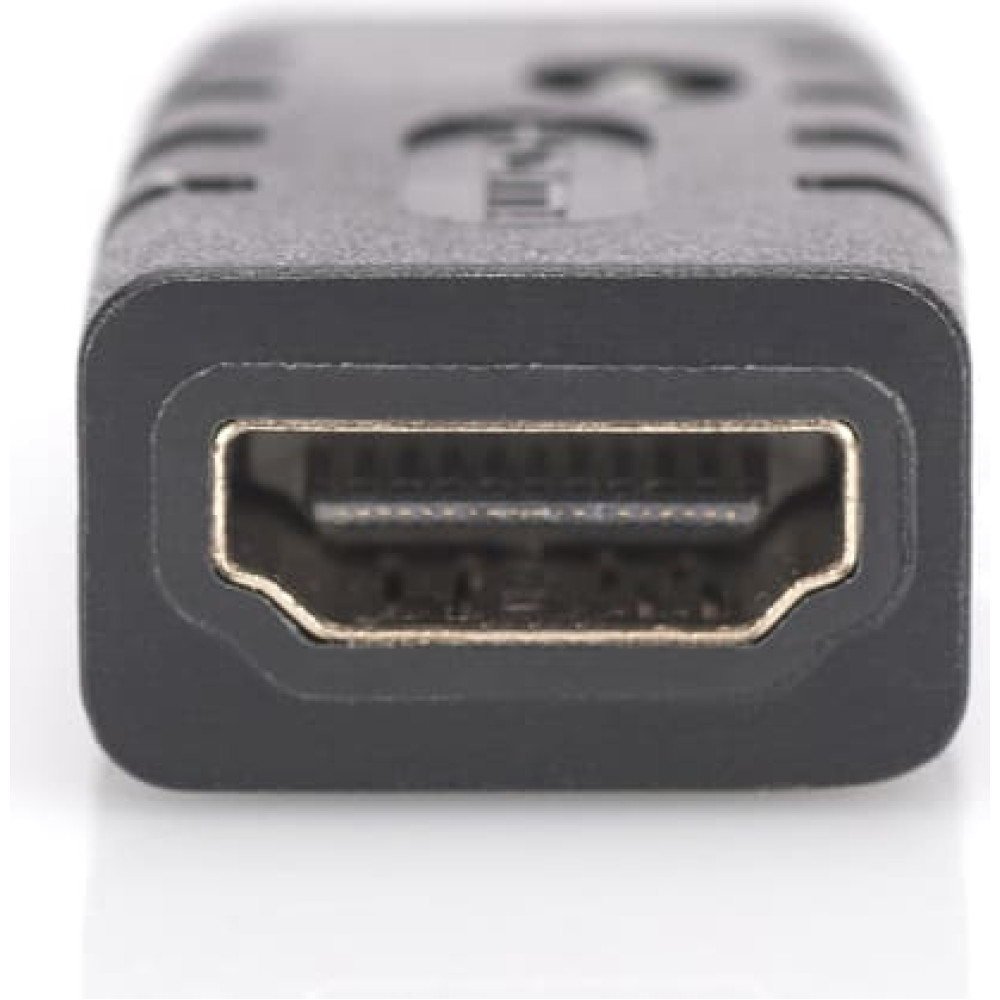

1x HDMI output: HDMI socket for connection of the HDMI cable
Supports HDCP 2.2 / 1.4
Supports VESA and CEA specifications
LED activity indicator
Requires no external power supply
Dimensions: L 4.4 x W 2.0 x H 1.3 cm
Weight: 15 g
Color: black

Package content:
4K HDMI EDID Emulator
Manual
