Digitus CAT 5e, Class D, RJ45 Modular Coupler - 10 pieces

DIGITUS

Digitus CAT 5e, Class D, RJ45 Modular Coupler - 10 pieces

Product Code: DN-93901-10
Barcode 4016032495055

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
country of origin: CN
depth: 0.113
height: 0.025
height(cm): 22
length(cm): 37
volume(cm3): 8954
weight(kg): 0.09
width: 0.095
width(cm): 11
Description

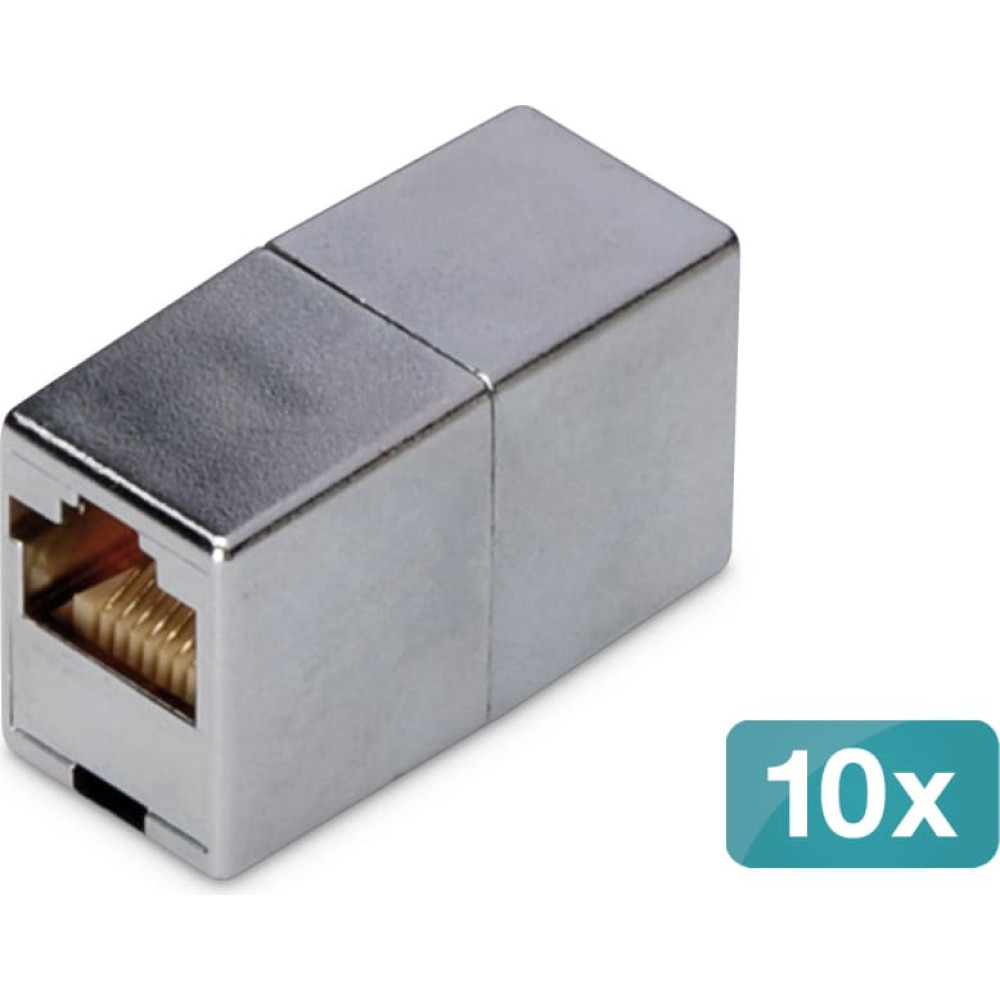

CAT 5e Modular Coupler, shielded RJ45 to RJ45, 10 pc.


Quick and easy extention of patch cables
The RJ45 sockets are shielded which provides optimized safety
The coupler offers a long life time (mating cycles)

The modular CAT5e Class D coupler from DIGITUS® consists of two shielded RJ45 female ports. The assignment is "1:1".

Technical properties:
Housing material: ABS UL-94V-0
Contacts coating: Nickel, gold-plated 0.5 µ
Shielding: Tinned bronze
PCB:FR4, UL 94V-0
Material contacts: Phosphor bronze
Physical properties:
Mating cycles: >= 750 (ISO/IEC 11801, IEC 60603-7-5)
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
10 pieces
