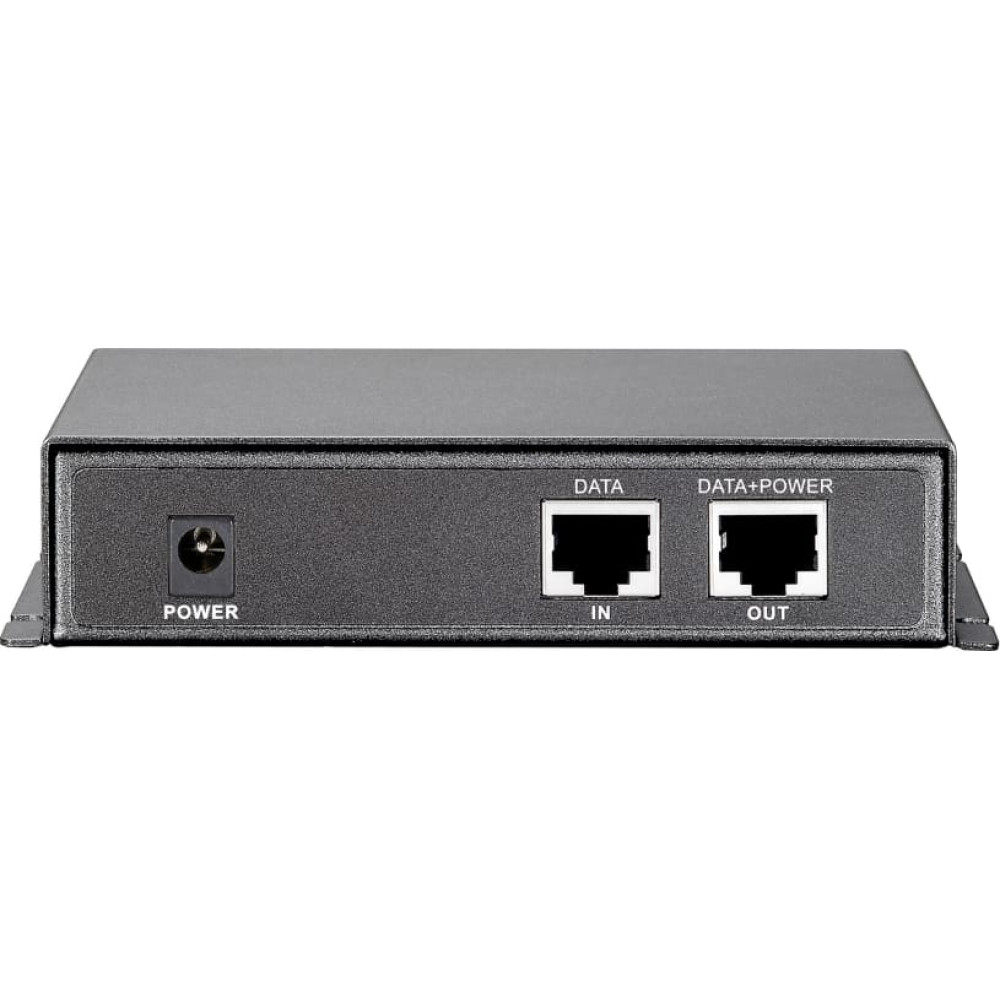

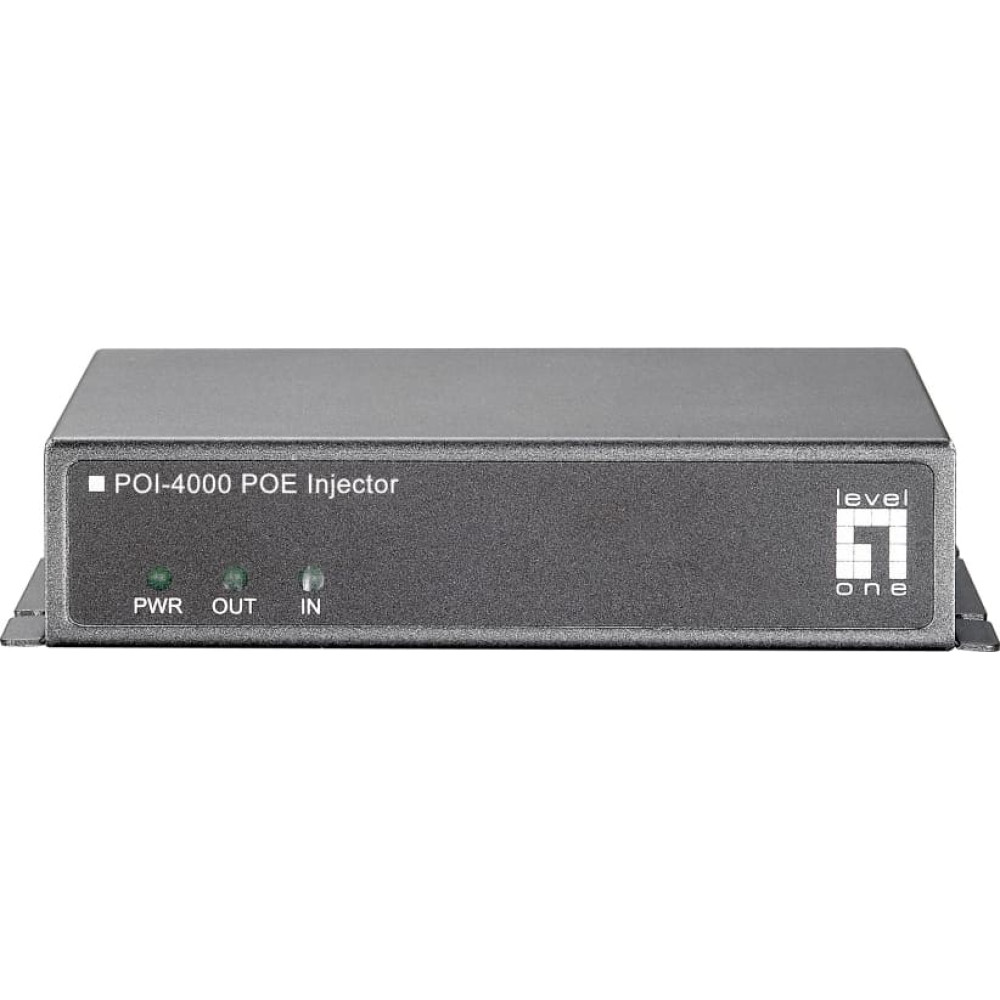

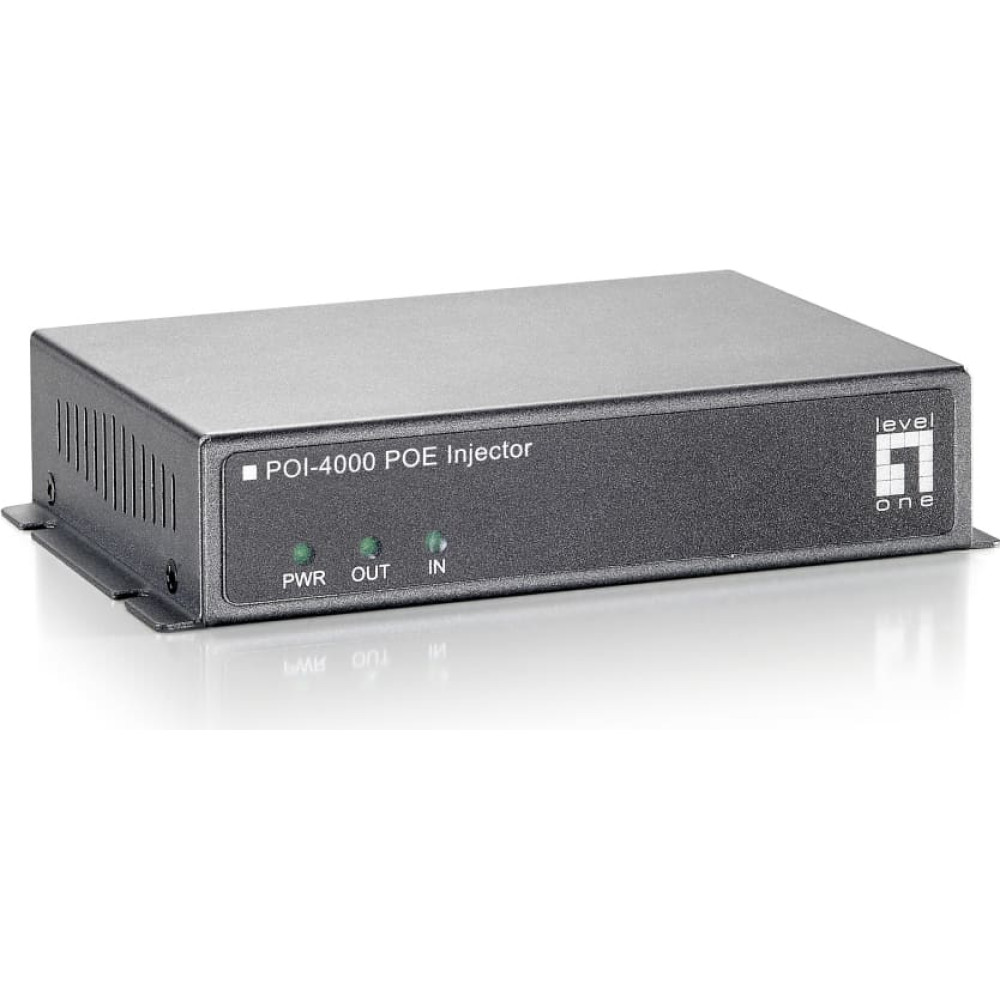

Level One LevelOne POI-4000-Z PoE adapteris Ātrais Ethernet 56 V

LEVEL ONE

Level One LevelOne POI-4000-Z PoE adapteris Ātrais Ethernet 56 V

Product Code: POI-4000-Z
Barcode 04015867154854

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
certification: FCC Rules Part 15 Class A CE
country of origin: Taiwan
dimensions (wxdxh): 90 x 120 x 28 mm
ethernet interface type: Fast Ethernet
ethernet lan (rj-45) ports: 2
ethernet lan data rates: 10,100 Mbit/s
harmonized system (hs) code: 85044095
input current: 2.7 A
input voltage: 24 V
led indicators: LAN, Power
maximum operating distance: 100 m
networking standards: IEEE 802.3, IEEE 802.3af
number of products included: 1 pc(s)
operating relative humidity (h-h): 5 - 90%
operating temperature (t-t): 0 - 50 °C
output current: 1 A
plug and play: Yes
power consumption (max): 12.95 W
power over ethernet (poe): Yes
power over ethernet (poe) voltage: 56 V
power protection features: Over current, Over voltage
product colour: Black
quick installation guide: Yes
total power over ethernet (poe) budget: 56 W
Description
- 56 Watt High-Power PSE Power Injector
- Sends Power over Ethernet to remote devices
- Ethernet 100Mbps Wire Speed
- Simple to install-plug & play
- Power Protection: OCP, OVP

Background
The IEEE 802.3af standard limits the maximum current on an Ethernet cable to 350Ma. This provides for a maximum end-point power consumption of 12.95 Watts, which is fine for some devices. But many professional networking devices require more power.

Introducting the ultimate solution for high-power PoE
LevelOne POI-4000(-Z) is a high power, PSE Power Injector for use in Power over Ethernet systems. With Ethernet Input (data only) port and Output (data power) port, POI-4000(-Z) delivers up to 60 Watts over Cat.5/6/7. This provides excellent support for PD devices such as PoE IP surveillance, outdoor access points or PoE VoIP telephones.

Maximize your PoE network

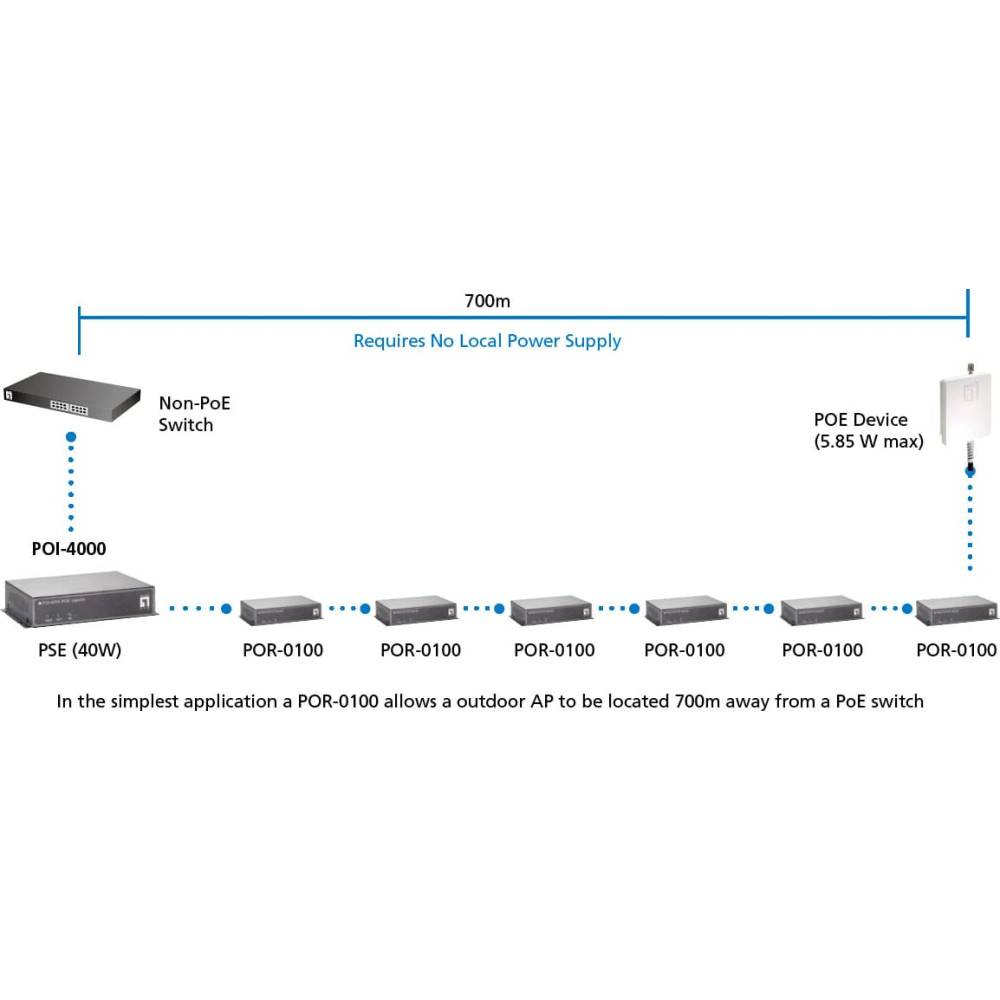

POI-4000(-Z) can work with PoE Repeaters to extend the PoE network several hundred meters. This unbeatable solution is available only from LevelOne! It brings long distances with no latency or loss of network speed.
