D-LINK

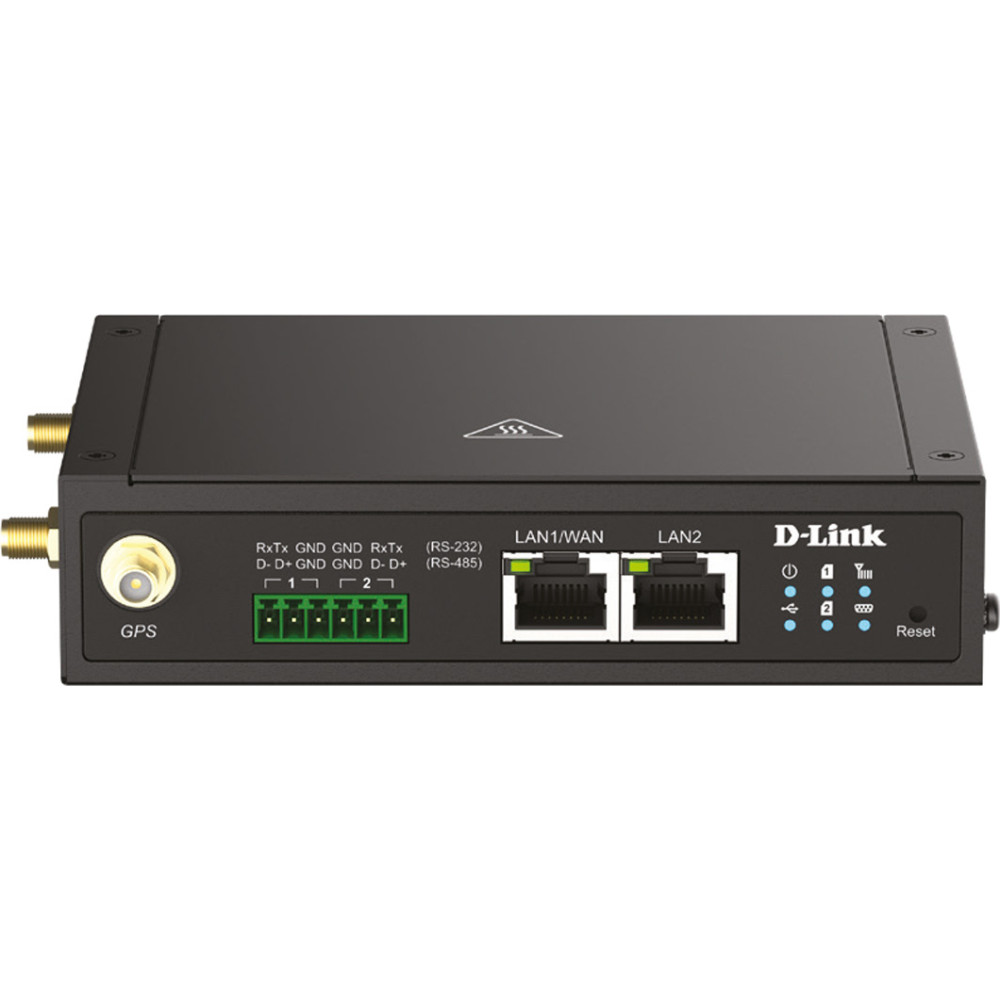

D-Link DOM-530-TSO 4G LTE IIoT-Gateway

Product Code: DOM-530-TSO
Barcode 790069475184

To purchase this product you must be registered in our system.



Specification
colour: black
depth: 99
depth of packaging (single piece): 290
gross weight: 1.066
height: 31
height of packaging (single piece): 80
lan connectors: 1x Gigabit-Ethernet
manufacturer: D-LINK
operating temperature max.: 70
operating temperature min.: -30
package weight (single piece): 1.066
product group: Network Components
product type: Router
radio standard 4g: yes
storage temperature max.: 85
storage temperature min.: -40
wan interface: RJ-45
width: 131
width of packaging (single piece): 250

Description

The DOM-530-TSO 4G IIoT Gateway offers LTE Cat.4 connectivity, dual Gigabit Ethernet ports with WAN failover, and dual SIM support for network reliability.

  • Cellular Module: 4G LTE-Cat.4
  • SIM Slot: 2*SIM(Micro SIM)
  • Ethernet: 1*WAN/LAN GE, 1*LAN GE
  • Serial Port: 2* (RS-232 or RS-485)(TB)
  • Digital I/O: 1* DI(Isolated, “Logic 0”: 0~2V, “Logic 1”: 5V~30V), 1*DO(Relay Mode, Max. 30V) (TB)
  • Micro SD Slot: 1*Micro SD for log.
  • USB Port: 1* USB 2.0 Type A port for log.
  • GNSS: GPS/GLONASS
  • Power Input: DC 9-36V (TB)
  • Antenna Connector: 2*SMA(F)-Cellular, 1*SMA(F)-GPS
  • Maximum Cellular Data Throughput: LTE: 150 Mbps (DL) / 50 Mbps (UL)
  • Mult-WAN: Cellular, Ether-WAN, WAN Failover
  • Cellular: NAT, Bridge
  • Ether-WAN: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
  • Network Monitor: ICMP Check/DNS Query
  • LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
  • Port Forward: NAT Loopback, DMZ, Virtual Server & Computer, VPN Passthrough
  • Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
  • DDNS: DynDNS, No-IP, Dynamic DO
  • IGMP, IPv4/v6
