D-LINK

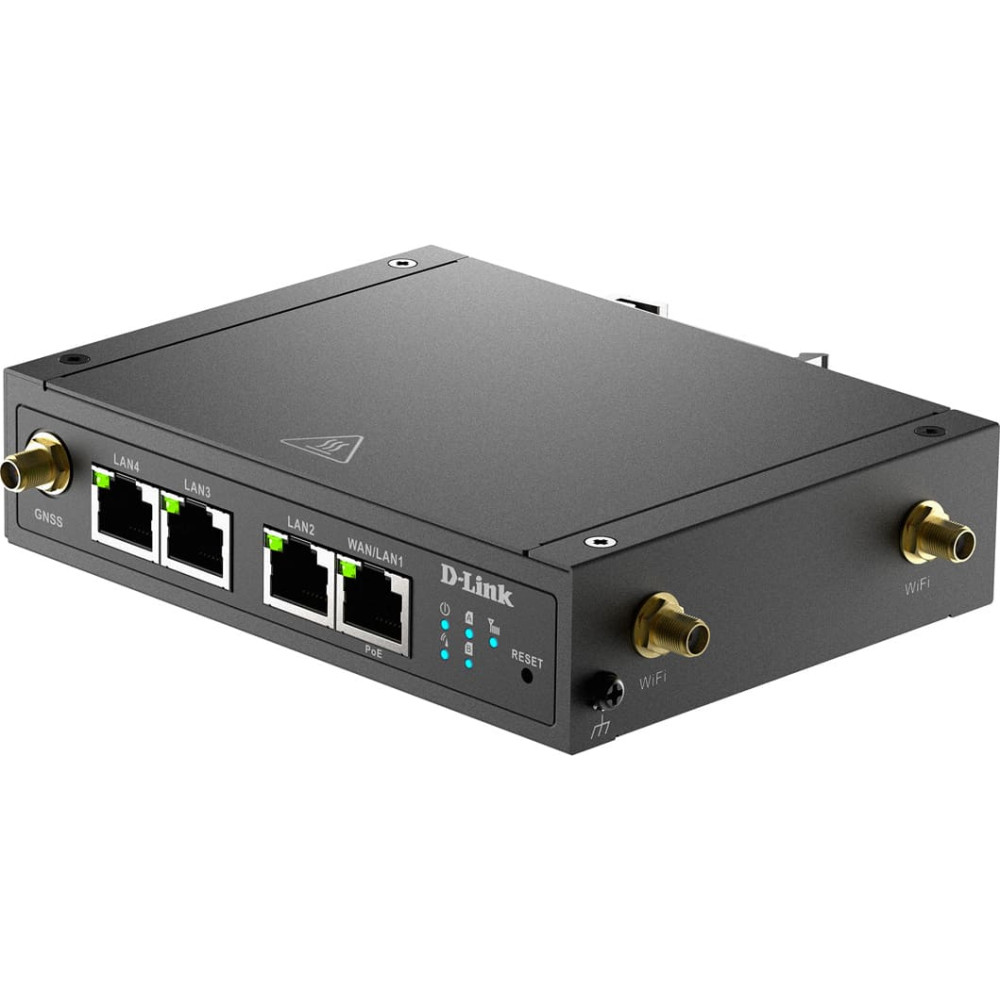

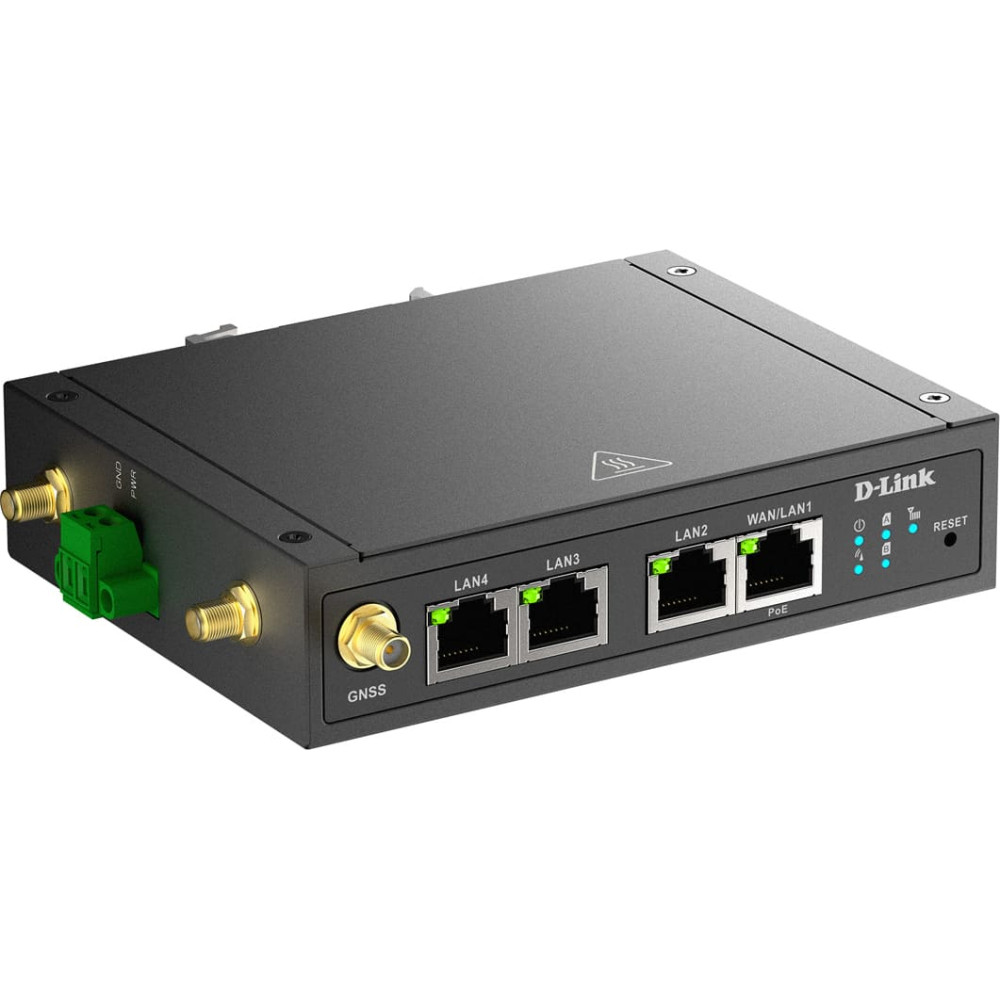

D-Link DWM-530-T 4G M2M VPN Wi-Fi Router

Product Code: DWM-530-T
Barcode 790069476709

To purchase this product you must be registered in our system.



Specification
2.4 ghz data transfer rate: 300
colour: black
depth: 91
depth of packaging (single piece): 290
gross weight: 1.081
height: 31
height of packaging (single piece): 80
lan connectors: 4x Fast Ethernet
mains connection: Appliance Europlug, Type-C
manufacturer: D-LINK
maximum data transfer rate: 300
operating temperature max.: 70
operating temperature min.: -30
package weight (single piece): 1.081
power supply: External power supply unit
product group: Network Components
product type: Router
radio standard 4g: yes
scope of delivery: DWM-530-T, 2x Cellular SMA Antennas, 2x Wi-Fi RP-SMA Antennas, 1x RJ-45 Cable, 1x Power Adapter, 1x Terminal Block (2-pin), 2x DIN-Rail Kit
storage temperature max.: 85
storage temperature min.: -40
wi-fi frequency band: Single-Band
width: 131
width of packaging (single piece): 250
wifi standard: WiFi 4 (IEEE 802.11n)
wlan support: yes
wlan wep encryption: yes
wlan wpa encryption: yes
wlan wpa2 encryption: yes

Description

The DWM-530-T 4G M2M Router delivers LTE Cat 4 capability. It is equipped with Four Fast Ethernet ports, one of which can be configured as an Ethernet WAN. This allows easy switching between broadband and 4G LTE. Additionally, Wi-Fi N300 connectivity is provided, making it suitable for a wide range of M2M applications.

  • 1x Fast Ethernet WAN/LAN Port
  • 3x Fast Ethernet LAN Ports
  • Dual 3FF Micro-SIM slot
  • LTE: 150 Mbps (DL) / 50 Mbps (UL)
  • Cellular/Ether-WAN failover
  • 802.11b/g/n Wi-Fi 4, up to 300 Mbps on the 2.4 GHz band
  • WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, 802.1x
  • IPv4/v6, Static Route
  • RIPv1/v2, OSPF, BGP
  • IPsec, PPTP, L2TP, OpenVPN, WireGuard, GRE, VPN Pass-through
  • IPS, access control
  • SMS service
  • Management via Web UI, SSH and D-ECS
  • Wide Operating Temperature Range (-30 to +70°C)

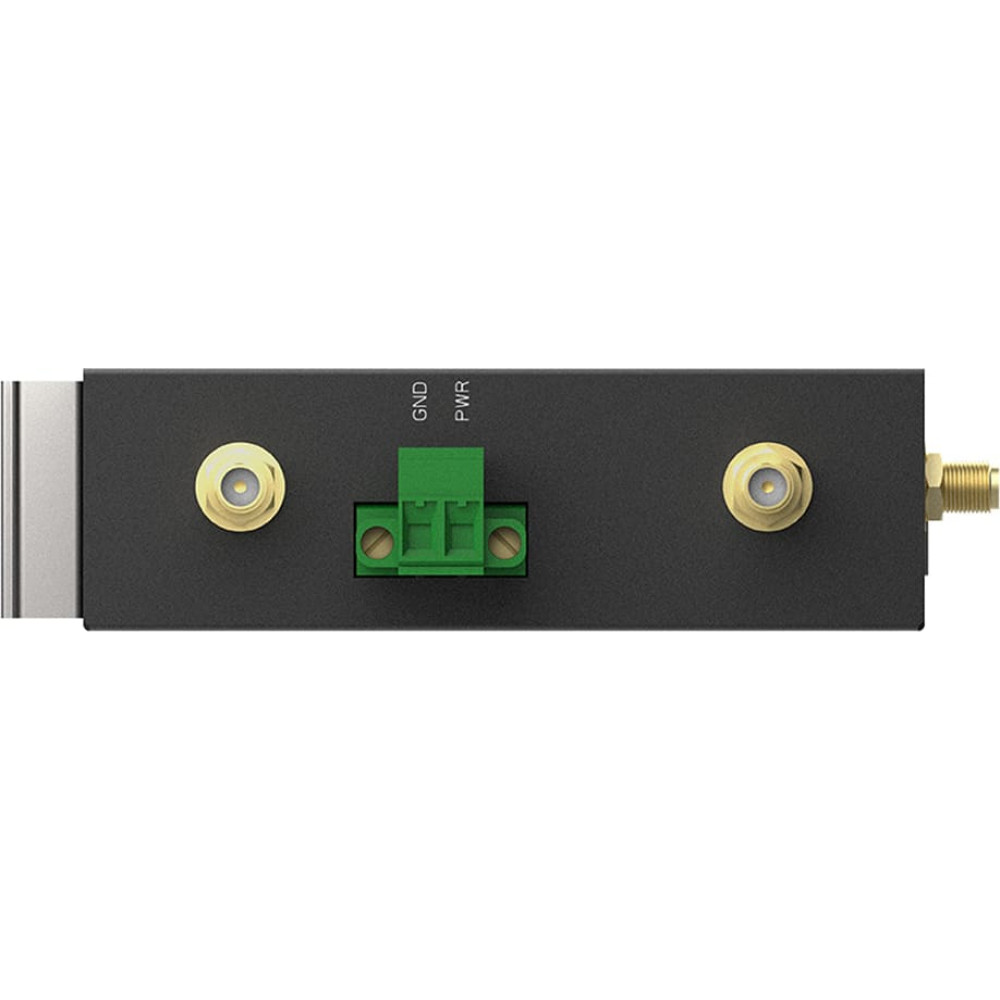

  • Power input: 2-pin TB for DC 9V-36V
