Digitus Industrial 8 + 4-port Gigabit Ethernet switch

Product Code: DN-651152

Barcode 4016032490487

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

depth: 0.220

height: 0.070

height(cm): 21.3

length(cm): 6.6

volume(cm3): 2221.16

weight(kg): 0.75

width: 0.160

width(cm): 15.8

Description

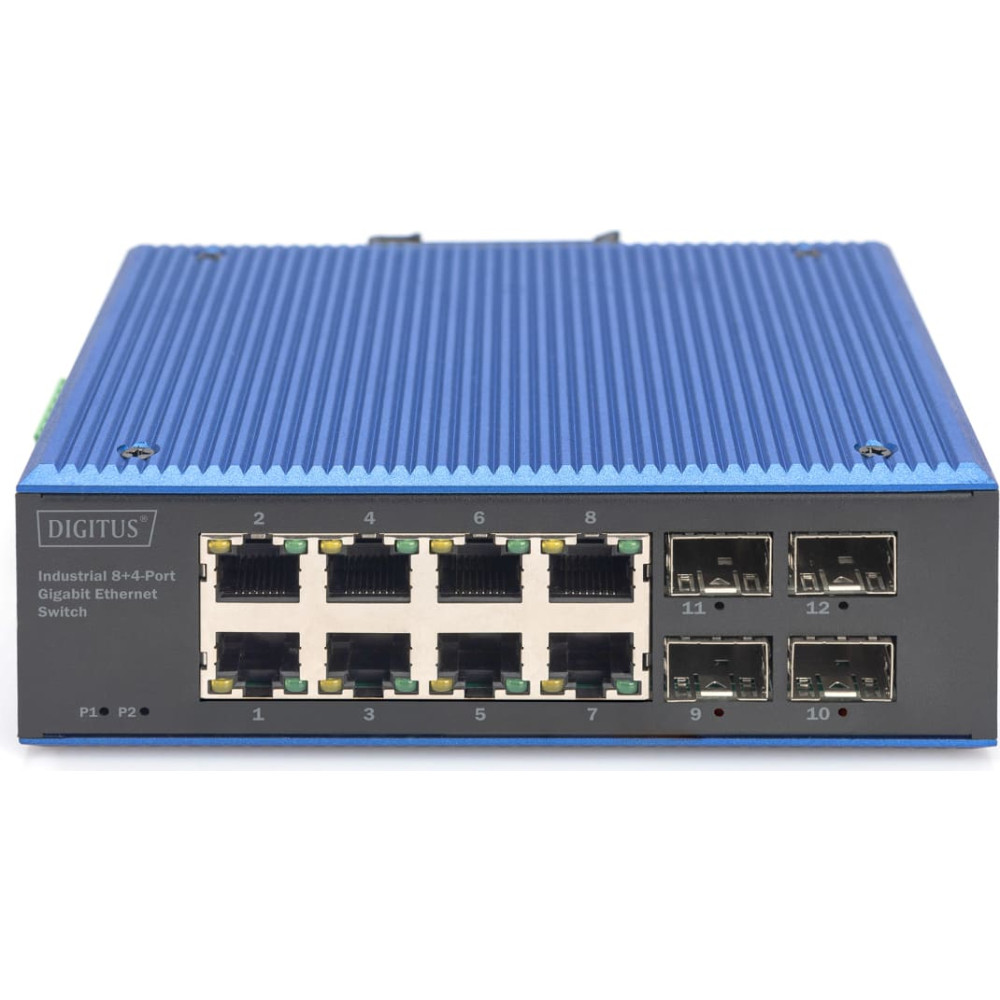

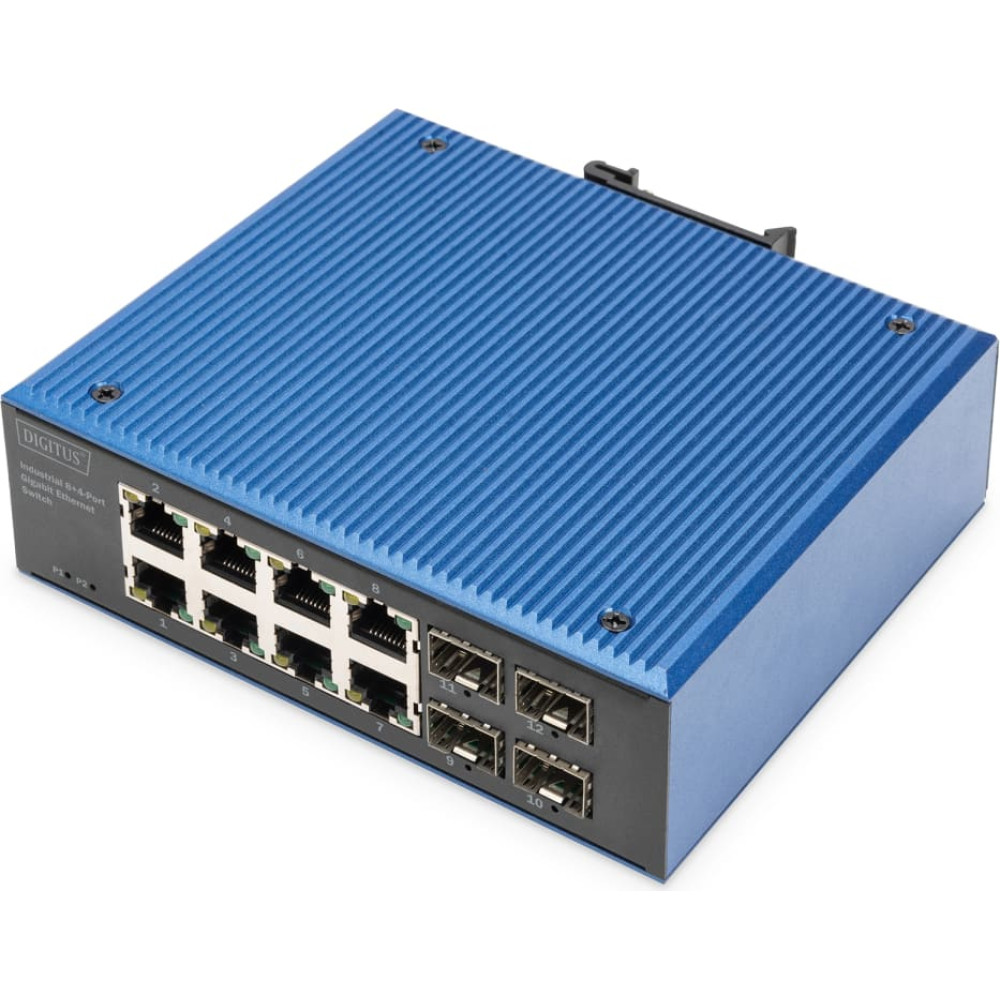

Industrial 8+4-Port Gigabit Ethernet Switch 8 x GE RJ45 + 2 SFP+ Port

8x 10/100/1000 BASE-TX RJ45 + 4 x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40°C to 80°C.

8 port GE, 2 SFP GE ports
8 x 10/100/1000 Mbit (RJ45)
4 x 10/100/1000 Mbit (SFP)
Redundant power supply 12-48 V (DC)
Metal housing to IP40 standard

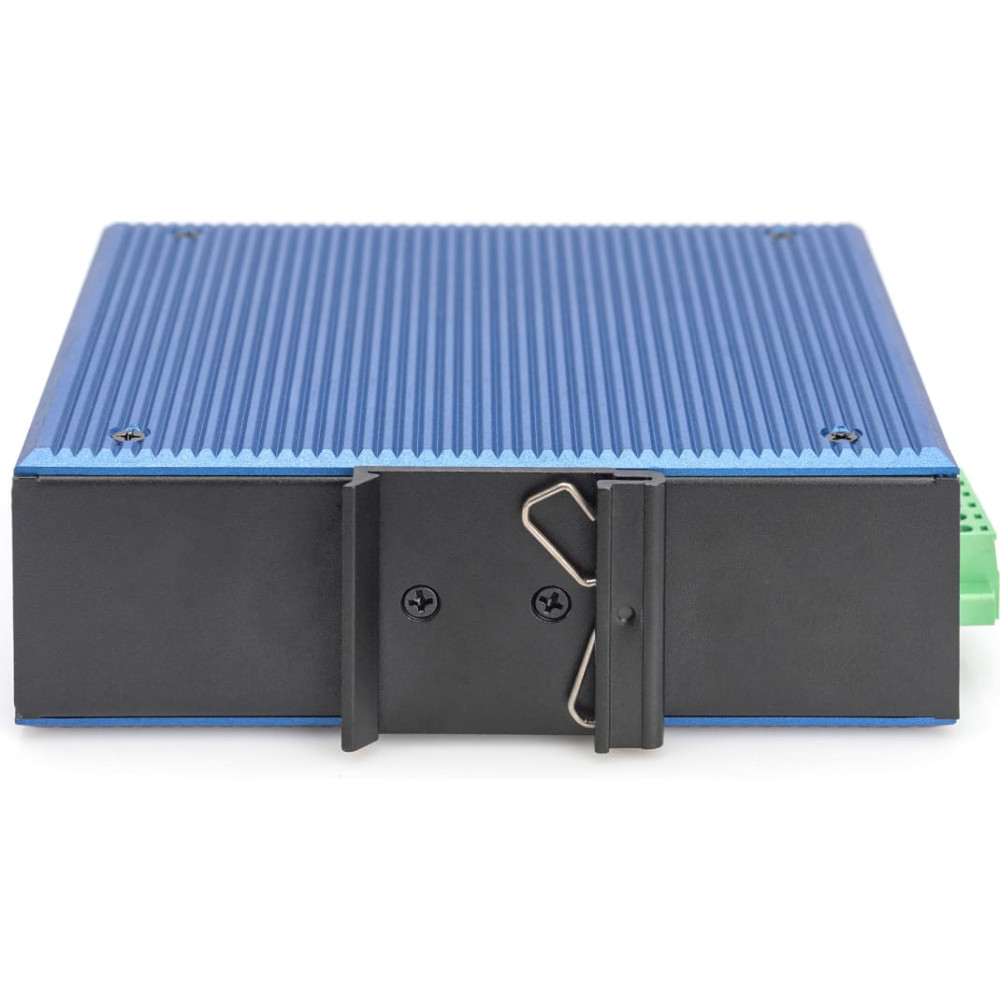

Simple mounting on a top-hat rail
Operating temperature from - 40° up to 80° C
Simple plug & play installation
ESD & EFT protection up to 6 kV (DC)
Ideal for connecting camera systems

The DN-651152 is a robust 8 + 4 port Industrial Gigabit Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers
8x 10/100/1000 BASE-TX RJ45 + 4x 1000 Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40°C to 80°C.

Number of ports: 8
Ethernet speed: Gigabit
Industrial usage: true
Managed: false
Number of ports (Uplink): 4
Outdoorsuitable: false
PoE (Power over Ethernet): false
Protection against vanadlism: false
Uplink port connection: SFP
VLAN: false
Supports IEEE802.3x flow control, and backpressure
Supports store-and-forward technology for optimized data transmission
Automatic speed and half/full duplex detection/adjustment
Bandwidth: 52 Gbps
Packet buffer: 4.1 Mbit
Packet forwarding size: 38.7 Mbps
Size of the MAC address table: 8K
Jumbo frame rate: 9000 byte
ESD protection: 6 kV (DC)
EFT protection: 6 kV (DC)
Metal housing, IP40
4 kV lightning protection and surge protection

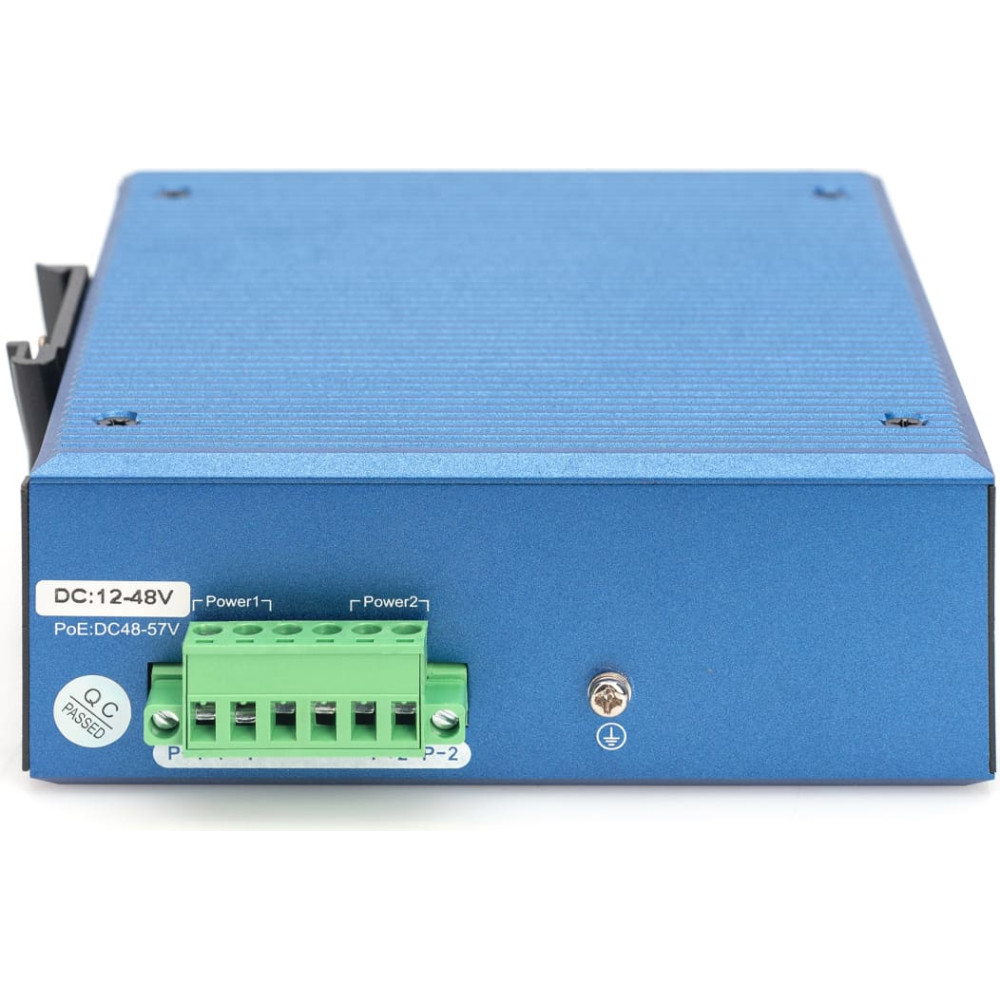

Redundant power supply with reverse polarity protection function
Power supply: 12 to 48 V
Power consumption: < 10 W
Removable terminal connection:
Protection class: IP40
Dimensions: 143.7 x 125 x 47.7 mm
Weight: 0.7 kg
Operating temperature: -40 to 80 ° C
Storage temperature: -40 to 80 ° C
Humidity: 5% to 95% (non-condensing)
MTBF: 300,000
