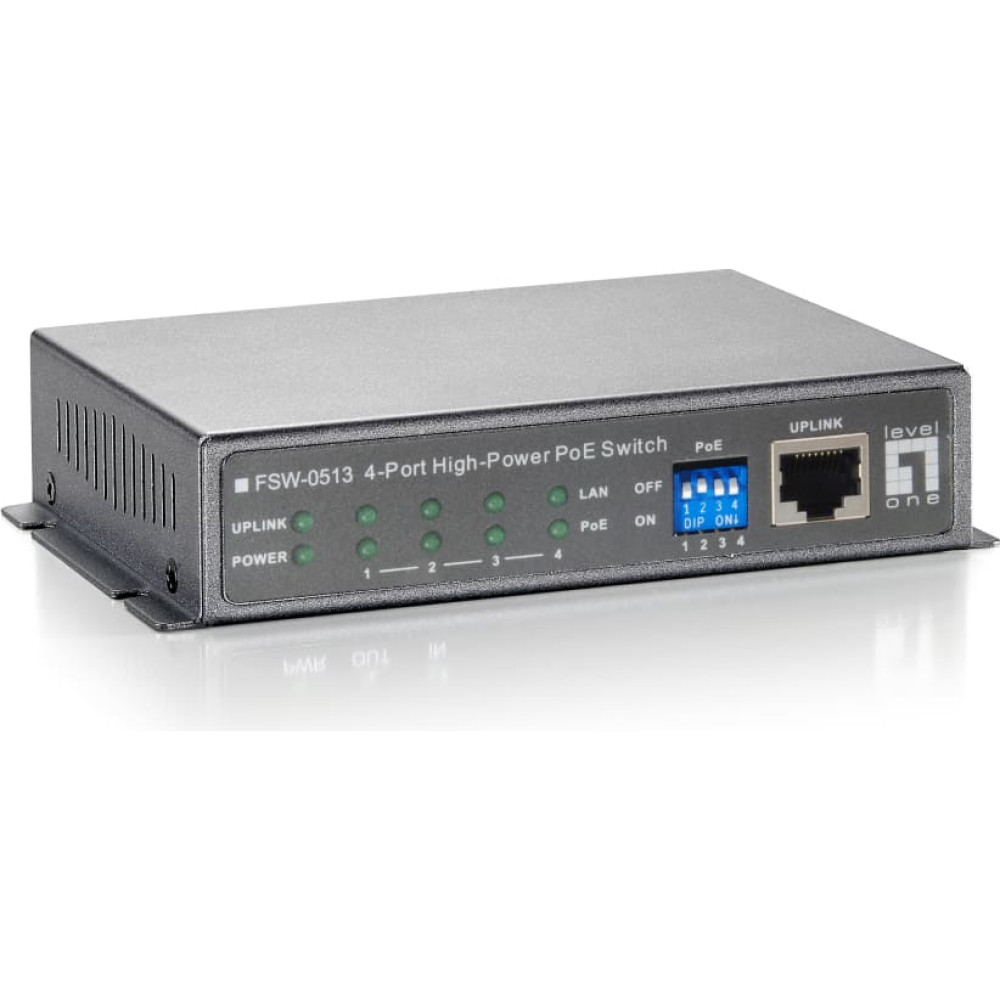

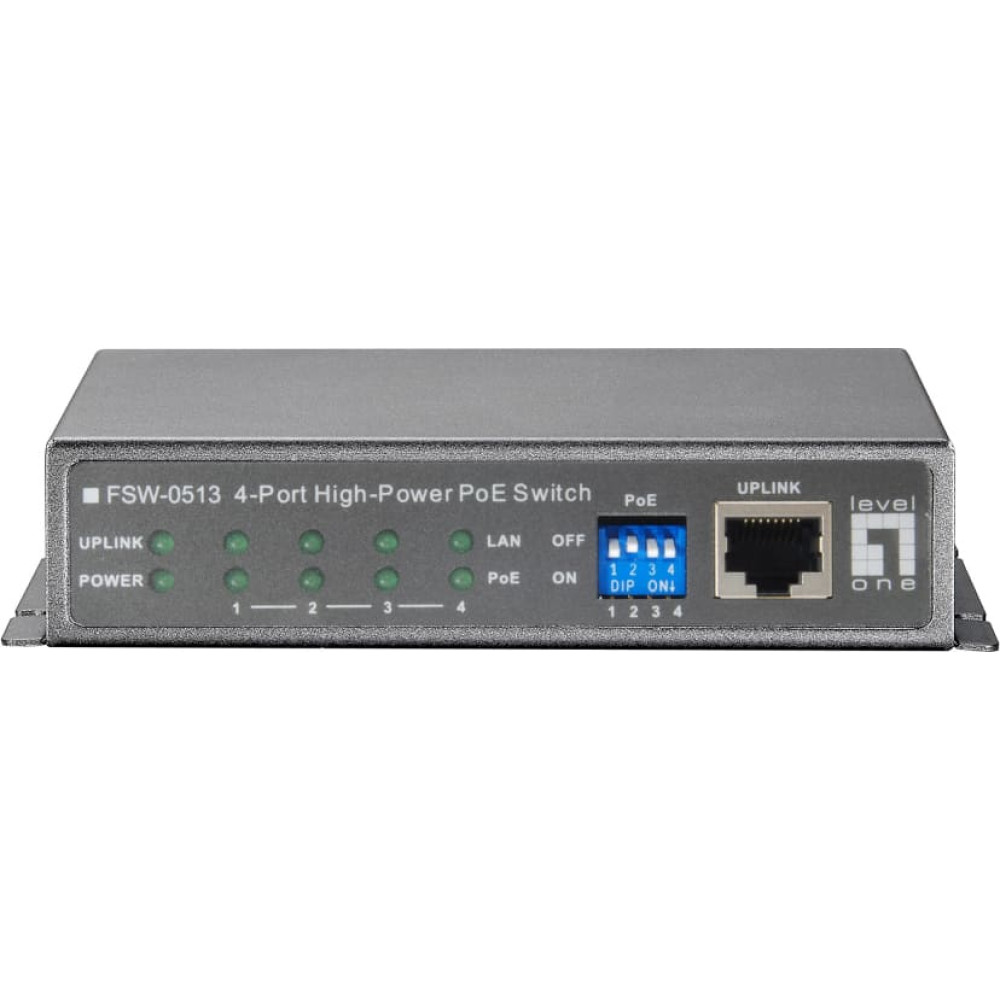

Level One LevelOne Switch 4x FE FSW-0513 1xFE 120W 4xPoE+
To purchase this product you must be registered in our system.
Specification
10g support: No
ac adapter included: Yes
auto mdi/mdi-x: Yes
auto-negotiation: Yes
basic switching rj-45 ethernet ports quantity: 5
basic switching rj-45 ethernet ports type: Fast Ethernet (10/100)
buffer size: 48 KB
cable types supported: Cat5
cables included: AC
certification: FCC, CE
copper ethernet cabling technology: 10BASE-T, 100BASE-TX
country of origin: Taiwan
depth: 90 mm
full duplex: Yes
harmonized system (hs) code: 85176990
height: 28 mm
led indicators: Uplink, LAN, PoE, Power
mac address table: 1024 entries
manual: Yes
networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
on/off switch: Yes
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): 0 - 45 °C
output current: 2.15 A
output voltage: 56 V
package depth: 148 mm
package height: 80 mm
package width: 232 mm
packet forwarding rate (10 mbps): 14880 pps
packet forwarding rate (100 mbps): 14800 pps
power connector: DC-in jack
power consumption (typical): 120 W
power over ethernet (poe): Yes
power over ethernet (poe) ports quantity: 1
power over ethernet (poe) power per port: 52 W
power protection features: Over current, Short circuit
product colour: Black, Grey
rack mounting: No
stackable: No
storage relative humidity (h-h): 10 - 90%
storage temperature (t-t): -40 - 70 °C
store-and-forward: Yes
switching capacity: 1 Gbit/s
total power over ethernet (poe) budget: 120 W
weight: 800 g
width: 120 mm
Description

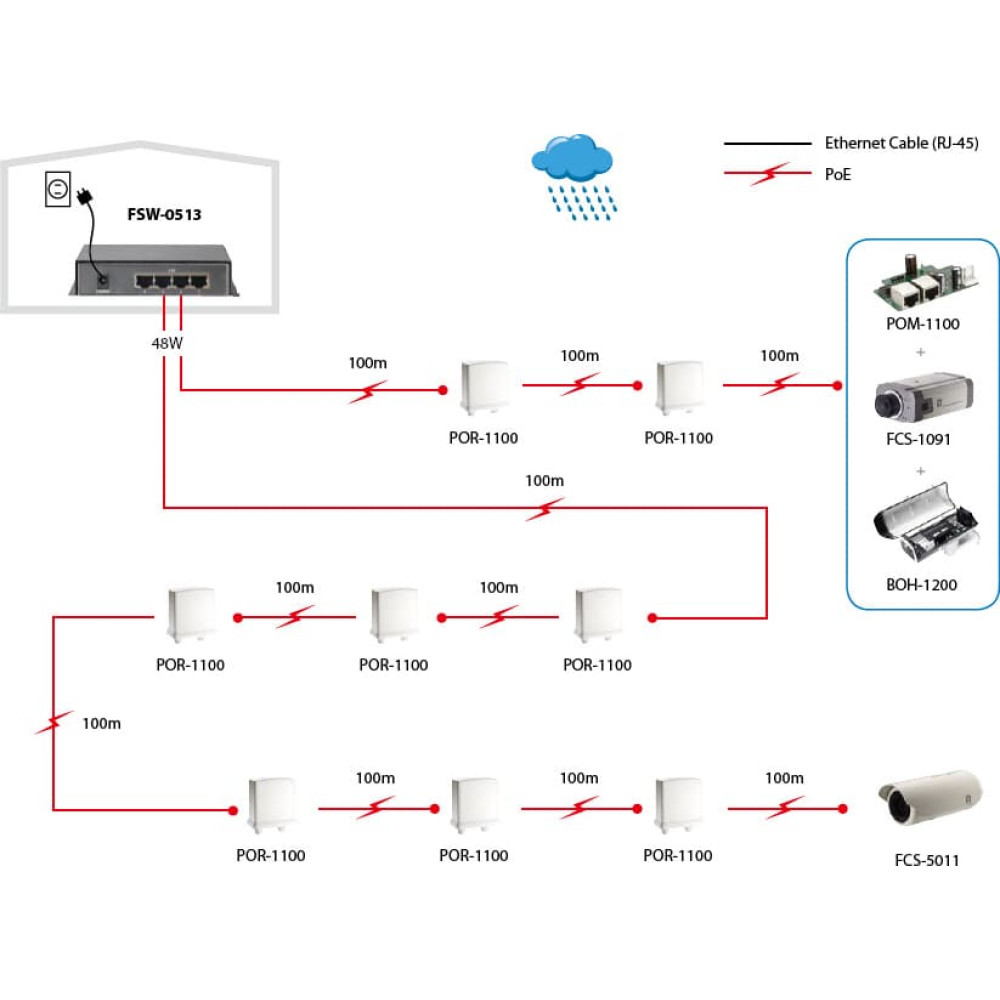

| FSW-0513(Z) is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513(Z) is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with high-power PoE, the reach of devices can be extended hundreds of meters. With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 52 Watts to a single port. FSW-0513(Z) is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513(Z) in a 19” chassis (POC-6000) for a large-scale rack-mount PoE solution. Power Protection FSW-0513(Z) supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection. - Provides flexibility of 4 x 10/100BASE-TX PoE ports - IEEE 802.3af PoE compliant to simplify deployment and installation - PoE on/off control per port by dip switches - Auto-detection and protection of non-standard PoE devices - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Total PoE power budget: 120W, up to 52W per port |
