Home Network products Switches and Hubs Gigabit switches Level One LevelOne Switch 5x GE GEU-0522 Kunststoff

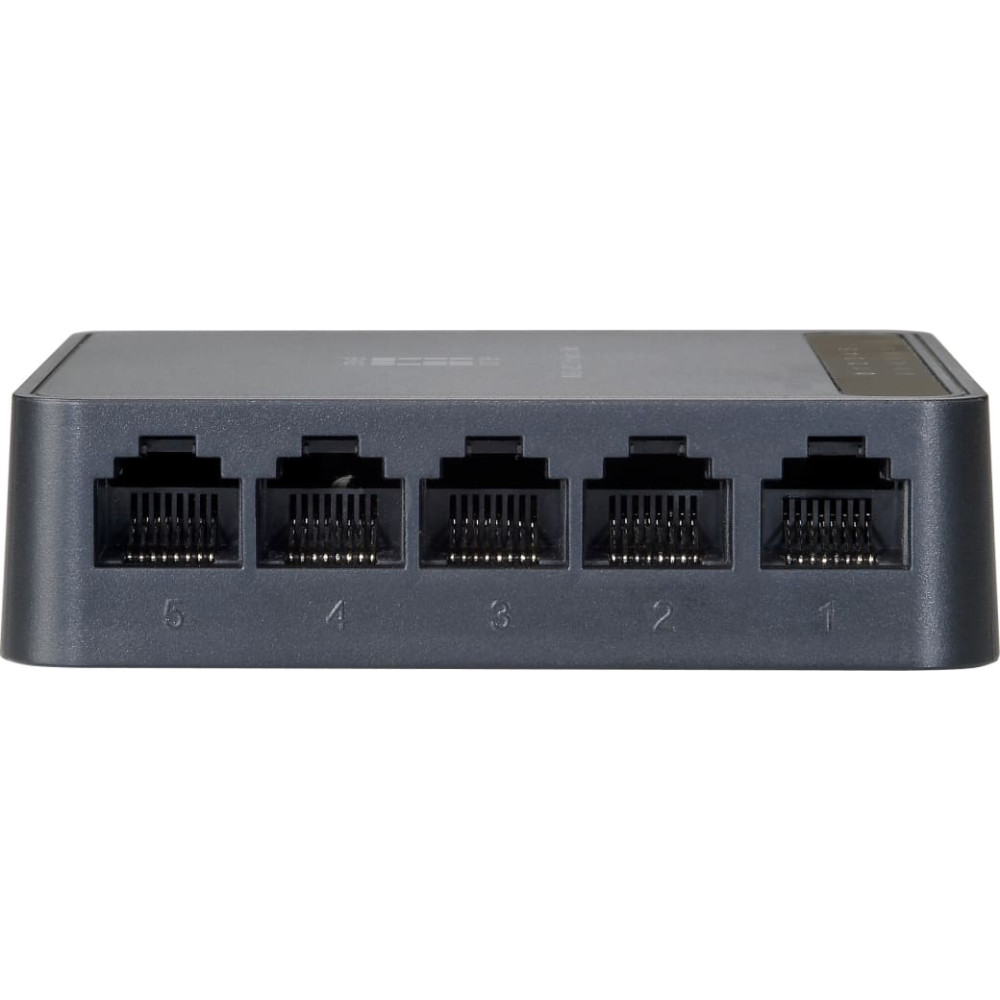

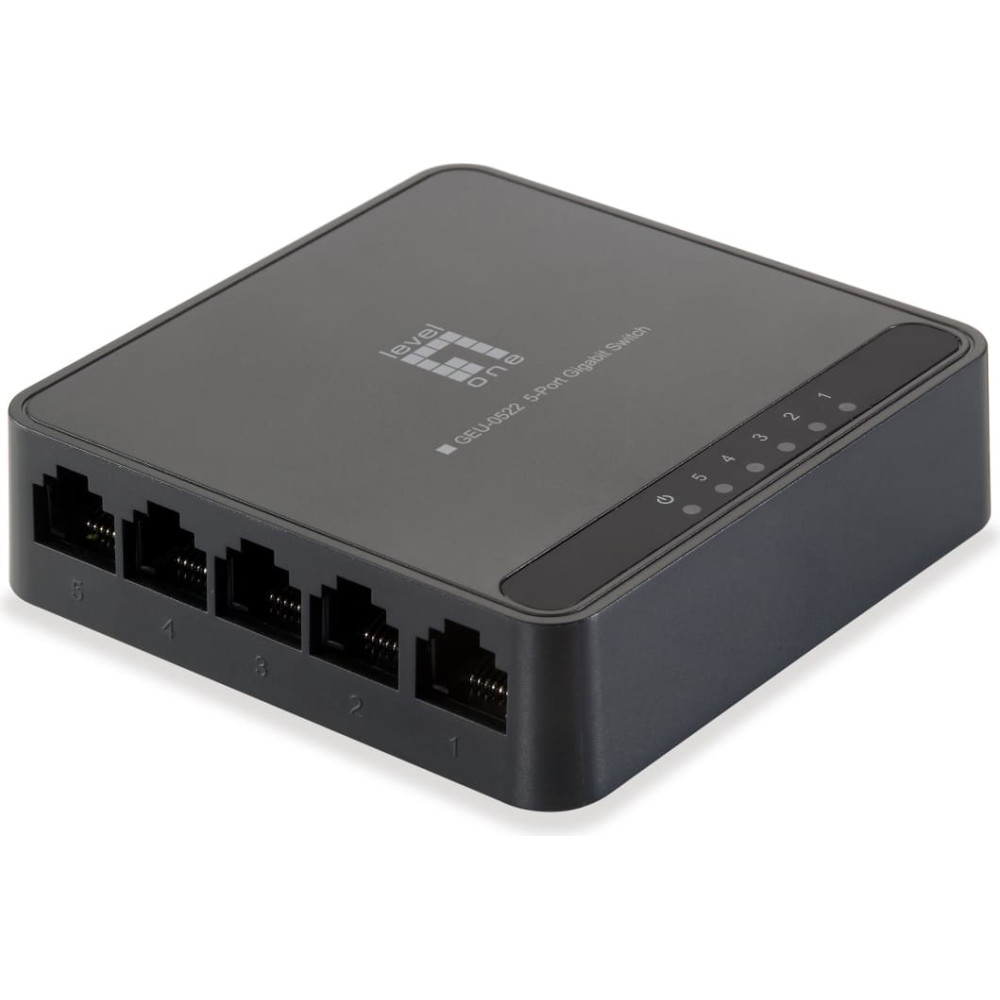

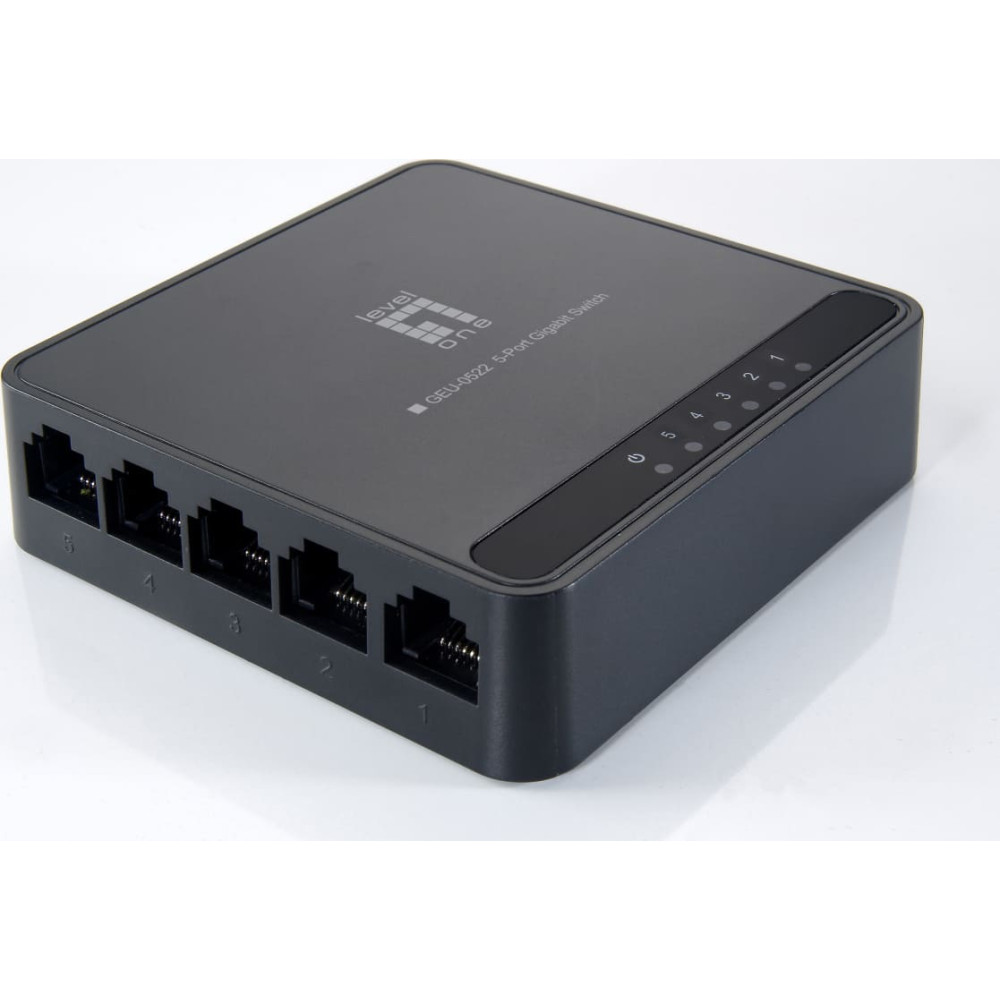

Level One LevelOne Switch 5x GE GEU-0522 Kunststoff

LEVEL ONE

Level One LevelOne Switch 5x GE GEU-0522 Kunststoff

Product Code: GEU-0522
Barcode 4015867202500

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
10g support: No
ac adapter included: Yes
auto mdi/mdi-x: Yes
auto-negotiation: Yes
basic switching rj-45 ethernet ports quantity: 5
basic switching rj-45 ethernet ports type: Gigabit Ethernet (10/100/1000)
buffer size: 64 KB
certification: CE, FCC
copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
country of origin: China
depth: 23 mm
full duplex: Yes
harmonized system (hs) code: 85176990
height: 89 mm
input current: 0.6 A
input voltage: 5 V
jumbo frames: 9000
jumbo frames support: Yes
led indicators: Activity, Link, Power
mac address auto-aging supported: Yes
mac address auto-learning supported: Yes
mac address table: 1000 entries
master (outer) case gross weight: 10.2 kg
master (outer) case height: 516 mm
master (outer) case length: 191 mm
master (outer) case width: 495 mm
networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): 0 - 50 °C
package depth: 82 mm
package height: 98 mm
package type: Box
package weight: 184 g
package width: 95 mm
packet forwarding rate (1 gbps): 1488100 pps
packet forwarding rate (10 mbps): 14880 pps
packet forwarding rate (100 mbps): 148810 pps
power over ethernet (poe): No
product colour: Black
products per master (outer) case: 50 pc(s)
quick start guide: Yes
stackable: No
storage relative humidity (h-h): 5 - 90%
storage temperature (t-t): -40 - 70 °C
store-and-forward: Yes
switching capacity: 10 Gbit/s
weight: 71.4 g
width: 86 mm
Description
The LevelOne GEU-0522 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
