LEVEL ONE

Level One LevelOne Switch 5x GE GEU-0523 Metall

Product Code: GEU-0523
Barcode 4015867222256

To purchase this product you must be registered in our system.



Specification
10g support: No
ac adapter included: Yes
basic switching rj-45 ethernet ports quantity: 5
basic switching rj-45 ethernet ports type: Gigabit Ethernet (10/100/1000)
built-in processor: Yes
country of origin: China
dc input voltage: 5 V
depth: 72 mm
flash memory: 1024 MB
gigabit ethernet (copper) ports quantity: 5
harmonized system (hs) code: 85176990
height: 24 mm
housing material: Metal
input current: 0.5 A
jumbo frames: 9000
jumbo frames support: Yes
led indicators: Yes
mac address auto-aging supported: Yes
mac address auto-learning supported: Yes
mac address table: 2000 entries
manual: Yes
networking standards: IEEE 802.3az
operating relative humidity (h-h): 10 - 90%
operating temperature (t-t): 0 - 40 °C
package depth: 80 mm
package height: 80 mm
package weight: 290 g
package width: 138 mm
packet forwarding rate (1 gbps): 1488000 pps
power over ethernet (poe): No
power supply included: No
processor model: MT7530D
product colour: Black
quick start guide: Yes
rack mounting: No
storage relative humidity (h-h): 5 - 90%
storage temperature (t-t): -40 - 70 °C
switch type: Unmanaged
switching capacity: 10 Gbit/s
transmission method: Store- froward

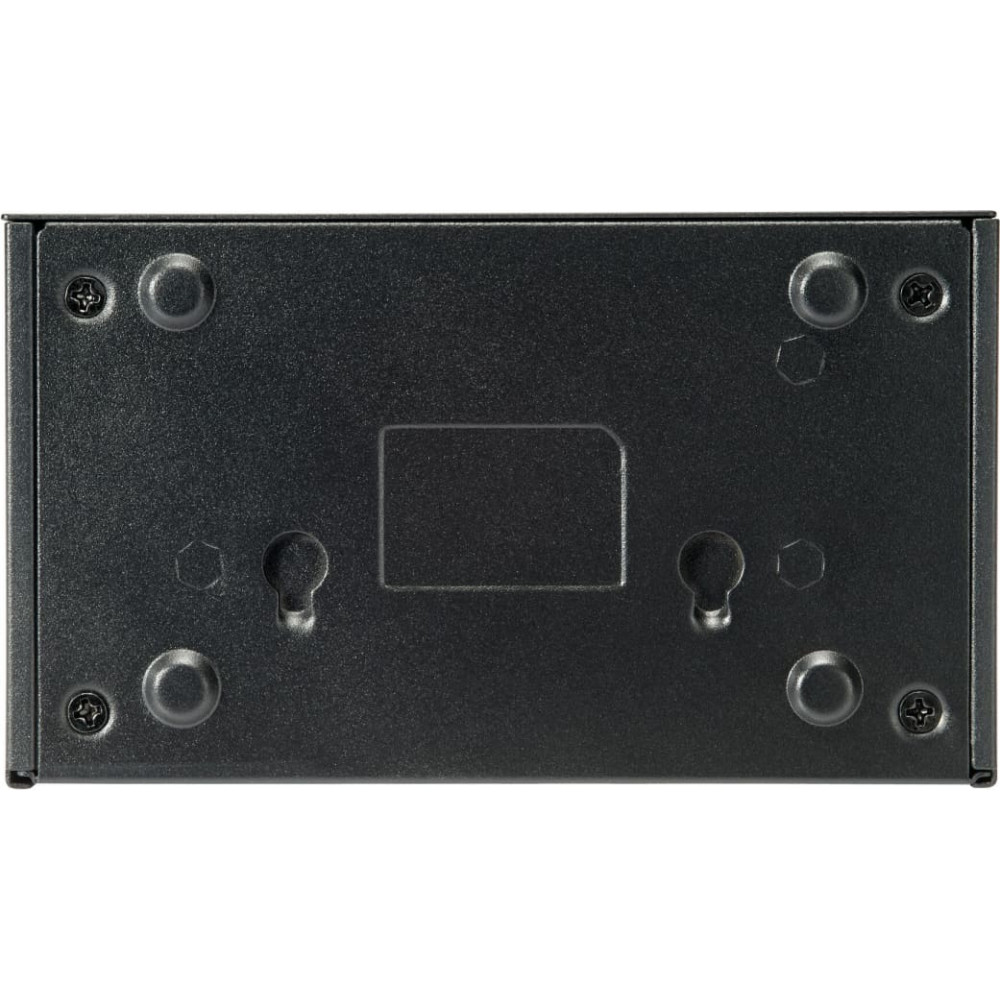

wall mountable: Yes
weight: 174 g
width: 124 mm

Description

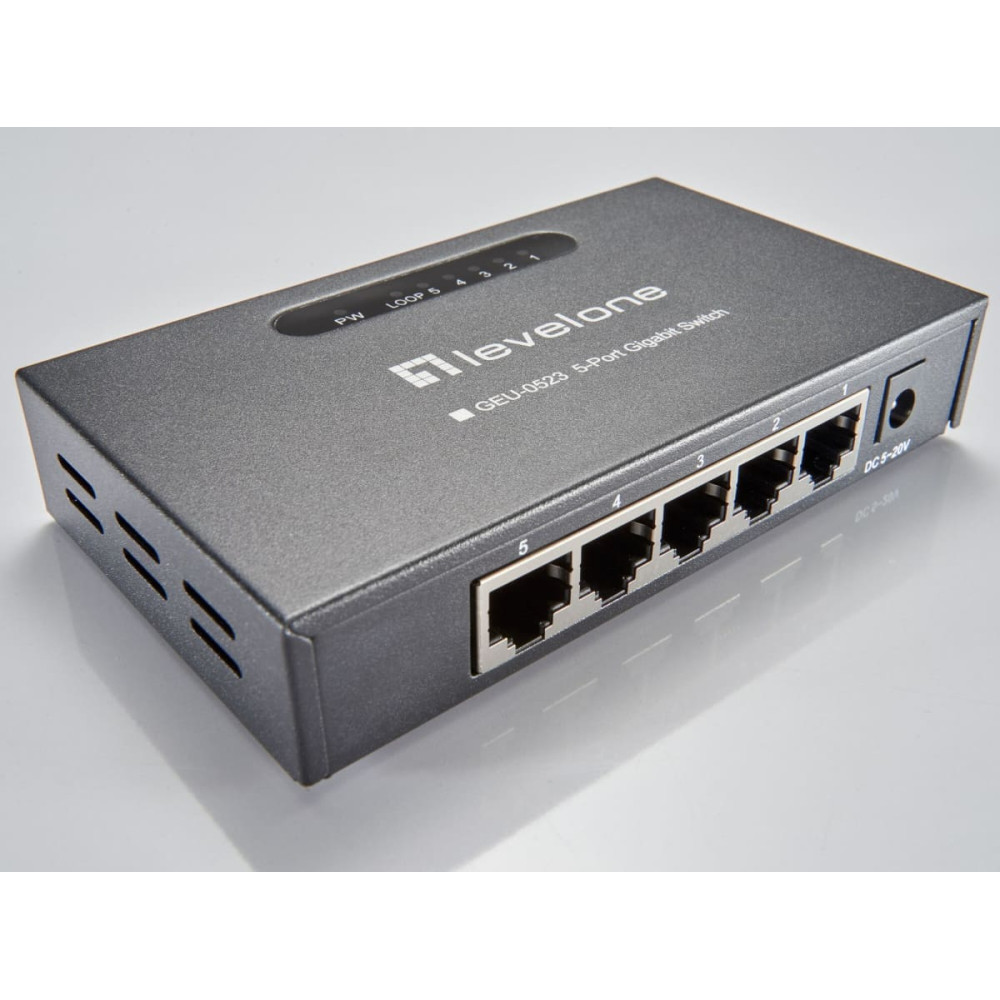

The LevelOne GEU-0523 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch. The GEU-0523 is the ideal and cost-effective choice for expanding your network.
