Home Network products Switching panels Roline Cat.5e (Class D) Wall Mount Patch Panel, 8 Ports, STP, grey

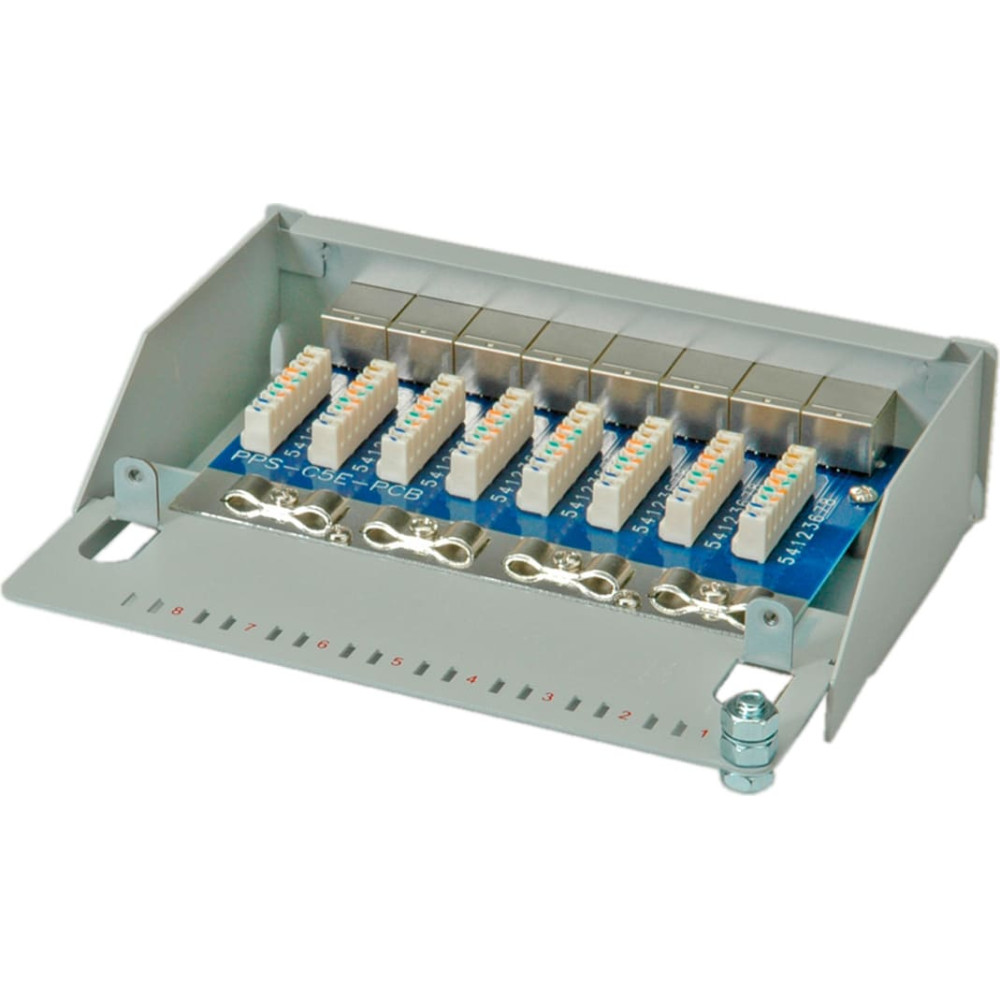

Roline Cat.5e (Class D) Wall Mount Patch Panel, 8 Ports, STP, grey

ROLINE

Roline Cat.5e (Class D) Wall Mount Patch Panel, 8 Ports, STP, grey

Product Code: 26.11.0304
Barcode 7611990949137

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
assembly cable connection: Krone LSAplus
assembly depth: 140 mm
assignment: EIA/TIA 568A & 568B
colour: grey
connection direction: Straight
current catalog edition: C25-01.41
current catalog page: 1.53
depth: 140 mm
depth of packaging (single piece): 290 mm
dimensions (hxwxd): 44 x 172 x 140 mm
gross weight: 0.725
height: 44 mm
height of packaging (single piece): 50 mm
height units: 1 U
manufacturer: ROLINE
modular assembly: no
package weight (single piece): 0.725 kg
product group: Connection technology TP
product type: Patchpanel Cat.5e
quantity of ports: 8
separate strain relief: yes
shield contacts: Yes
shield type: Screened
technical particularity: Wall mount
transfer quality: Cat5e / Class D
weight: 621.9 g
width: 172 mm
width of packaging (single piece): 140 mm
Description
  • The ROLINE connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips.
  • The cable connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips
  • Housing and dust cover: metal
  • Colour: lightgrey
