Home Network products WLAN Tp-Link Omada EAP115-Wall 300 Mbit/s Balts Power over Ethernet (PoE)

Tp-Link Omada EAP115-Wall 300 Mbit/s Balts Power over Ethernet (PoE)

Product Code: EAP115-WALL(EU)

Barcode 6935364093457

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

2.4 ghz: Yes

5 ghz: No

6 ghz: No

access control list (acl): Yes

antenna direction type: Omni-directional

antenna features: Integrated antenna

antenna gain level (max): 1.8 dBi

antenna type: Internal

antennas quantity: 2

automatic channel selection: Yes

cable lock slot: No

cabling technology: 10/100Base-T(X)

compatible operating systems: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

compliance certificates: CE, RoHS

depth: 86.8 mm

ethernet lan (rj-45) ports: 2

ethernet lan data rates: 10,100 Mbit/s

frequency band: 2.4 - 2.4835 GHz

harmonized system (hs) code: 85176990

height: 30.2 mm

internal: No

led indicators: Yes

mac address filtering: Yes

management protocols: SNMP, Telnet

maximum data transfer rate: 300 Mbit/s

maximum data transfer rate (2.4 ghz): 300 Mbit/s

mounting kit: Yes

networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

number of ssid supported: 8

operating relative humidity (h-h): 10 - 90%

operating temperature (t-t): 0 - 40 °C

package depth: 130 mm

package height: 47 mm

package weight: 190 g

package width: 118 mm

placement: Wall

power consumption (typical): 2.8 W

power over ethernet (poe): Yes

power over ethernet (poe) type supported: Passive PoE

product colour: White

quality of service (qos) support: Yes

quantity per pack: 1 pc(s)

quick start guide: Yes

rate limiting: Yes

reset button: Yes

security algorithms: 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK

service set identifier (ssid) features: Multiple SSIDs

storage relative humidity (h-h): 5 - 90%

storage temperature (t-t): -40 - 70 °C

sustainability compliance: Yes

syslog: Yes

transmitting power: 15 dBmW

transmitting power (ce): 20 dBm

virtual lan features: Port-based VLAN, VLAN mapping

vlan support: Yes

wan connection: Ethernet (RJ-45)

web-based management: Yes

wi-fi multimedia (wmm)/(wme): Yes

width: 86.8 mm

wireless isolation: Yes

Description

Installation Made Easy
- Detach the faceplate of the junction box* with a screwdriver.
- Remove the faceplate of the EAP.

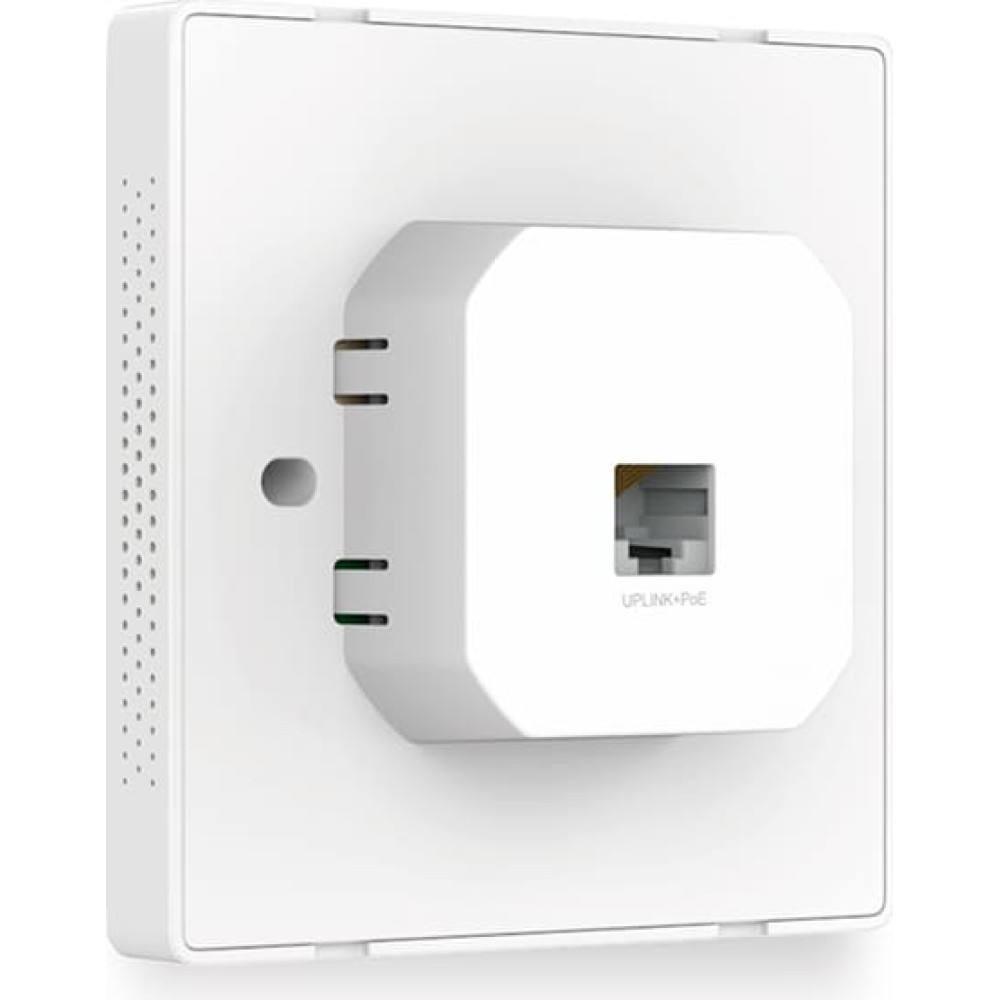

- Connect an in-wall Ethernet cable to the Uplink+POE port.
- Secure the access point to the wall using the nails provided.
- Press the faceplate back into position.

Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.

Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.

Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.

Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
