Level One LevelOne Antenne omni-direktional innen/außen 2.4GHz
To purchase this product you must be registered in our system.
Specification

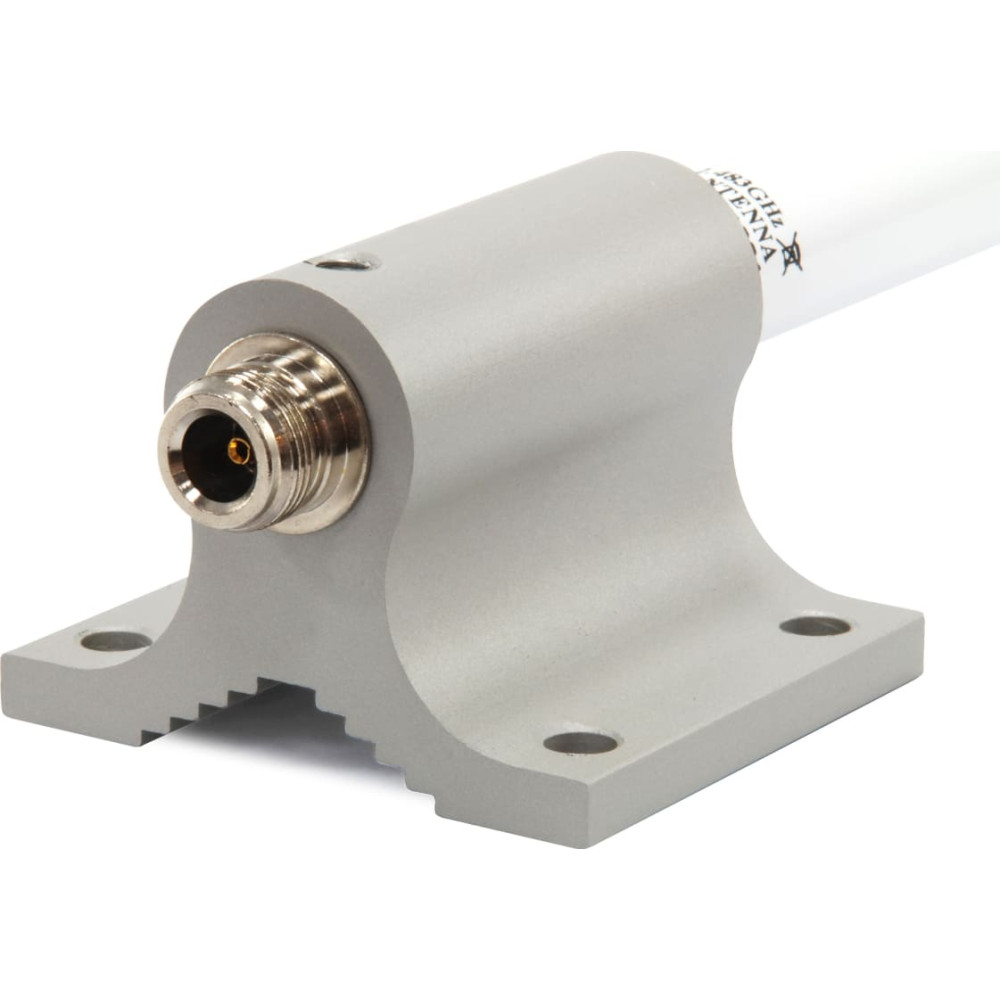

antenna connector type: N-type
antenna gain level (max): 12 dBi
antenna type: Omni-directional antenna
country of origin: Taiwan
depth: 960 mm
frequency band: 2.4 GHz
harmonized system (hs) code: 85177100
height: 53 mm
horizontal beam width: 360°
impedance: 50 Ω
master (outer) case gross weight: 10 kg
master (outer) case height: 1030 mm
master (outer) case length: 220 mm
master (outer) case width: 445 mm
maximum cable loss with connectors: -10 dB
mounting: Pole

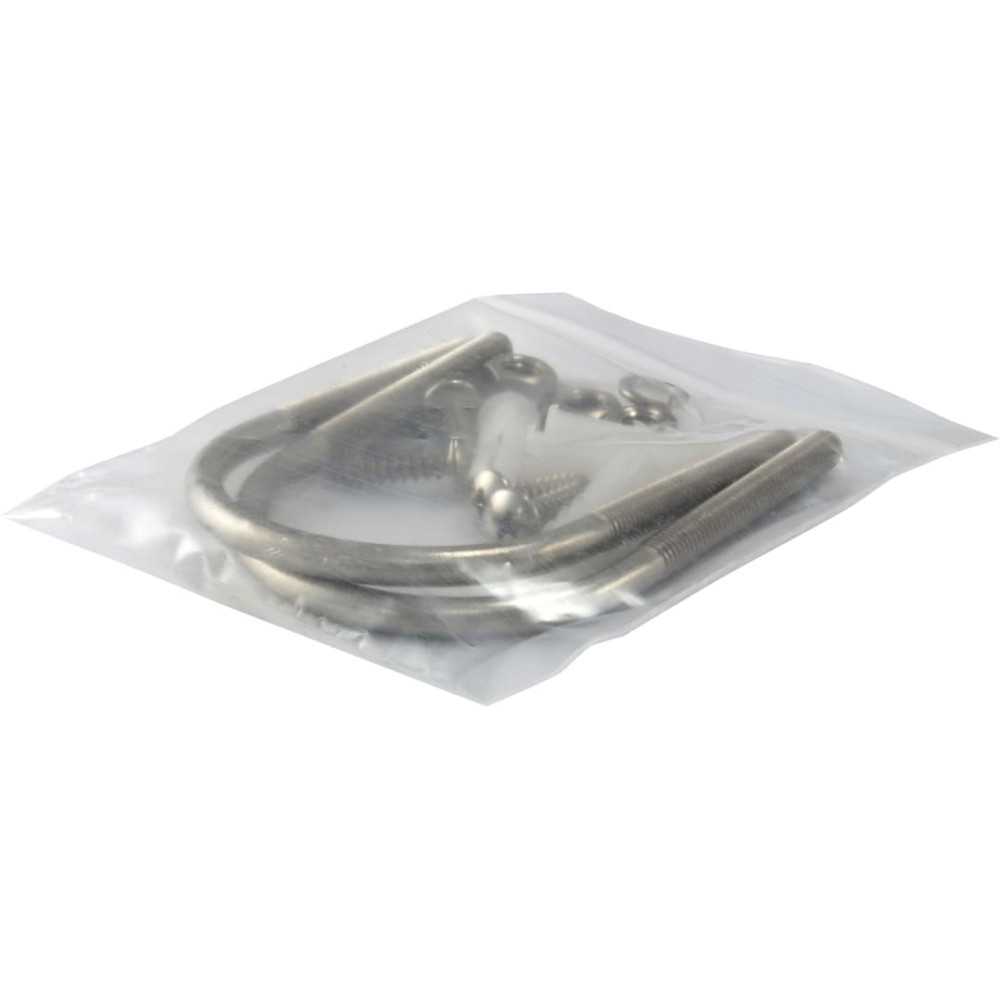

mounting kit: Yes
networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
operating relative humidity (h-h): 0 - 95%
operating temperature (t-t): -30 - 60 °C
package depth: 1000 mm
package height: 78 mm
package type: Box
package weight: 866 g
package width: 88 mm
polarization: Vertical polarization
product colour: White
products per master (outer) case: 10 pc(s)
protection features: Dust resistant, Snow resistant, Water resistant
purpose: Indoor & outdoor
quick installation guide: Yes
survival wind speed: 180 km/h
vertical beam width: 9.7°
voltage standing wave ratio (vswr): 2.0
weight: 476 g
width: 70 mm
Description

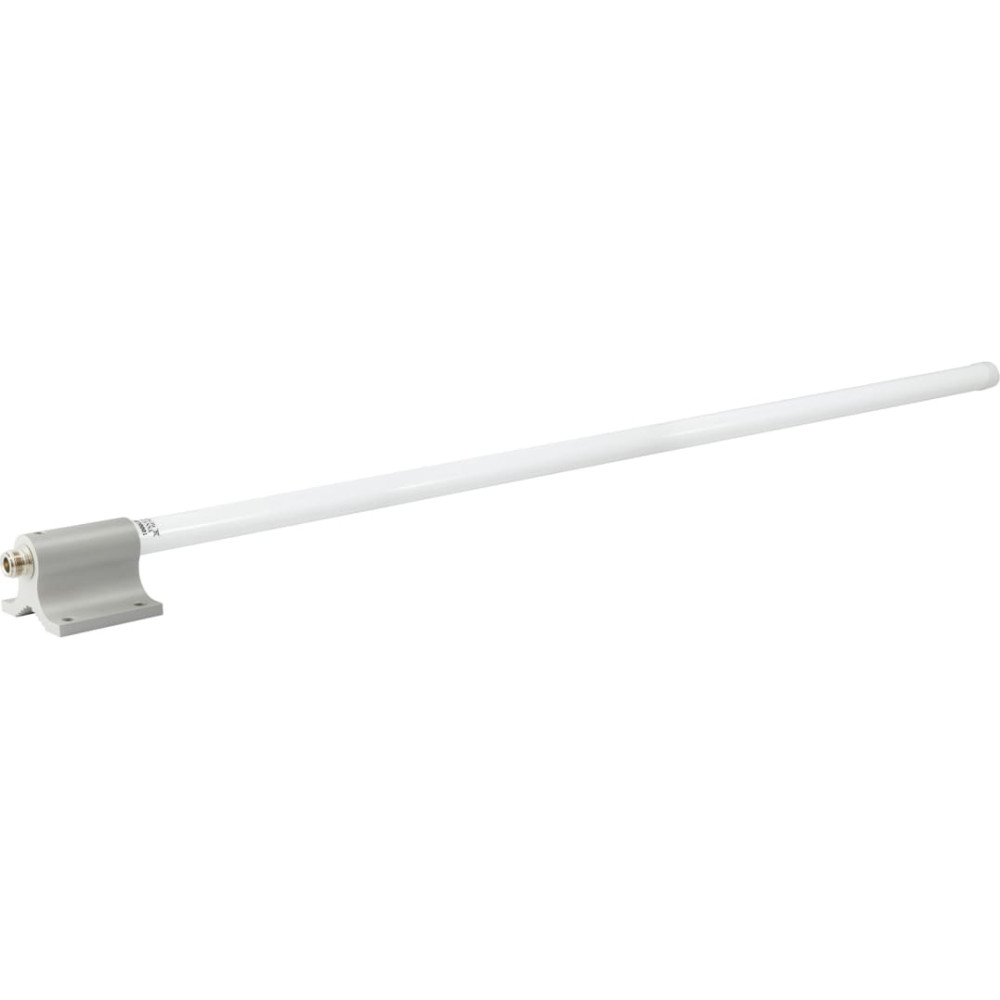

| The LevelOne OAN-2121 is an omni-directional antenna operating on the 2.4 GHz frequency that can be mounted either indoors or outdoors. The antenna’s gain value is 12dBi, and if mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions. - For IEEE 802.11b/g/n/ac Wireless applications in 2.4GHz frequency range - Provides 12dBi omnidirectional operation - Low wind loading - 40°C to 70°C operating temperature range |
