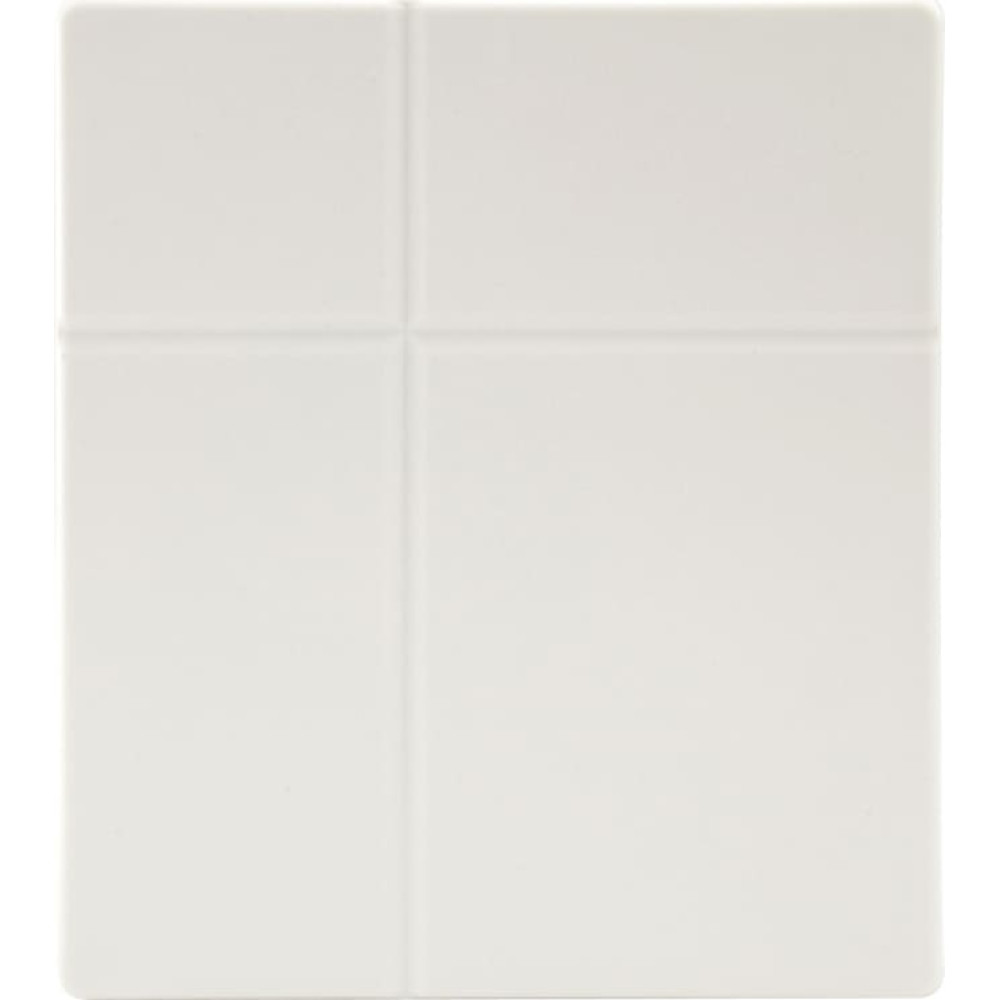

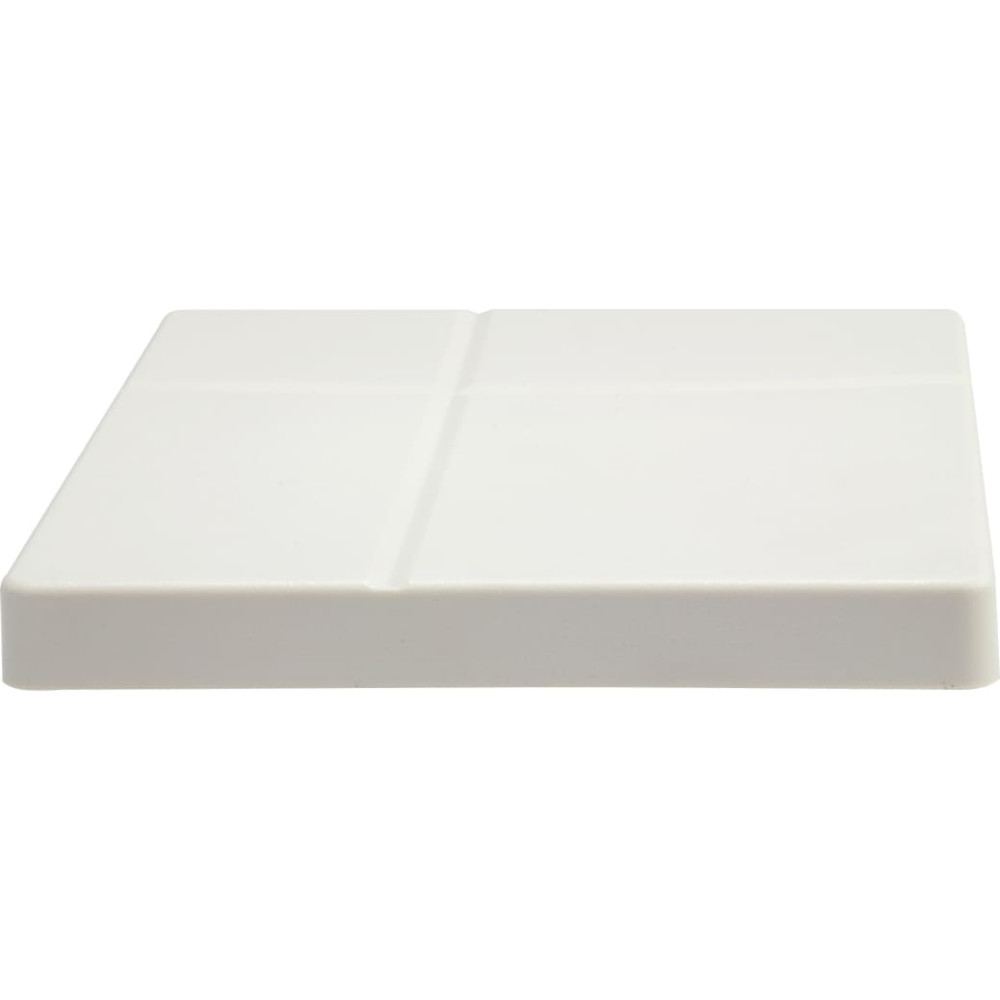

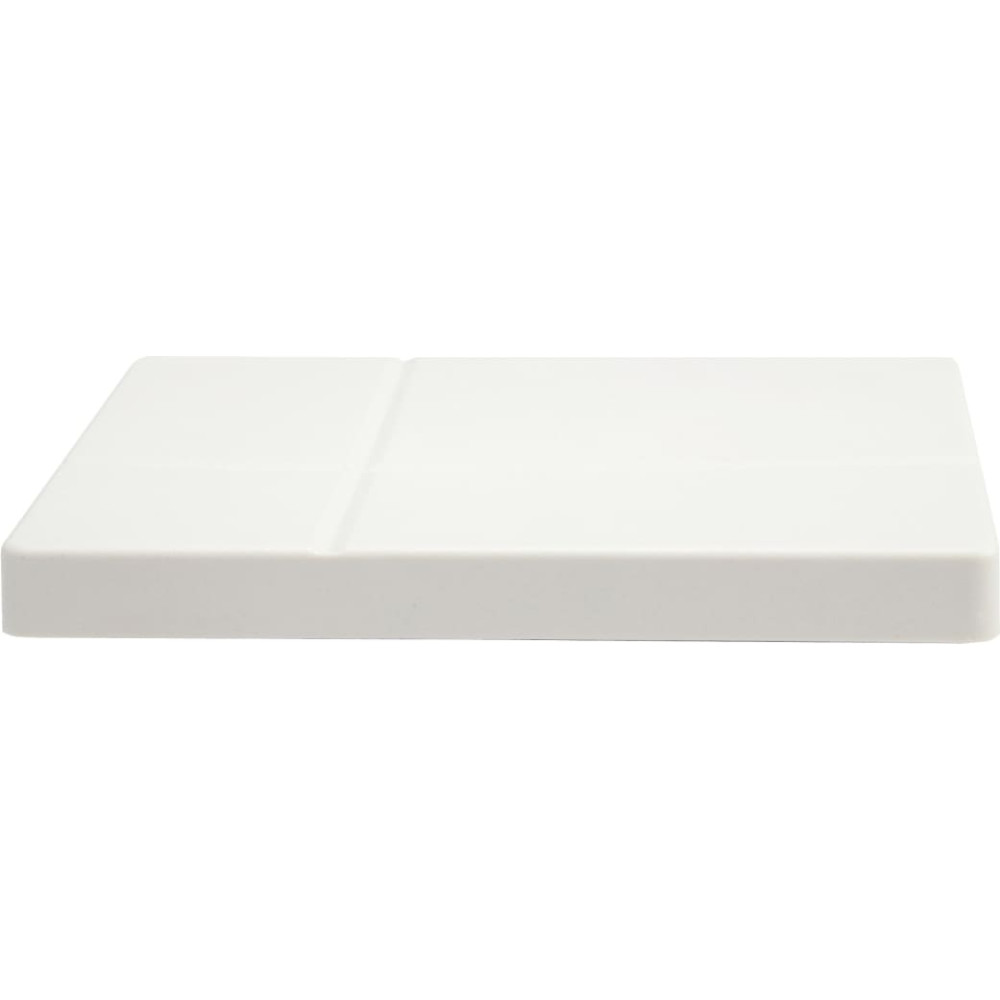

Level One LevelOne Antenne panel direktional dual-polarization 5GHz
To purchase this product you must be registered in our system.
Specification
antenna connector type: N-type
antenna gain level (max): 15 dBi
antenna type: Directional antenna
country of origin: Taiwan
depth: 162.5 mm
frequency band: 5.1 ~ 5.9 GHz
harmonized system (hs) code: 85177100
height: 16 mm
horizontal beam width: 22°
impedance: 50 Ω
master (outer) case gross weight: 15.5 kg
master (outer) case height: 340 mm
master (outer) case length: 450 mm
master (outer) case width: 370 mm
maximum cable loss with connectors: -10 dB
mounting kit: Yes
networking standards: IEEE 802.11a, IEEE 802.11n
operating relative humidity (h-h): 0 - 95%
operating temperature (t-t): -30 - 60 °C
package depth: 218 mm
package height: 74 mm
package type: Box
package weight: 726 g
package width: 161 mm

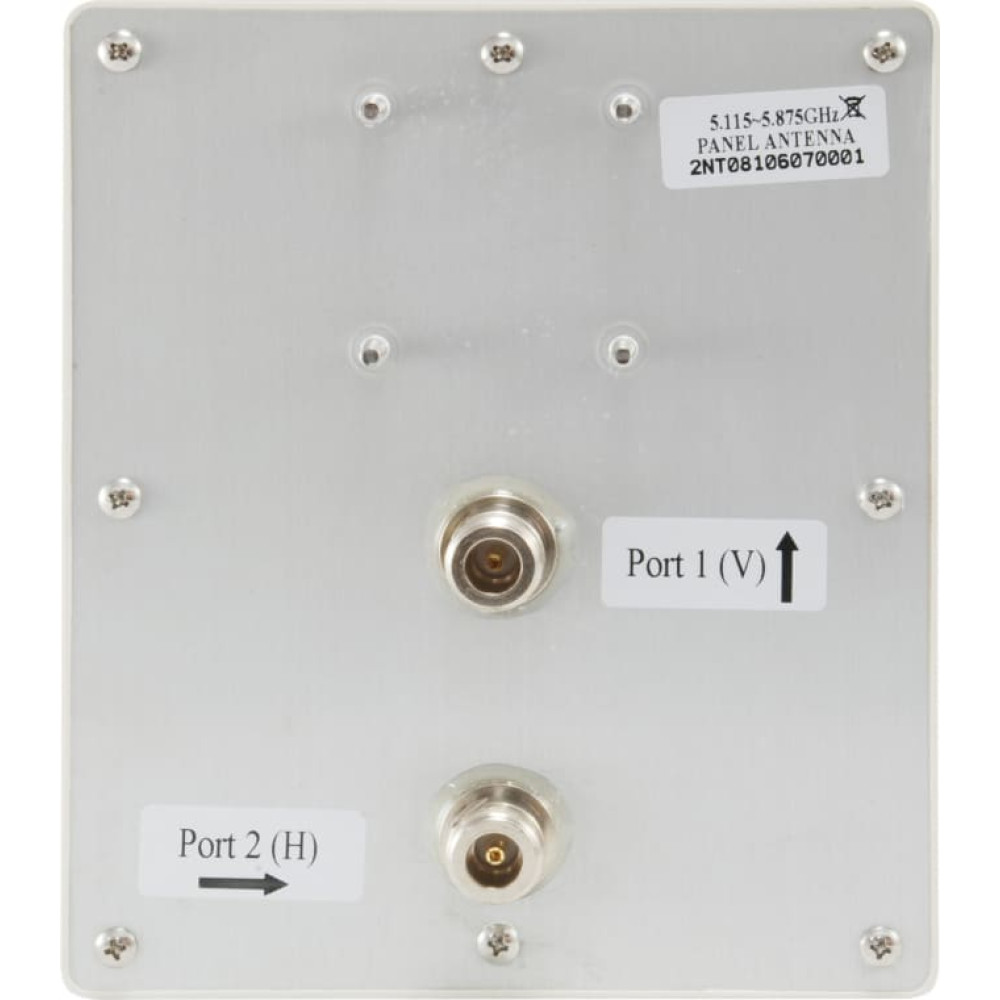

polarization: Dual polarization
product colour: Grey
products per master (outer) case: 20 pc(s)
protection features: Dust resistant, Snow resistant, Water resistant
purpose: Indoor & outdoor
quick installation guide: Yes
survival wind speed: 180 km/h
vertical beam width: 15°
voltage standing wave ratio (vswr): 2.0
weight: 208 g
width: 137.5 mm
Description
| The LevelOne WAN-9151 is a directional, dual-polarization antenna that can be mounted either indoors or outside. Dual-polarization offers the flexibility of two different communication channels receiving simultaneously, while a high gain of 15dBi offers better range and signal strength. If mounted outdoors the IP65-rated weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions. - Provides 15dBi directional operation - Directional operation provides extended point to point coverage - For IEEE 802.11a/n Wireless applications in 5 GHz frequency range - Dual-Polarization to avoid interference - Low wind loading |
