Neomounts by Newstar WAH 32"-55" 1TFT 3Gelenk schw. Max.35

Product Code: WL40-550BL14

Barcode 8717371448714

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.343

height: 0.056

width: 0.317

Description

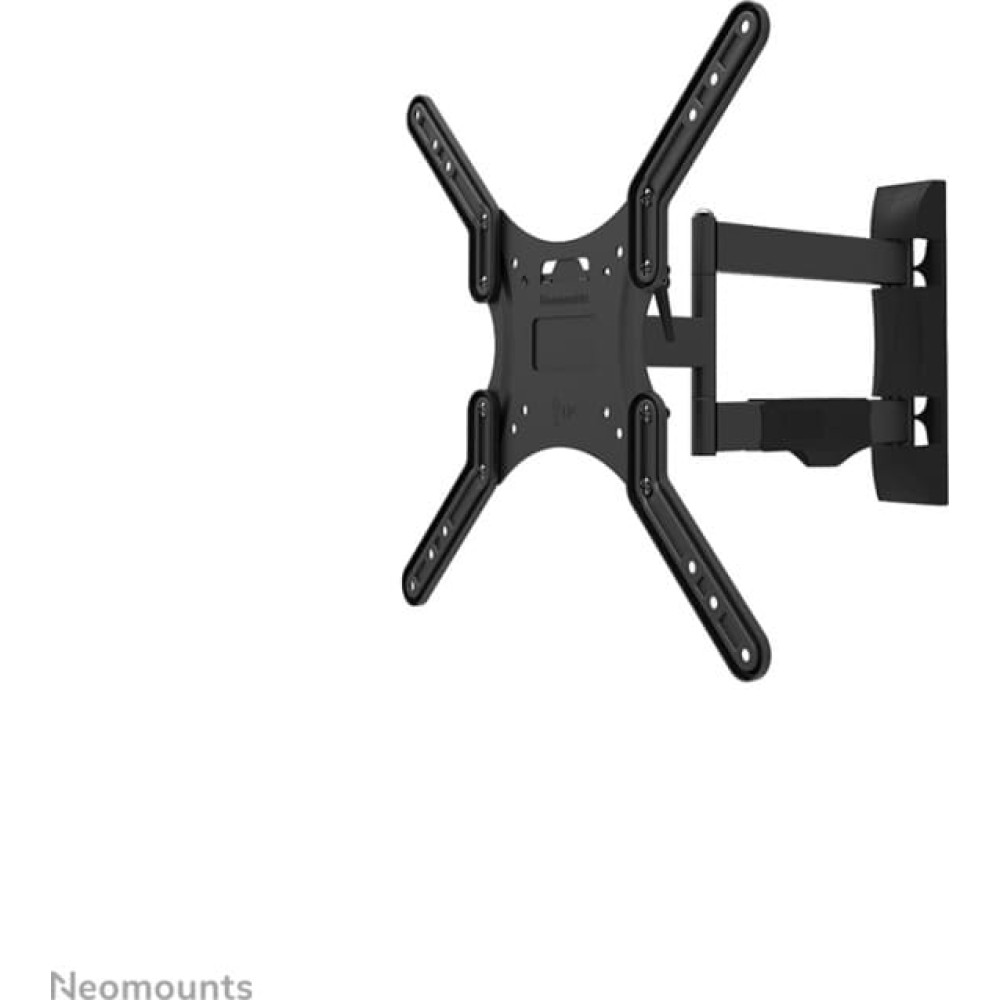

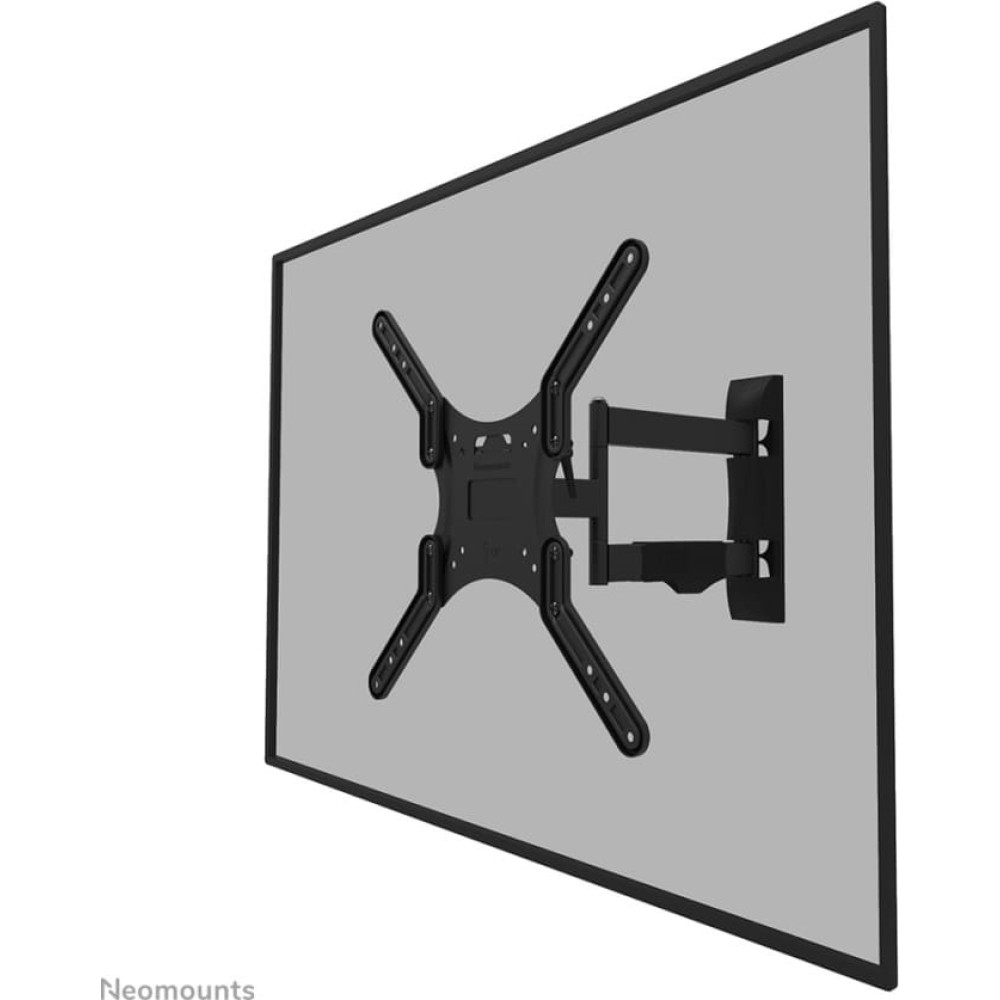

The Neomounts by Newstar WL40-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 35 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation. The WL40-550BL14 has a depth of 4,5-42 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm. The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Maximum weight capacity	35 kg
Maximum screen size	139.7 cm (55")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Minimum screen size	81.3 cm (32")
Panel mounting interface	100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300
Number of displays supported	1
Height adjustment	N
Tilt adjustment	Y
Tilt angle range	-2 - 12°
Swivel angle	40°
Cable management	Y
Distance to the wall (max)	42 cm
Distance to the wall (min)	4.5 cm
Product colour	Black
Quantity per pack	1 pc(s)
Mounting kit	Y
Width	433 mm
Depth	45 mm
Height	433 mm
Package width	329 mm
Package depth	310 mm
Package height	55 mm
Master (outer) case width	349 mm
Master (outer) case length	295 mm
Master (outer) case height	330 mm
Master (outer) case net weight	21 kg
Products per master (outer) case	5 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	160 pc(s)
Country of origin	China
Package net weight	4.5 kg
