Neomounts by Newstar WAH 23"-42" 1TFT 3Gelenk schw. Max.30

Product Code: WL70-550BL12

Barcode 8717371449056

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.506

height: 0.079

width: 0.364

Description

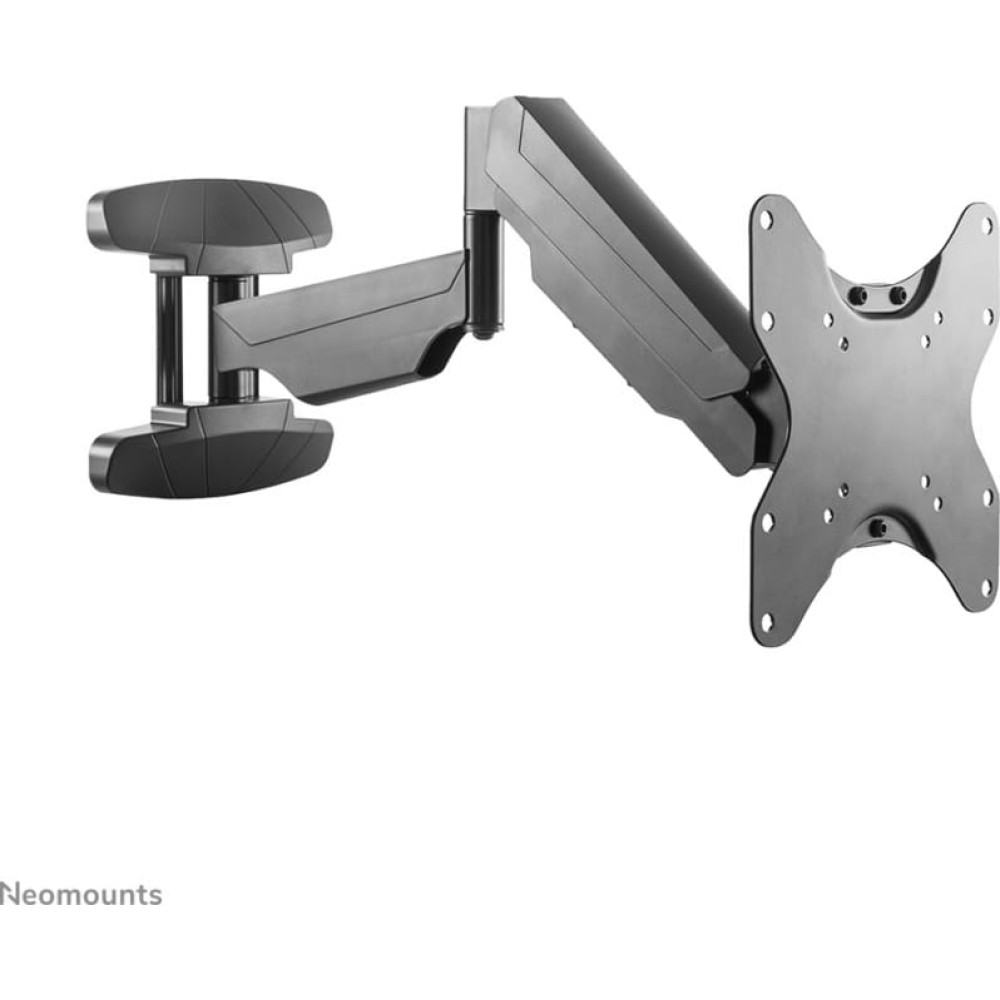

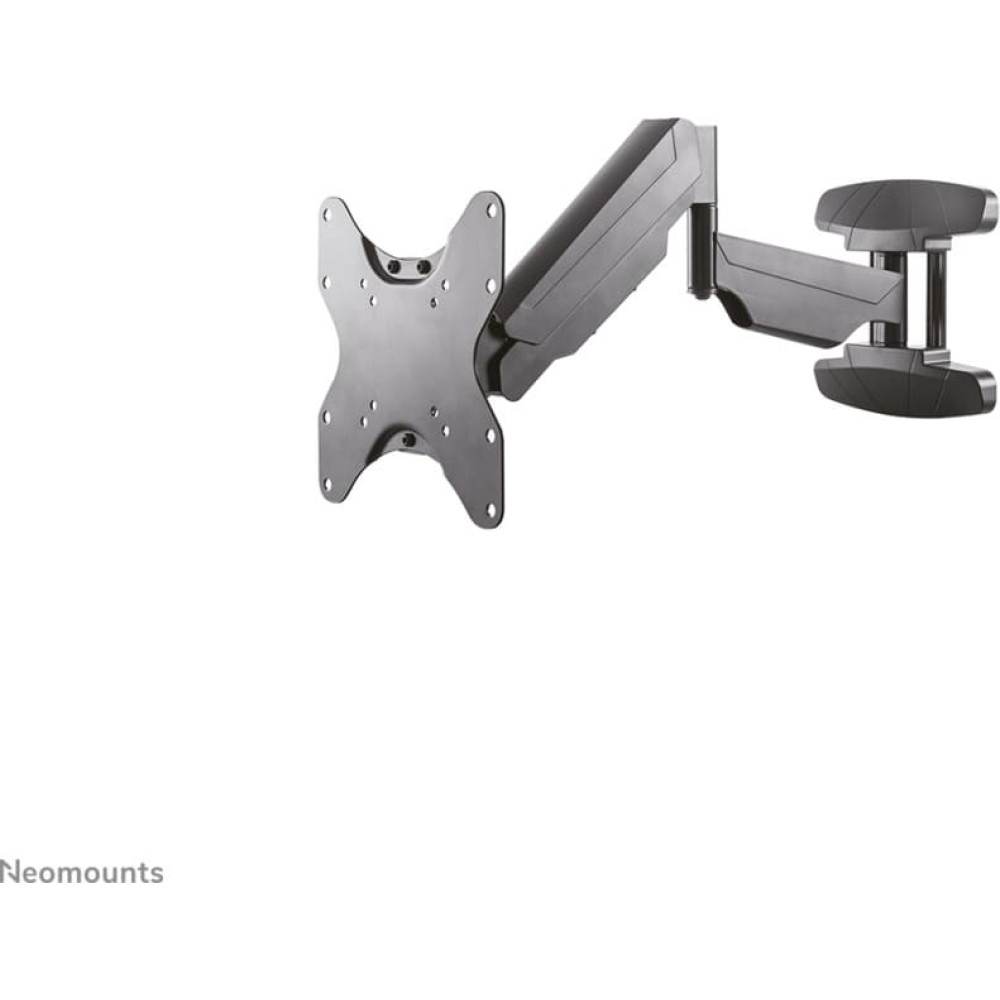

The Neomounts by Newstar WL70-550BL12 is a full motion wall mount for flat screens up to 42" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation. The WL70-550BL12 has a depth of 5,9-56,3 cm and is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm. The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Maximum weight capacity	30 kg
Maximum screen size	106.7 cm (42")
Mounting type	Wall
Minimum screen size	58.4 cm (23")
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Number of displays supported	1
Mounting	Screws
Panel mounting interface	75 x 75,100 x 100,200 x 100,200 x 200
Distance to the wall (min)	5.9 cm
Distance to the wall (max)	56.3 cm
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	0 - 282 mm
Tilt angle range	-15 - 5°
Swivel angle	180°
Angle of rotation	3°
Cable management	Y
Tilt adjustment	Y
Product colour	Black
Width	226 mm
Depth	563 mm
Height	327 mm
Package width	365 mm
Package depth	505 mm
Package height	75 mm
Quantity per pack	1 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	520 mm
Master (outer) case height	245 mm
Products per master (outer) case	3 pc(s)
Master (outer) case net weight	11.7 kg
Harmonized System (HS) code	7326909890
Products per pallet (EU)	72 pc(s)
Country of origin	China
Package net weight	4.8 kg
