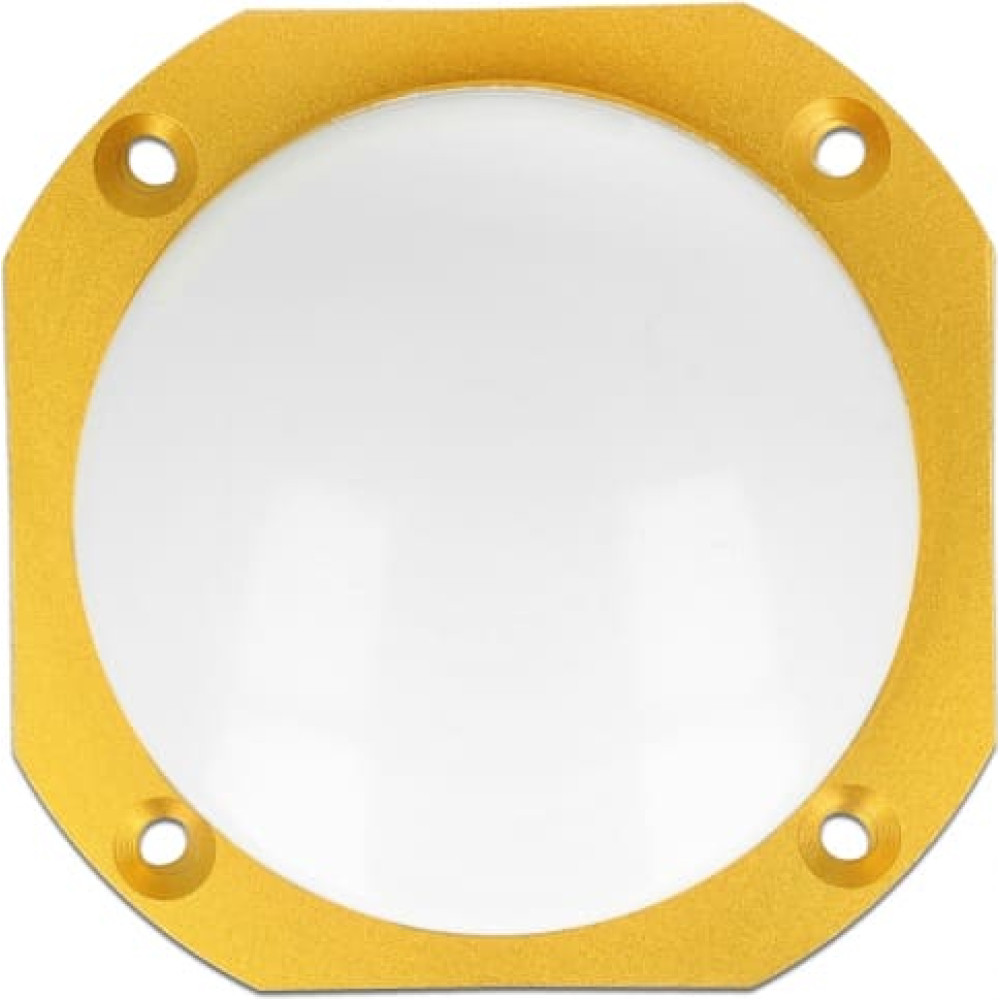

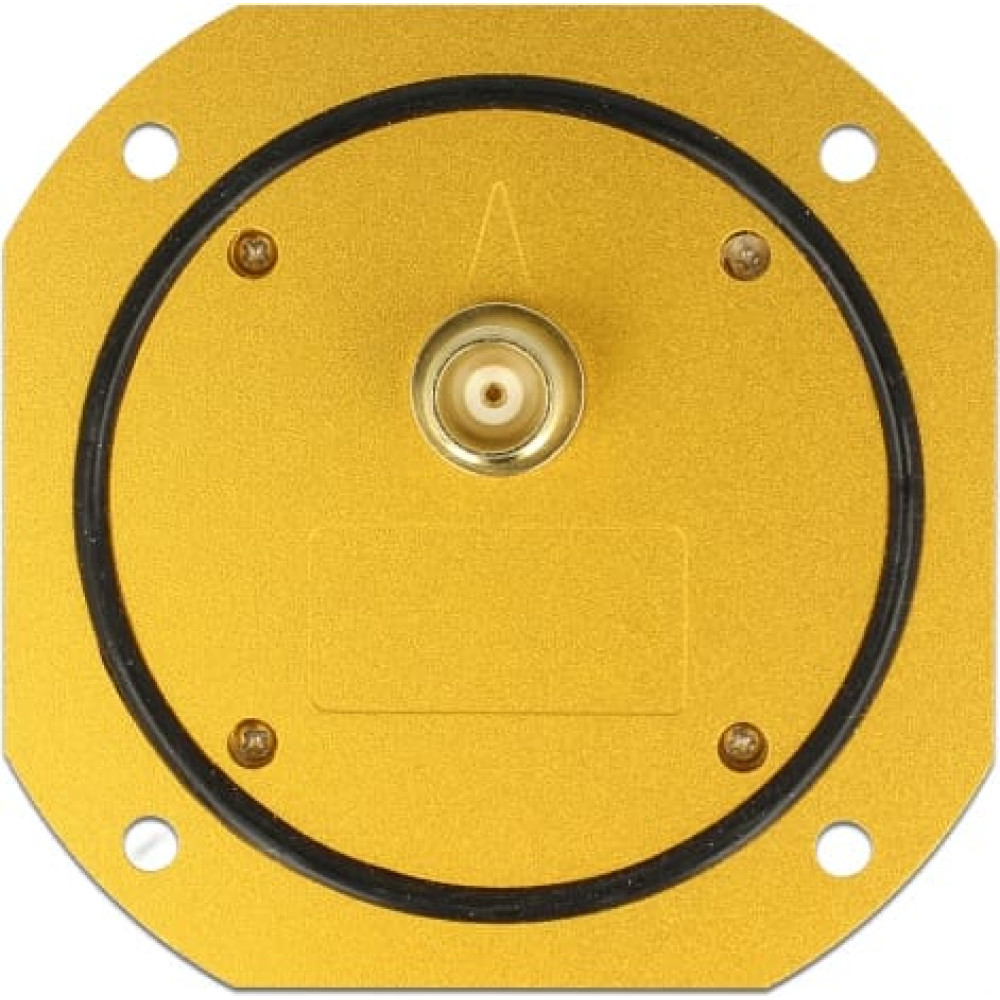

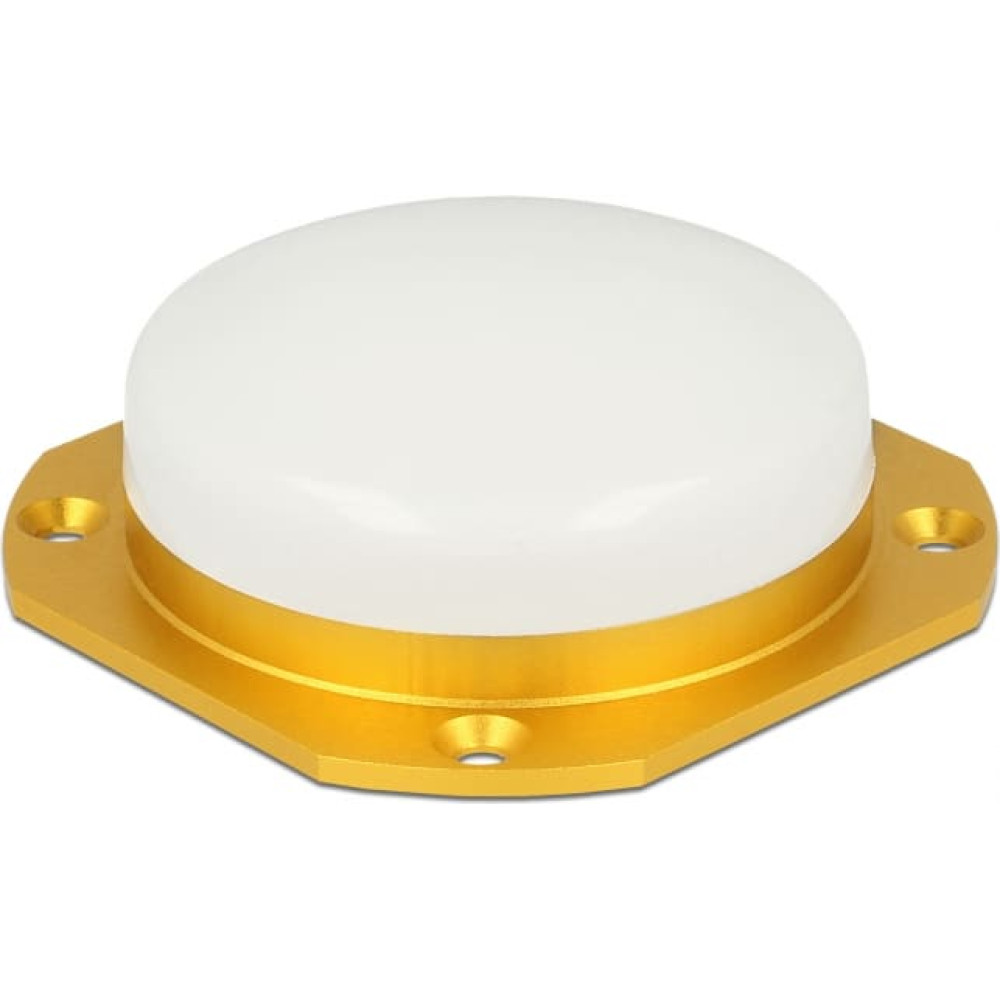

| This precise antenna by Navilock receives signals from BEIDOU, GALILEO, GLONASS and GPS satellites simultaneously on GNSS devices. System requirements: • Antenna cable with a free TNC plug • GNSS receiver Specification: • Connector: 1 x TNC jack • Patch antenna GNSS Frequency range: 1559.052 - 1616.000 MHz 1205.094 - 1278.750 MHz GNSS bands: BEIDOU: B1, B1-2 GALILEO: E1 GLONASS: G1, G2 GPS: L1, L2 Antenna gain: 3 dBi VSWR: 2 Impedance: 50 Ohm Polarisation: RHCP • LNA GNSS: Frequency range: 1559.052 - 1616.000 MHz 1205.094 - 1278.750 MHz GNSS bands: BEIDOU: B1, B1-2 GALILEO: E1 GLONASS: G1, G2 GPS: L1, L2 Gain: 40 dBi Noise figure: < 1.5 dB Passband fluctuation: +/- 1 dB Voltage: 3.3 - 5.0 V Current: 45 mA VSWR: < 2 1 dB compression point P1dB: > 0 dB Impedance: 50 Ohm • Housing colour: white • Housing material: ABS • Protection class: IP67 • Operating temperature: -40 °C ~ 85 °C • Weight: ca. 150 g • Diameter: ca. 90.0 mm • Height: ca. 30.3 mm Package content: • GNSS antenna Data sheet: http://www.navilock.de/produkt/60562/pdf.html?sprache=en |
