Home Switches / HUB HUB Lindy 7 Port USB 3.1 Gen 2 Metall Hub

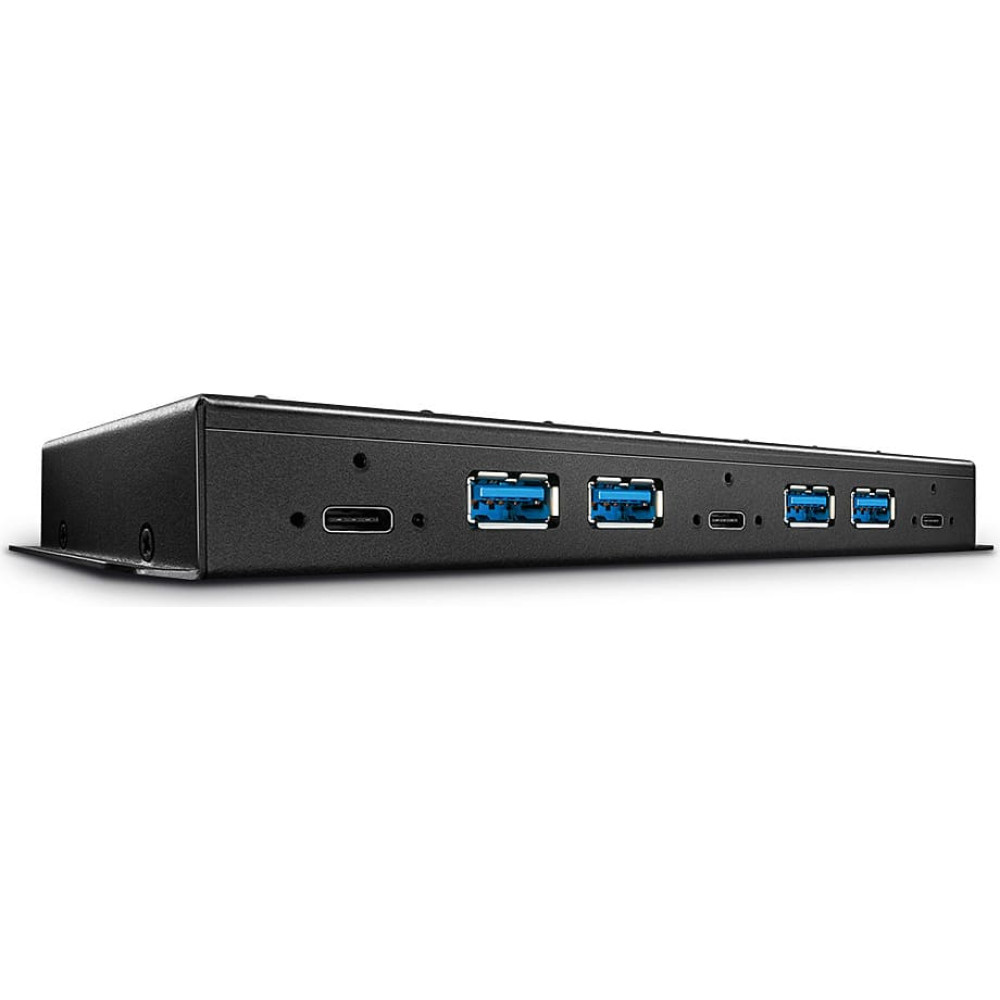

Lindy 7 Port USB 3.1 Gen 2 Metall Hub

LINDY

Lindy 7 Port USB 3.1 Gen 2 Metall Hub

Product Code: 43275
Barcode 4002888432757

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6e/55/97/62/6297556ea7fecca6d5a65eda/CE_DoC_DE_43275.pdf
certification: CE, FCC, RoHS, REACH, California Proposition 65
country of origin: TW
data transfer rate: 10000 Mbit/s
dc-in jack: Yes
depth: 64.3 mm
height: 20 mm
host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-A
housing material: Metal
hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
input current: 3 A
input voltage: 16 V
operating temperature (t-t): 0 - 50 °C
package depth: 180 mm
package height: 70 mm
package type: Carton
package width: 260 mm
packaging height: 6.5
packaging lenght: 23.5
packaging width: 20.0
ports quantity: 7
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 60 °C
usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: 4
usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: 3
warranty: 2.0
weight: 700 g
width: 184.5 mm
Description

Specifications

  • USB Standard: USB 3.2 / 3.1 Gen 2
  • Supported Bandwidth: 10Gbps
  • Chipset: 2x VL820
  • Compatibility: USB Type C equipped computers, Thunderbolt 3 (incl. Apple M1)
  • Power Delivery: -
  • Special Features: Integrated brackets for mounting; allows connection of USB Type C locking cables; Terminal Block



Connectors

  • Inputs: 1 x USB Type C (Female)
  • Outputs: 3 x USB Type C (Female), 4 x USB Type A (Female)

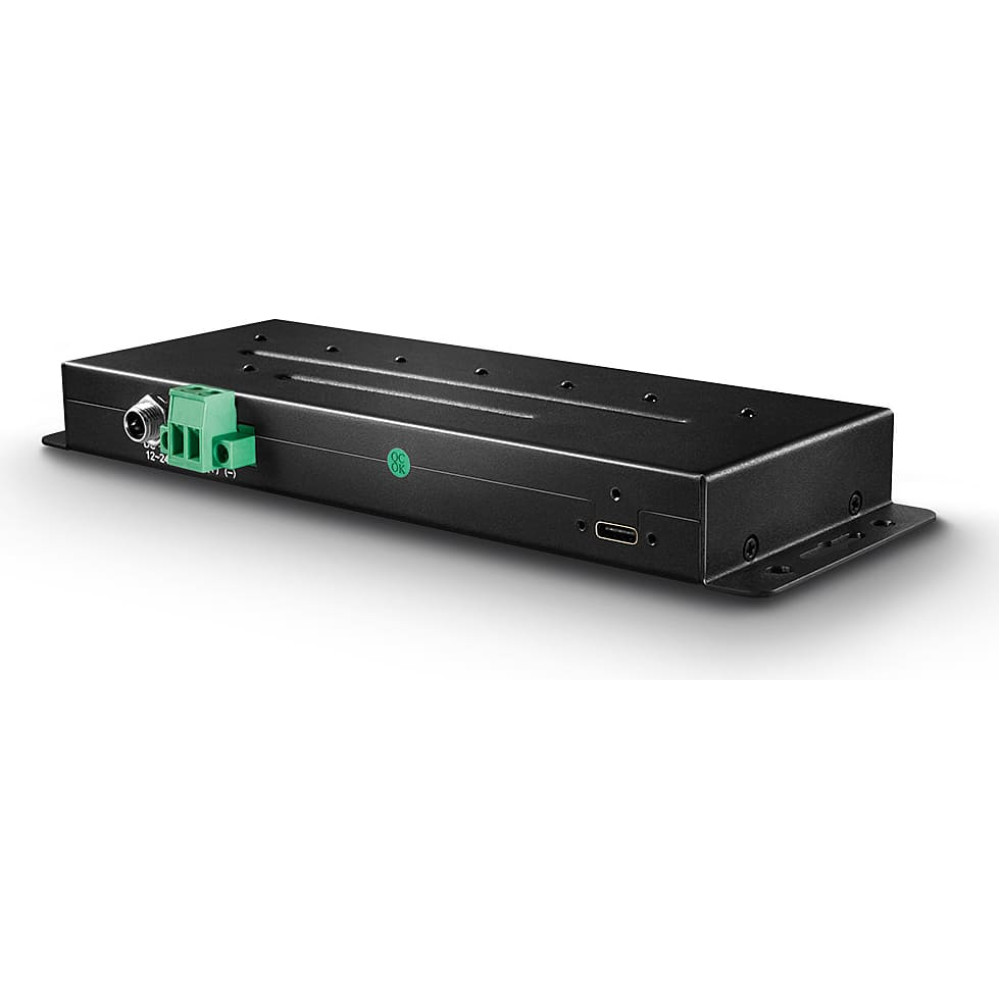

  • Power: DC screw connector



Physical Properties

  • Dimensions WxDxH: 184.5x64.3x20mm (7.26x2.53x0.79in)
  • (Fixed) Cable Length: -
  • Housing Material: Metal
  • Net Weight: 0.3kg (0.66lb)
  • Operating Temperature: 0°C - 50°C (32°F -122°F)
  • Storage Temperature: -20°C - 60°C (-4°F -140°F)
  • Humidity:  90% RH (non-condensing)
  • Power Requirements: 16VDC 3A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 260x180x70mm (10.24x7.09x2.76in)
  • Gross Weight: 0.844kg (1.86lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH, California Proposition 65



Package Contents

  • 7 Port USB 3.2 Gen 2 Metal Hub
  • 0.55m USB 3.2 Gen 2 Dual Screw Type C Male to Male Cable
  • Multi-Country Power Supply (EU, UK, US, AUS) with screw type DC connector
  • Lindy Manual



Purchasing information

  • No.: 43275
  • EAN: 4002888432757
