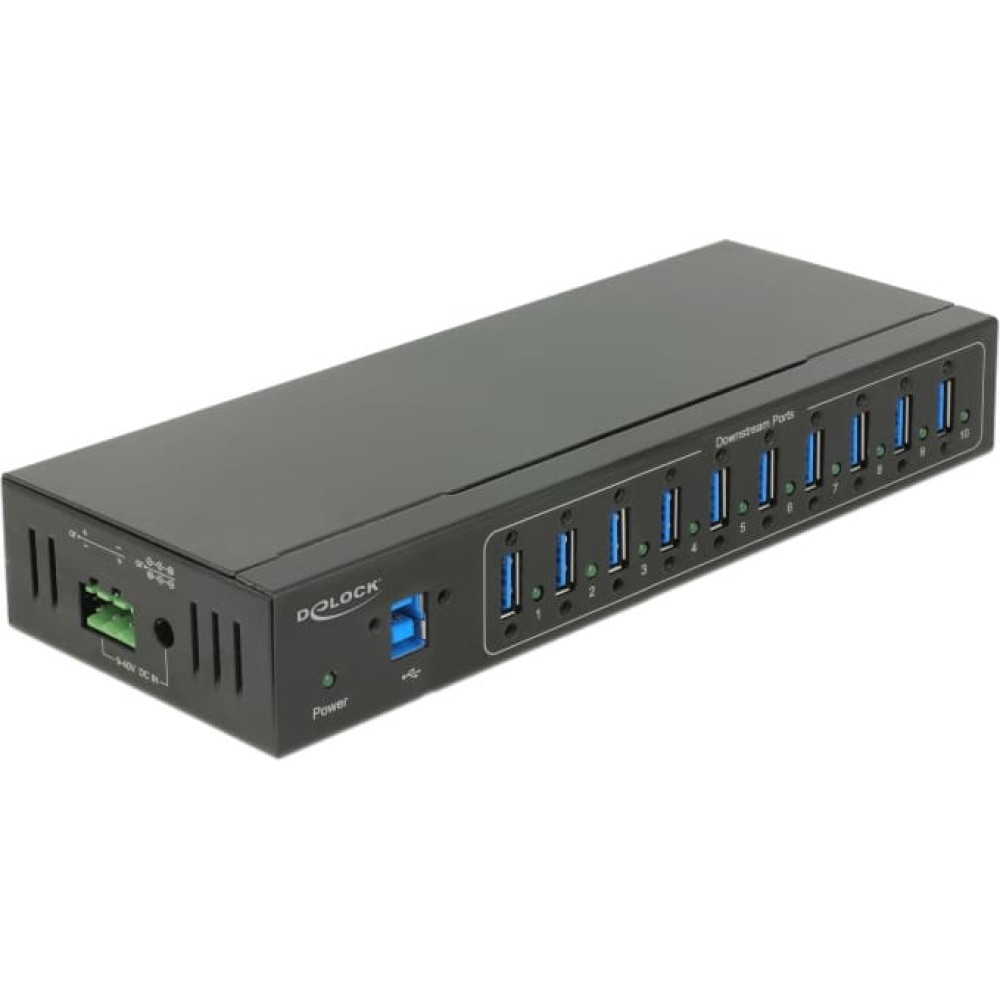

Delock External Industry Hub 10 x USB 3.0 Type-A with 20 kV ESD protection
To purchase this product you must be registered in our system.
Specification
depth: 0.220
height: 0.068
width: 0.115
Description

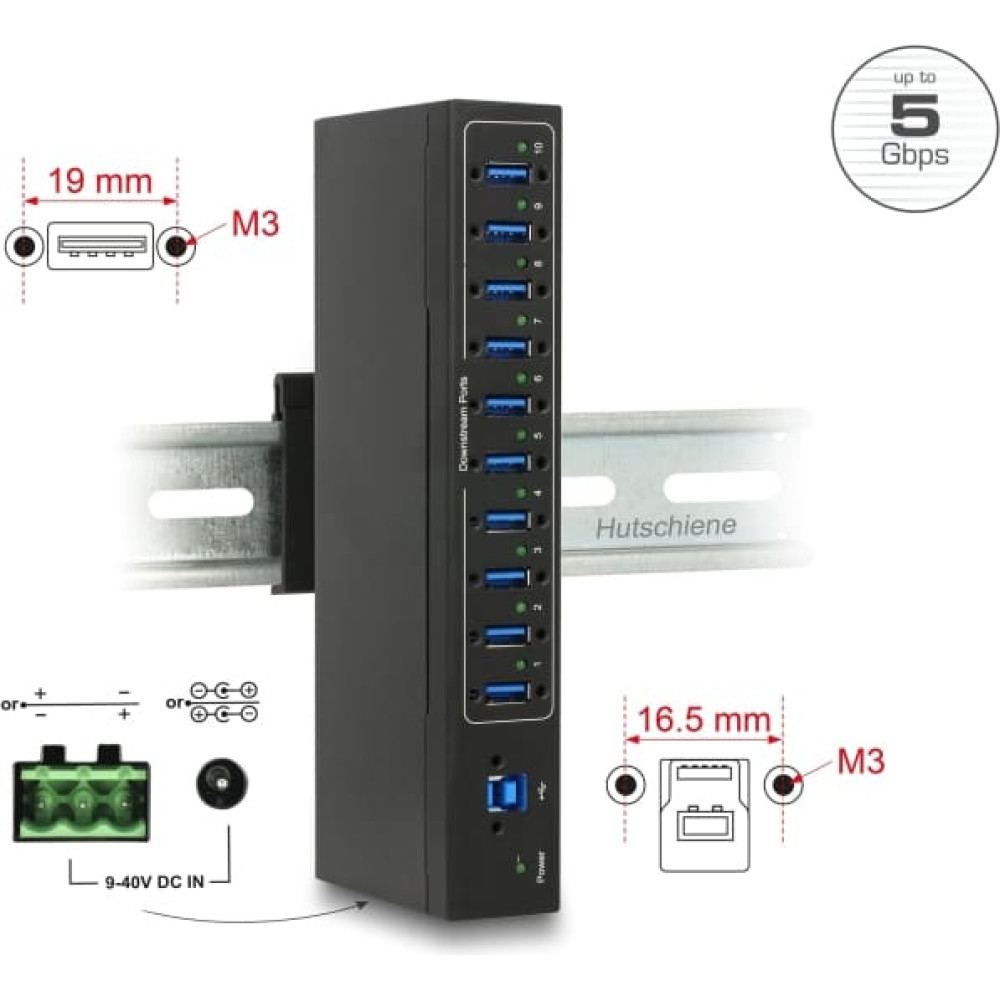

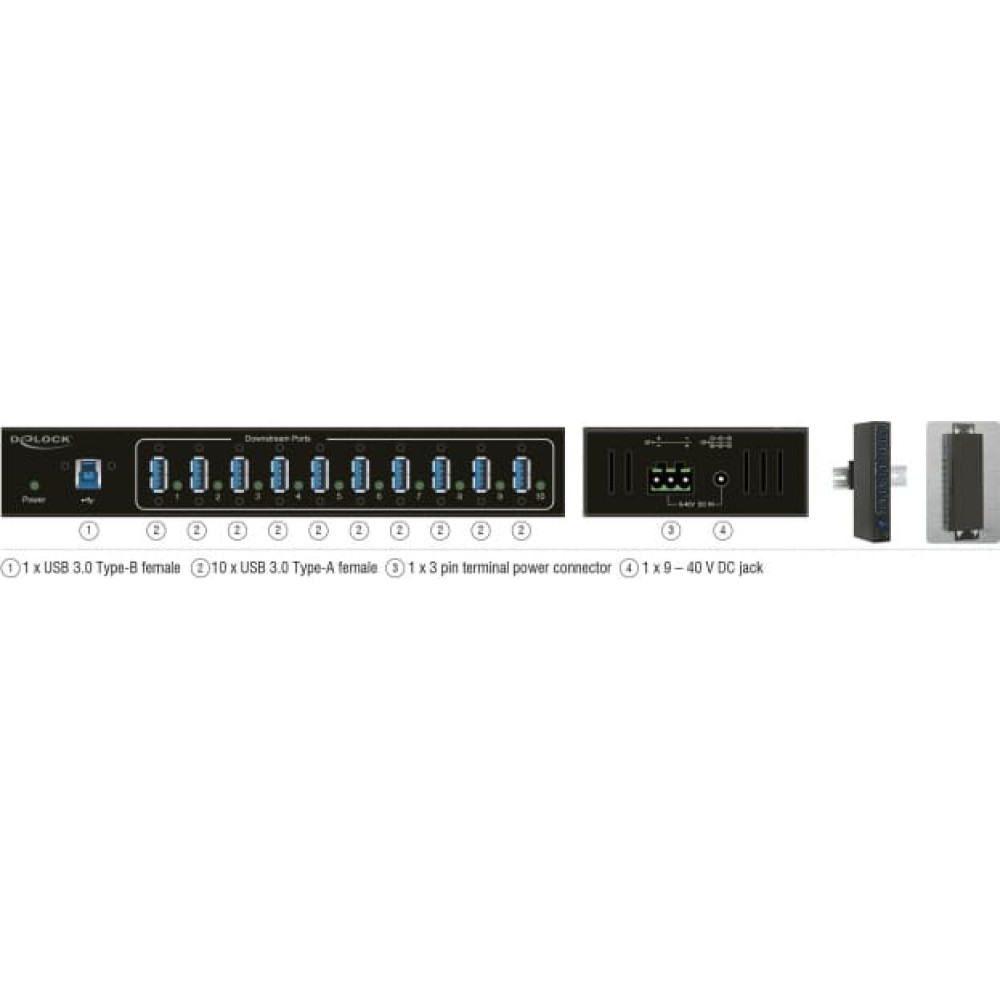

| This solid industry capable USB hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by ten USB Type-A connectors. If necessary, an optional power supply or an optional power cable can be connected to the power socket. System requirements: • Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.16.x, Mac ex OS 10.9 • PC or laptop with a free USB Type-A port Specification: • Connectors: 1 x USB 3.0 Type-B female > 10 x USB 3.0 Type-A female 1 x 9 – 40 V DC jack 1 x 3 pin terminal power connector • Chipset: VIA VL817 • Data transfer rate up to: SuperSpeed USB 5 Gbps, Hi-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps • 11 x LED indicator • USB ports with screw holes • Robust metal housing • Pitch of screw hole USB Type-A: ca. 19 mm • Pitch of screw hole USB Type-B: ca. 16.5 mm • Thread size: M3 • Removable wall-mount brackets • Power supply: Bus-powered or Self-powered • Flexible power supply with 9 V to 40 V • Automatic detection of the input polarity of the power connectors • ESD protection up to 20 kV for all ports • Dimensions (LxWxH): ca. 202 x 80 x 32 mm • Colour: black • Plug & Play Specification of power connector • 9 - 40 V • Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9 mm Package content: • Hub USB • 1 x cable USB A male to USB B male, length ca. 1 m • 2 x wall mounting brackets • 1 x mounting for 35 mm DIN rail • 1 x 3 pin terminal block • User manual Data sheet: http://www.delock.de/produkt/63919/pdf.html?sprache=en |
