Softing It Networks SOFTING Digital fiber microscope USB, WX_FX_INSP_KIT

Product Code: 226539

Barcode 0046382252903

Brand: SOFTING IT NETWORKS

To purchase this product you must be registered in our system.

Specification

Description

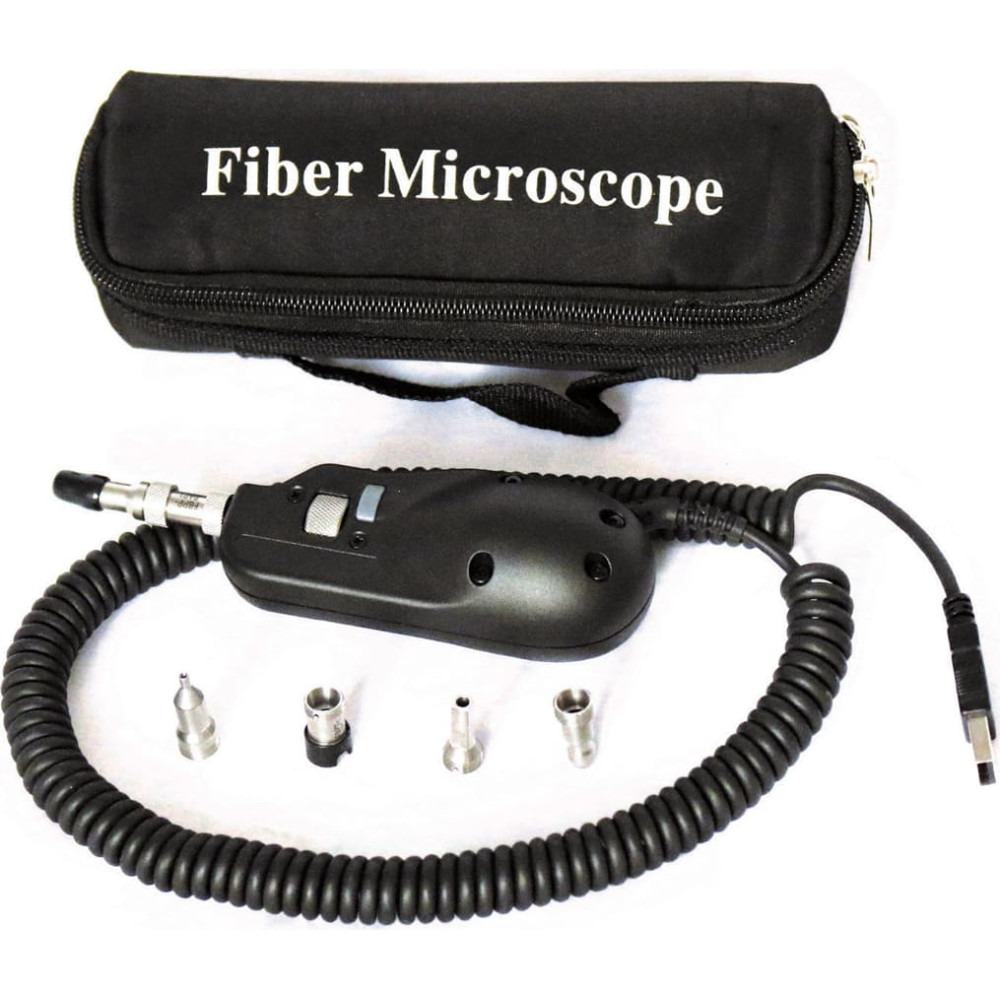

Digital fiber microscope to inspect connector end-faces

Before testing fiber-optic links and every time fiber optic connectors are mated, connector end-faces should be inspected and evaluated to avoid contamination that can cause degradation of network performance and destructive damage in the contact zone. The new fiber microscope provides for a quick and easy inspection of connector end-faces and an automated analysis compliant with IEC 61300-3-35.
The microscope is easily connected via USB with WireXpert or FiberXpert and the evaluation of connector end-faces can be added to the test reports.

Inspection and evaluation of connector end-face at the touch of a button
Automated analysis compliant with IEC 61300-3-35
Ease of use and quick analysis
Compatible with WireXpert and FiberXpert, NetXpert XG as well as LinkXpert M3
Adapters for the most common fiber-optic connectors are included in the delivery

Low mag field-of-view (FOV): Horizontal 740 μm, Vertical 550 μm
High mag field-of-view (FOC): Horizontal 370 μm, Vertical 275 μm
Live image: 640 x 480 fps
Connector: USB 2.0 (backwards compatible to USB 1.1)
Camera sensor: 2560 x 1920, 1/2.5-in CMOS
Particle size detection: <1 μm
Light source: Blue LED, 100,000+ hour life
Accuracy: ±1 m ± 10-5 x distance ± sampling resolution (excluding group index uncertainties)
Lighting technique: Coaxial
Power source: USB Port
