Home Tools / Measuring Testing devices Hobbes GIGA-X Netzwerk Status Tester

Hobbes GIGA-X Netzwerk Status Tester

Product Code: 256800

Barcode 7630049697867

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

current catalog edition: 24.1

current catalog page: 12.03

depth of packaging (single piece): 200 mm

gross weight: 0.235

height of packaging (single piece): 70 mm

manufacturer: HOBBES

package weight (single piece): 0.235 kg

product group: Tester

product type: Cable tester / network tester

weight: 124.2 g

width of packaging (single piece): 100 mm

Description

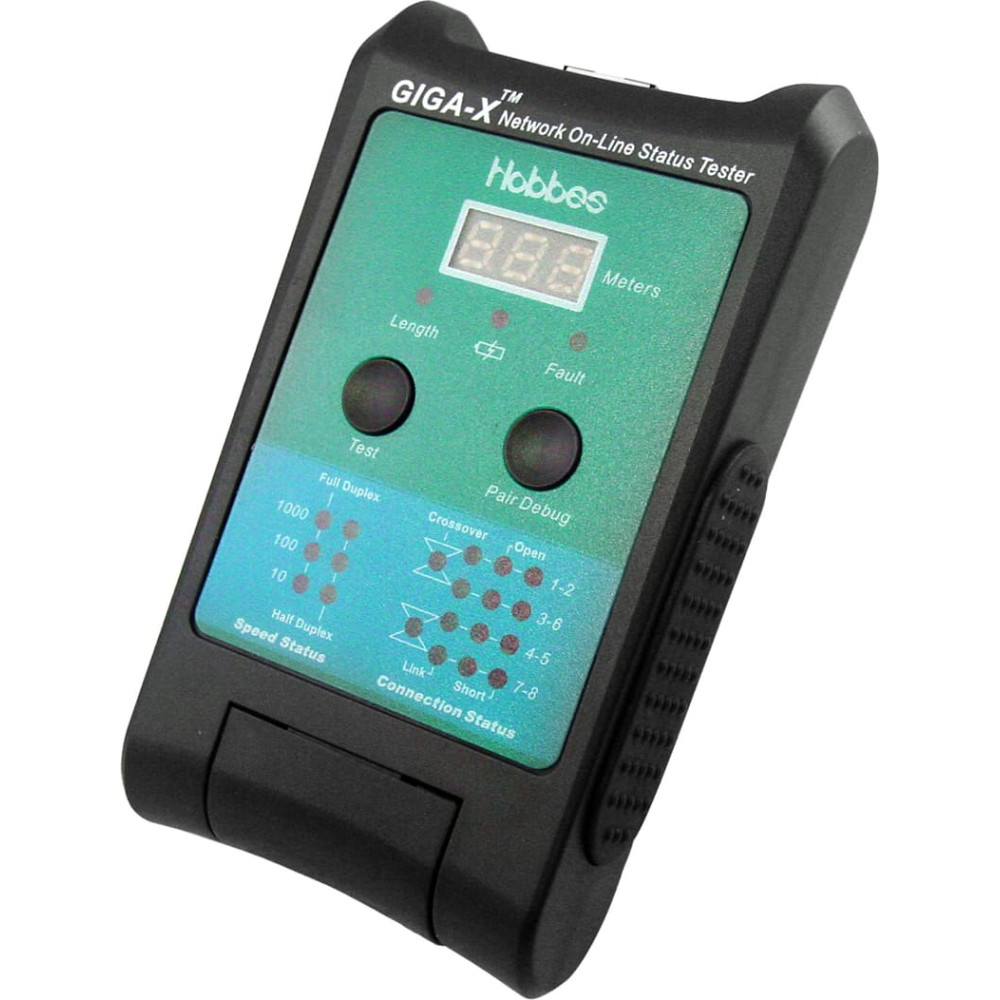

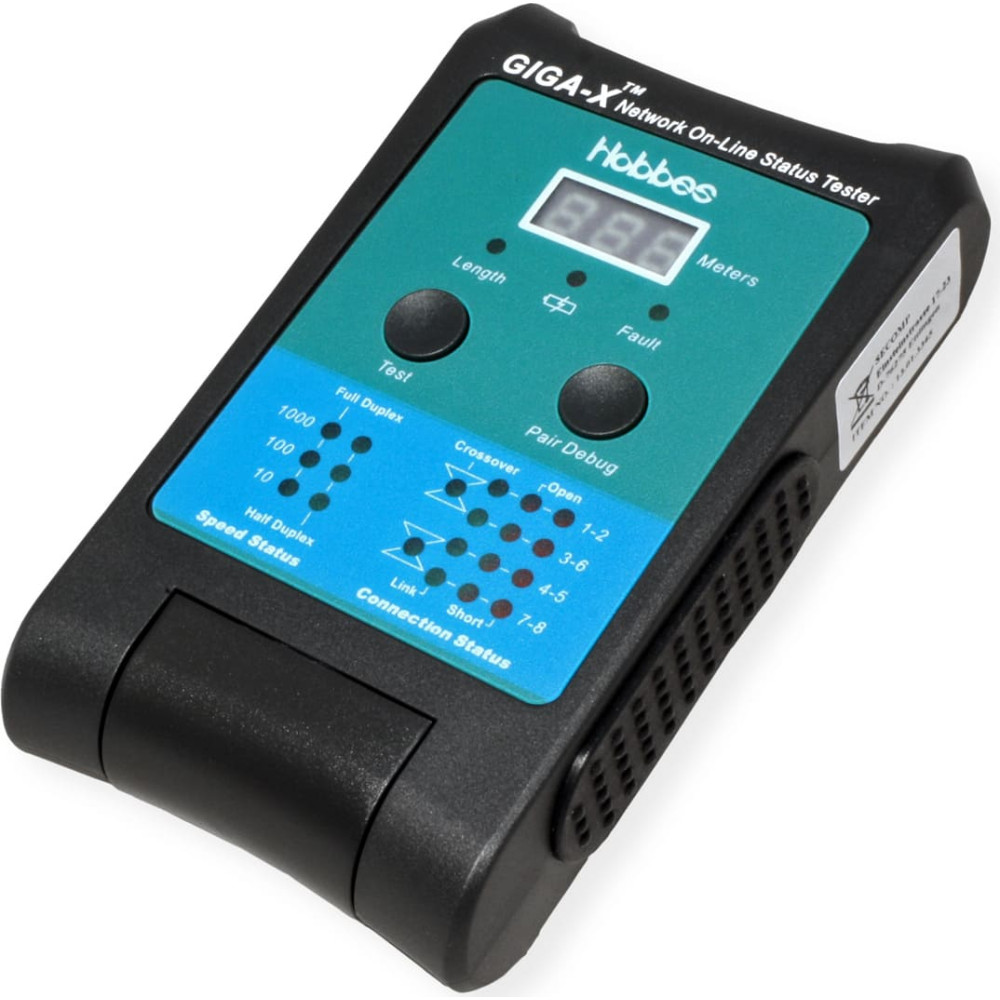

It helps network administratorsand installers to layout 10/100/1000 BASE–T network environments GIGA–X also allows for trouble–free development of new switch/NIC Ethernet network devices for business expansion. Network installers and administrators will find that GIGA–X is the fastest yet simplest unit to detect, identify, and maintain their network environments. GIGA–X complies with existing IEEE standards.

Maps any existing network layout quickly
Identifies 10/100/1000 BASE–T or BASE–Tx
Testing while network is online or offline
Measures cable length by each pair
Tests cable faults at the same time

Specifications

Max test length: Offline 150 meters (492.13 ft.)/Online 110 meters (360.89ft.)

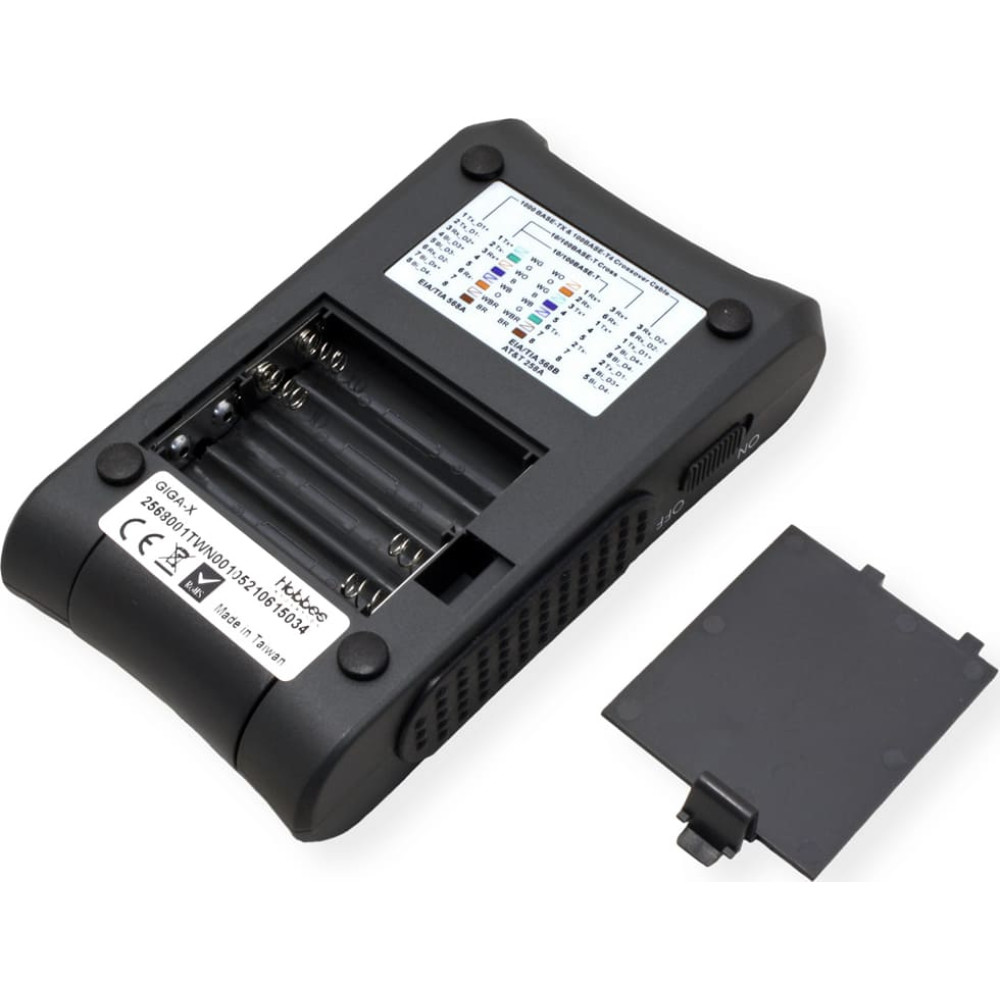

Power source: 4 x AAA 1.5V Alkaline batteries
Operating temp.: 0ºC to 50ºC
Storage temp. : –10ºC to 50ºC
Humidity: 10% to 90%
Dimensions: 138 x 82 x 32mm
Weight: 125 g
