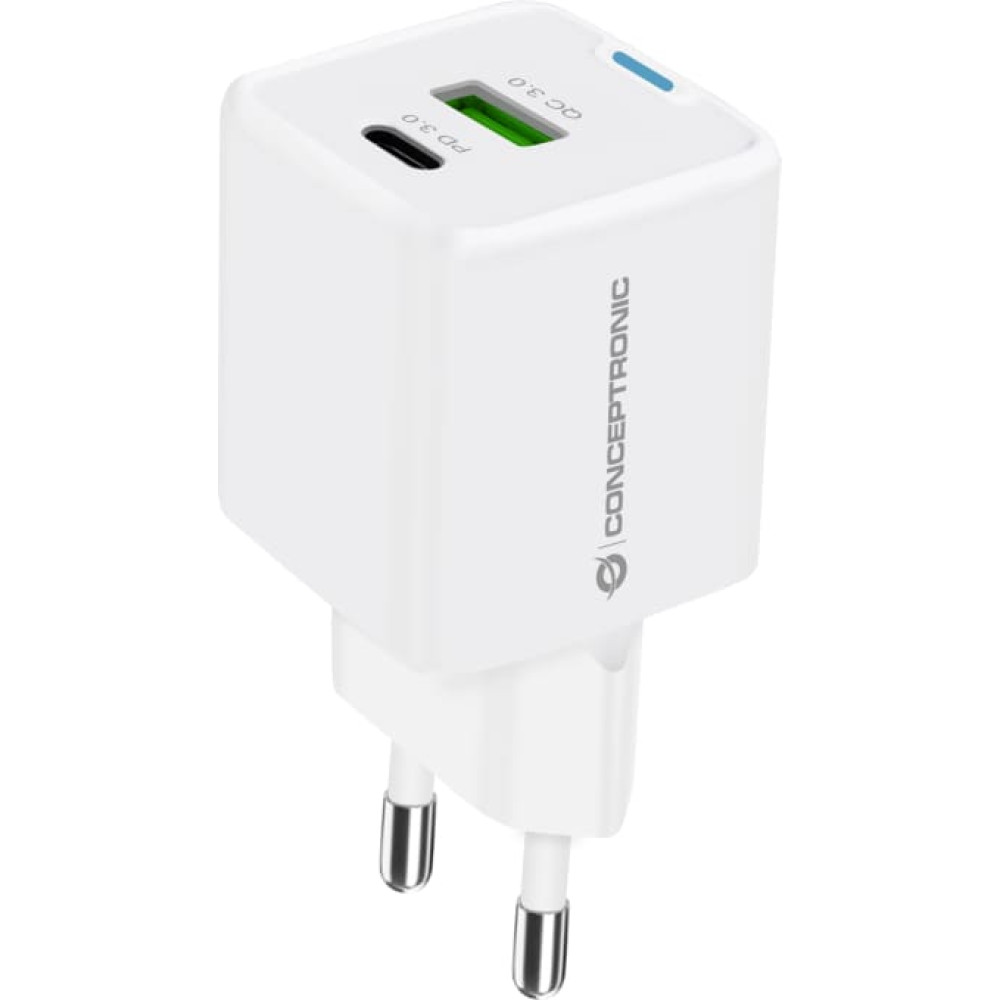

Conceptronic Ladegerät 2Port 33W,1xUSB-C,1xUSB-A +3-in-1 sw
To purchase this product you must be registered in our system.
Specification
cable length: 1.5 m
cables included: USB
charger compatibility: Universal
charger type: Indoor
compliance certificates: CE, REACH, RoHS
country of origin: China
depth: 72 mm
fast charging: Yes
fast charging technology: Power Delivery 3.0, Quick Charge 3.0
harmonized system (hs) code: 8504408390
height: 34 mm
input current: 0.8 A
input frequency: 50 - 60 Hz
input voltage: 100 - 240 V
manual: Yes
master (outer) case gross weight: 10 kg
master (outer) case height: 300 mm
master (outer) case length: 450 mm
master (outer) case width: 450 mm
maximum output voltage: 20 V
maximum power: 33 W
minimum output voltage: 3.3 V
number of simultaneously connected devices (max): 2
operating relative humidity (h-h): 5 - 95%
operating temperature (t-t): 0 - 40 °C
output current (12v): 2.5 A
output current (15v): 2 A
output current (20v): 1.5 A
output current (5v): 3 A
output current (9v): 3 A
package depth: 37 mm
package height: 194 mm
package type: Box
package weight: 194 g
package width: 95 mm
pallet gross height: 180 cm
pallet gross length: 80 cm
pallet gross width: 120 cm
power protection features: Overheating, Overload, Short circuit
power source type: AC
product colour: White
products per master (outer) case: 50 pc(s)
storage temperature (t-t): -20 - 80 °C
sustainability certificates: ErP
sustainability compliance: Yes
usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: 1
usb power delivery (usb pd): Yes
usb power delivery revision: 3.0
usb type-c ports quantity: 1
weight: 54 g
width: 35 mm
Description

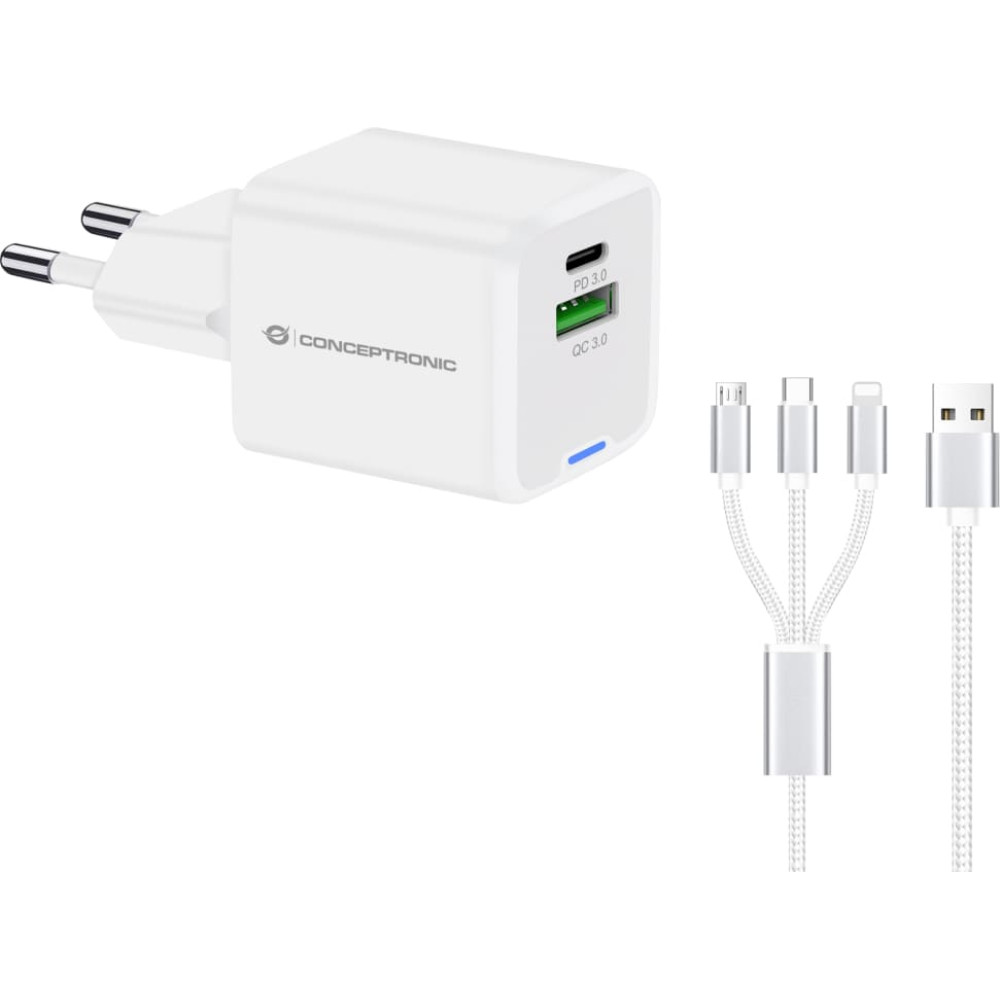

This charger leverages advanced Gallium Nitride (GaN) technology to provide up to 33W of total power, delivering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing for simultaneous charging of multiple devices with different power needs. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with a variety of devices, including smartphones and laptops. Enhanced safety is ensured with built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize efficiency and minimize heat generation. For added convenience, the charger includes a 1.5m 3.0A 3-in-1 cable. |
