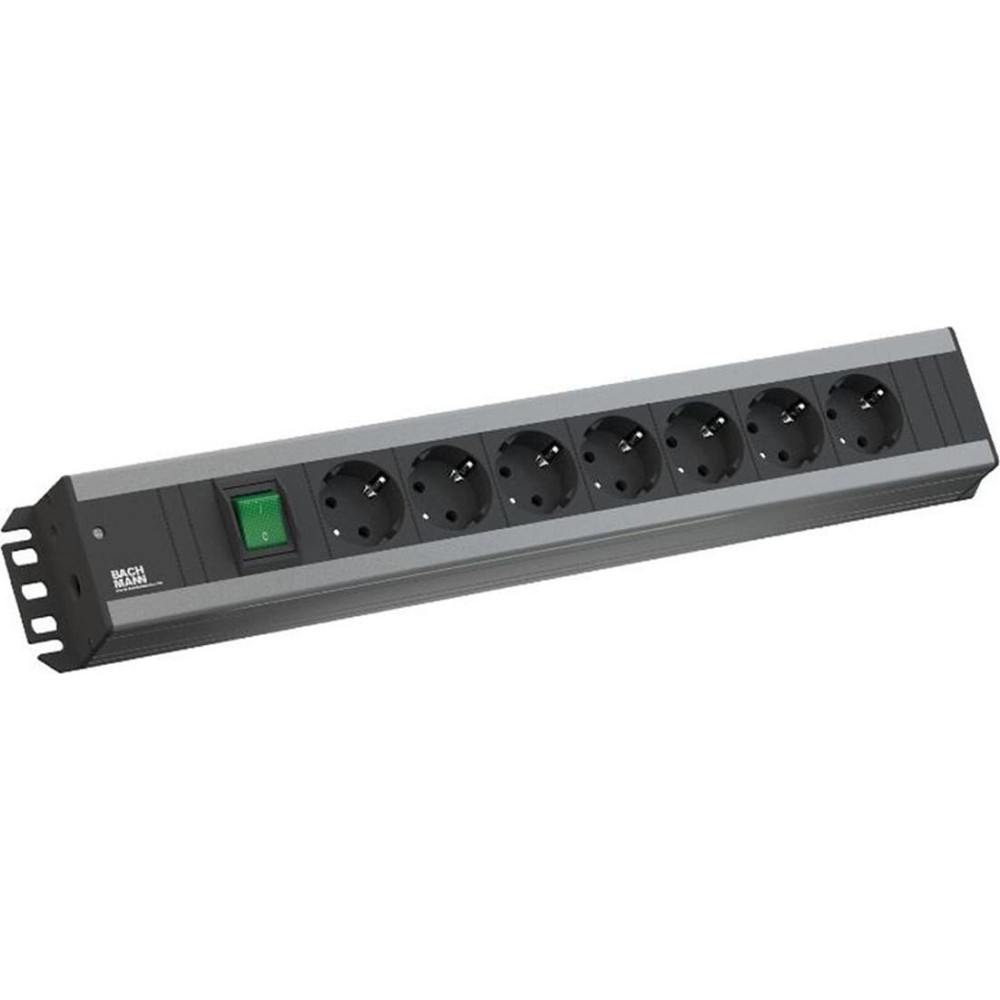

Bachmann Craftsman socket strip 7x earthing contact, switch, 19-inch rack compatible, 2 m

BACHMANN

Bachmann Craftsman socket strip 7x earthing contact, switch, 19-inch rack compatible, 2 m

Product Code: 300.007
Barcode 4016514019243

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: black / gray
colour (design profile): black / gray
connection cable: HO5VV-F3G, 2m, schwarz

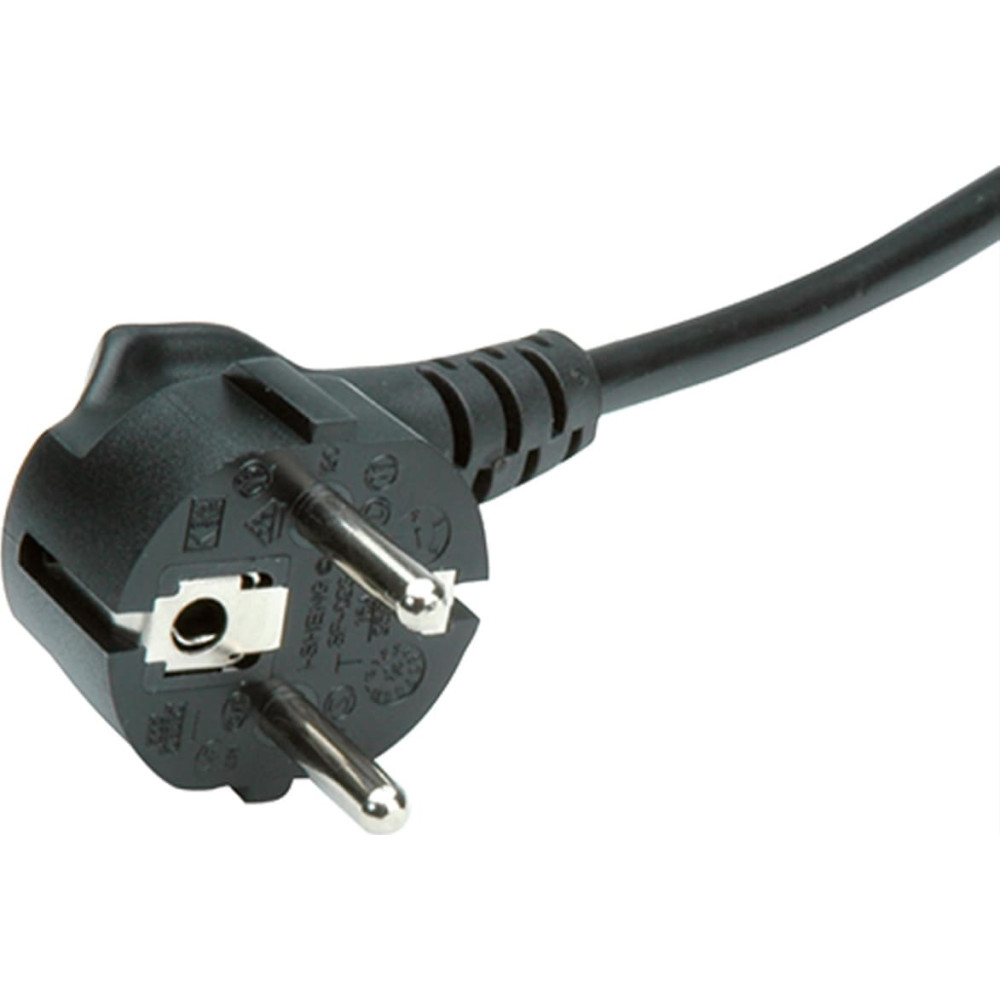

connector plug: Schuko
current catalog edition: 24.1
current catalog page: 10.18
depth: 74 mm
depth of packaging (single piece): 140 mm
function: 6 fach Steckdosenleiste
gross weight: 0.882
height: 45 mm
height of packaging (single piece): 40 mm
length: 2 m
length: 2 m
manufacturer: BACHMANN
material (casing): Kunststoff
max. capacitance: 3600W
max. voltage: 230V AC
mounting form: Wall / table socket
number of socket pots: 8
on/off switch: yes
output alignment: Reihe
package weight (single piece): 0.882 kg
plug type: 3P. German, CEE 7/7, Type-E/F
product group: Power Bars
product type: Power strip
protection class (ip code): IP20
quantity of outputs/angles: 9 / 90 °
regional use: Germany, Austria, Netherlands
socket type: 3P. German, CEE 7/3, Type-F
technical particularity: Wiederanschliessbar
weight: 869 g
width: 445 mm
width of packaging (single piece): 480 mm
Description

Robust. Practical. High quality. - HANDWERKERLEISTE multiple socket outlet with 90° rotated protective contact inserts and integrated reconnection terminal for power cable.

8-way socket strip with earthing contact - 16A/3680W, AC250V, IP20 - Earth contact inserts: Colour black, rotated by 90° - 2-pole illuminated rocker switch 16 A - Socket outlet spacing: standard - Suitable for 19" mounting - Connection: - Screwed and reconnectable - Integrated reconnection terminal for power cable and additional output for separate earth conductor - Additional earth conductor connection, possible without opening the housing - Cable 2.0m H05VV-F 3G1.5mm² with earthing contact angle plug - Profile: - Profile colour silver - CSO, PVC, glow-wire resistant 850°C colour RAL 7035 - Also suitable for 19" cabinet mounting - 19" mounting bracket integrated in the end caps
