Bachmann POWER FRAME 3xCEE7/3 1xCM 0.2m GST18 RAL9010

BACHMANN

Bachmann POWER FRAME 3xCEE7/3 1xCM 0.2m GST18 RAL9010

Product Code: 916.703
Barcode 4057298136603

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: white
connector plug: GST18 Stecker
current catalog edition: 24.1
depth: 0.26 m
depth of packaging (single piece): 310 mm
gross weight: 0.407
height: 0.04 m
height of packaging (single piece): 100 mm
length: 0.2 m
length: 0.2 m
manufacturer: BACHMANN
number of socket pots: 3
package weight (single piece): 0.407 kg
plug type: Wieland GST18
product group: Power Bars
product type: Integrated unit POWER FRAME
ral colour: RAL 9010 Pure white
regional use: Germany, Austria, Netherlands
socket type: 3P. German, CEE 7/3, Type-F
weight: 0.36 kg
width: 0.05 m
width of packaging (single piece): 90 mm
Description

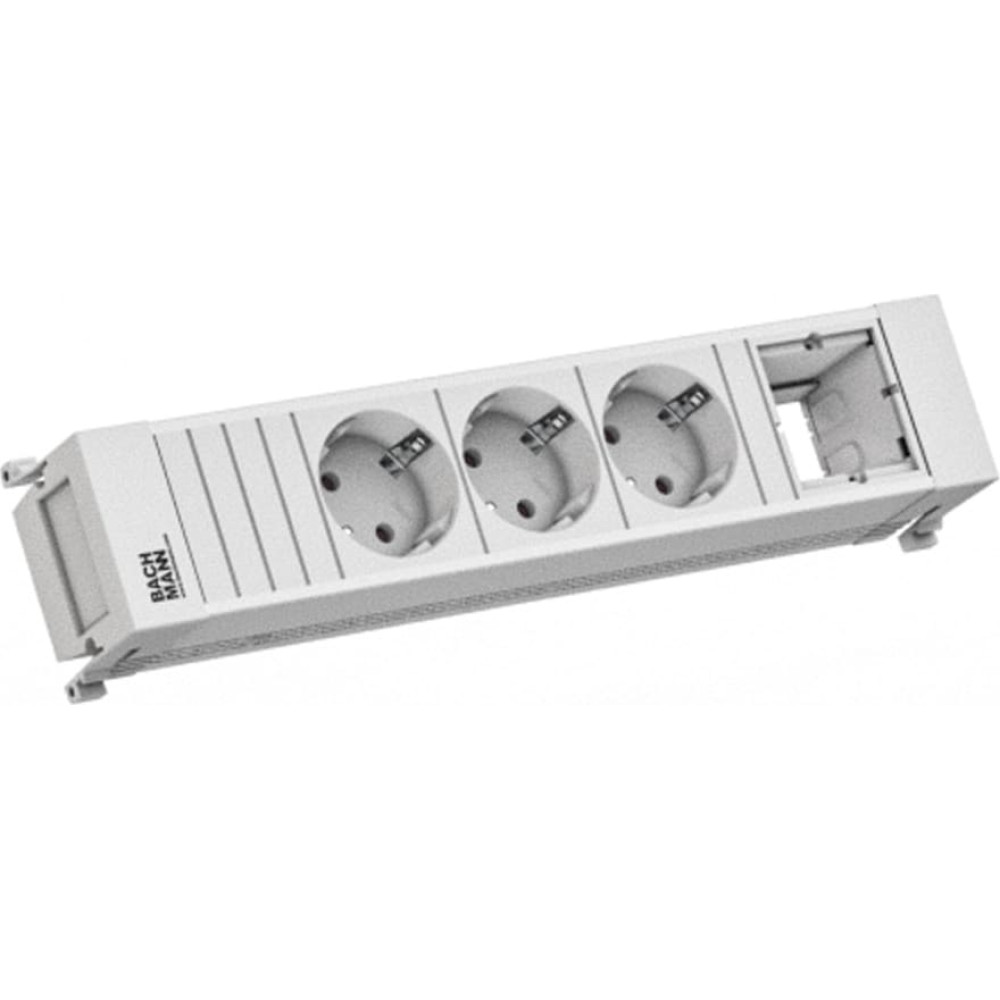

POWER FRAME 3xCEE7/3 1xCM 0.2m GST18 RAL9010

POWER FRAME socket strip Colour: white, similar to RAL9010 painted with enhanced touch protection 3xprotective contact sockets 35° white 1xcustom module empty plastic components white, RAL9010 supply cable 0.2m H05VV-F 3G1.5mm² white with GST18 plug white with BACHMANN logo packed in a box
