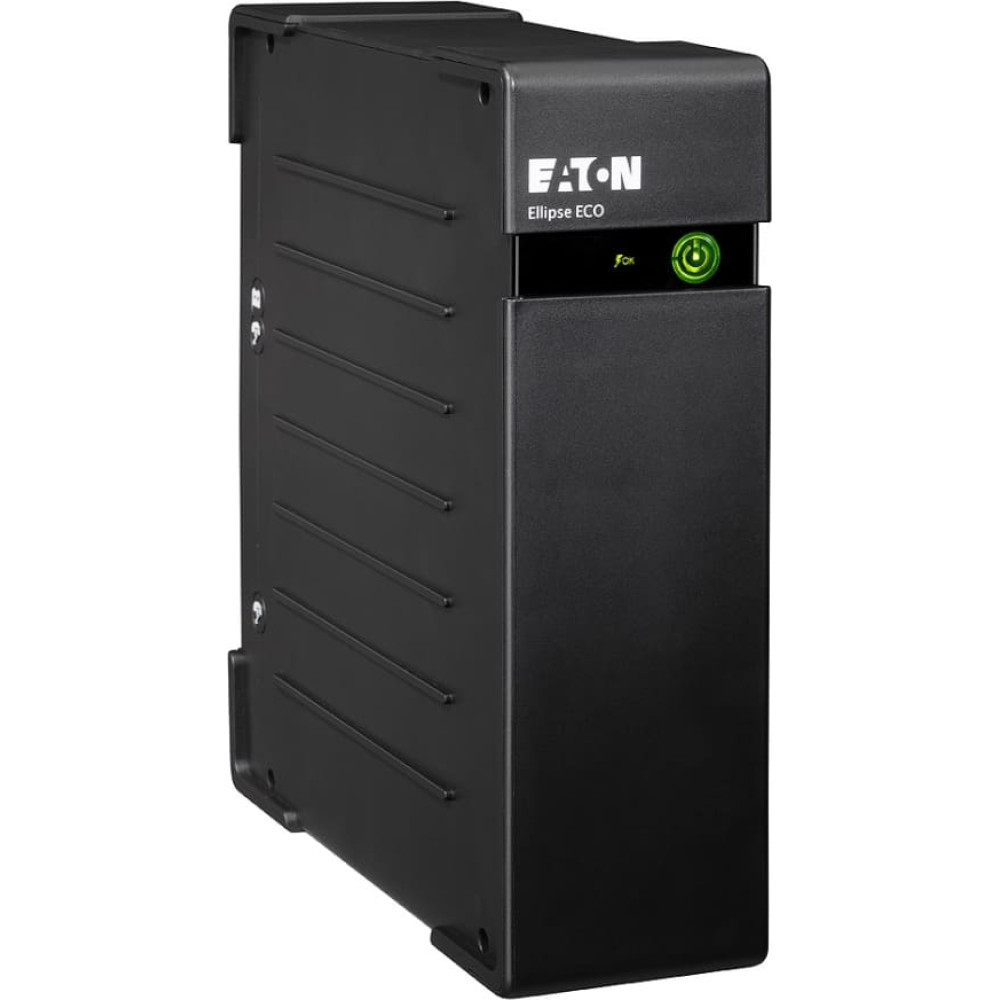

Eaton USV EL650DIN 650VA/400W Schuko Ellipse ECO

Eaton USV EL650DIN 650VA/400W Schuko Ellipse ECO

Product Code: EL650DIN
Barcode 3553340620621

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.280
height: 0.140
width: 0.320
Description
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

UPS topology Standby (Offline)
Output power capacity 0.65 kVA
Output power 400 W
Input operation voltage (min) 161 V
Input operation voltage (max) 284 V
Input frequency 50/60 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Emergency Power Off (EPO) N
Surge protection Y
Surge protection features Fax, Modem, Network, Telephone
Audible alarm(s) Y
Audible alarm modes Battery replacement
AC outlet types Type F
Power plug C14 coupler
AC outlets quantity 4 AC outlet(s)
Modem (RJ-11) ports 1
Ethernet LAN (RJ-45) ports 1
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at half load 9 min
Hot-swap battery N
Automatic battery test Y
Cold start Y
Form factor Tower
Product colour Black
Rack capacity 2U
LED indicators Battery replacement
Safety IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Width 81 mm
Depth 235 mm
Height 263 mm
Weight 3.6 kg
Harmonized System (HS) code 85078000
Input connection type Schuko
Nominal output voltage 220-240 V
Nominal input voltage 230 V
Overload protection Y
