APC Smart-UPS nepārtrauktas barošanas avots (UPS) Line-Interactive 1,5 kilovoltampērs 1000 W 4 Maiņstrāvas izvade (-s)

Product Code: SMT1500RMI1U
Barcode 0731304299400
Brand: APC

To purchase this product you must be registered in our system.



Specification
ac outlet types: C13 coupler
ac outlets quantity: 4 AC outlet(s)
activity display: Status
additional over current protector: nein
ambient temperature: 0-40°C
audible alarm(s): Yes
auto-restart: Yes
automatic battery test: Yes
automatic voltage regulation (avr): Yes
backup time full/half-load: 5 / 16 min
battery capacity: 293 VAh
battery life (max): 5 year(s)
battery recharge time: 4 h
battery technology: Sealed Lead Acid (VRLA)
bypass: nein
cable length: 2.44 m
cables included: RS-232, USB cable
certification: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
classification (iec 62040-3): VI-SS-333
cold start: Yes
colour: black
compliance certificates: RoHS

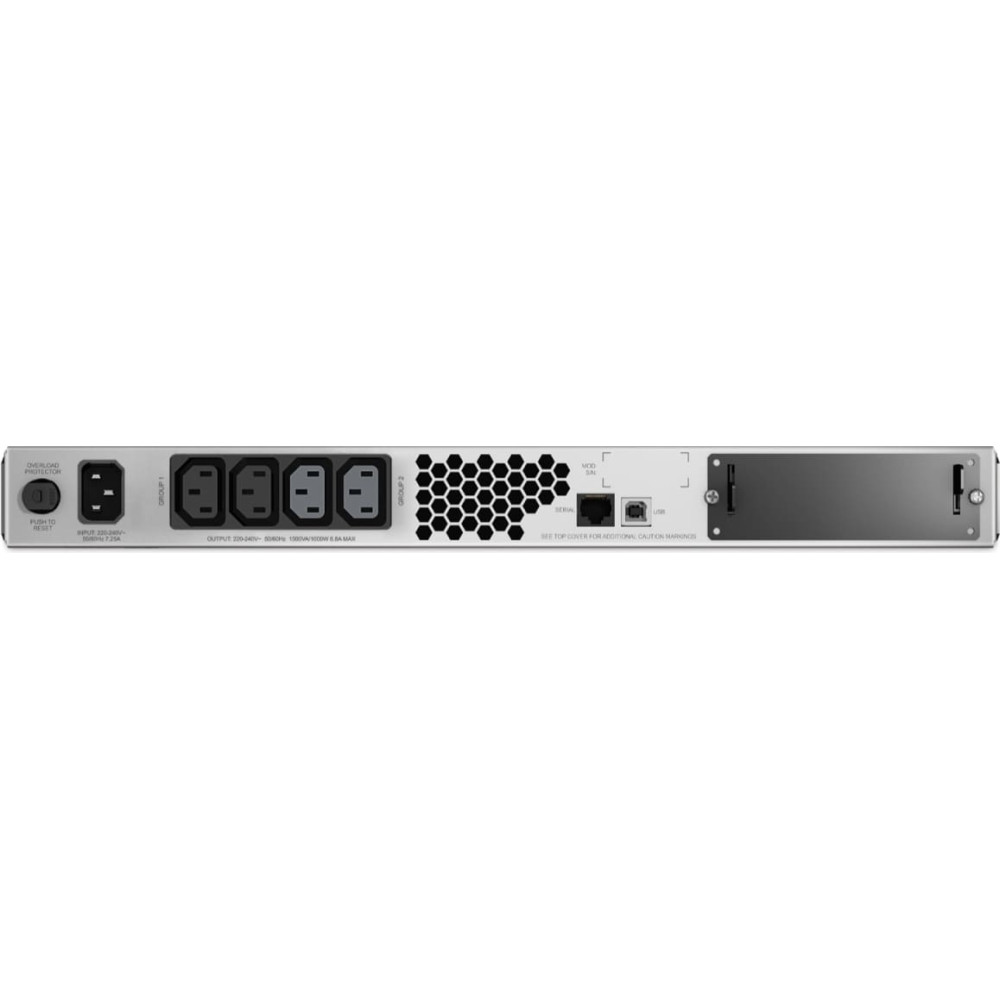

connector type (input): Kaltgeräte IEC320 C14
connector type (output): 4 x Kaltgeräte IEC320 C13
current catalog edition: 24.1
delay expansion unit: nein
depth: 665 mm
depth of packaging (single piece): 800 mm
dimensions (hxwxd): 44 x 432 x 666; 1 HE
efficiency: 98.7%
form factor: Rackmount
frequency: 50 Hz +- 3%
gross weight: 29.291
harmonized system (hs) code: 85078000
height: 44 mm
height of packaging (single piece): 200 mm
hot swap batteries: Ja, Frontseite
hot-swap battery: Yes
incl.management software: Windows
input frequency: 50/60 Hz
interface: RS232, USB
internal cooling: Aktiv, Lüfter
led indicators: Status
manufacturer: APC
mounting form: Rackmount
noise level: 46 dB
nominal input voltage: 230 V
nominal output voltage: 230 V
non-operating altitude: 0 - 15000 m
number of output iec jumpers: 2
operating altitude: 0 - 3000 m
operating relative humidity (h-h): 0 - 95%
operating temperature (t-t): 0 - 40 °C
operating temperature max.: 40 °C
operating temperature min.: 0 °C
output (va/w): 1500 / 1000
output operation voltage (max): 240 V
output operation voltage (min): 220 V
output power: 1000 W
output power capacity: 1.5 kVA
output voltage regulation: ja
over current protection: EMI,- RFI-Filter
package depth: 794 mm
package height: 200 mm
package weight: 29.1 kg
package weight (single piece): 29.291 kg
package width: 575 mm
phase in/output: 230V/230V / 50Hz
power plug: C14 coupler
product colour: Black
product group: USV
product type: UPS Line Interactive, Rackmount
products per pallet: 10 pc(s)
quick installation guide: Yes
rack capacity: 1U
rack mount kit: Yes
rs-232 interface: ja
serial interface: Yes
serial interface type: RJ-45
slot for adapter card: 1 Smartslot
smartslot: Yes
software cd: Yes
storage relative humidity (h-h): 0 - 95%
storage temperature (t-t): -15 - 45 °C
surge energy rating: 540 J
sustainability certificates: Green Premium
total carbon footprint (kg of co2e): 1298.03

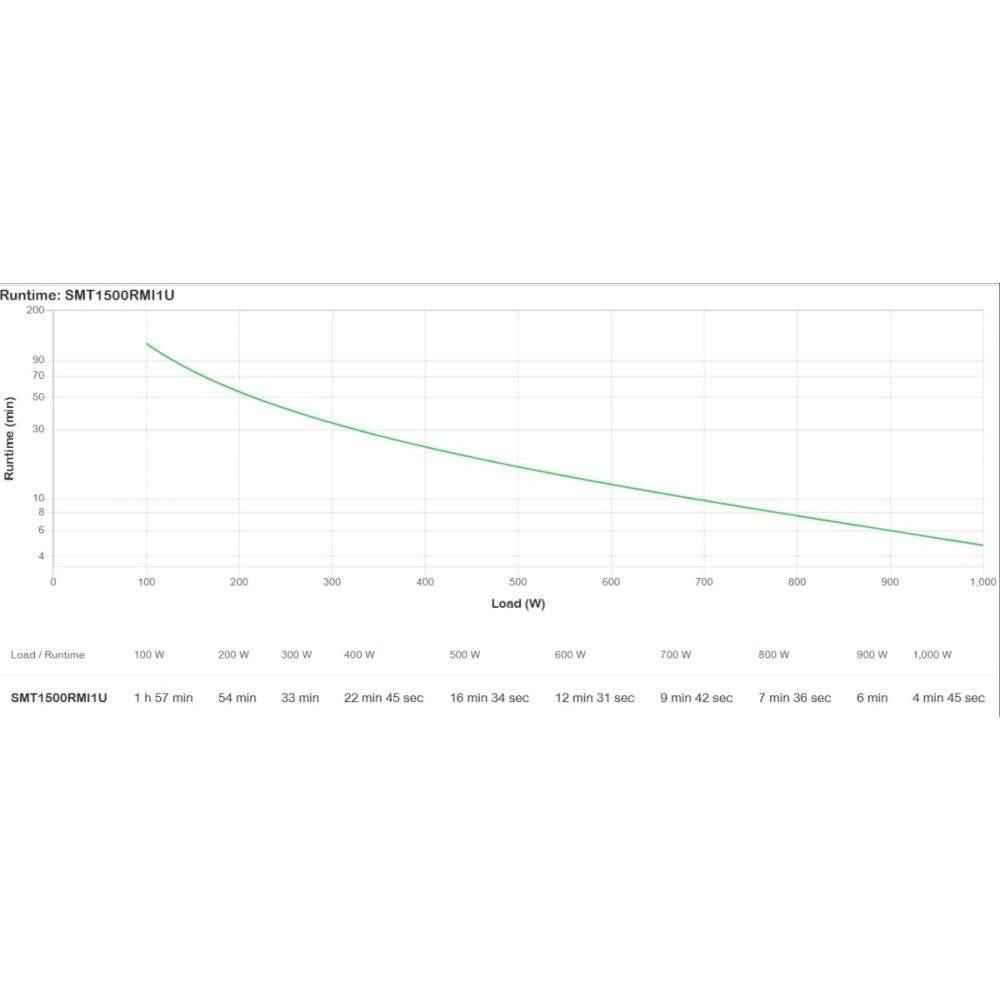

typical backup time at full load: 4.8 min
typical backup time at half load: 16.6 min
ups technology: Line Interactive
ups topology: Line-Interactive
usb 2.0 interface: ja
usb port: Yes
voltage (input): 160 - 286 V
voltage (output): 230V
warranty card: Yes
waveform: Sine
weight: 24.1 kg
width: 432 mm
width of packaging (single piece): 580 mm

Description
Always stay online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the included Powershute software, you can even have critical IT hardware shut down automatically and in a controlled manner. This prevents data loss, downtime and physical damage to hardware.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate the shutdown moment and the order in which this happens.

Extend the lifespan
The internal battery cartridge (APCRBC88) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT1500RMI1U or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Warranty extension
The factory warranty of the SMT1500RMI1U is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-03).

Ease of use

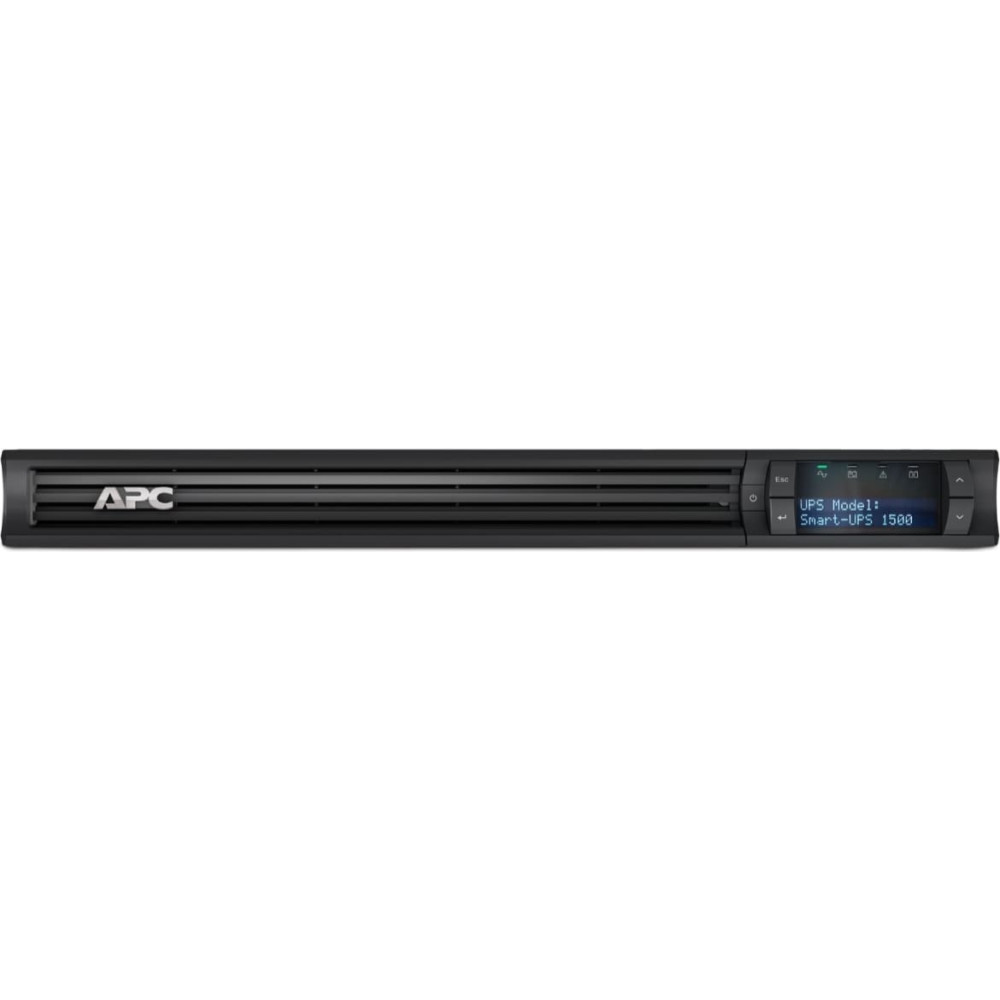

By means of physical buttons and an LCD screen, it is possible to set and read out the basic functionalities. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.

Service and support by people who know your APC UPS best.
How do you maximize UPS performance and fix OpEx costs?

Choose Schneider Electric's 5-year EcoCare Service* (ECO1PH5YFW03):
- 24/7 remote monitoring by SE's Connected Services Hub
- On-site repair service (incl. replacement UPS/parts/battery and labor).
- 5-year warranty
- Technical support from our experts, on-site and remote
- Maintenance recommendations & insights

*network card required (ap9640/ap9641)

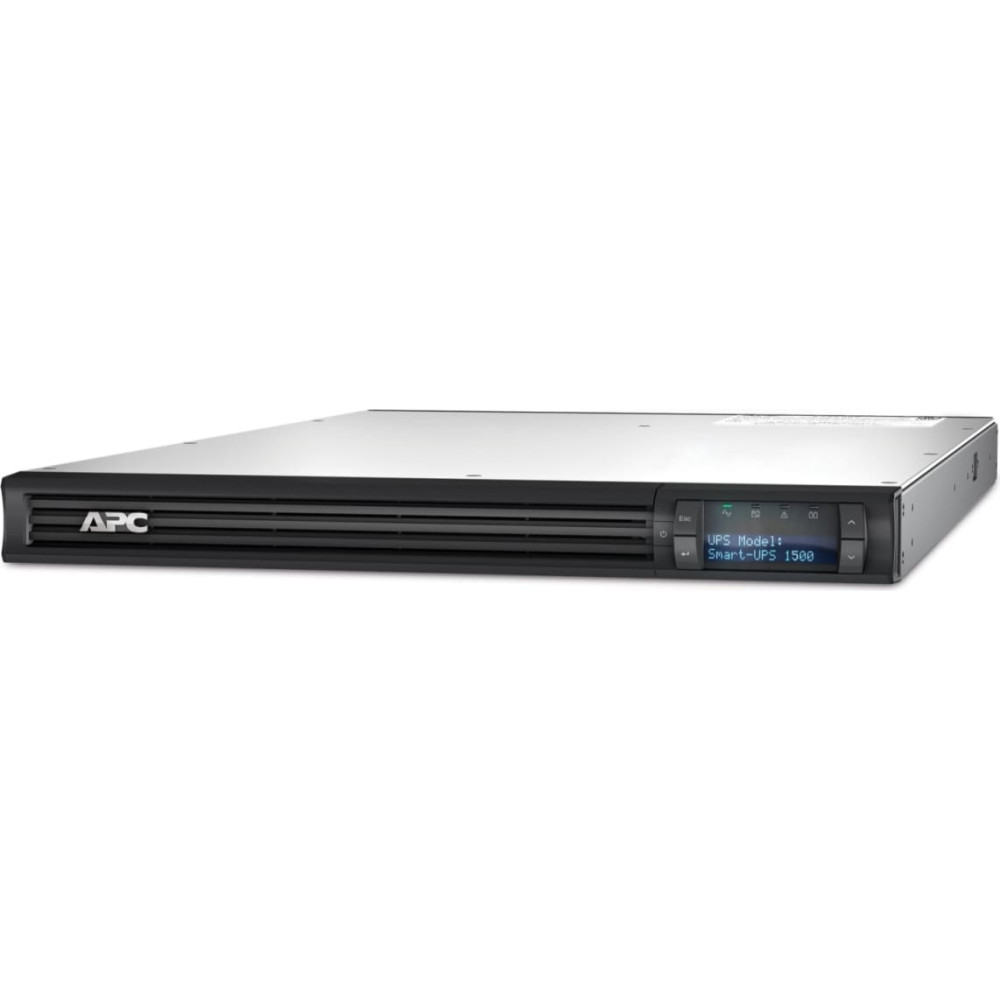

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
