Level One LevelOne IPCam FCS-5096 Z 4x Fix In 2MP H.264 IR 16W PoE
To purchase this product you must be registered in our system.
Specification
3d nr (noise reduction): Yes
alarm input/output: Yes
anti-flicker: Yes
audio codecs: G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
audio input channels: 1.0 channels
audio output channels: 1.0 channels
back light compensation (blc): Yes
behavior analysis: Intrusion detection, Line crossing detection
bluetooth: No
browser supported: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
built-in hdd: No
cabling technology: 10/100Base-T(X)
camera shutter speed: 1/3 - 1/100000 s
card reader integrated: Yes
certification: CE/FCC
compatible memory cards: MicroSD (TransFlash), SDHC, SDXC
composite video out: 1
connectivity technology: Wired
country of origin: China
day/night mode: Yes
dc output current: 1.3 A
dc output voltage: 12
dc-in jack: Yes
depth: 332.7 mm
digital watermark: Yes
ethernet interface type: Fast Ethernet
ethernet lan: Yes
ethernet lan (rj-45) ports: 1
focal length range: 2.8 - 12 mm
form factor: Bullet
frame rate: 60 fps
full hd: Yes
harmonized system (hs) code: 85258900
heartbeat: Yes
height: 144.1 mm
ik code: IK10
image quality adjustment: Brightness, Contrast, Saturation, Sharpness
infrared (ir) cut-off filter: Yes
intelligent video surveillance (ivs) system features: Face detection
interface: RJ-45
international protection (ip) code: IP67
led indicators: Power
led type: IR
lens viewing angle, diagonal: 126°
lens viewing angle, horizontal: 105°
lens viewing angle, vertical: 56°
master (outer) case gross weight: 15.5 kg
master (outer) case height: 595 mm
master (outer) case length: 410 mm
master (outer) case width: 570 mm
maximum memory card size: 128 GB
maximum resolution: 1920 x 1080 pixels
minimum illumination: 0.005 lx
mirror: Yes
mounting type: Ceiling/wall
networking standards: IEEE 802.3at
night vision: Yes
night vision distance: 50 m
number of cameras: 1
number of lenses: 1
number of users: 32 user(s)
operating relative humidity (h-h): 0 - 95%
operating temperature (t-t): -30 - 60 °C
optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
optical zoom: 4.3x
package depth: 200 mm
package height: 385 mm
package type: Box
package weight: 2.28 kg
package width: 185 mm
password protection: Yes
placement supported: Indoor & outdoor
power consumption (max): 15.5 W
power consumption (power over ethernet (poe)): 17.5 W
power source type: DC, PoE
privacy masking: Yes
product colour: White
products per master (outer) case: 9 pc(s)
progressive scan: Yes
protection features: Dust resistant, Water resistant
ptz control: Yes
quality of service (qos) support: Yes

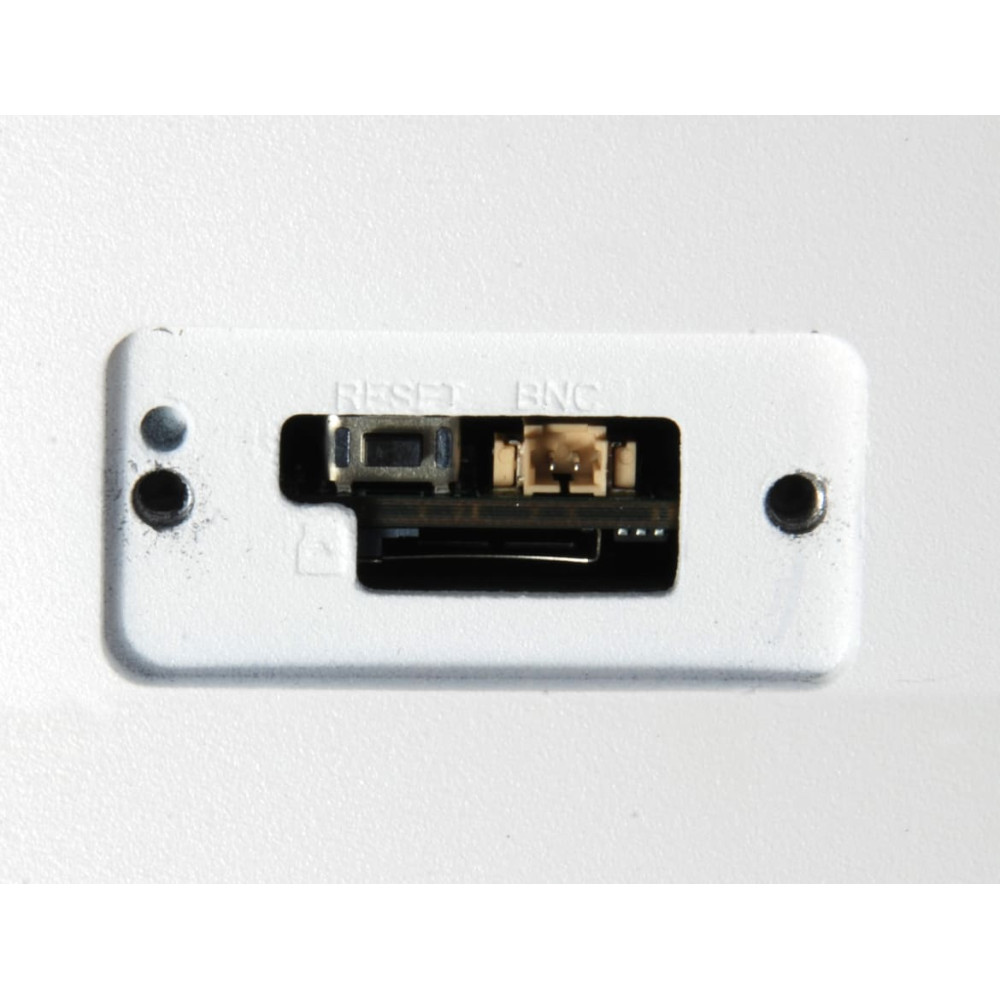

reset button: Yes
resource cd: Yes
screws included: Yes
sensor type: CMOS
supported graphics resolutions: 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour
supported video modes: 240p, 360p, 480p, 720p, 960p, 1080p

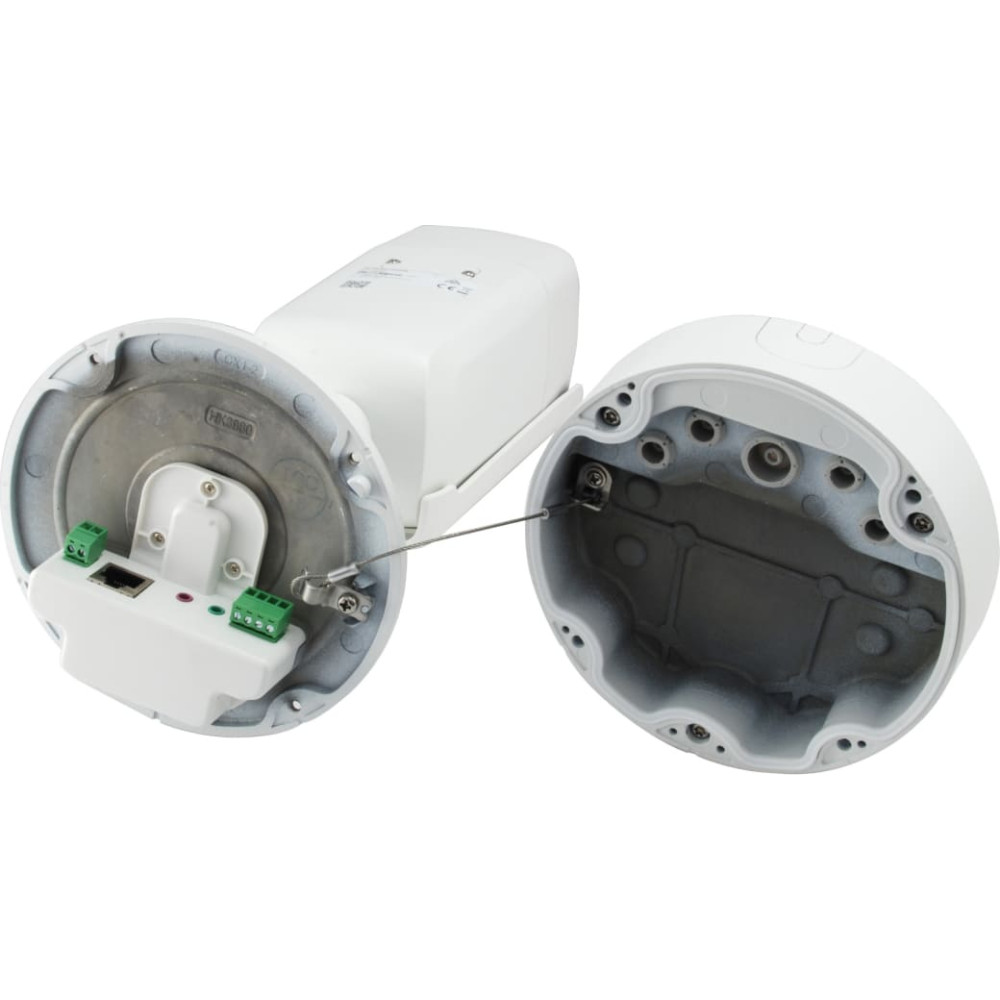

terminal block port: Yes
total megapixels: 2 MP
type: IP security camera
video compression formats: H.264, H.265, M-JPEG
video formats supported: AVI
video motion detection: Yes
weight: 1.89 kg
white balance: Auto
wi-fi: No
wide dynamic range (wdr): Yes
width: 332.7 mm
zoom capability: Yes
Description
| The LevelOne FCS-5096 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5096 should be an essential part of any security deployment that requires smart, reliable outdoor cameras. |
