Delock Adapter USB Type-C™ to 1 x Serial RS-422/485 male with 6 pin terminal block 5 V 1 m

DELOCK

Delock Adapter USB Type-C™ to 1 x Serial RS-422/485 male with 6 pin terminal block 5 V 1 m

Product Code: 64269
Barcode 4043619642694

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.000
height: 0.000
width: 0.000
Description

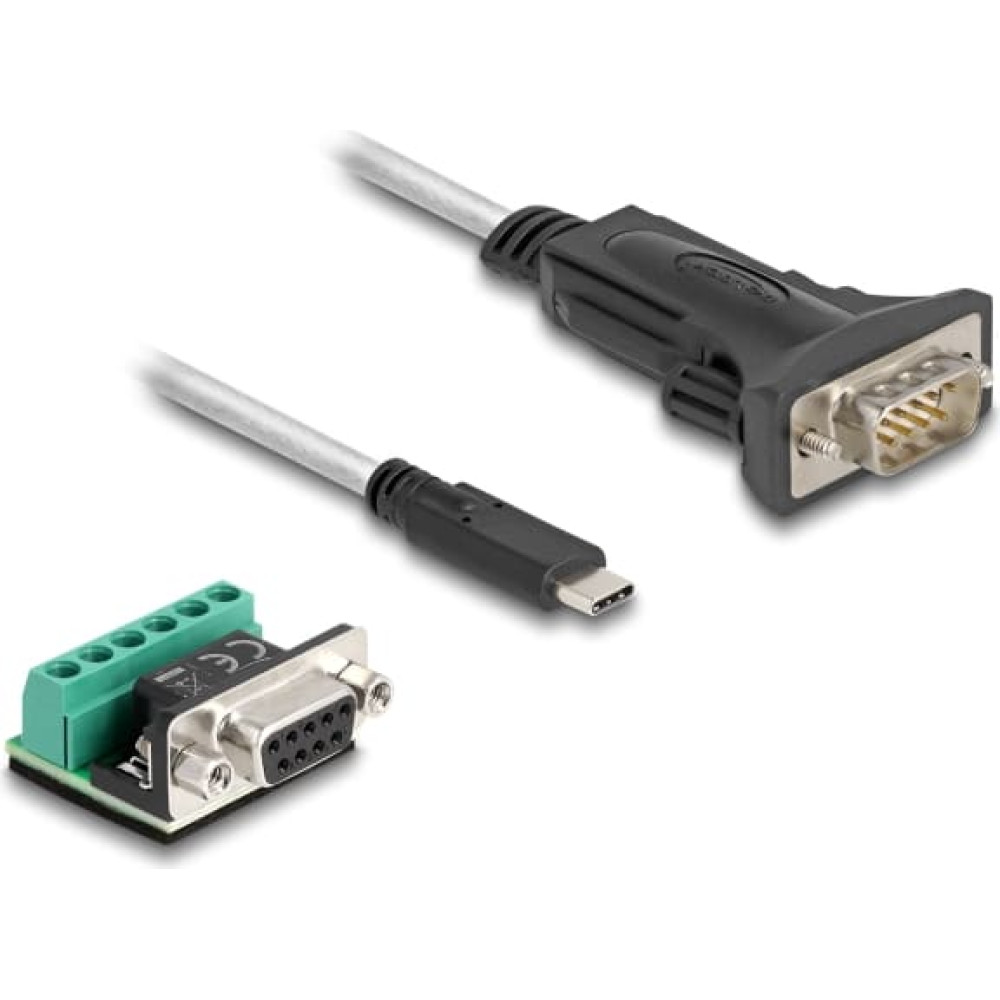

This USB Type-C™ 2.0 to serial adapter by Delock provides a standard RS-422 and RS-485 connection for measuring devices, POS systems, printers, modems, IoT devices etc.

Terminal block
The terminal block is suitable for installation in PC housings and for any solderless cable connection with RS-422 or RS-485 interface.


Optionally, external devices can be supplied with voltage of 5 V over the terminal block.
System requirements:
• Linux Kernel 5.11 or above
• Mac OS 11.6 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC or laptop with a free USB Type-C™ port

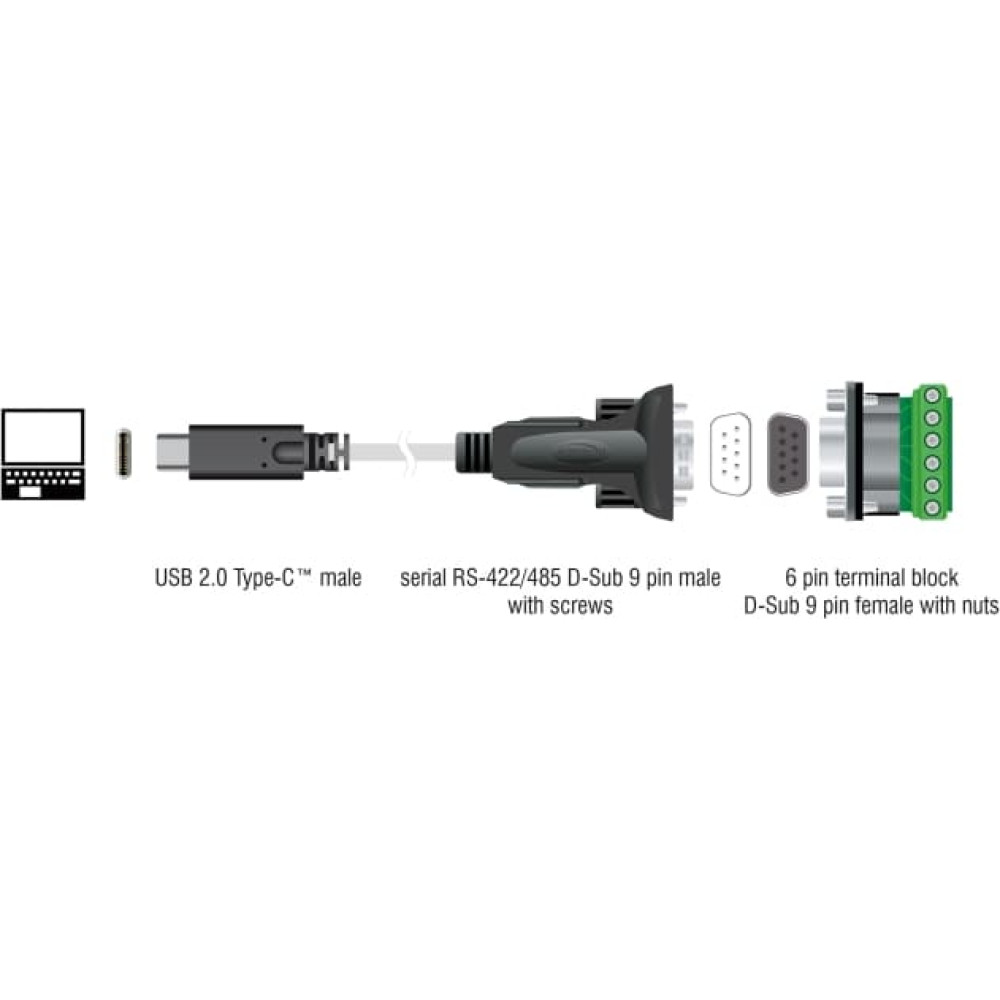

Specification:
• Connectors:
  Adapter:
  1 x USB 2.0 Type-C™ 2.0 male
  1 x serial RS-422/485 D-Sub 9 pin male with screws
  Terminal block:
  1 x serial RS-422/485 D-Sub 9 pin female with nuts
  1 x 6 pin terminal block

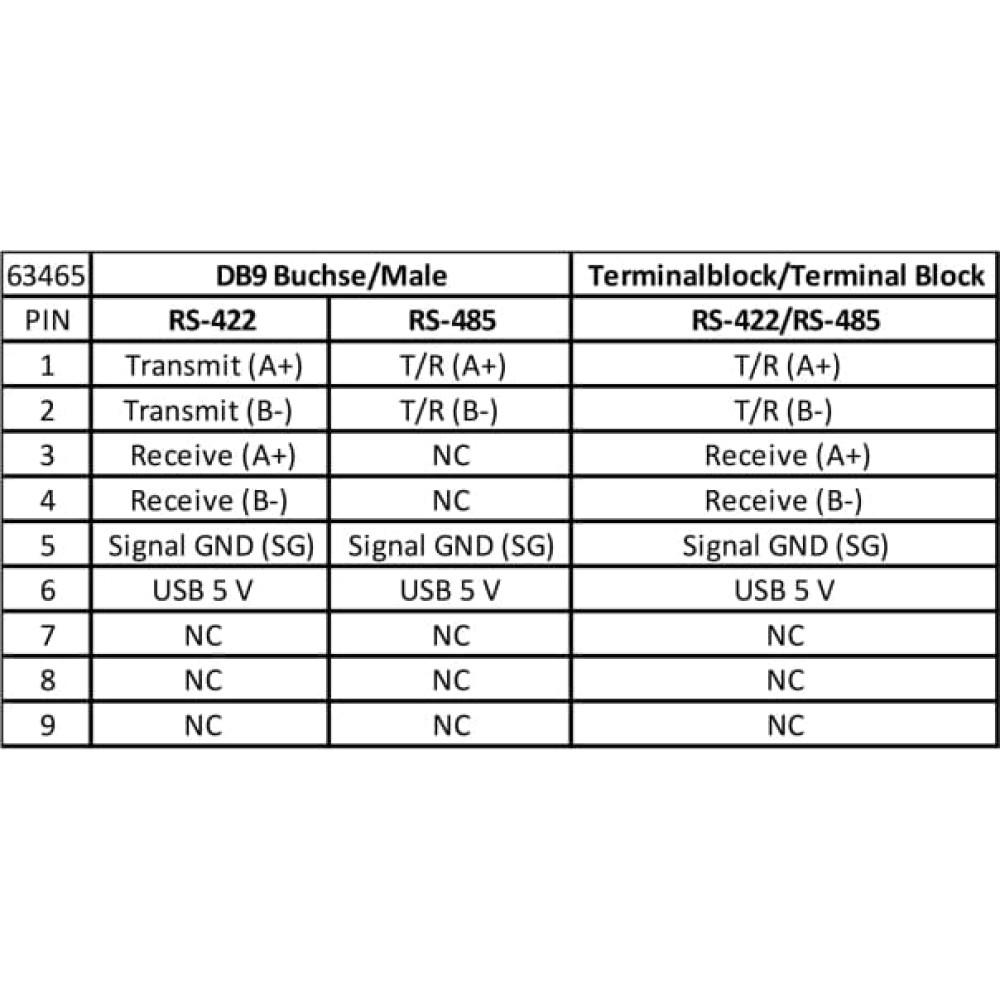

• Terminal block: T/R+, T/R-, RXD+, RXD-, GND, VCC
• Chipset: FTDI FT232R
• Data transfer rate up to 921.6 Kbps
• RS-422/485 Terminator: 120 Ω

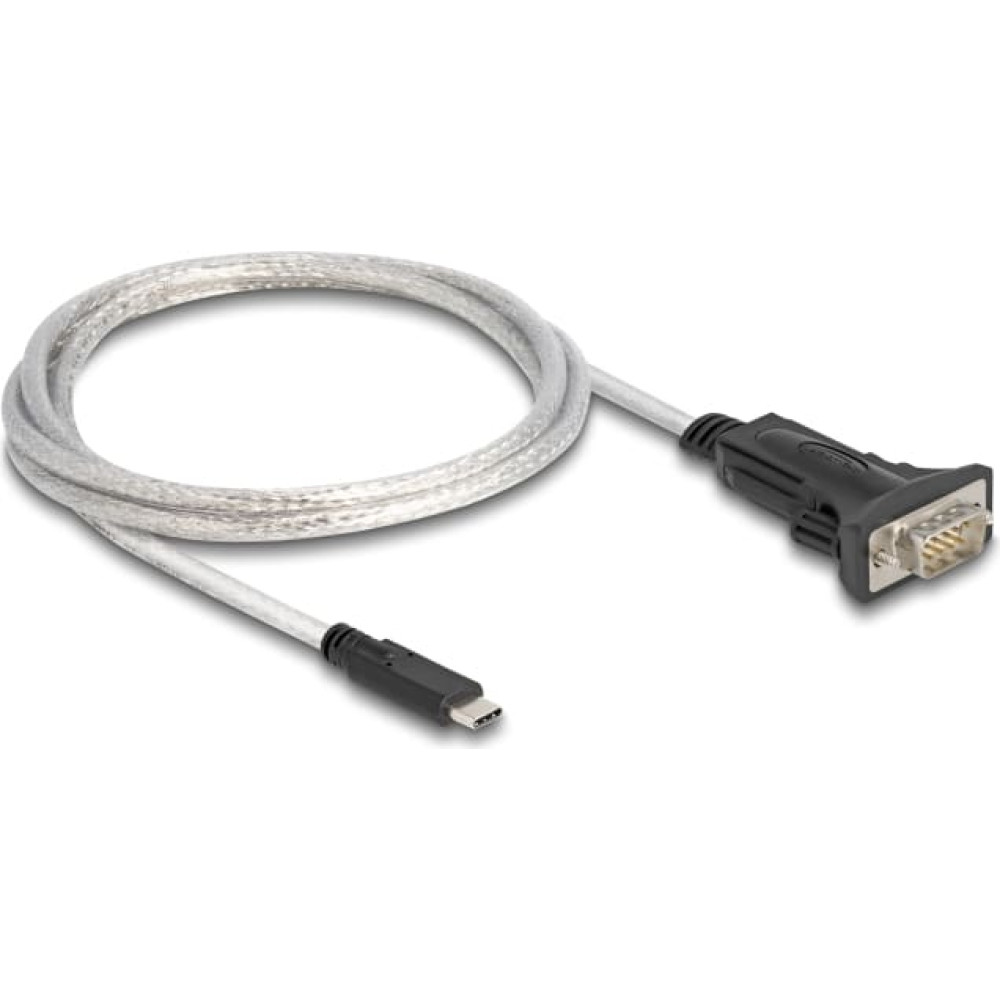

• Cable length incl. connectors: ca. 1 m
Package content:
• USB 2.0 to 1 x serial RS-422/485 adapter
• Terminal block adapter
• User manual
Data sheet:
http://www.delock.de/produkt/64269/pdf.html?sprache=en
