Home Multimedia / Peripherals Videoswitches / Videoselectors Lindy 4 Port HDMI 2.0 18G Splitter mit Audio
Lindy 4 Port HDMI 2.0 18G Splitter mit Audio

LINDY

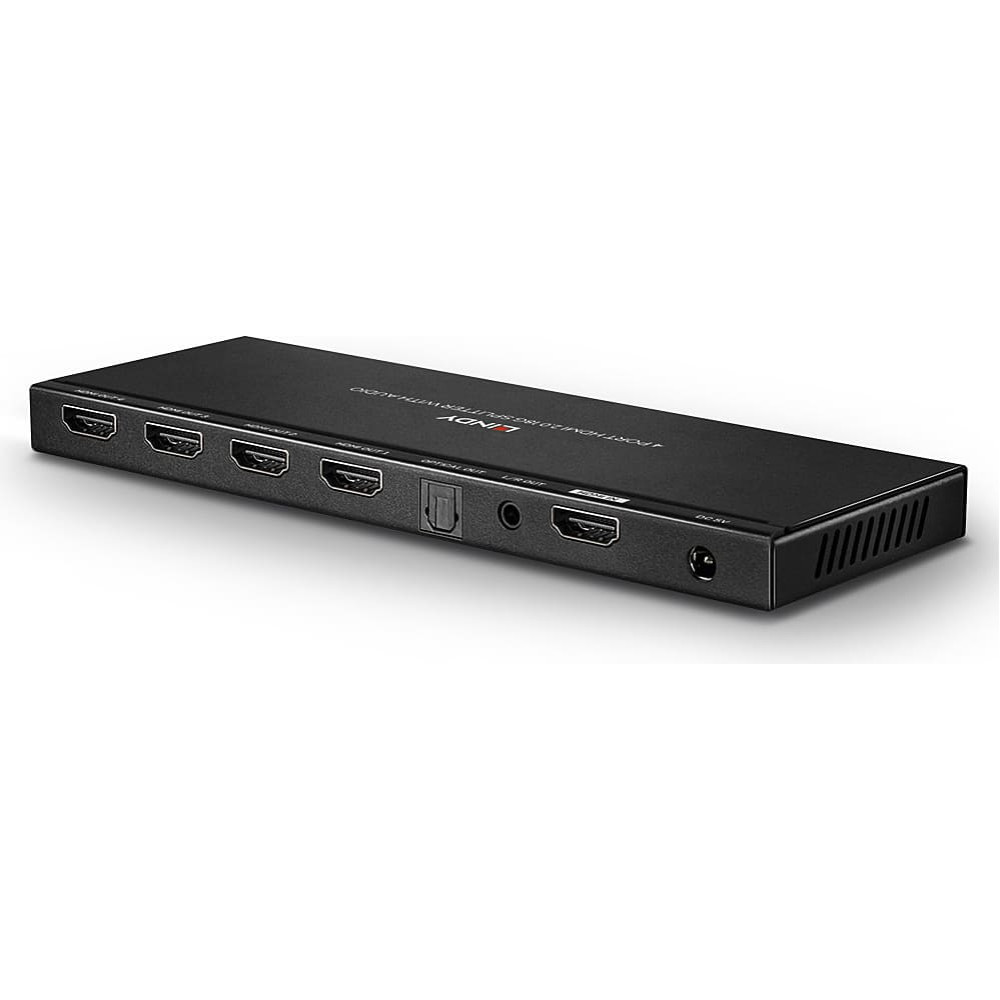

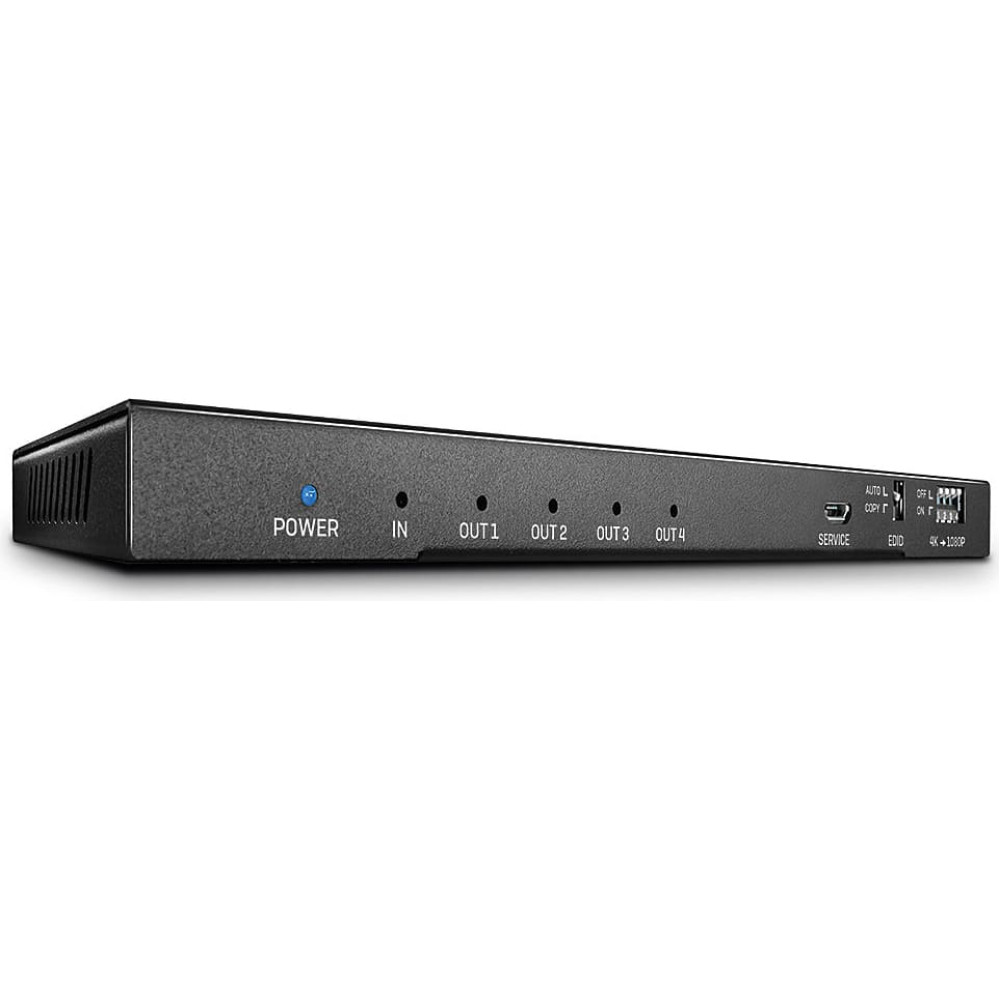

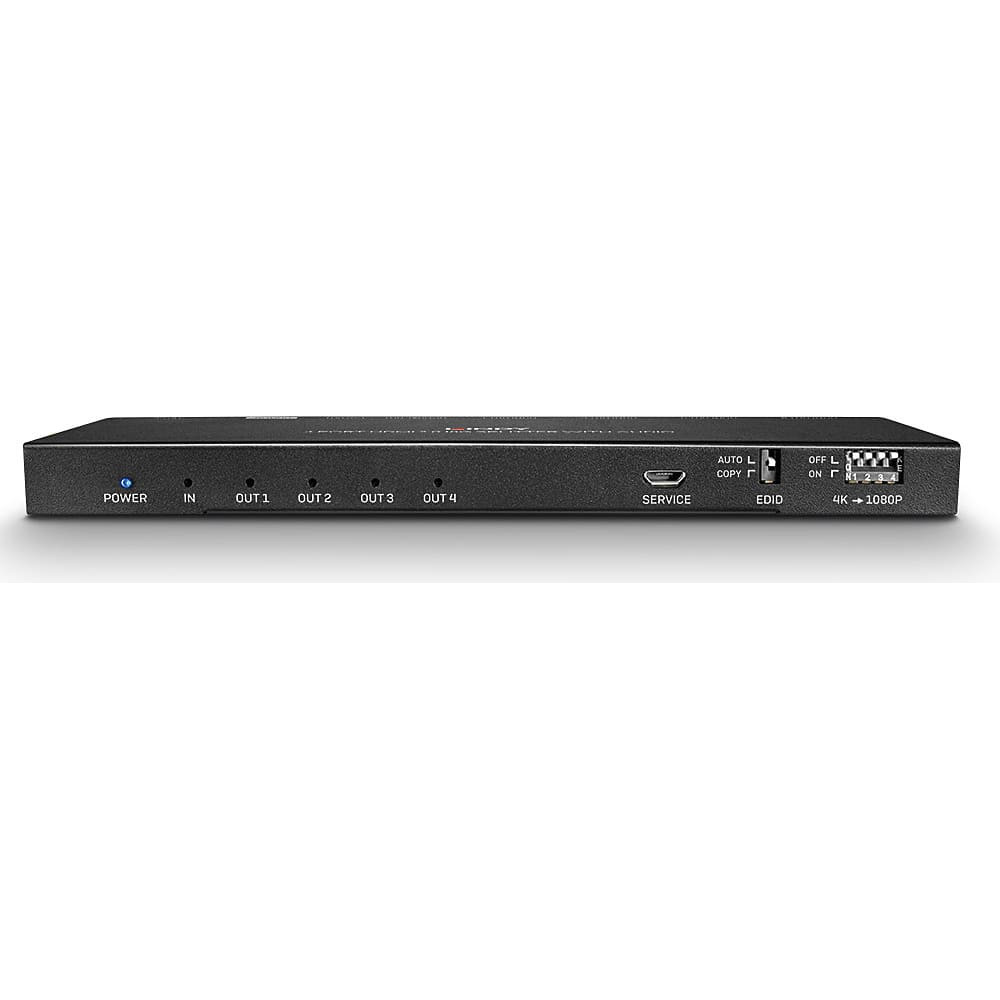

Lindy 4 Port HDMI 2.0 18G Splitter mit Audio

Product Code: 38231
Barcode 4002888382311

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
ac adapter included: Yes
audio ports quantity: 2
country of origin: CN
dc-in jack: Yes
depth: 14.4 mm
harmonized system (hs) code: 85176990
hd type: 4K Ultra HD
hdcp: Yes
hdmi version: 2.0
height: 63 mm
housing material: Metal
led indicators: Power
manual: Yes
maximum refresh rate: 60 Hz
maximum resolution: 4096 x 2160 pixels
operating relative humidity (h-h): 20 - 90%
operating temperature (t-t): 0 - 40 °C
output current: 1 A
output voltage: 5 V
package depth: 55 mm
package height: 148 mm
package type: Box
package weight: 228 g
package width: 212 mm
packaging height: 5.5
packaging lenght: 21.2
packaging width: 14.8
product colour: Black
storage temperature (t-t): -20 - 60 °C
video out: 4x HDMI
video port type: HDMI
video ports quantity: 5
warranty: 2.0
width: 180 mm
Description

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supports Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • Supported Audio:
    • Audio Pass-through
    • LPCM 2CH
    • Up to 7.1CH (Optical)
  • Separate Audio Ports:
    • 3.5mm (Female)
    • Toslink (Optical)
  • CEC Support: -
  • Serial Interface: -
  • Special Features: Downscaler Function, EDID Emulation



Connectors

  • Input: HDMI Type A (Female)
  • Output: 4 x HDMI Type A (Female), Toslink (Optical), 3.5mm (Female)
  • Control: -
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 180x14.4x63mm (7.09x0.57x2.48in)
  • Housing Material: Metal
  • Net Weight: 0.122kg (0.27lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 212x55x148mm (8.35x2.17x5.83in)
  • Gross Weight: 0.228kg (0.5lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • 4 Port HDMI Splitter with Audio
  • Multi-Country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38231
  • EAN: 4002888382311
