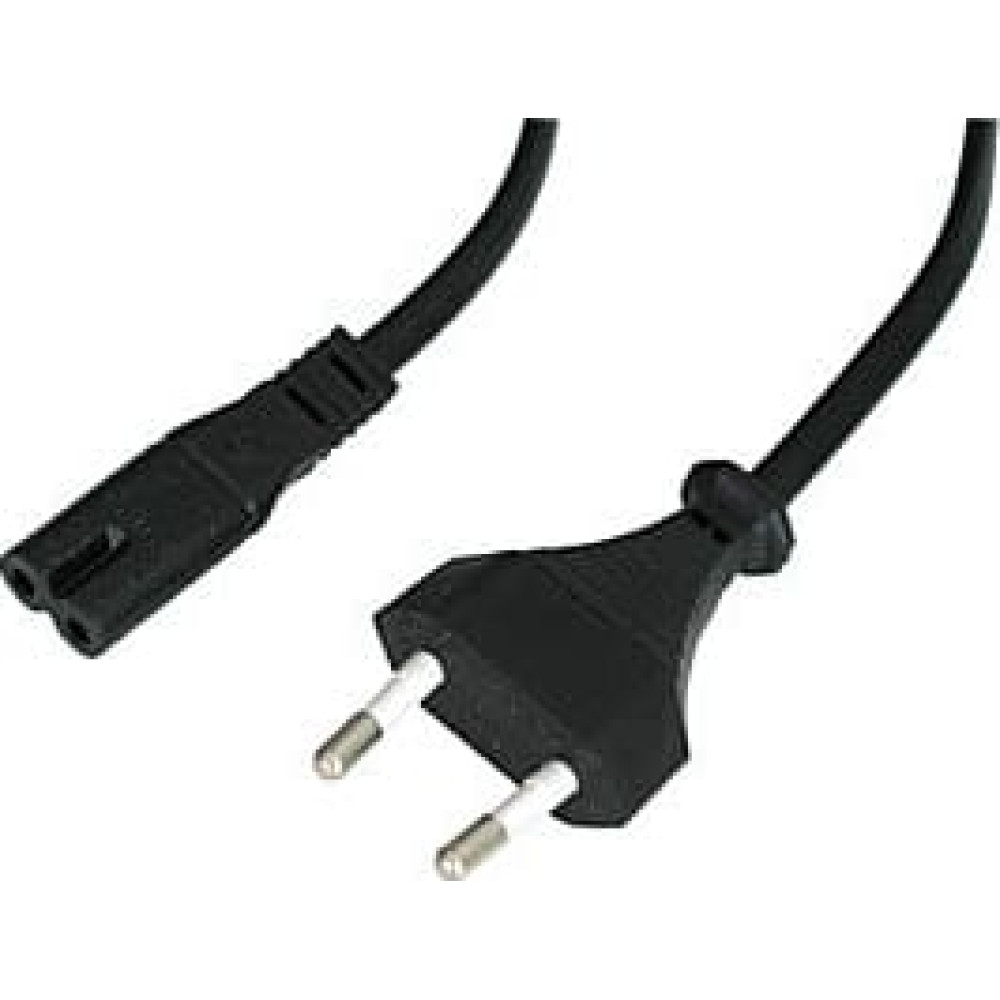

Connectors

• Connector A: Euro Plug CEEE 7/16
• Connector B: IEC C7
• Housing Material: PVC
• Pin Construction:
  • A: Brass
  • B: Phosphor Bronze
• Pin Plating: Nickel
• Dimensions (approx.) WxDxH:
  • A: 35.5x45.5x13.7mm (1.4x1.79x0.54in)
  • B: 15.8x57x8mm (0.62x2.24x0.31in)

Cable Construction

• Length: 3m (9.84ft)
• Colour: Black
• Conductor Material: Copper
• Cable Material: H03VVH2-F 2x0.75mm²
• Number of Wires: 2
• Wire Gauge: 0.75mm²
• Jacket Diameter: 5.5*3.5mm (0.22*0.14in)
• Jacket Material: PVC

Specifications

• Rated Voltage and Current: 2.5A/250V
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 30422
• EAN: 4002888304221

This product is also available in other lengths

• 30421 - 2m (6.56ft)
• 30422 - 3m (9.84ft)
• 30423 - 5m (16.40ft)
