Metz Connect OpDAT patch cord, SC-D/LC-D OS2, 15 m

METZ CONNECT

Metz Connect OpDAT patch cord, SC-D/LC-D OS2, 15 m

Produkta kods: 151P1EOJOA5E
Svītrkods: 4250184189688

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
aramid strain relief: yes
bend insensitivity: yes
bend radius: 15 mm
cable lsoh: yes
cable type: Duplex Cable
colour: yellow
connection ports: SC / LC
crossed: yes
depth: 20 cm
depth of packaging (single piece): 200 mm
external cable: no
external cable diameter: 2.0 x 4.2 mm
fibre section: Single mode 9/125µm OS2
flame retardant according to iec 60332-1-2: yes
garums: 15 m
gross weight: 0.124
halogen free according to iec 60754-2: yes
height: 4.5 cm
height of packaging (single piece): 30 mm
low smoke according to iec 61034-2: yes
manufacturer: METZ CONNECT
operating temperature max.: 60 °C
operating temperature min.: -10 °C
package weight (single piece): 0.124 kg
product group: Fibre optic cable
product type: Fibre Optic Jumper Cables OS2
quantity of fibre: 2
side 1 connector type: SC
side 2 connector type: LC
storage temperature max.: 60 °C
storage temperature min.: -10 °C
weight: 131 g
width: 20 cm
width of packaging (single piece): 180 mm
Preces apraksts

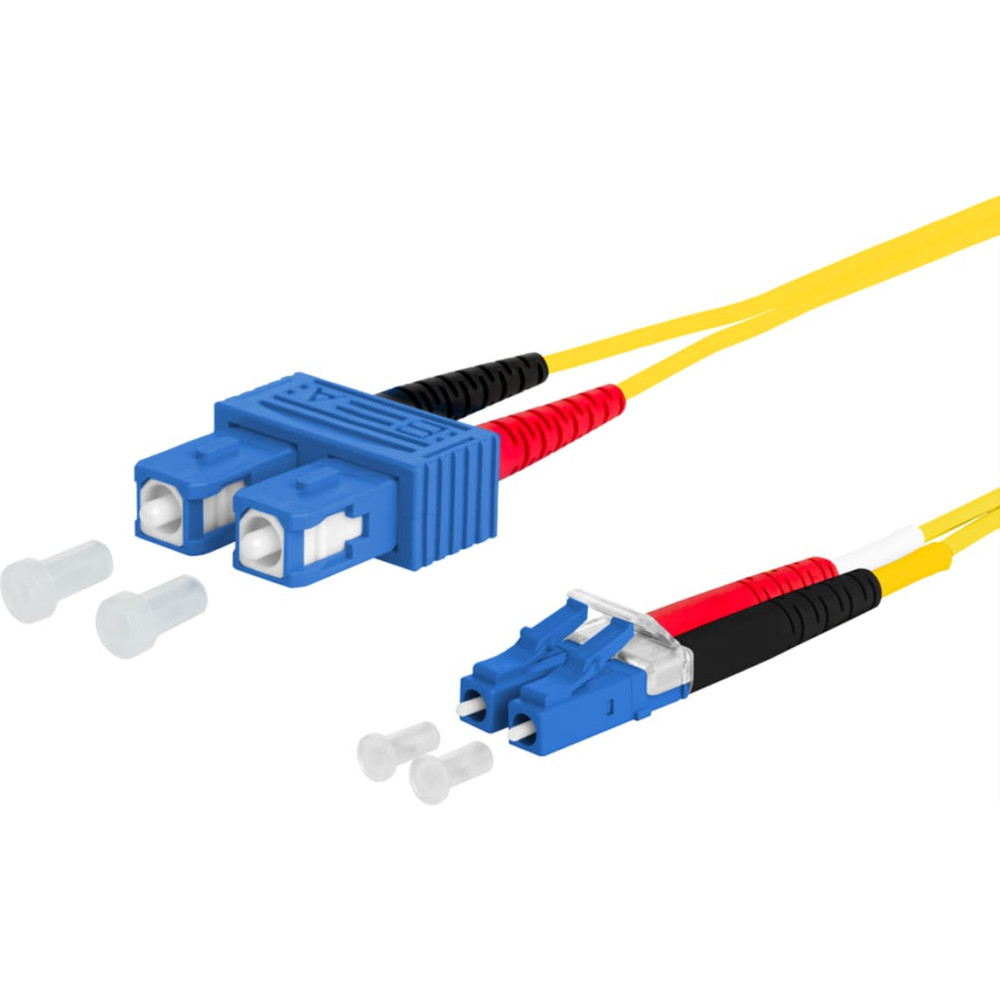

Single mode patch cord I-V(ZN)H E9/125 OS2

  • single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible to G.652.D
  • outer diameter 2.0 x 4.2 mm
  • halogen-free LSHF-FR sheath with low smoke development, flame retardant
  • duplex cord as zip-cord (figure 8) with two tight buffered fibers and aramide strain relief
  • 100 % tested
