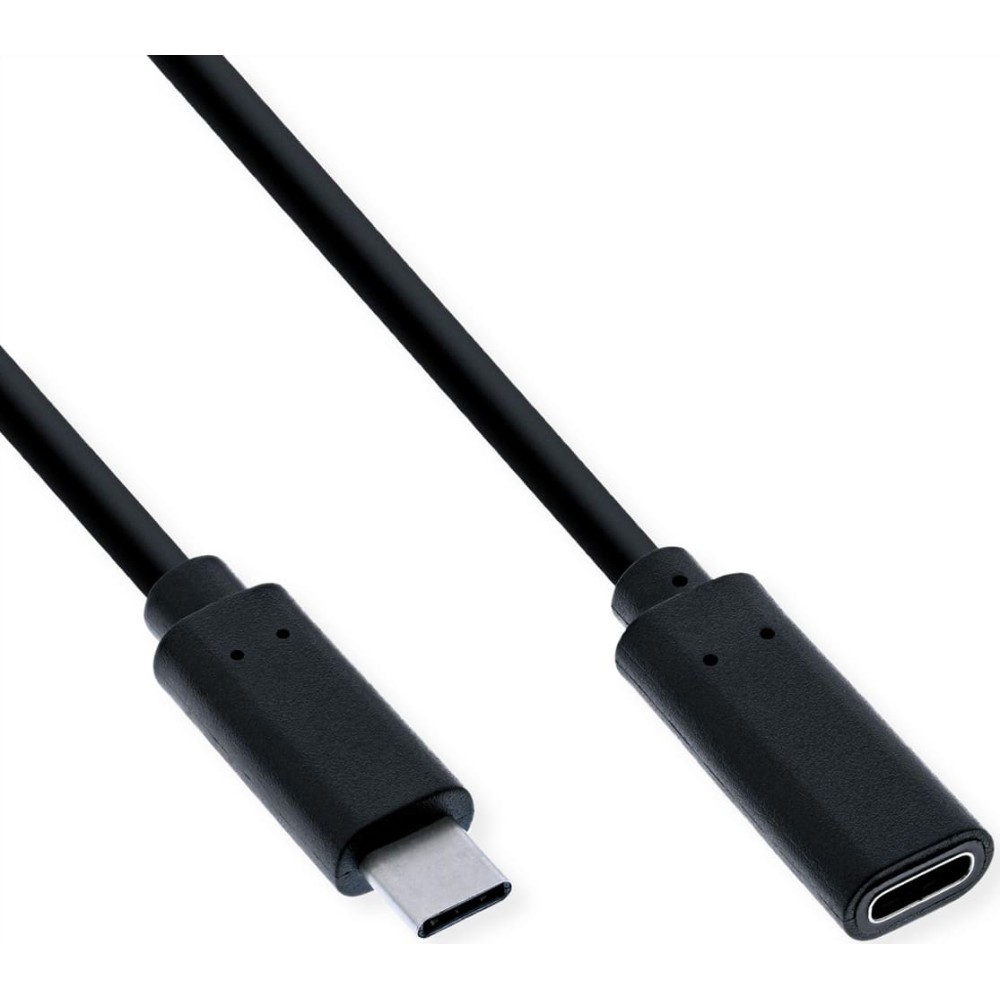

Value Type C Video Extension Cable, USB-C (DP Alt Mode), C-C, M/F, black, 1.5 m

Produkta kods: 11.99.5496
Svītrkods: 7630049675766

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
area of application: External
cable shielding: Screened
colour: black
colour (cable): black
current catalog edition: 25.1
depth of packaging (single piece): 90 mm
garums: 1.5 m
gross weight: 0.035
height of packaging (single piece): 10 mm
manufacturer: VALUE
max. resolution: 3840 x 2160 @60Hz (4K, UHD-1)
operating temperature max.: 45 °C
operating temperature min.: 0 °C
package weight (single piece): 0.035 kg
product group: Cable
product type: USB-C-Display cable
scope of delivery: Extension Cable
side 1 connector gender: Male
side 1 connector type: USB Type C (USB-C)
side 2 connector gender: Female
side 2 connector type: USB Type C (USB-C)
storage temperature max.: 70 °C
storage temperature min.: -20 °C
transfer quality: DisplayPort v1.2
weight: 62 g
width of packaging (single piece): 90 mm

Preces apraksts

VALUE SUB Type-C Video Extension Cable (DP Alt Mode) for screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!

  • Extension Cable for video transmission between sources and display devices that support USB-C Alternate Mode
  • Alternate Mode (DisplayPort Alt Mode) is part of the USB Type-C interface specification and allows the transmission of DisplayPort signals (see below)
  • Since the Type-C connector requires less space, it is often found on mobile devices (ultrabooks, notebooks/laptops) and anywhere where multiple connectors need to be combined in a small space, such as on a graphics card
  • For screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!

Please note: This cable is not recommended for USB data transfer or as a charging cable.

What is a USB-C DisplayPort (DP Alt Mode) cable?

  • Cables with Type-C connector can offer DisplayPort technology via an alternative mode (Alt mode).
  • Alt Mode allows USB-C ports to transfer data/video via multiple interfaces, including DisplayPort video interface
  • The USB-C ports capable of transferring DisplayPort signals are called USB-C DisplayPort or DP Alt Mode
  • Allow to connect video sources (e.g. PCs, Blu-Ray players, etc.) and display devices (e.g. TVs, projectors, etc.) that support DisplayPort to each other via their USB-C ports
  • The main confusion over USB-C DisplayPort cables emerges because not all USB-C ports, available on the hardware (e.g. notebooks…) features the DisplayPort Alt Mode functionality

Remark: Support of "Alternate Mode (DP Alt Mode)" required
