ROLINE

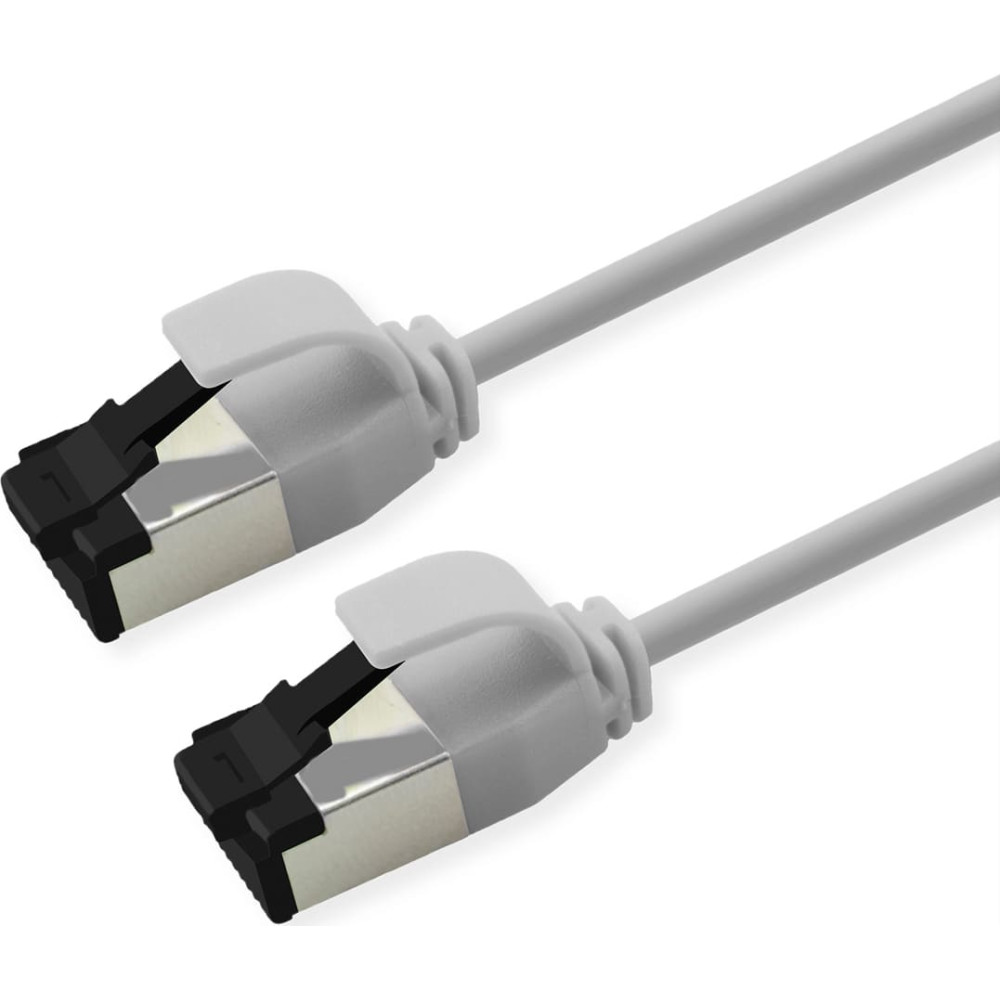

Roline U/FTP Patch Cord Cat. 8.1 (Class I), LSOH, SLIM, white, 2 m

Produkta kods: 21.15.3275
Svītrkods: 7630049636767

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
anti-kink sleeve: Moulded-on
assignment: EIA/TIA 568B
bend radius: 15.2mm
cable lsoh: yes
colour: white
conductor cross section (awg): AWG 32
conductor type: Stranded
connector type rj45: Standard
crossed: no
depth of packaging (single piece): 80
external cable diameter: 3.8mm +/- 0.2mm
garums: 2
gross weight: 0.046
height of packaging (single piece): 20
locking lever: yes
manufacturer: ROLINE
material (external cable mantle): TPE-LSZH
operating temperature max.: 75
operating temperature min.: -20
package weight (single piece): 0.046
product group: Twisted Pair Cable
product type: U/FTP patch cord
quantity of wires: 8
scope of delivery: Patch Cord
shield type: U/FTP
side 1 connector gender: Male
side 1 connector type: RJ-45
side 2 connector gender: Male
side 2 connector type: RJ-45
slim cable: yes
transfer quality: Cat8.1 / Class I
weight: 37.5
width of packaging (single piece): 80

Preces apraksts

High-quality, pre-assembled, slim, foil-shielded Category 8.1 (Class I) patch cord with shielded RJ-45 connectors on both ends for data rates of up to 40 gigabits per second. Suitable for use in patch panels or as a device connection cable. Moreover, it is halogen-free and flame-retardant (LSOH).

  • Pre-assembled foil-shielded Cat.8.1 (Class I) patch cord
  • With shielded RJ-45 connectors on both ends
  • Suitable for 40 Gigabit Ethernet networks
  • Durable thanks to molded kink protection
  • Pin assignment: 1:1 according to EIA/TIA568B, 8 wires
  • Construction: 8-wire stranded cable, pair shielding with aluminum foil
  • High-quality gold-plated contacts
  • Halogen-free, flame-retardant, low-smoke (LSOH)
  • Slim thanks to an a small outer cable diameter of only 3.8 ± 0.2mm
