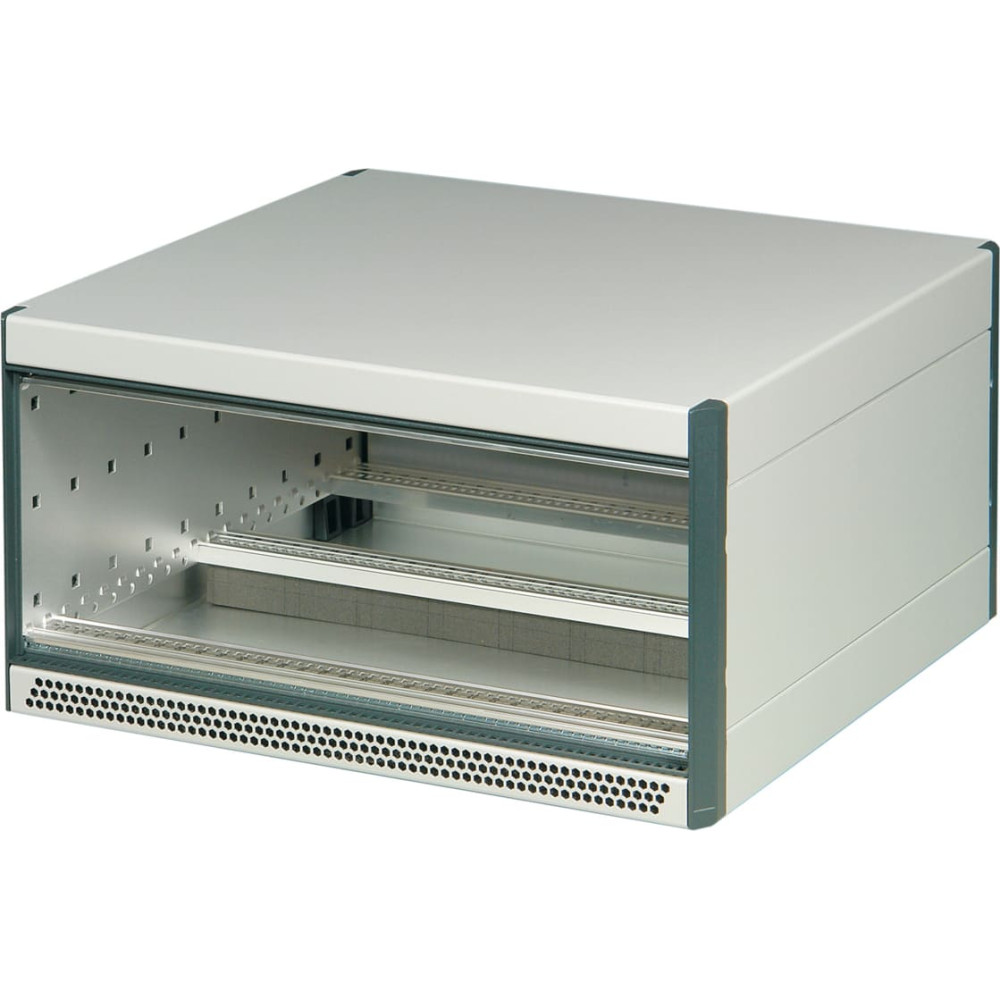

Schroff RatiopacPRO AIR Complete Case, Desktop, Retrofittable Shielding, Front Trim, 6/7 U, 84 HP, 375 mm

SCHROFF

Schroff RatiopacPRO AIR Complete Case, Desktop, Retrofittable Shielding, Front Trim, 6/7 U, 84 HP, 375 mm

Product Code: 24572043
Barcode 4036088033827

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 375.5 mm
depth of packaging (single piece): 130 mm
gross weight: 5.736
height: 310.35 mm
height of packaging (single piece): 510 mm
height units: 6 U
manufacturer: SCHROFF
maximum weight capacity: 25 kg
package weight (single piece): 5.736 kg
product group: SCHROFF 19" cabinets & expansion parts
product type: Ratiopac PRO
width: 448.9 mm
width of packaging (single piece): 480 mm
width units: 84 HP
Description

RatiopacPRO Air, complete enclosure with front panels, retrofittable shielding, 6 / 7 U, 84 HP, 375 mm

RATIO.PRO AIR 6/7U 84HP 375D

The enclosure has 2 x 1/2 U free space for ventilation - Enclosure with front panel, with pre-mounted expansion parts for Eurocards and backplane with insulating strips, no visible screws - Symmetrical design, identical front and rear, ventilation honeycombs in the top and bottom panels - Unshielded (EMC shielding can be retrofitted)
