Sākums Tīkla produkti PoE LAN ierīces Digitus Gigabit Ethernet PoE++ injector, 802.3bt

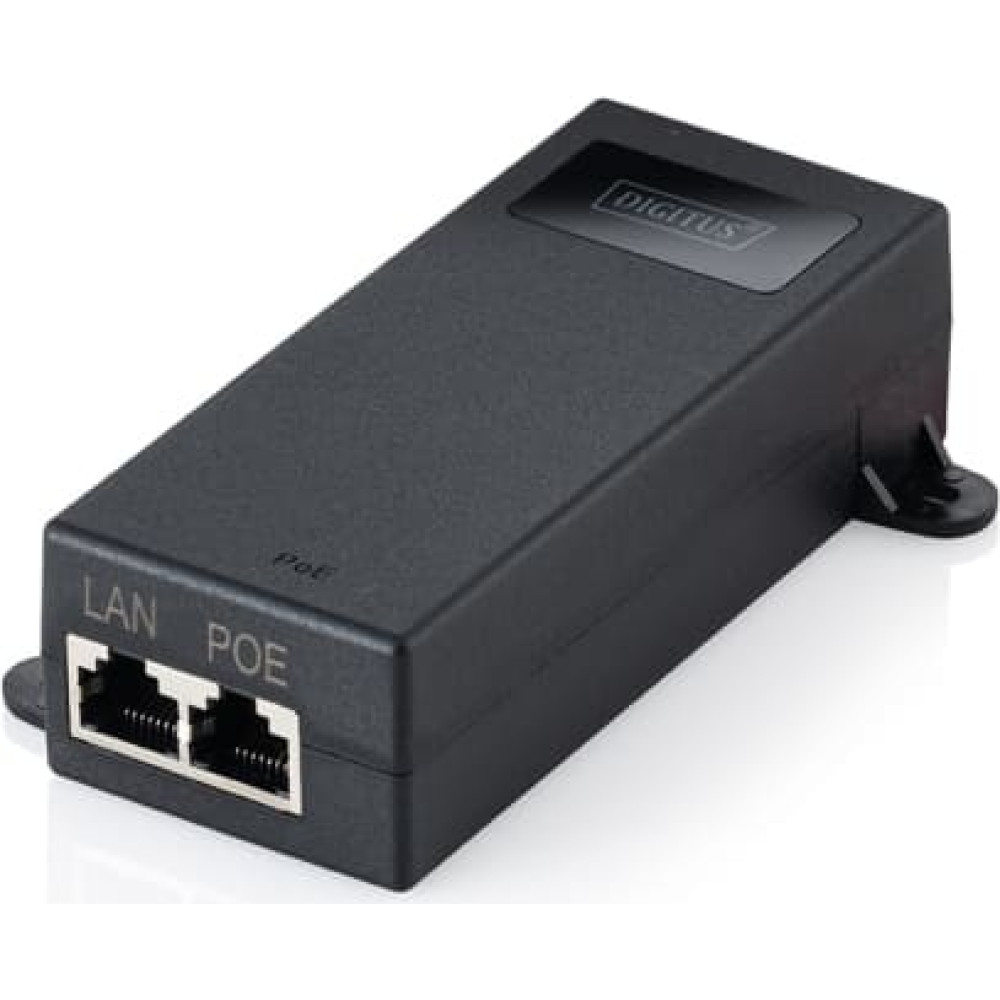

Digitus Gigabit Ethernet PoE++ injector, 802.3bt

Produkta kods: DN-95104-1

Svītrkods: 4016032505785

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija

Preces apraksts

Līdzīgas preces

Specifikācija

country of origin: CN

depth: 0.000

height: 0.000

height(cm): 8.5

length(cm): 11.8

volume(cm3): 752.25

weight(kg): 0.03025

width: 0.000

width(cm): 7.5

Preces apraksts

Gigabit Ethernet PoE++ Injector, 802.3bt Power Pins:4/5(+),7/8(-) and 1/2(-), 3/6 (+), 60W

Minimize your cabling effort for wireless APs, IP phones or any other PoE-enabled device!

Complies with the 802.3bt PoE++ standard
Easy merging of power and data cables into a single cable
Expand your network where there are no power lines or sockets
No configuration required
The output has a current limiter, short-circuit protection and automatic terminal device detection and classification

With the help of the Digitus PoE injector, you can minimize your cabling effort when installing PoE-capable devices such as IP network cameras. The data and power supply for the devices is only fed in via an Ethernet cable. This eliminates the need to lay a separate power cable and enables you to expand your network even where there are no sockets or power cables. The injector is fully compatible with the IEEE 802.3bt Ultra PoE standard and delivers an output power of 60 watts.

PoE Power budget: 60 W
PoE standard: IEEE802.3bt (PoE++)
Ethernet speed: Gigabit
Industrial usage: false
Complies with the 802.3bt PoE++ standard
Easy merging of power and data cables into a single cable
Expand your network where there are no power lines or sockets
No configuration required
Supports all IEEE 802.3bt-compliant PoE devices (e.g. access points, VoIP telephones and IP cameras)
Transmission range up to 100 m - with an additional PoE extender even up to 400 m
Self-consumption: 1.6W max
Self-consumption (fully utilized): 10 W Max.

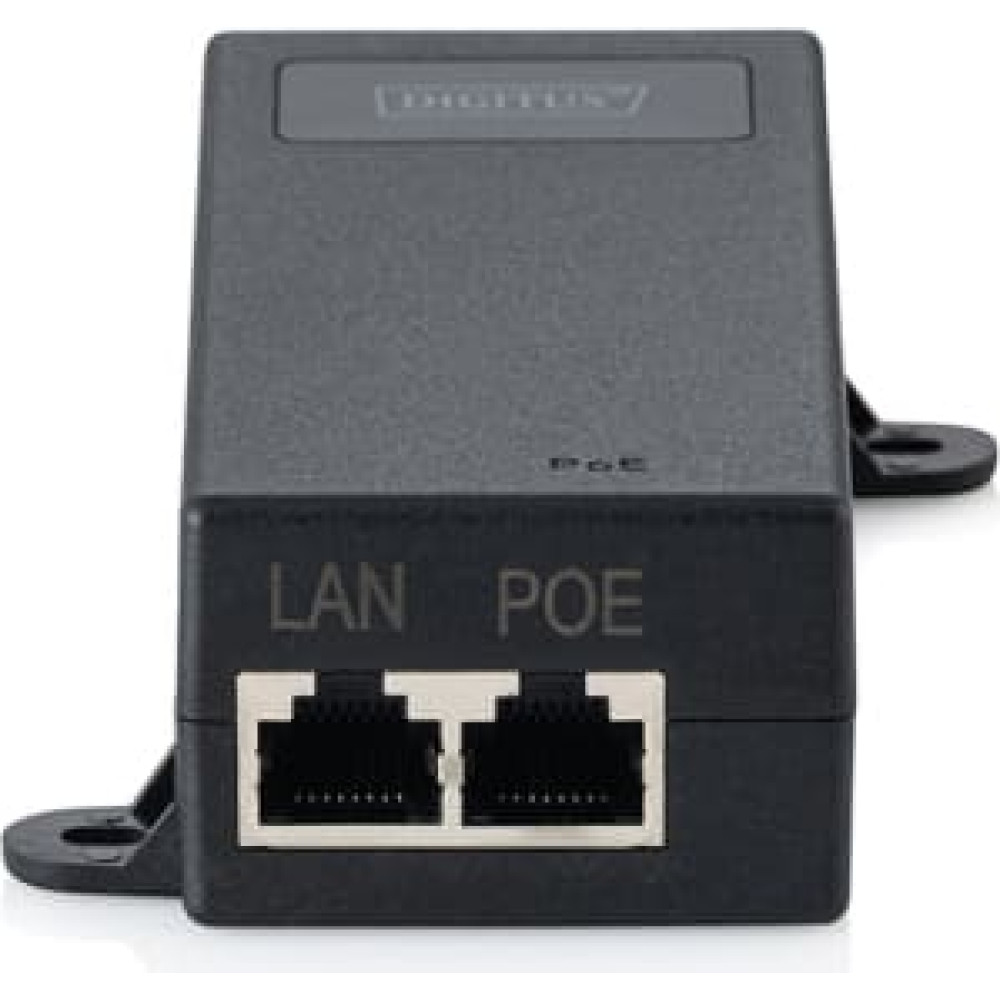

Input: 1x RJ-45 (data)
Output: 1x RJ-45 (power & data)
Data output: 100/100/1000 Mbit/s Gigabit
Output power: 60 watts
Output voltage: DC 55V
Operating temperature range: -10 °C to +45 °C
Dimensions: 193 mm x 85 mm x 41 mm
Weight: 164.7 g
The output has a current limiter, short-circuit protection and automatic terminal device detection and classification
Power consumption specification: 100 - 240V AC 1.5A 50/60Hz
Device Power consumption ( max. ): 1,172W

Package content:
PoE injector
QIG (Quick Installation Guide)
Power supply unit
