Sākums Kabeļi Optiskie kabeļi Optiskie kabeļi Metz Connect OpDAT patch cord, LC-D/LC-D OS2, 5 m

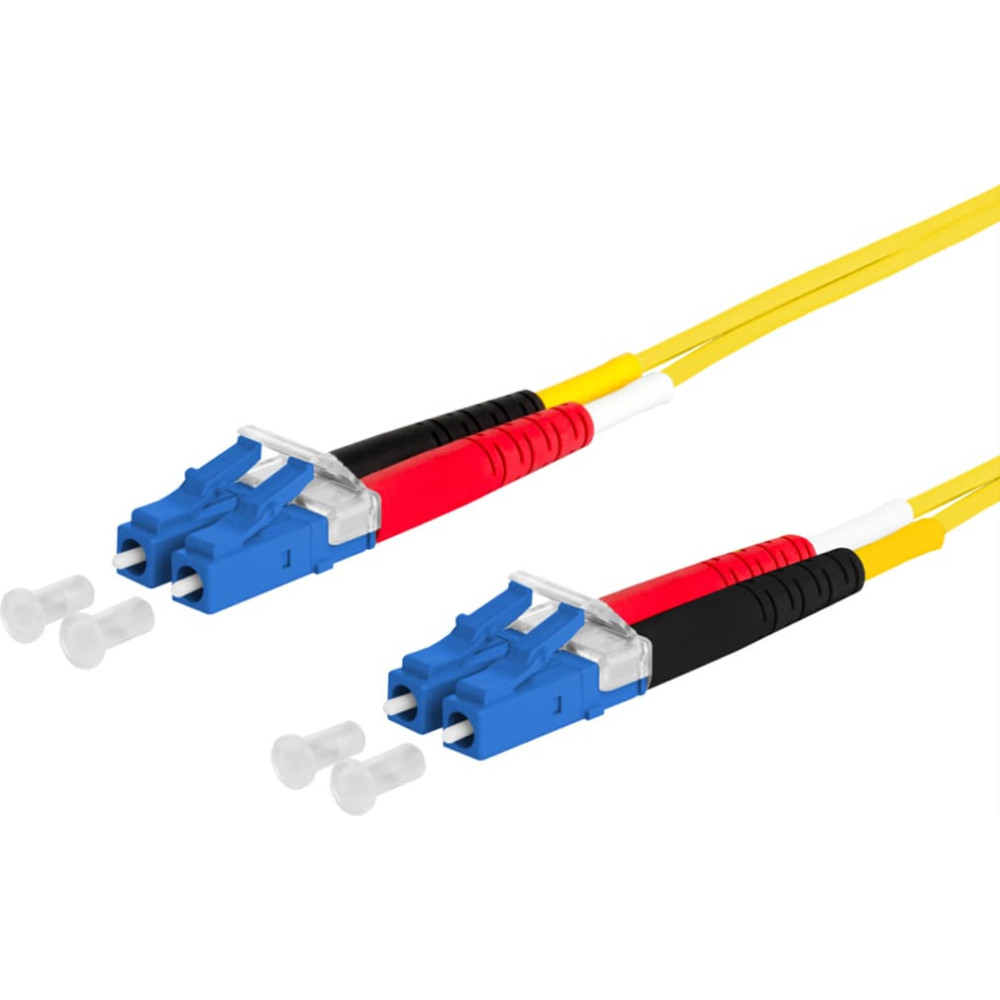

Metz Connect OpDAT patch cord, LC-D/LC-D OS2, 5 m

METZ CONNECT

Metz Connect OpDAT patch cord, LC-D/LC-D OS2, 5 m

Produkta kods: 151P1JOJO50E
Svītrkods: 4250184147770

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
aramid strain relief: yes
bend insensitivity: yes
cable lsoh: yes
cable type: Duplex Cable
colour: yellow
connection ports: LC / LC
crossed: yes
depth of packaging (single piece): 200
external cable diameter: 2.0 x 4.2 mm
fibre section: Single mode 9/125µm OS2
flame retardant according to iec 60332-1-2: yes
garums: 5
gross weight: 0.047
halogen free according to iec 60754-2: yes
height of packaging (single piece): 30
low smoke according to iec 61034-2: yes
manufacturer: METZ CONNECT
operating temperature max.: 60
operating temperature min.: -10
package weight (single piece): 0.047
product group: Fibre optic cable
product type: Fibre Optic Jumper Cables OS2
side 1 connector type: LC
side 2 connector type: LC
storage temperature max.: 60
storage temperature min.: -10
weight: 46
width of packaging (single piece): 160
Preces apraksts

Single mode patch cord I-V(ZN)H E9/125 OS2

  • single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible to G.652.D
  • outer diameter 2.0 x 4.2 mm
  • halogen-free LSHF-FR sheath with low smoke development, flame retardant
  • duplex cord as zip-cord (figure 8) with two tight buffered fibers and aramide strain relief
  • 100 % tested
