Specification

• AV Interface: HDMI®
• Interface Standard: 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4K60Hz 4:4:4 8bit
• EDID presets:
  • DISPLAY
  • 1080p LPCM
  • 1080p DTS/DOLBY
  • 4K30 LPCM
  • 4K30 DTS/DOLBY
  • 4K60 LPCM
  • 4K60 DTS/DOLBY
  • USER DEFINED
• HDCP Support: 2.2
• Special Features: EDID upload, CEC and HDCP management

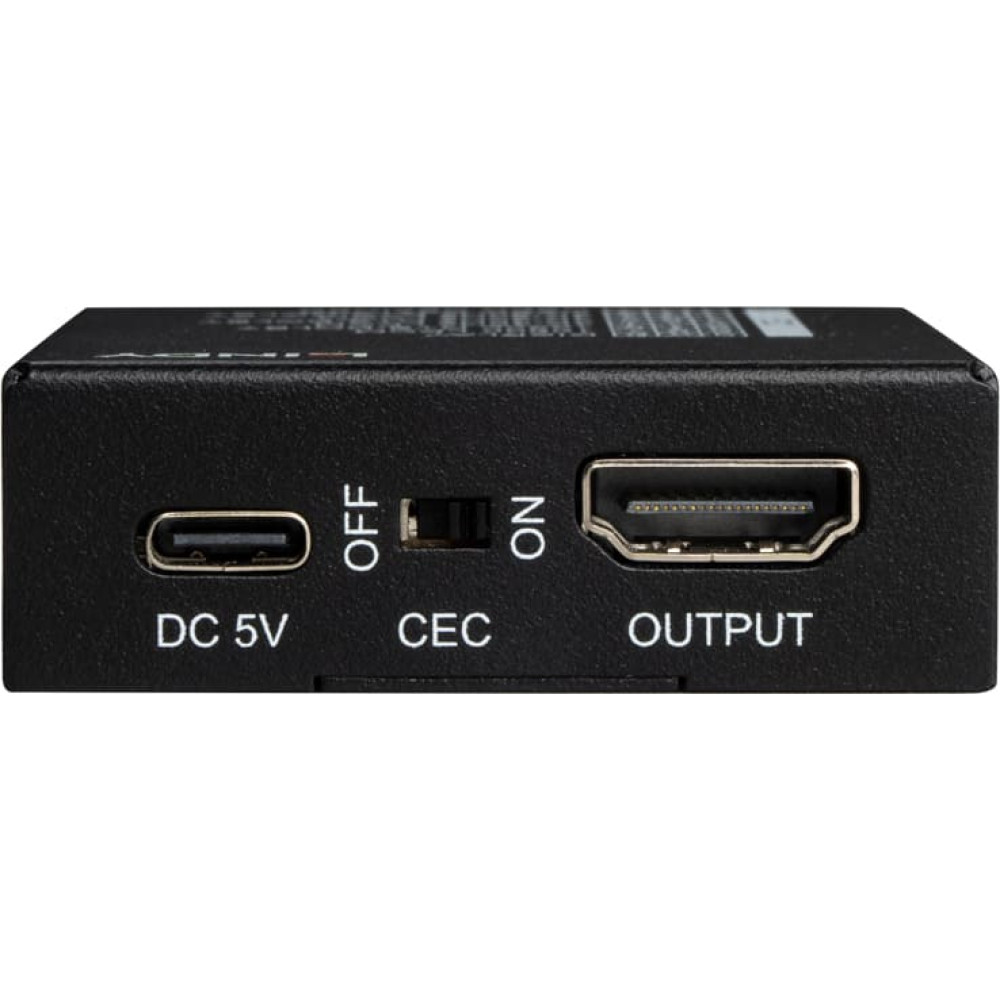

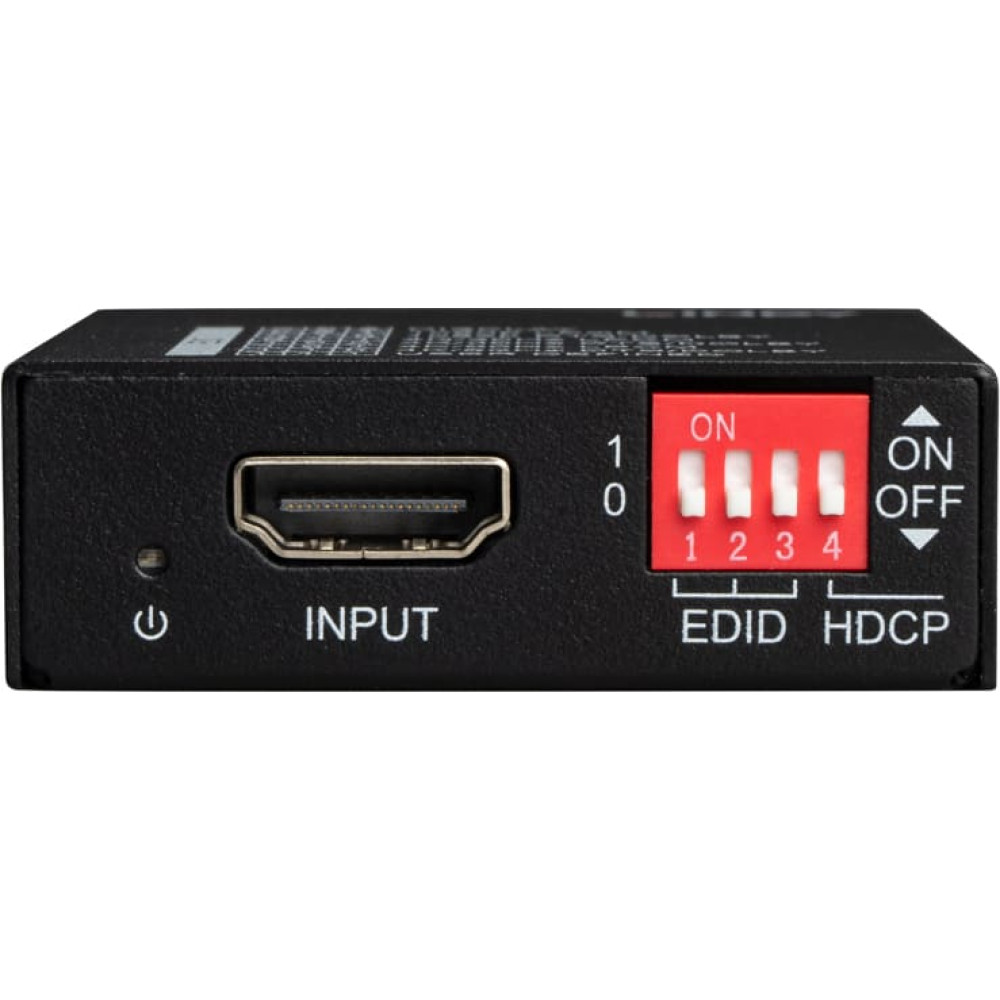

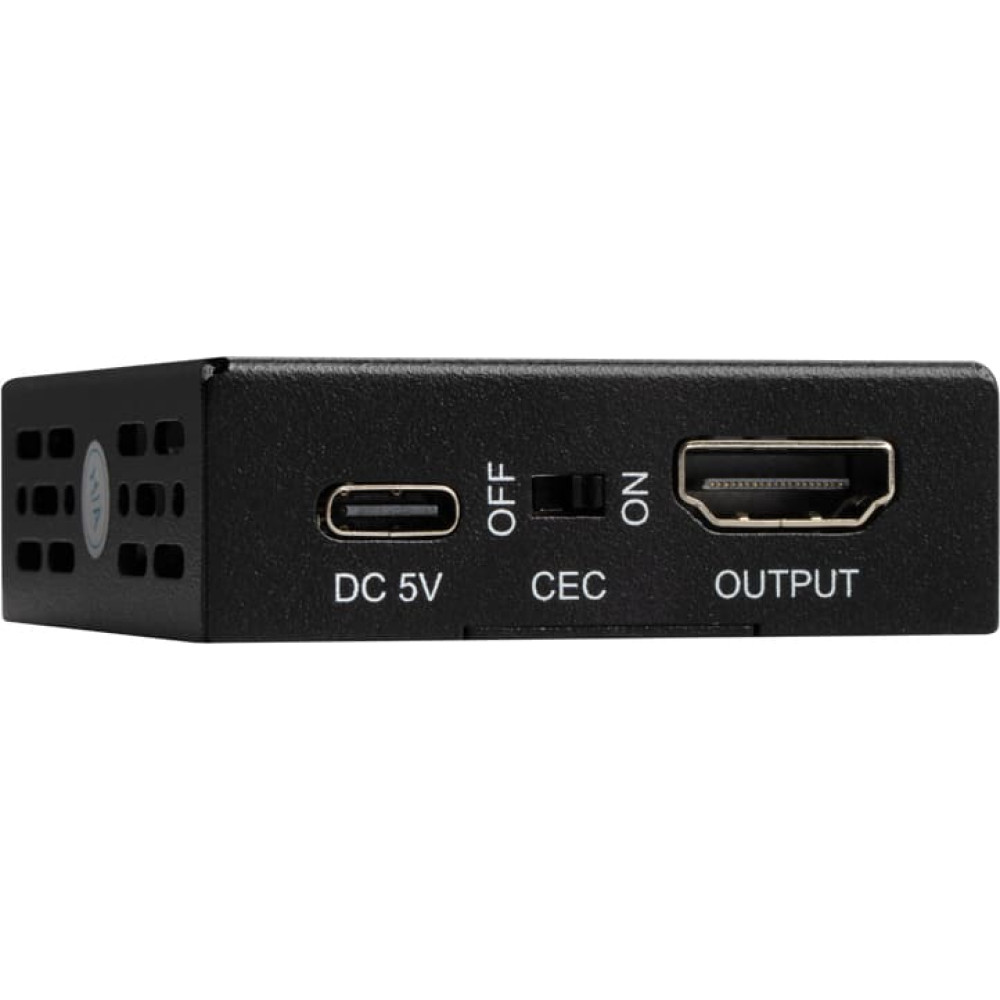

Connectors

• Input: HDMI® (Female)
• Output: HDMI® (Female)
• Power: Type C (Female)

Physical Properties

• Dimensions WxDxH: 54x60x18mm (2.13x2.36x0.71in)
• Housing Material: Metal
• Net Weight: 0.081kg (0.18lb)
• Operating Temperature: -10°C - 55°C (14°F - 131°F)
• Storage Temperature: -25°C - 70°C (-13°F - 158°F)
• Humidity: 10 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 64x65x23mm (2.52x2.56x0.91in)
• Gross Weight: 0.094kg (0.21lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH, CP65

Package Contents

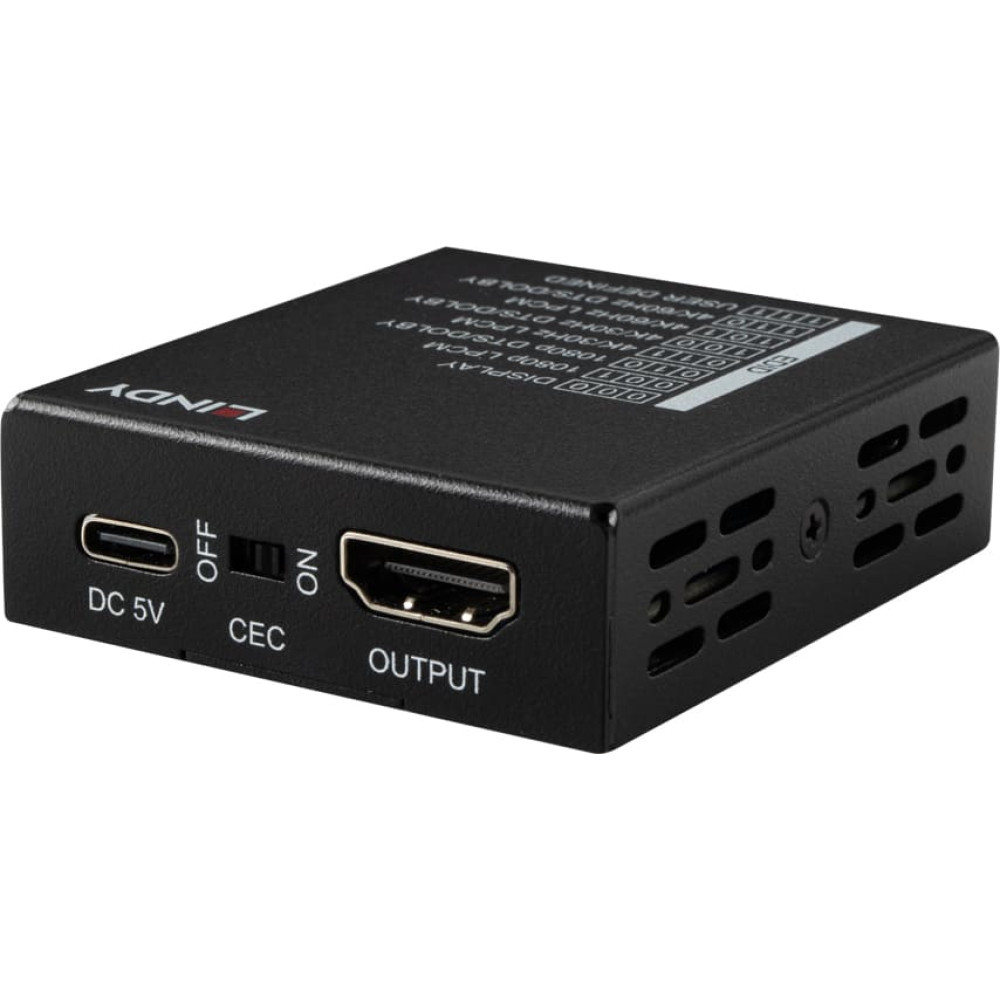

• EDID Manager
• Lindy Manual

Purchasing Information

• No.: 32112
• EAN: 4002888321129
